Dirt King Fabrication

'03-09 Toyota 4Runner Long Travel Kit

$3,499.00
SKU: DK-812908-B
Upper Control Arm Option:

Upper Control Arm Option
2WD or 4WD:

2WD or 4WD
Quantity:

'03-09 Toyota 4Runner Long Travel Kit

Bushing Upper Control Arms / 2WD

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

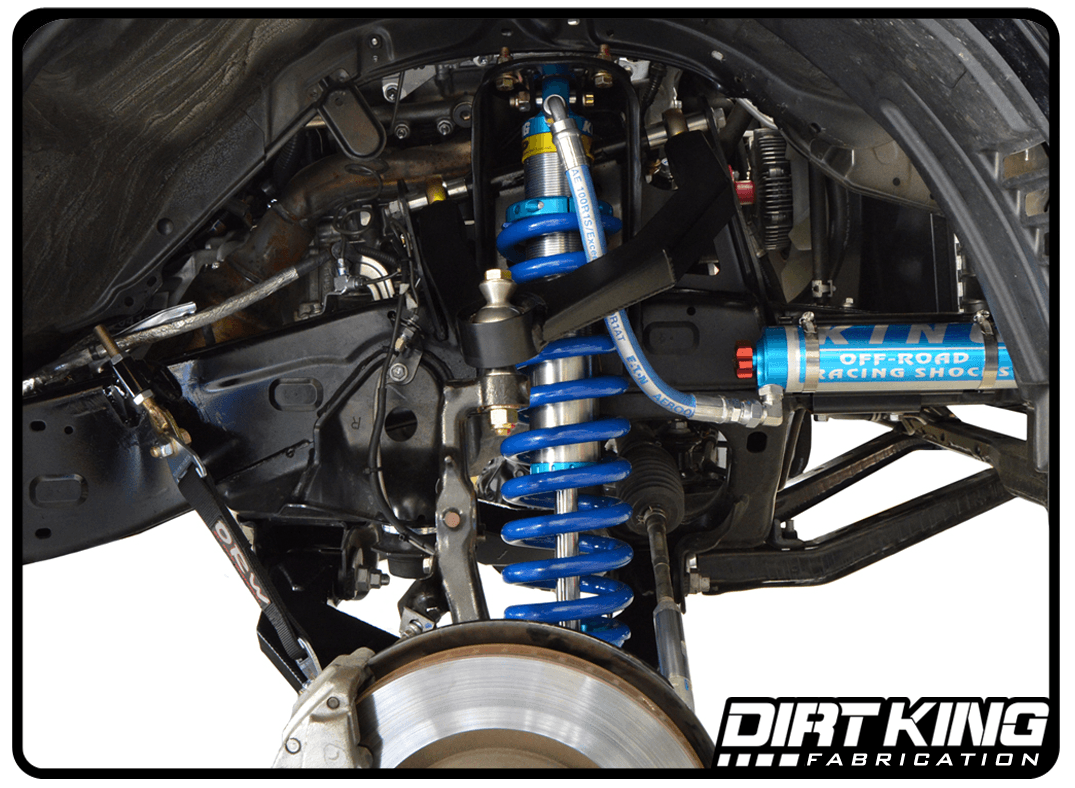

DK-812908-The Dirt King Fabrication long travel kit for the 2003-2009 Toyota 4Runner was developed to drastically improve the Toyota 4Runner off-road handling without compromising its day to day driving characteristics. This suspension system allows for 13.5” of travel and accepts up to a 35” tire. The kit is compatible with 2WD models and 4WD models along with the purchase of extended axle shafts. Our upper and lower arms are designed with 1” stainless steel uniballs for the outer pivots instead of ball joints for strength and increased articulation. Compared to the competition we’ve gained several inches of ground clearance by mounting the lower arms in the factory location instead of below it. This kit is CAD designed, thoroughly tested, and 100% made in America.

KEY FEATURES:
  • Bolt on application, minimal modifications required
  • Utilizes American made FK bearings
  • 4130 chromoly uniball cups
  • ¾” heims for the UCA’s
  • Delrin bushings for the LCA’s
  • Zinc plated inner bushing sleeves
  • Grease fittings for easy servicing
  • 3/16" and 1/8” boxed plate construction
  • Internally ribbed with extrusions for weight reduction
  • Bump stop plating
  • Limit strap tabbing
  • Bypass Tabbing
SPECS:
  • Wheel Travel: 13.5”
  • Amount of Lift: 0-4”
  • Track Width: 3.5” wider per side
  • Maximum Tire Size: 35”
  • Maximum Backspacing: 4.75”
  • Minimum Rim Size: 16”
  • Coil over Shock Size: 2.5” x 8”
  • Bypass Shock Size: 2.5” x 8”
  • Bump Stop Size: 2.0” x 2.0”

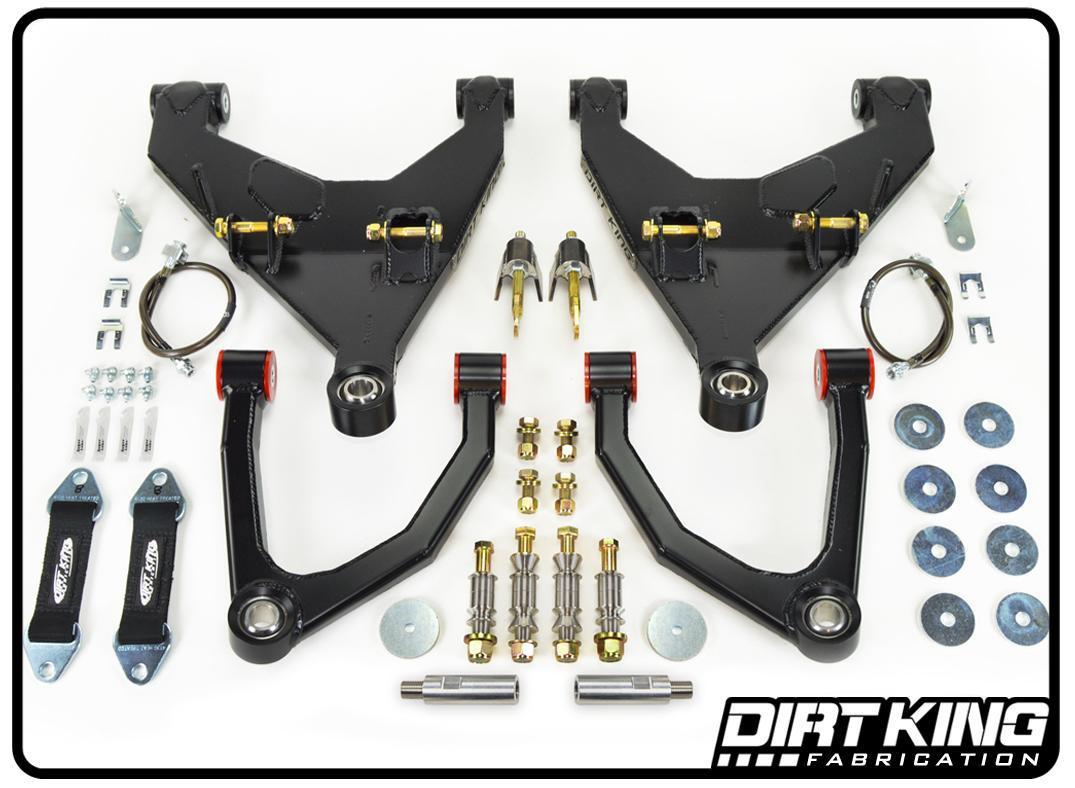

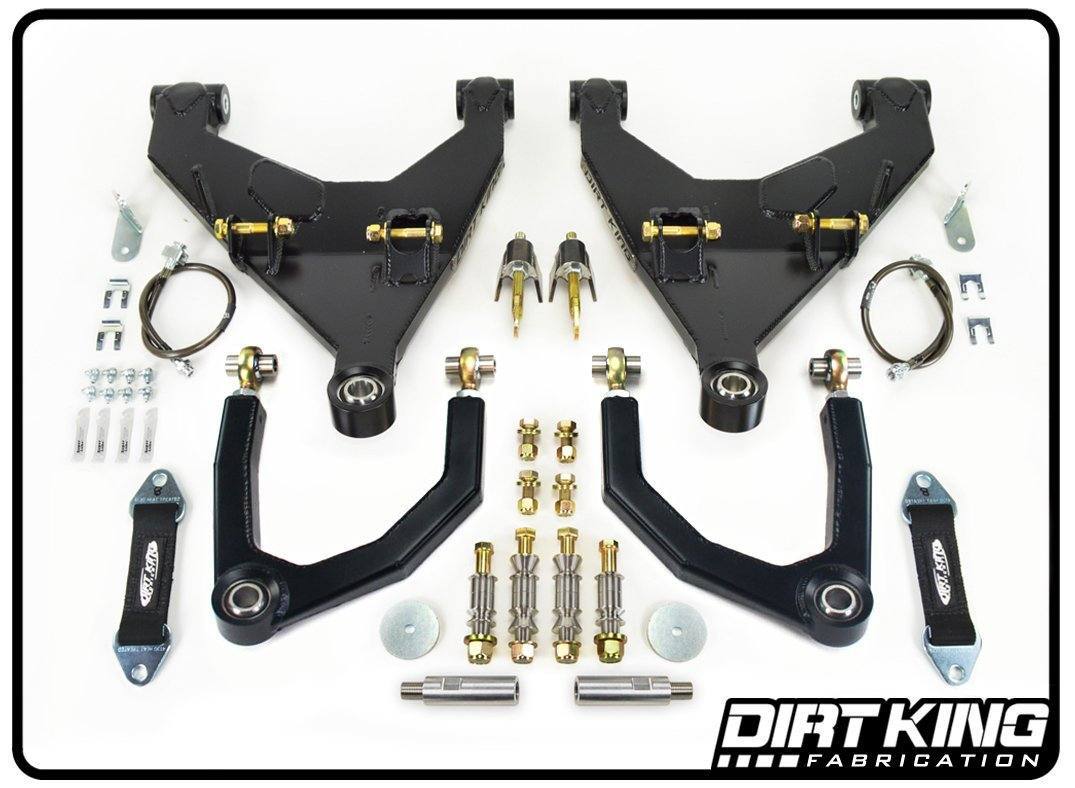

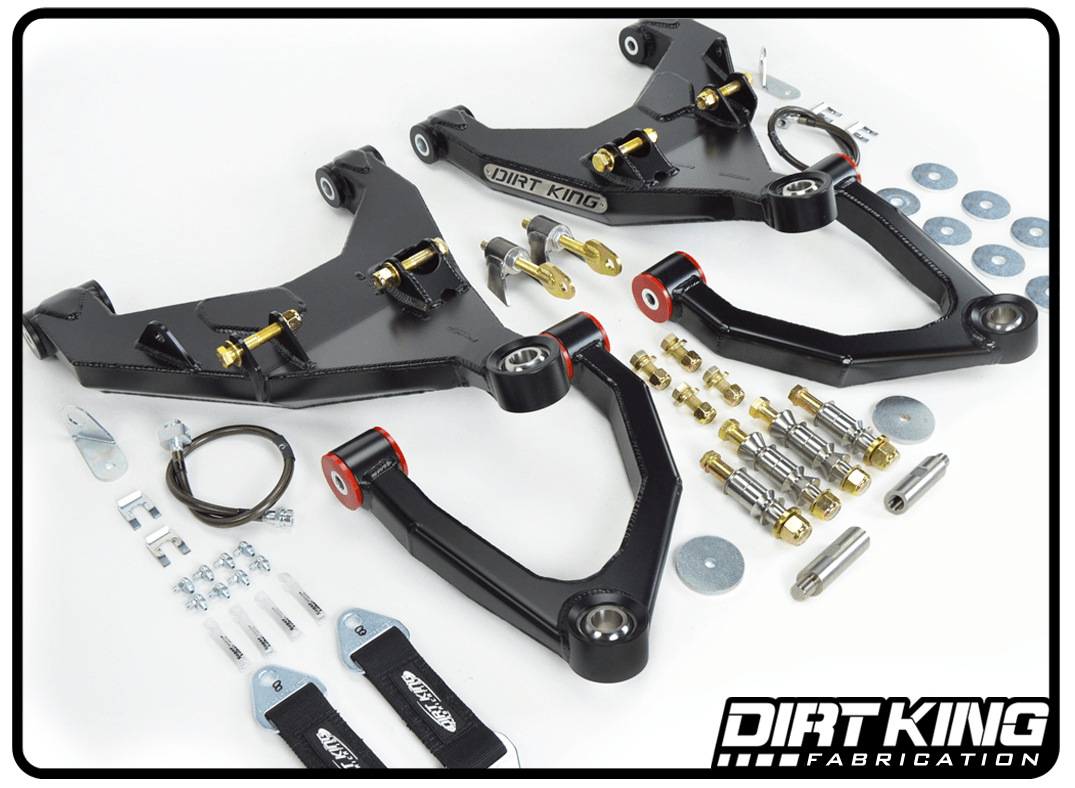

WHAT'S INCLUDED:
  • Boxed plate upper control arms (Bushing or Heim)

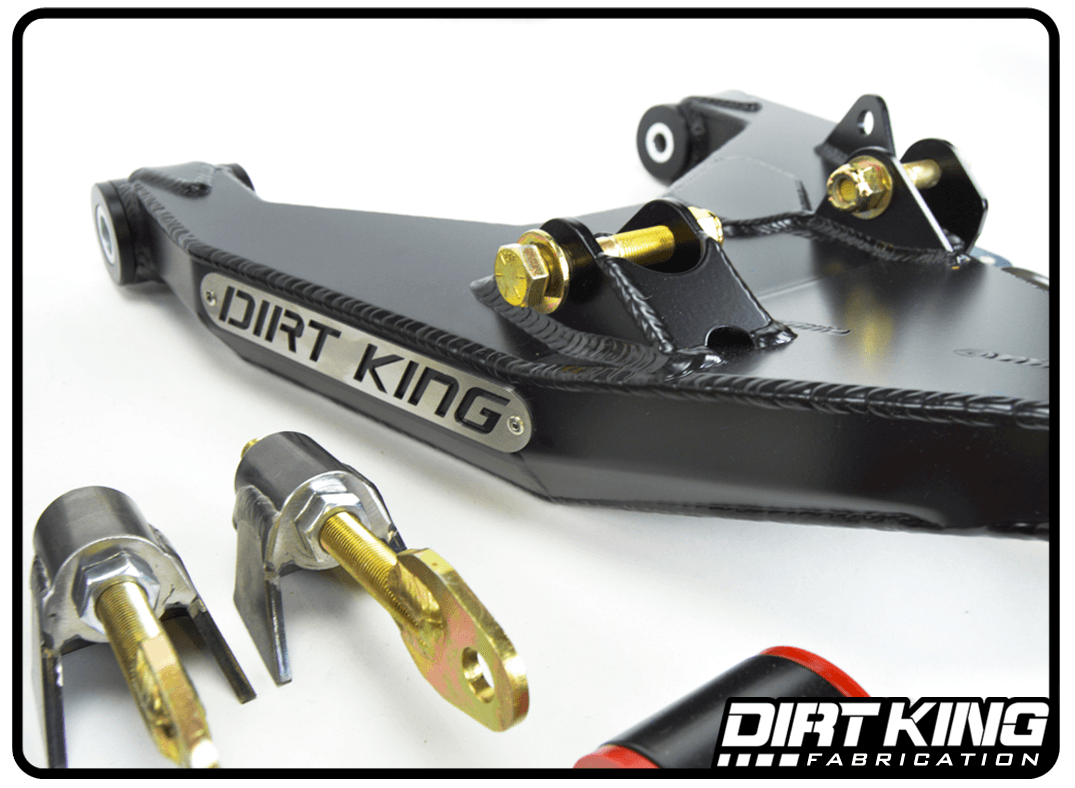

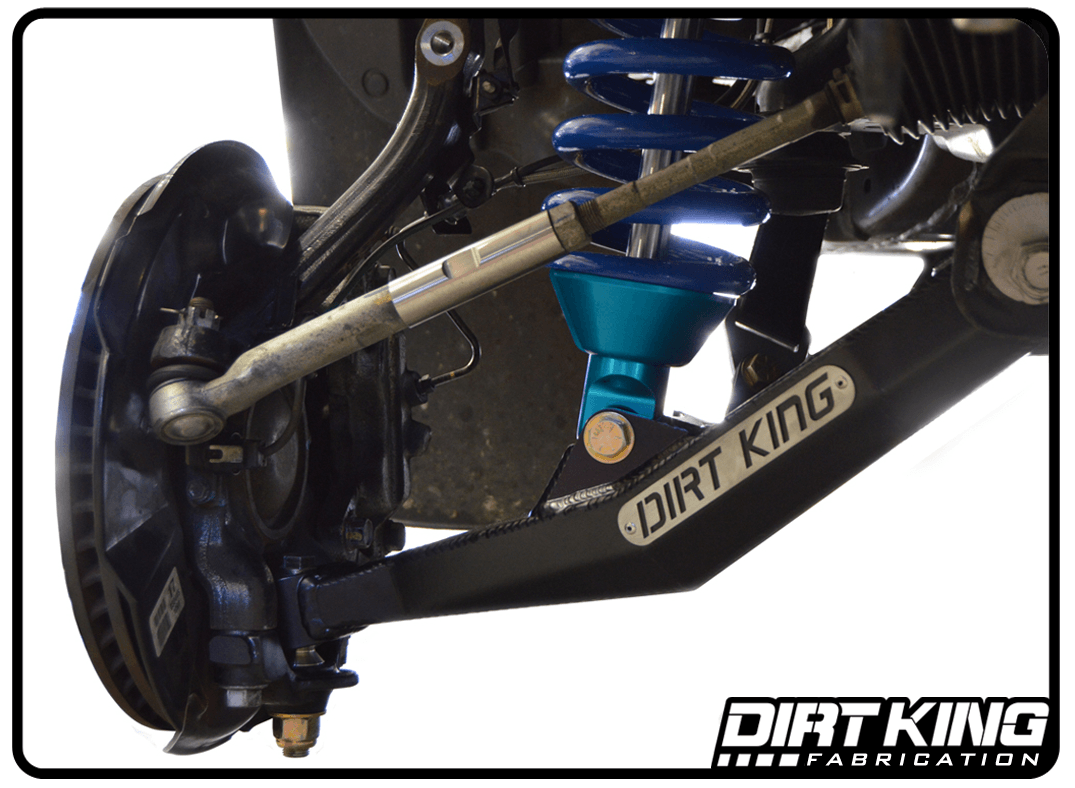

  • Boxed plate lower control arms
  • 8" quad wrapped limit straps
  • Weld on adjustable limit strap mounts

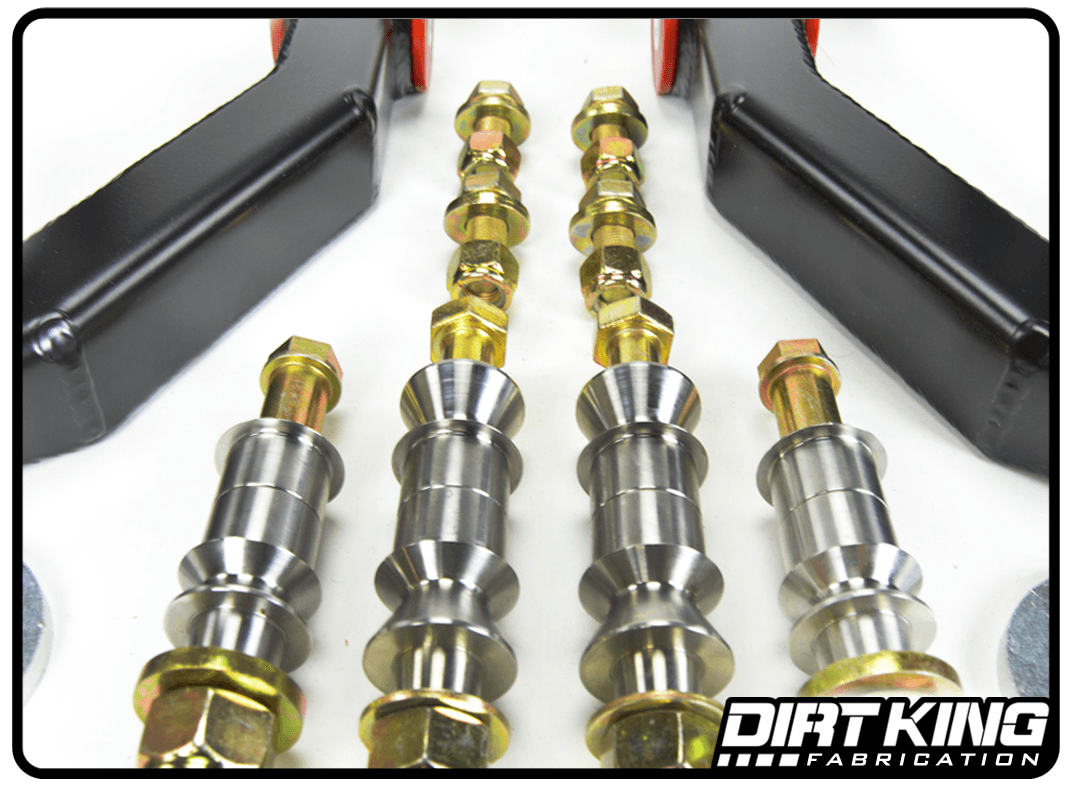

  • 17-4 stainless steel misalignment spacers
  • 17-4 stainless steel tie rod extensions
  • DOT approved extended brake lines
  • Grade 8 mounting hardware
  • Zinc plated bushing washers
  • Bump stop spacers
