Dirt King Fabrication
'05-15 Nissan Frontier Long Travel Kit
2WD or 4WD
'05-15 Nissan Frontier Long Travel Kit
2WD
MCQUEEN
190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States
The Dirt King Fabrication long travel kit for the 2005-2015 Nissan Frontier was developed to drastically improve the Nissan Frontier's offroad handling without compromising its day to day driving characteristics. This suspension system allows for 10.5” of travel and accepts up to a 35” tire. The kit is compatible with 2WD models and 4WD models along with the purchase of extended axle shafts. We’ve upgraded the lower arm outer pivot to heavy duty Moog ball joints and 1” uniballs for the upper arm outer pivot. This allows for superior strength and increased articulation. The suspension system also accommodates for bump stops to be used with the coil overs if desired. This kit is CAD designed, thoroughly tested, and 100% made in America.
KEY FEATURES:
- Bolt on application, minimal modifications required
- Utilizes American made FK bearings
- 4130 chromoly upper arms
- ¾” heims for the UCA’s
- Delrin bushings for the LCA’s
- Zinc plated inner bushing sleeves
- Grease fittings for easy servicing
- 3/16" & 1/8” boxed plate construction
- Internally ribbed with extrusions for weight reduction
- Bump stop plating
- Limit strap tabbing
SPECS:
- Wheel Travel: 10.5”
- Amount of Lift: 0-3”
- Track Width: 3” wider per side
- Maximum Tire Size: 35”
- Maximum Backspacing: 4.75”
- Minimum Rim Size: 17”
- Bump Stop Size: 2.0” x 2.0”
- Coil Over Shock Size with Shock Hoop Kit: 2.5” x 8”
- Coil Over Shock Size: King OEM replacement shocks with the options below

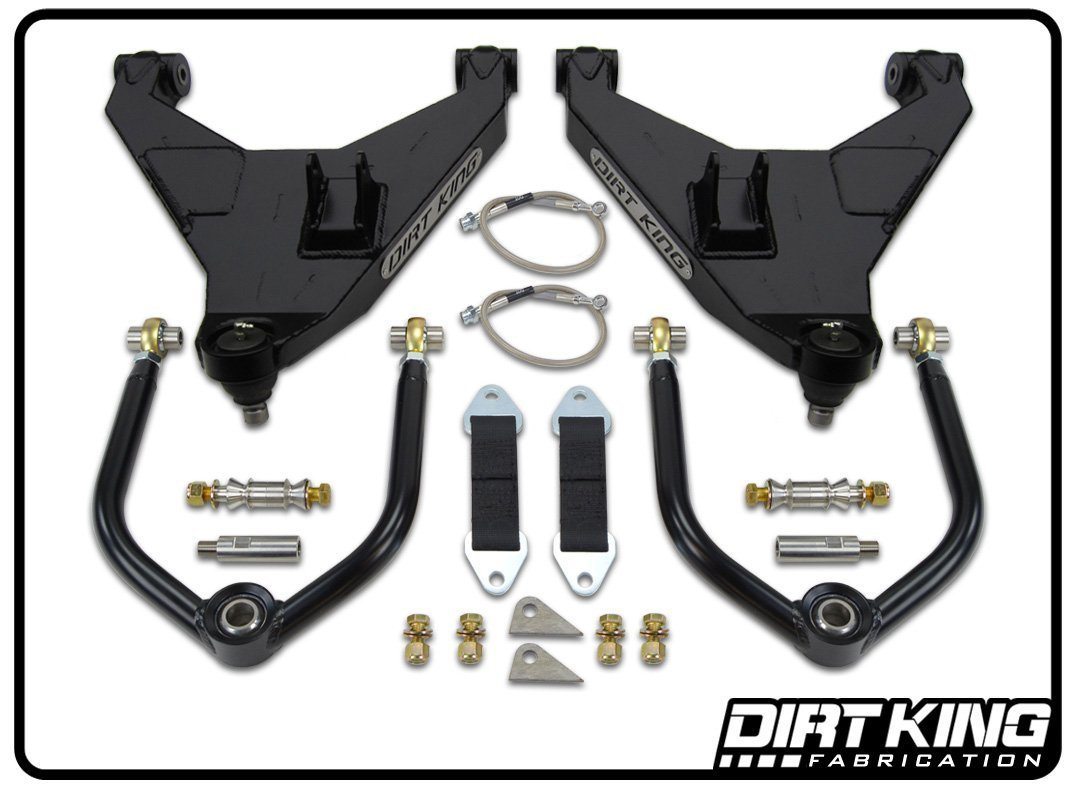

WHAT'S INCLUDED:
- Chromoly upper control arms
- Boxed plate lower control arms
- 9" quad wrapped limit straps
- Weld on adjustable limit strap mounts
- 17-4 stainless steel misalignment spacers
- 17-4 stainless steel tie rod extensions
- DOT approved extended brake lines
- Grade 8 mounting hardware
