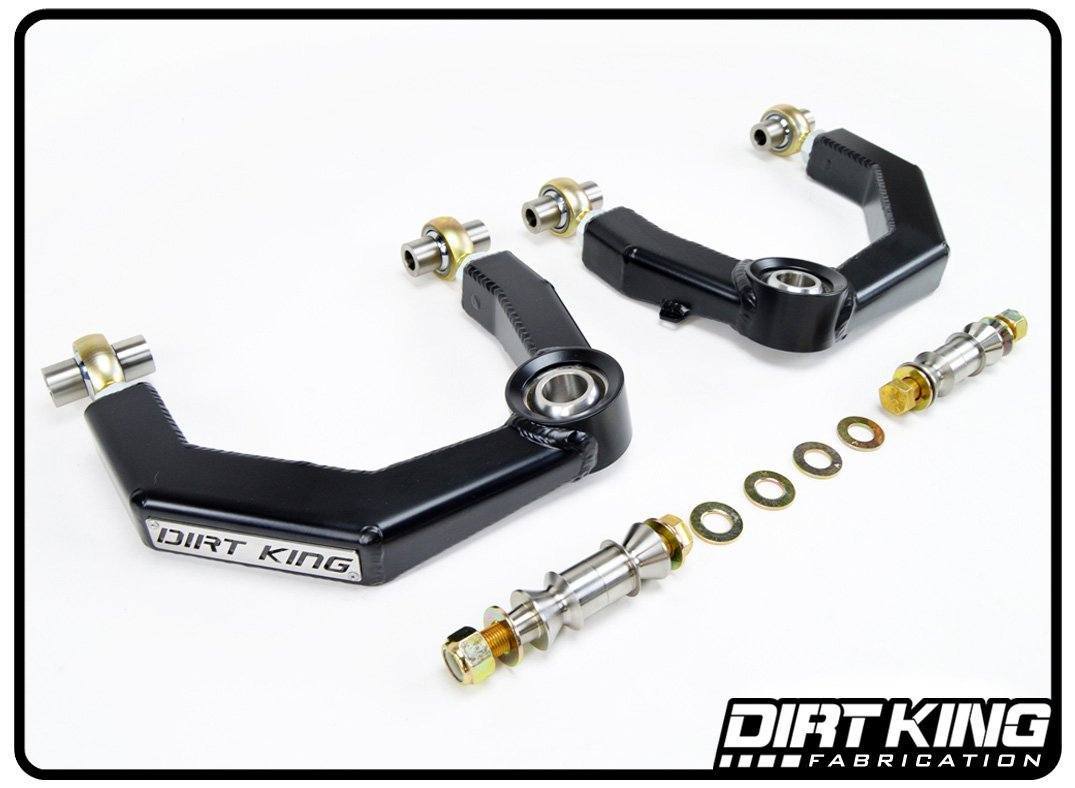

'05-23 Toyota Tacoma Heim Upper Control Arms Display of included parts

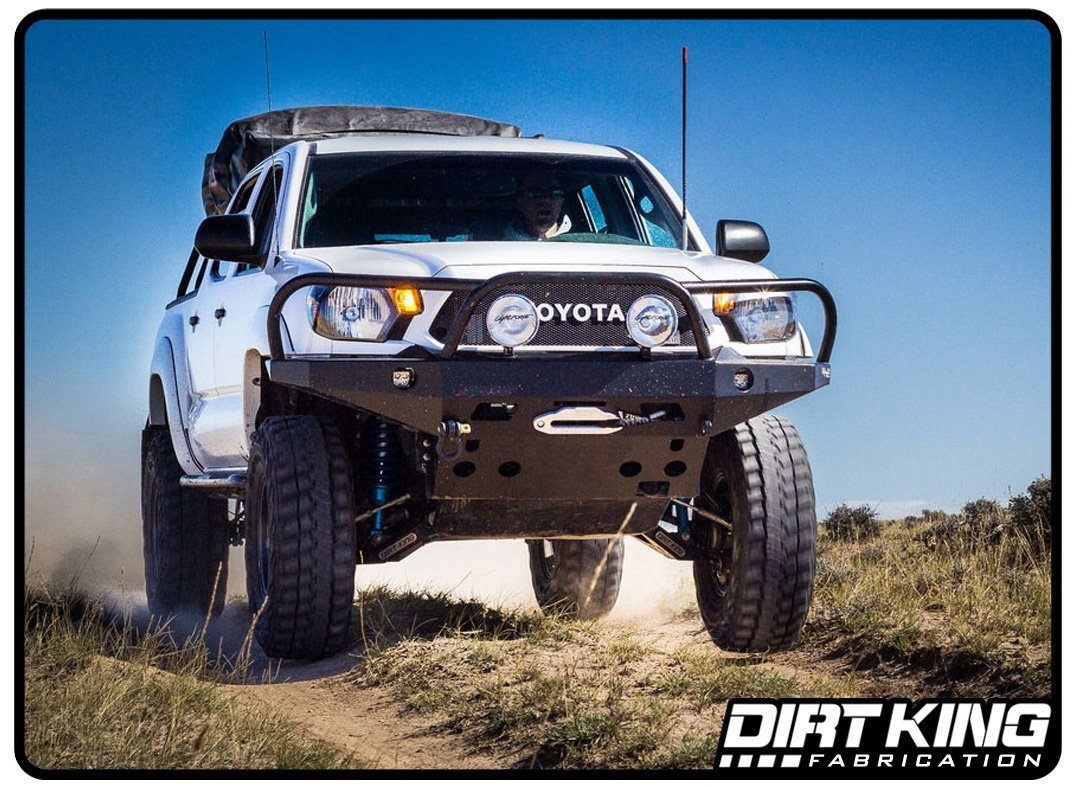

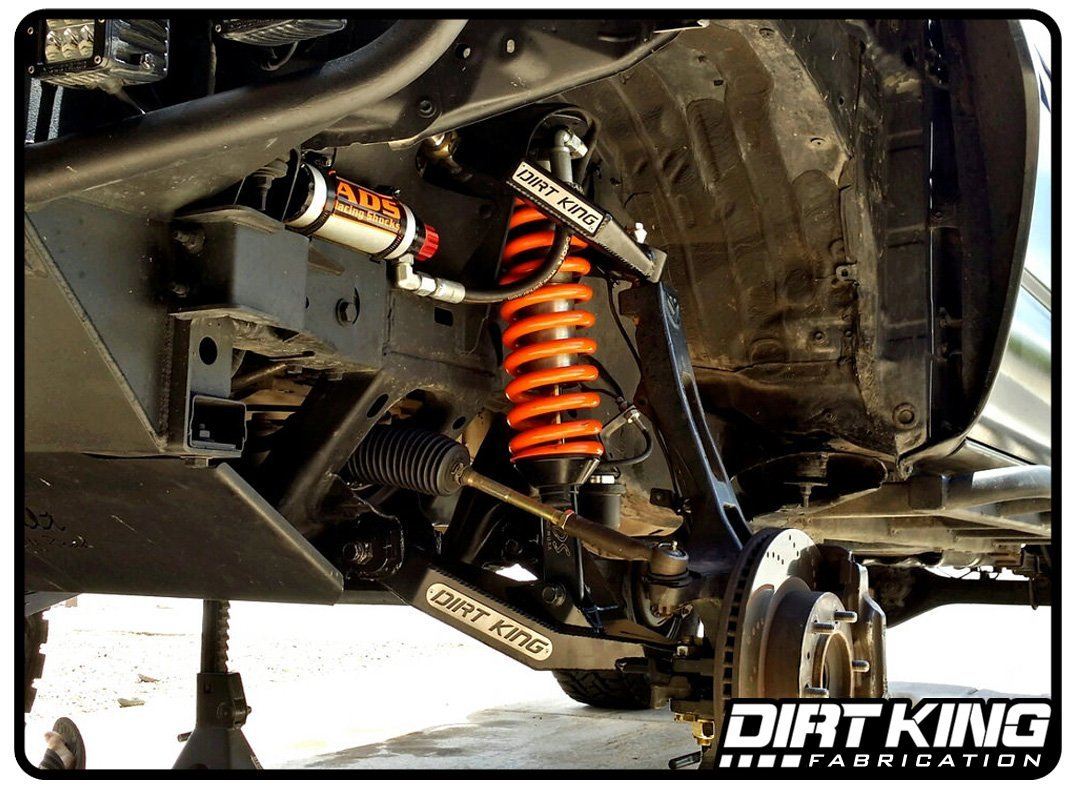

'05-23 Toyota Tacoma Heim Upper Control Arms Display on Vehicle

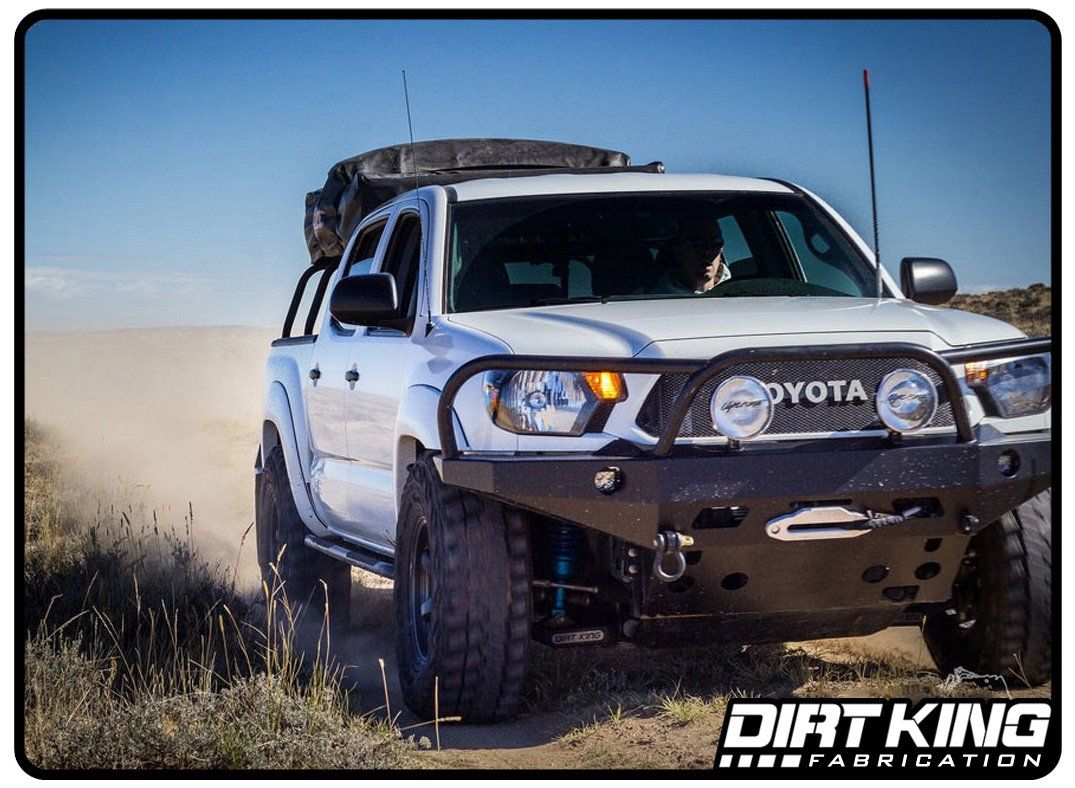

'05-23 Toyota Tacoma Heim Upper Control Arms Display on vehicle
'05-23 Toyota Tacoma Heim Upper Control Arms Display of Included Parts
'05-23 Toyota Tacoma Heim Upper Control Arms Display on vehicle

Dirt King Fabrication

'05-23 Toyota Tacoma Heim Upper Control Arms

Sale price$979.02 Regular price$999.00
Save $19.98
SKU: DK-811903
Quantity:

'05-23 Toyota Tacoma Heim Upper Control Arms

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

Dirt King Fabrication's Heim Upper Control Arms for the 2005-2023 Toyota Tacoma are CAD designed and feature a boxed plate construction.

There are multiple issues when lifting your vehicle with stock upper control arms. Both the geometry and strength are compromised due to over articulating the stock arms. Dirt King Fabrication solved these problems by designing our upper control arms with increased castor and repositioned pivot angles reducing stress on the joints. The increased castor allows for proper alignment and improved handling. We also replaced the weak factory ball joints with 1” stainless steel uniballs for maximum strength and increased articulation. For the inner pivots we used heavy duty ¾” FK heims for additional camber and caster adjustability. To mount the arms to the spindle we include high grade 17-4 stainless steel misalignment spacers and military grade F911 hardware. All of the components on Dirt King upper control arms are rebuild-able or replaceable to make this product last a lifetime.

KEY FEATURES:
  • CAD designed
  • Boxed plate construction
  • Utilizes American made FK bearings
  • 4130 chromoly uniball cups
  • Brushed stainless steel logo plates
  • Preassembled for fast installation
  • Zinc plated components for corrosion resistance
  • Professionally MIG welded
  • Proudly made in the USA
SPECS:
  • Wheel Travel: Additional 1” of travel compared to stock
  • Amount of Lift: Allows for 0-3” of lift
  • Track Width: Stock
  • Maximum Tire Size: 33”
  • Maximum Backspacing: 4.75”
  • Minimum Rim Size: 16”
  • Coil over Shock Size:Factory or OEM replacement coilovers
