Carli Suspension

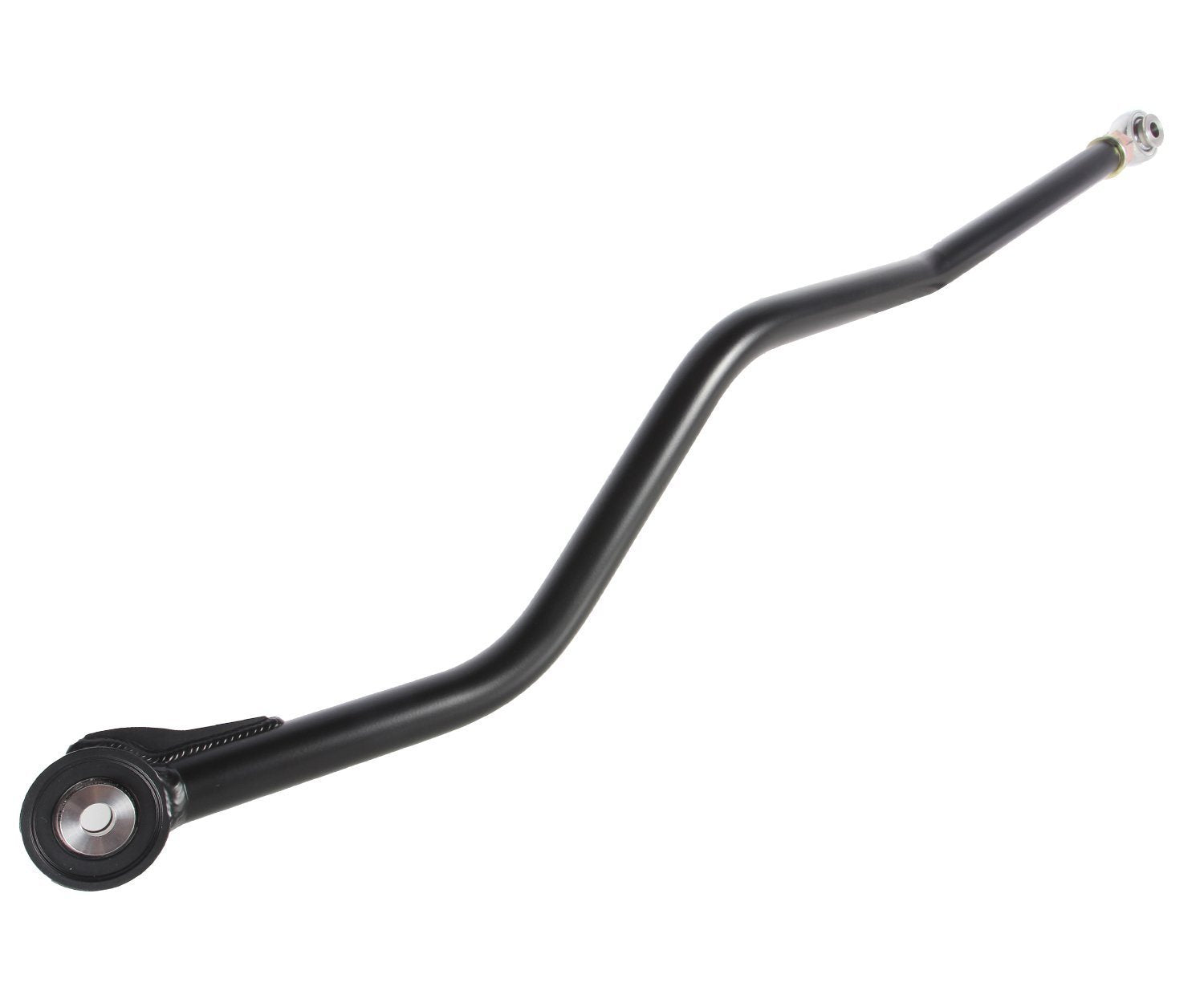

'07-17 Jeep JKU Adjustable Rear Track Bar Kit
Rear Adjustable Track Bar Riser

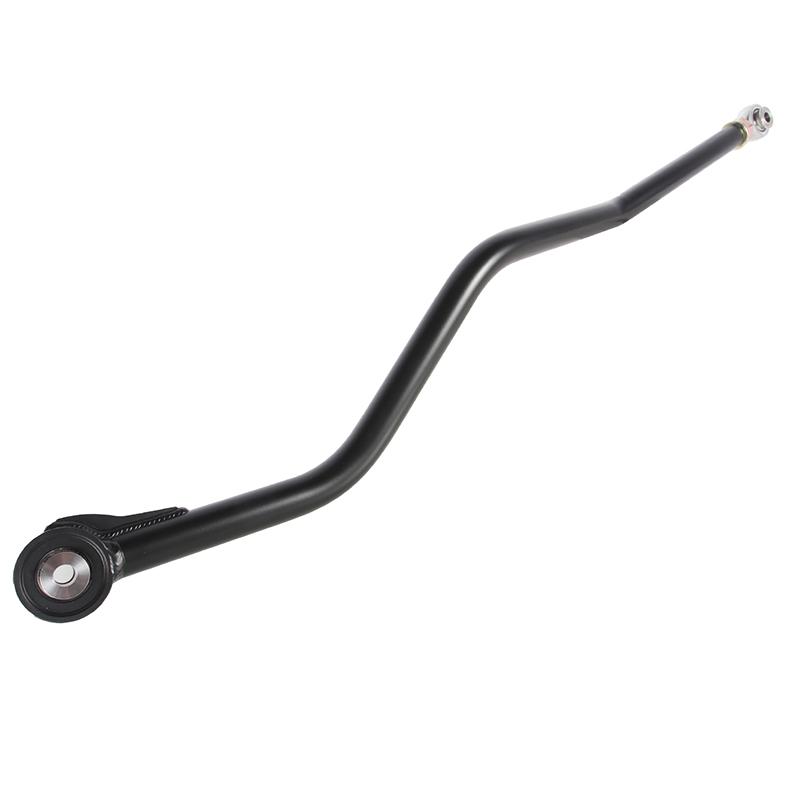

'07-17 Jeep JKU Adjustable Rear Track Bar Kit
No Track Bar Riser
MCQUEEN
190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States
Carli Suspension Adjustable Rear Track Bar Kit for the 2007-2017 Jeep JKU is designed to allow geometry correction on Jeeps equipped with a Carli Suspension System.
Carli Suspensions Systems use an adjustable track bar up front and the combination of an adjustable track bar and riser in the rear to correct geometry, center the axles after lifting the JK and ensure the axle have as little “Yaw” – lateral axle movement causing a wagging feeling during suspension cycling – as possible.
KEY FEATURES:
- Adjustable Track Bar, Rear
- 1/4" Wall Construciton, FK Bearing 7/8" Heim
- CUB Joint to minimize vibration and maximize lifespan
- Minimizer rear "yaw" on 2.5"-3" rear lift
- Works ONLY with Carli Rear Track Bar Riser
- Fitment: 2007-2017 Jeep JKU 4x4
TECH INFO:
- Carli's Adjustable Rear Track Bar for the Jeep JKU only works with Carli's Rear Track Bar Riser Kit- CS-JATB-07-R-RISER
- Carli Jeep Adjustable Track Bars are designed and optimized for use ONLY with Carli Suspension Systems. Carli cannot guarantee compatibility with stock height or any other lift system.
PRODUCT OPTIONS:

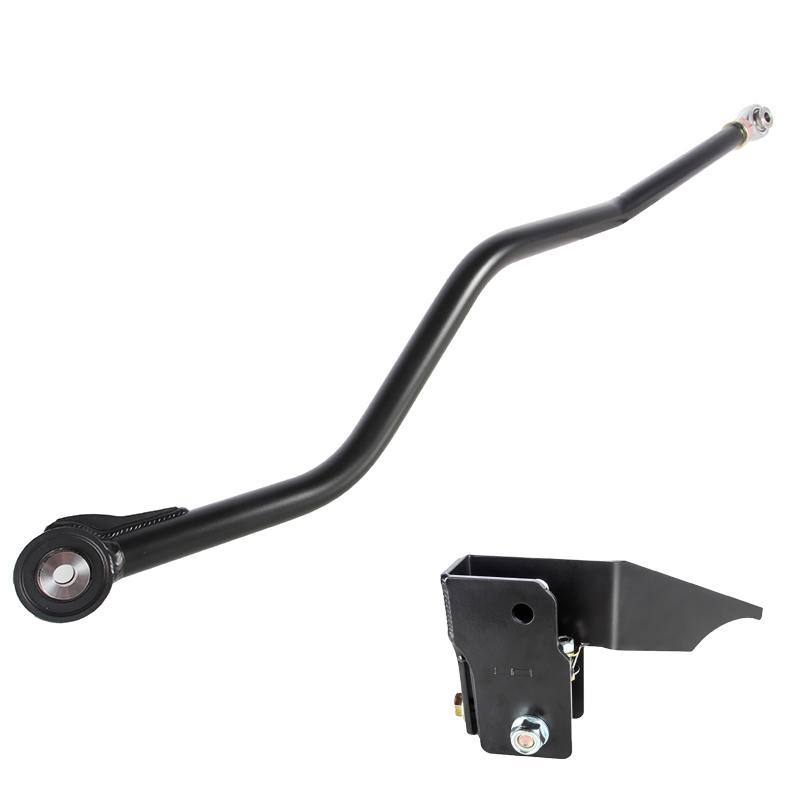

- CARLI REAR TRACK BAR RISER KIT- CS-JATB-07-R-RISER
- Corrects Rear Track Bar Geometry on 3" Rear Lift
- Minimizer rear "yaw"
- Works ONLY with Carli Rear Track Bar
- Fitment: 2007-2017 Jeep JKU 4x4
KIT DETAILS:
Carli Track Bars are constructed from 1/4″ wall DOM tubing and use 7/8″ FK-Bearing Heat-Treated Chromoly Race heims on their adjustable ends locked in by Carli’s proprietary JAMMIT nut providing 100% more surface area than a standard jam-nut. The fixed end of the Carli Track bars feature our proprietary CUB joint which featuring a proven FK Bearing 7/8″ Uniball at its center. Custom molded bushings are pressed on to encapsulate this Uniball then the assembly is pressed into the huge, gusseted housing of the track bar with a Stainless safety washer and retained with a snap ring. Custom Misalignment spacers center the joint in frame bracket and ensure full fore and aft movement of the track bar to be possible without bind or excessive bushing deflection.
