'07-18 Chevy/GM 1500 2.0 Performance Series IFP Coilover Suspension Fox display

Fox

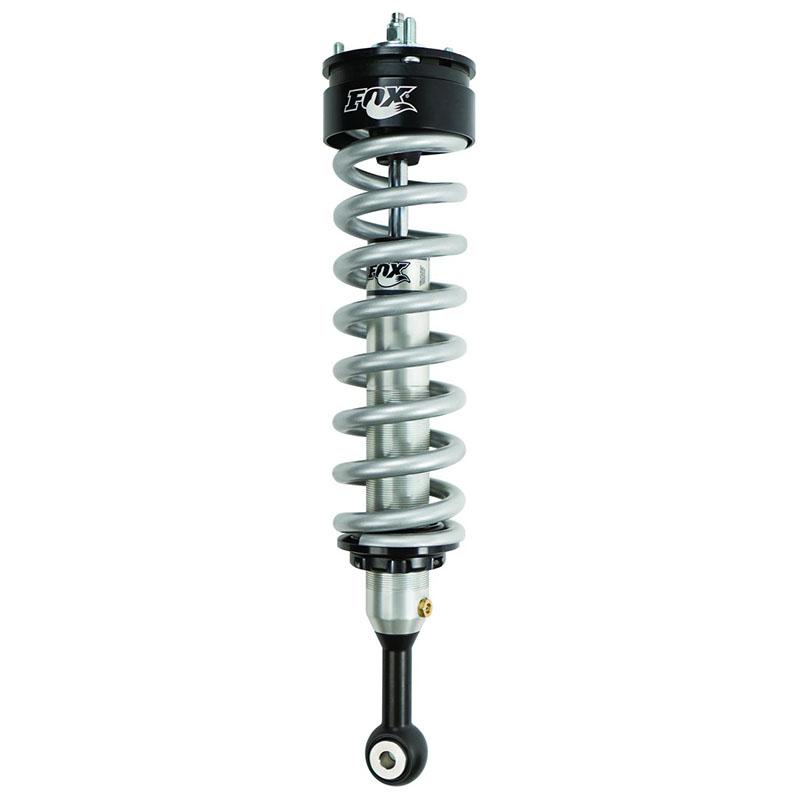

'07-18 Chevy/GM 1500 2.0 Performance Series IFP Coilover

$599.95
SKU: Fox-985-02-018
Quantity:

'07-18 Chevy/GM 1500 2.0 Performance Series IFP Coilover

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

Fox's Performance Series Coil-over IFP shock for tthe 2007-2018 Chevy/GMC 1500 is loaded with advanced technology and a long list of features that set it apart. The precision, metal impact extruded aluminum body increases cooling capacity and is rust resistant. The vehicle-specific upper mount includes a composite bushing that isolates noise and vibration.

Locking, spring preload rings that allow easy ride height and preload adjustment retain a top quality racing coil, selected to deliver the optimal spring rate. Performance Series Coil-Over IFP shocks bolt on with no modifications and are designed to level your truck front-to-rear. Applications are available for stock and lifted trucks that re-use the stock shock.

Inside is an internal reservoir with Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. The easy-to-install, Performance Series 2.0 Coil-over IFP provides a comfortable on-road ride and predictable off-road handling in even the toughest conditions.

KEY FEATURES:
  • Body: 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
  • Body Plating: Clear-anodized for a durable finish
  • Reservoir: Internal IFP mono-tube reservoir design
  • Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
  • Shaft: 5/8" hard chrome plated heat-treated alloy steel
  • Piston: Race-developed high-flow piston design
  • Valving: Application specific valving to maximize performance
  • Seals: Redundant sealing pack system main seal, wiper seal, scraper seal
  • Oil: JM92 Advanced Suspension Fluid for improved performance at variable temperatures
  • Bearing: Large diameter, heavy-duty spherical
  • Adjustments: Ride height preload ring Travel (in): 4.320
  • Compressed (in): 14.890
  • Extended (in): 19.210
  • Top Mount: OEM
  • Bottom Mount: Barpin
