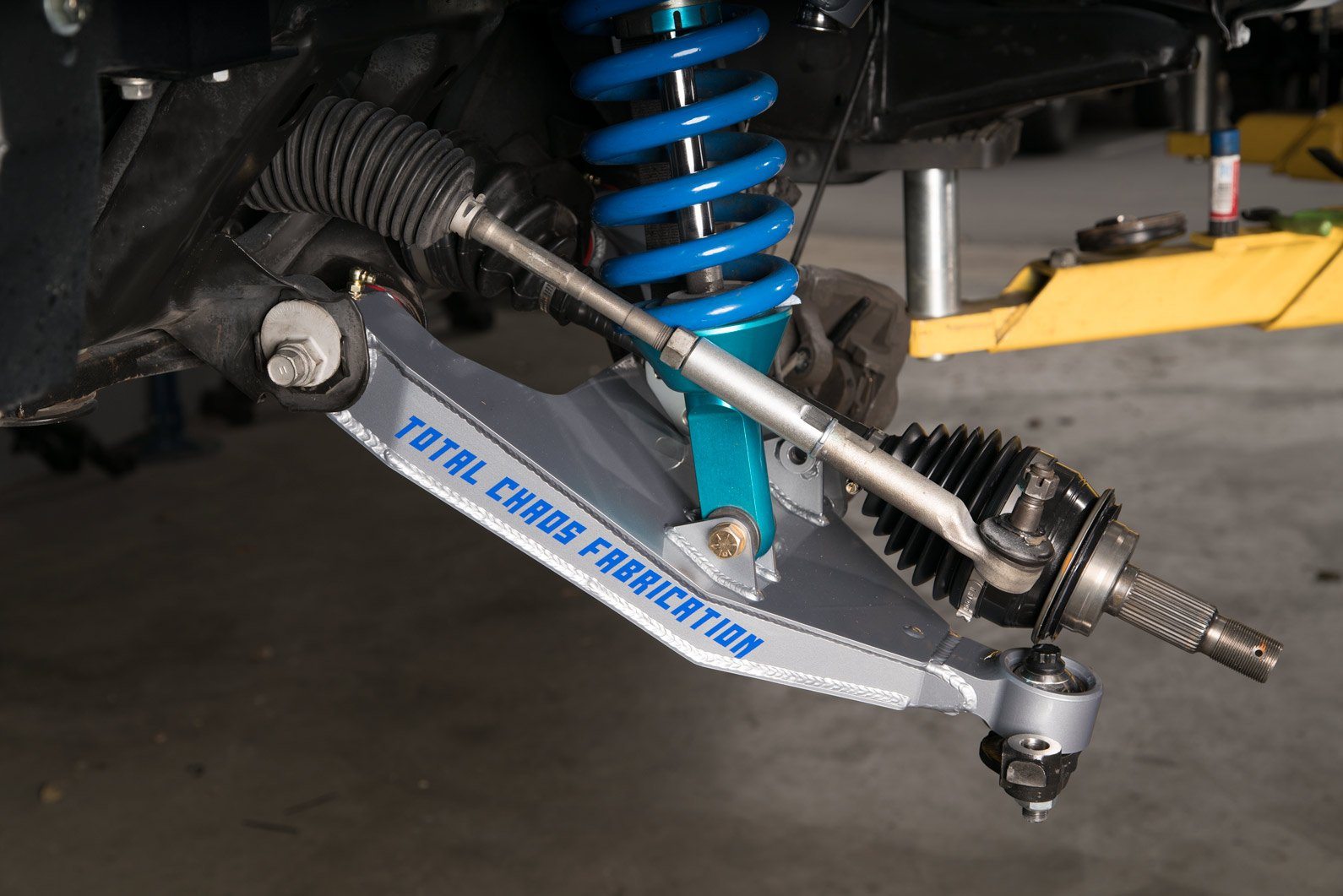

'10-23 Toyota 4Runner +3.5" Race Series Long Travel Kit

$3,934.29
SKU: TCF-86004-R-10FJ
Intended Coilovers to be used with Kit:

Intended Coilovers to be used with Kit
UCA Configuration:

UCA Configuration

'10-23 Toyota 4Runner +3.5" Race Series Long Travel Kit

Icon / Bushings

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

This Long Travel Kit for the 2010-2023 Toyota 4Runner is 100% chromoly constructed and offers maximum ground clearance.

SPECS:
Lift (in.) Travel Tire Size Track Width Increase
3-4" 13" 33" or 285 7"


KEY FEATURES:
  • 3.5" extended 4130 chromoly tubular upper arms bolt to factory control arm mounting locations.
  • Upper and lower ball joints are replaced with 1" uniballs for maximum wheel travel and component strength. TOTAL CHAOS includes 1" I.D. uniballs that feature a heat treated stainless steel ball & heat treated stainless steel race for maximum corrosion resistance and component longevity. These uniball's also features a military grade PTFE woven fabric liner that helps prevent noise.
  • 4130 chromoly boxed and internally gusseted 3.5" extended lower control arms bolt to factory control arm mounting locations and are pre tabbed for dual shock capability.
  • Lower control arms feature an integrated uniball cup that provides 2.5" additional ground clearance when compared to the standard mild steel +3.5" LT kit.
  • Lower arms are 5 pounds lighter each side than the standard +3.5" LT kit.
  • A secondary external bypass shock can be installed to increase dampening and tune-ability.
  • Spring rate options offer the ability to customize your ride for your specific application allowing you to custom tune the vehicle for specific terrain or desired performance.
  • Adjustable limit strap clevis' are included so that you can properly limit the suspensions droop wheel travel and make necessary adjustments during the life of the limit strap.
  • DOT approved stainless steel braided brake lines, TC custom 17-4 stainless hi-misalignment spacers and grade 8 mounting hardware is included.
  • 2 stage powder coat process includes a durable clear coat to provide a long lasting finish.
  • Hand crafted in the U.S.A.
OPTIONAL HEIM PIVOT UPGRADE:
  • TC includes 3/4" chromoly lined heim joints for the pivots.
  • 4130 chromoly tubing heim upper control arms are fully adjustable to allow maximum tuning of caster and camber.
  • Zero bushing deflection.
TECH NOTES:
  • Fiberglass fenders are required
  • TC 4340 custom extended axles reuse factory inner and outer CV's to retain 4wd. (axles are sold separately and not included with the kit)
  • 2.5" long travel specific coil over shocks bolt into the factory coil bucket location. Extended travel shocks are too short and will not work.
    BRAND COILOVER PART# BYPASS PART#
    FOX 880-02-953 982-02-954
    KING TC5119-03 TC1119-34
