'10-22 Toyota 4Runner Long Travel Kit
Upper Control Arm Option
'10-22 Toyota 4Runner Long Travel Kit

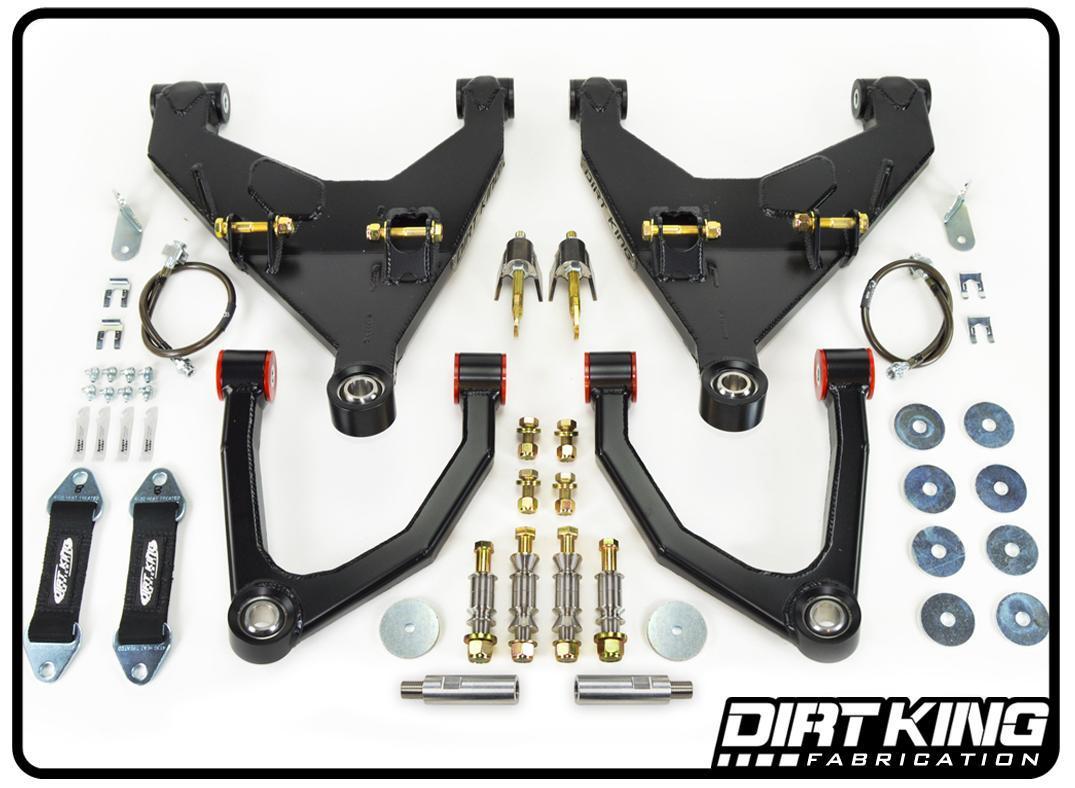

Bushing Upper Control Arms
MCQUEEN
190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

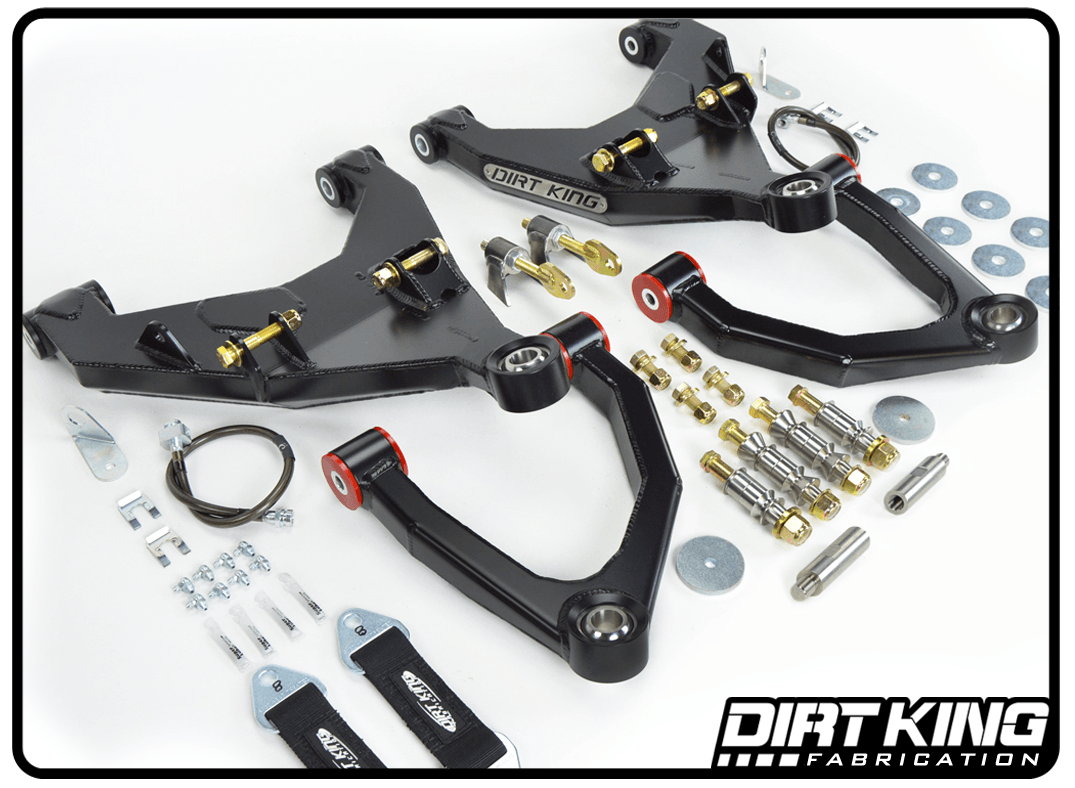

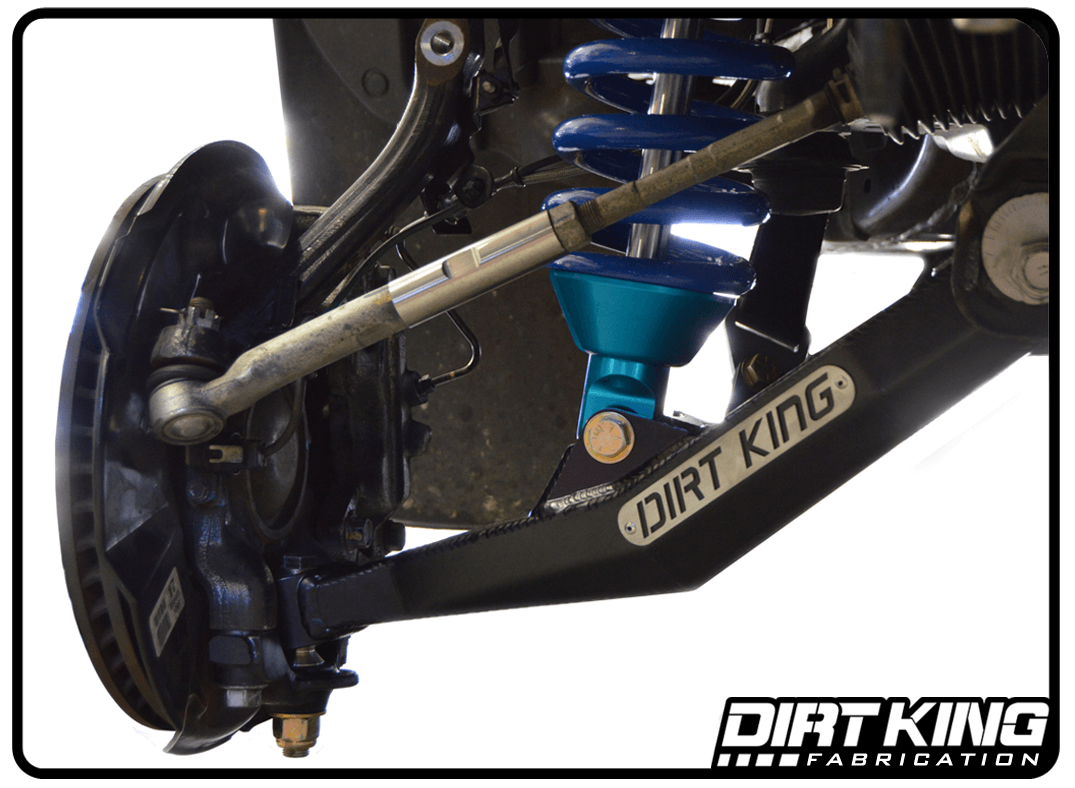

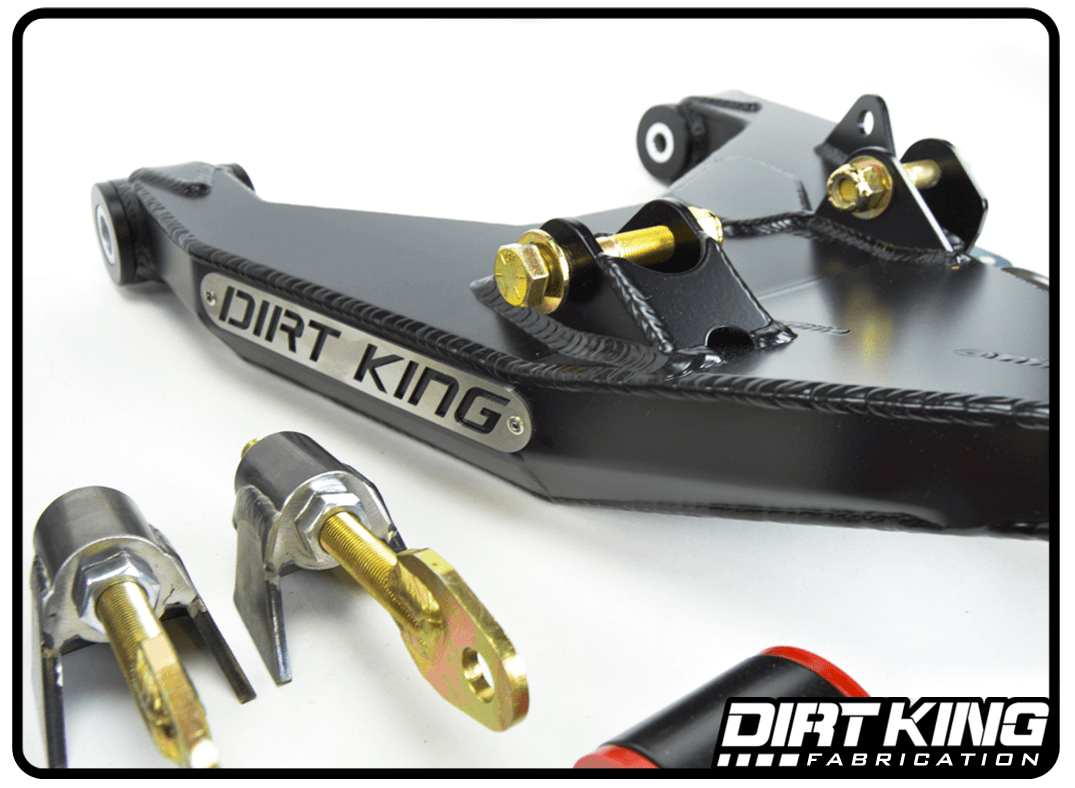

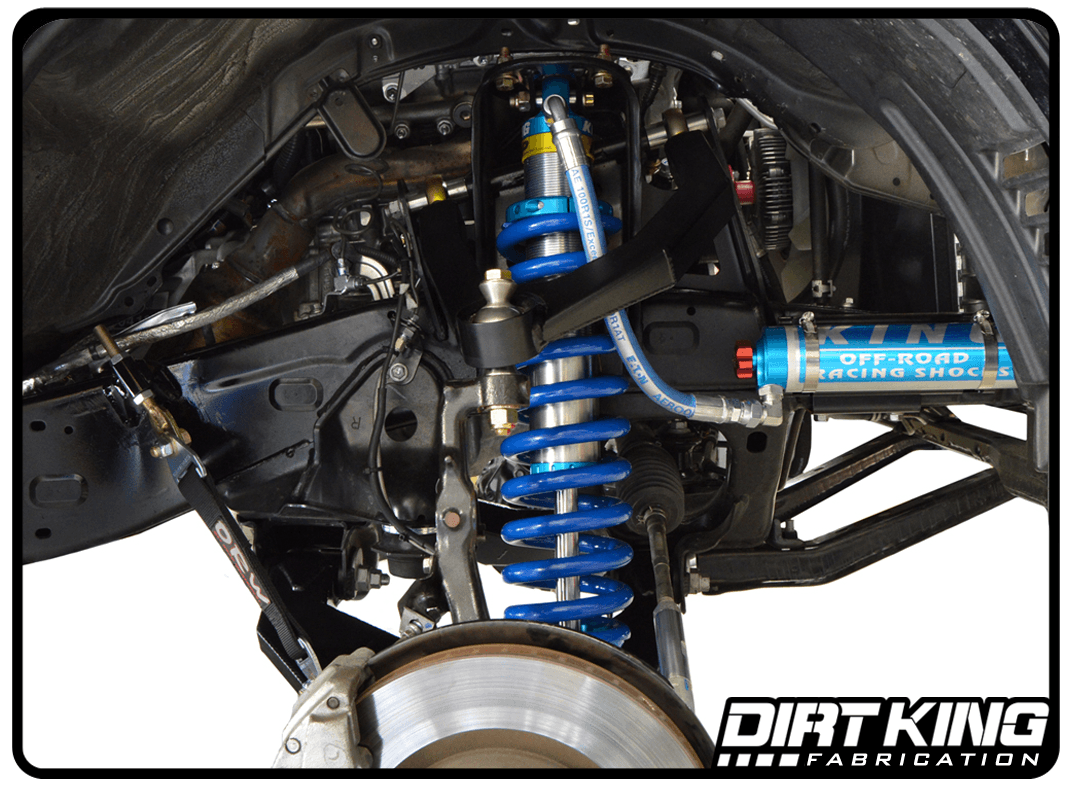

The Dirt King Fabrication long travel kit for the 2010-2022 Toyota 4Runner was developed to drastically improve the Toyota 4Runner's off-road handling without compromising its day to day driving characteristics. This suspension system allows for 13.5” of travel and accepts up to a 35” tire. The kit is compatible with 2WD models and 4WD models along with the purchase of extended axle shafts. Dirt King's upper and lower arms are designed with 1” stainless steel uniballs for the outer pivots instead of ball joints for strength and increased articulation. Compared to the competition we’ve gained several inches of ground clearance by mounting the lower arms in the factory location instead of below it. This kit is CAD designed, thoroughly tested, and 100% made in America.
KEY FEATURES:
- Bolt on application, minimal modifications required
- Utilizes American made FK bearings
- 4130 chromoly uniball cups

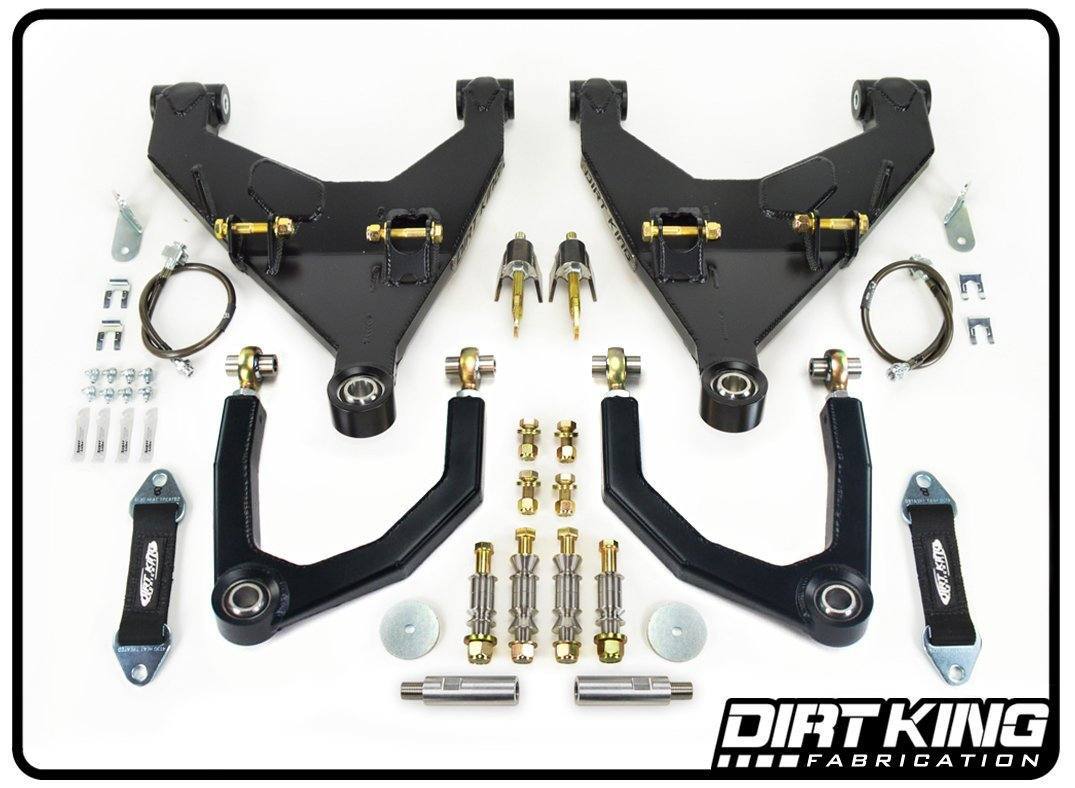

- ¾” heims for the UCA’s
- Delrin bushings for the LCA’s

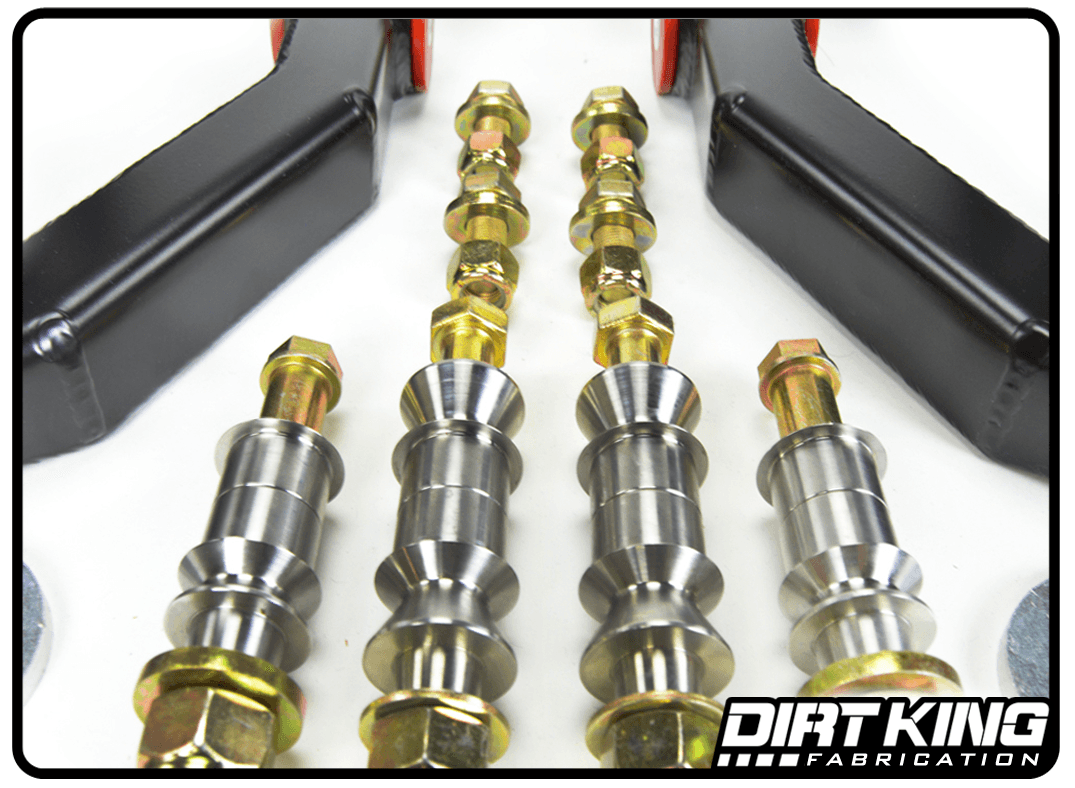

- Zinc plated inner bushing sleeves
- Grease fittings for easy servicing
- 3/16" and 1/8” boxed plate construction
- Internally ribbed with extrusions for weight reduction
- Bump stop plating
- Limit strap tabbing
- Bypass Tabbing
SPECS:
- Wheel Travel: 13.5”
- Amount of Lift: 0-4”
- Track Width: 3.5” wider per side
- Maximum Tire Size: 35”
- Maximum Backspacing: 4.75”
- Minimum Rim Size: 16”
- Coil over Shock Size: 2.5” x 8”
- Bypass Shock Size: 2.5” x 8”
- Bump Stop Size: 2.0” x 2.0”
