14-24 RAM 2500 4X4 DIESEL 3.25" LIFT DOMINATOR SYSTEM R2 COILS
14-24 RAM 2500 4X4 DIESEL 3.25" LIFT DOMINATOR SYSTEM R2 COILS
MCQUEEN
190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States
DOMINATE THE ROADS AND THE TRAILS:
The Carli Suspension 3.0 Dominator kit is the best aftermarket suspension system for the 2014-Current Ram 2500. This suspension kit offers the most on-road comfort of any system in the Carli lineup. The 3.0 Dominator rides better than any other system on the road while boasting off-road manners that make the truck feel half its size.
SPECS:
- Front Lift: 3.25"
- Rear Lift: 1"
- Front Travel: 8.5"
- Rear Travel: 11"
- Shock Diameter: 3.0"
- Tire Fitment: 37"x12.5"

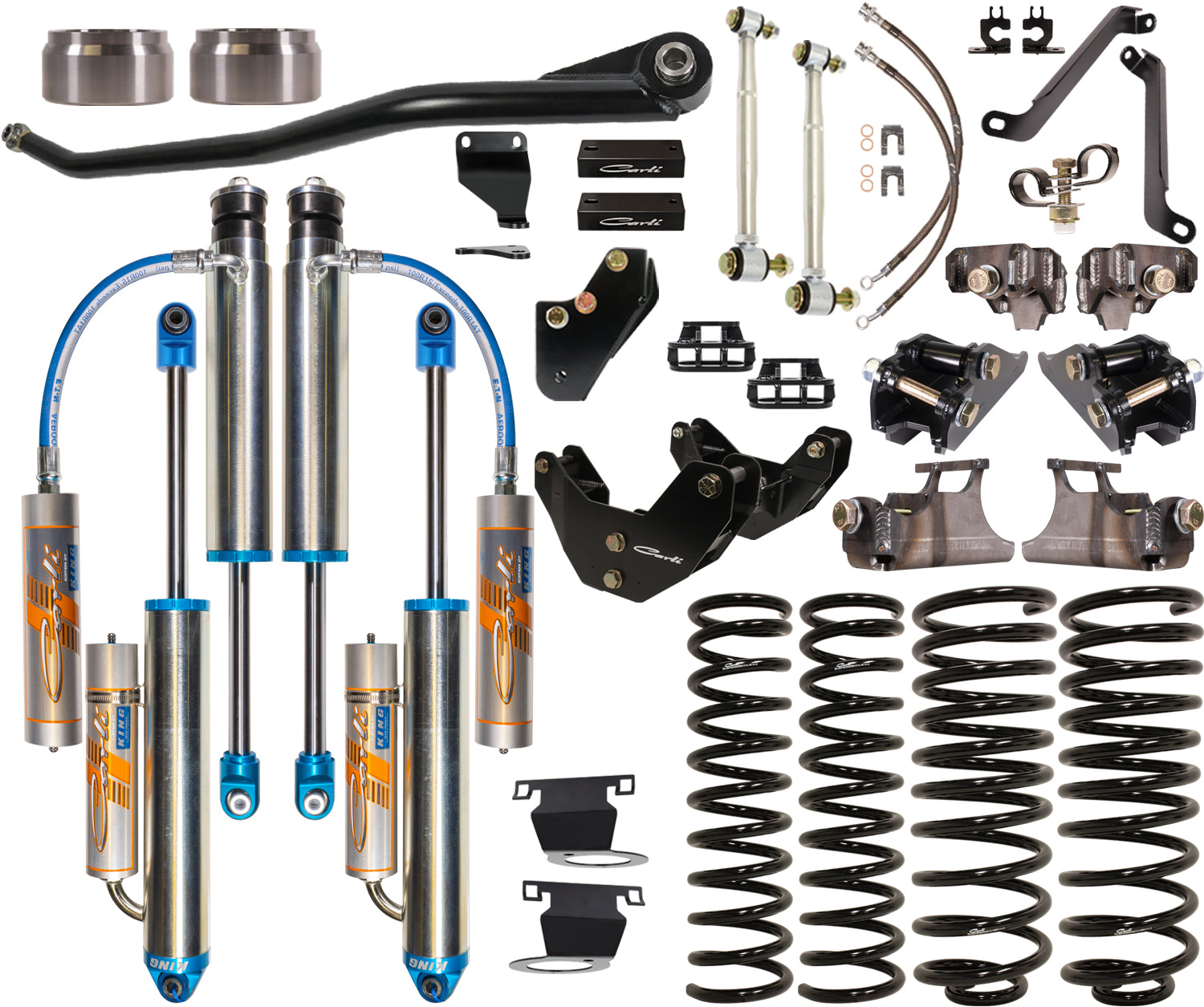

BASE KIT INCLUDES (CS-DD30-1419-D-R2):
- CS-DEL-R-14: Rear Sway Bar End Links

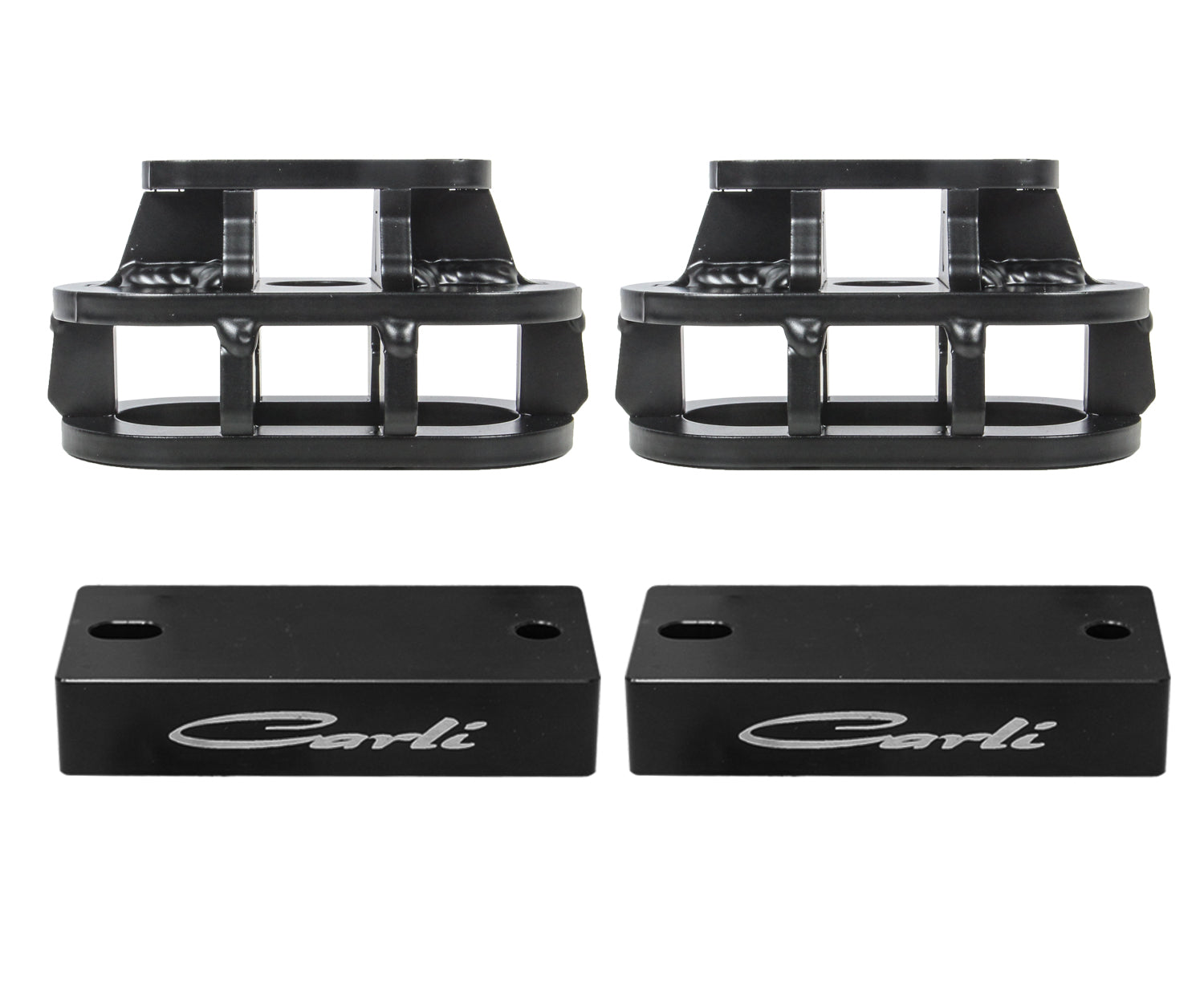

- CS-DFBD-1: Front Bump Drops

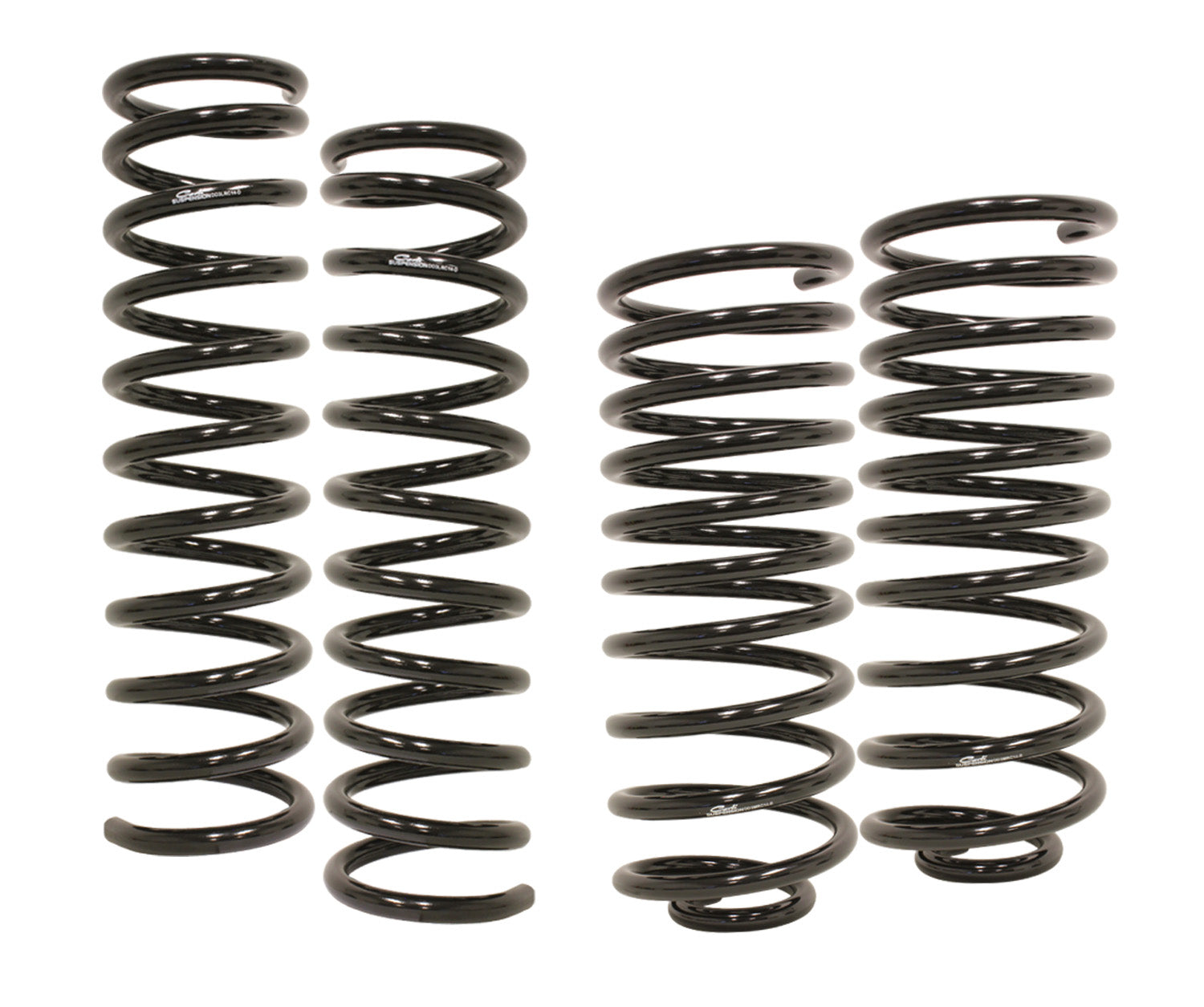

- CS-DLRC-14-D: Front Linear-Rate Coil Springs
- CS-DMRC-14-R2: Rear Multi-Rate Coil Springs
- CS-DATB-1419: Adjustable Track Bar with Stabilizer Bracket
- CS-DRAD-14: Radius Arm Drops
- CS-DCM-20-HK: Transmission Crossmember, Extended Hardware Kit
- CS-DRBD-AL: Rear Bump Drops
- CS-DPRBDROP-14-R: Rear Track Bar Drop

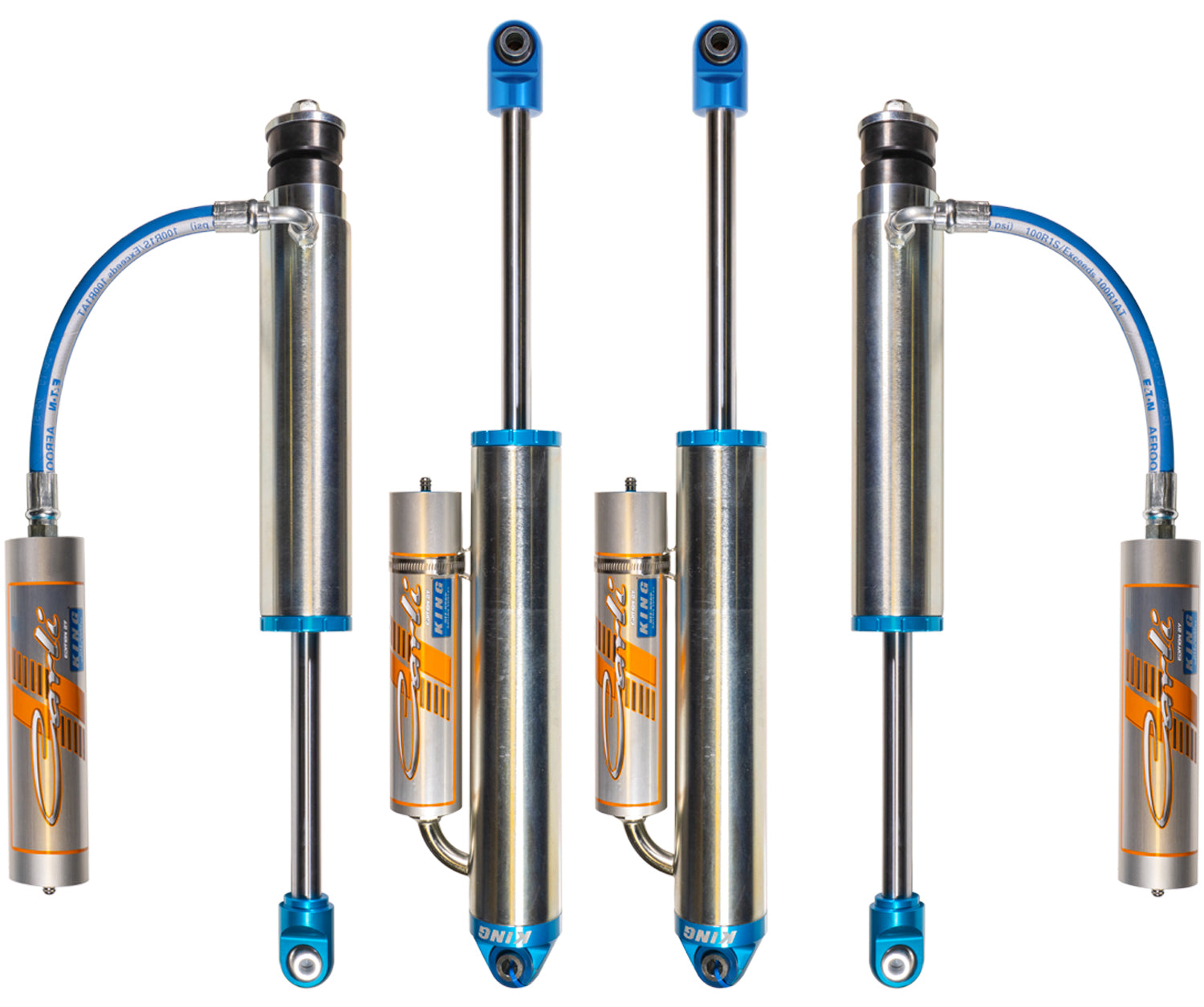

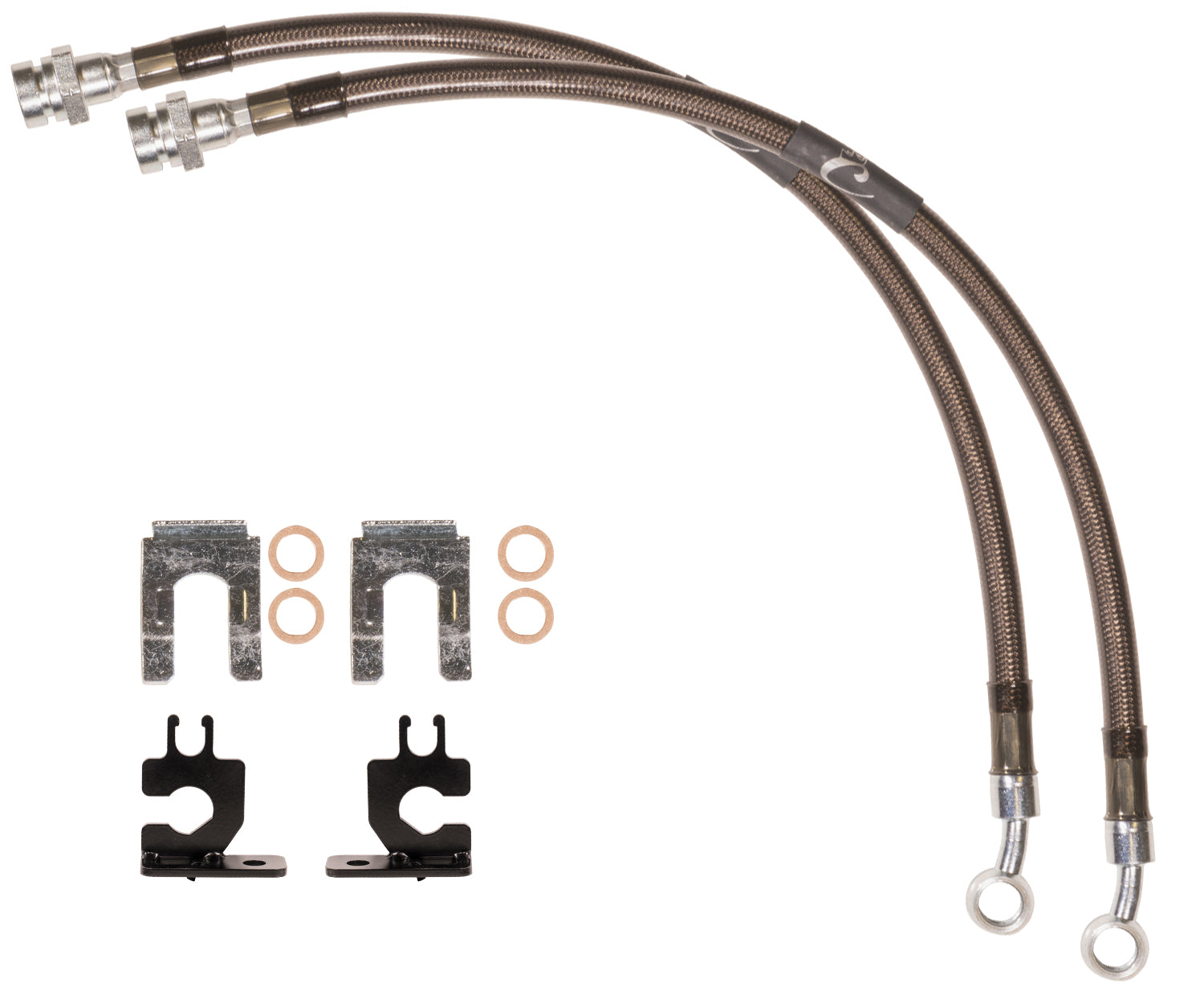

- CS-DD30SPKG-14-D: Carli Tuned King 3.0" Remote Reservoir Shock Package with Stainless Shafts, Reservoir Mounts, Brake Line Kit, Coil Isolator Supports, Front Lower Shock Mounts, Rear Upper and Lower Shocks Mounts, Bed Supports and E-Brake Relocation Bracket
PRODUCT OPTIONS:
-
SWAY BAR SELECTION
A sway bar option must be selected to form a complete kit (choose one from add-ons)-
SWAY BAR DROPS-CS-DSBD-14
- In-house machined billet aluminum
- Hard-Anodized for corrosion resistance
- Correct factory sway bar geometry on 3" Lift
-
SWAY BAR DROPS-CS-DSBD-14
-
-
TORSION SWAY BAR-CS-DTSB3-1419
- Easily the best "bang for the buck" upgrade for ride quality
- Allows front suspension to move freely without giving up control
- Requires removal of electronic sway bar on Power Wagons
-
TORSION SWAY BAR-CS-DTSB3-1419
KIT DETAILS:
The Dominator is pinnacle offering in boasting front Carli Signature tuned, King 3.0” remote reservoir shocks so large, we needed to engineer mounting systems front and rear for them to cycle properly and strengthen the chassis for the larger shocks. As the old adage goes, there’s no replacement for displacement. In an effort to provide customers with the best product, we do not sell off-the-shelf King 3.0s. We designed a custom piston to determine proper base flow rates to ensure the shock works well in the heavy duty truck platform; we then tuned the shocks around the custom pistons based on seat-of-the-pants feel. We round off ALL our King shocks with shafts machined and polished from a solid piece of 17-4 Stainless. Unlike King’s standard shafts, there is no coating to wear off, weather is far less likely to hurt them and if there is a small chip, you can round the edges with emery cloth to ensure the seal housing isn’t damaged as they’re not brittle like the stock, hardened shafts. In the front, the shocks utilize a 3.0″ King with a large Pintop Bushing to secure them to the factory location.
When pairing added down-travel with the taller ride height, the position of the factory, front sway bar will need to be altered as well. For this, we offer two options; Billet Sway Bar Drop Brackets or the replacement Torsion Sway Bar. The Billet Drop Blocks shift the sway bar down and forward to ensure the factory end links cycle properly throughout the entire extended travel range. Carli’s optional Torsion sway bar removes the entire factory sway bar assembly replacing it with a torsion bar supported by fabricated drop brackets and delrin bushings. Fabricated sway bar arms and dual 5/8” FK heim end links round off the package. This is the single best bang for the buck, ride-quality upgrade offered by Carli Suspension.
When lifting the front end of a straight axle truck, the front axle is pulled off-center unless the proper linkages are addressed. Three inches of front lift equates to an axle shifted toward the driver’s side ¾” and, in the radius arm equipped Rams, lightened caster and slight rearward axle shift. This system includes an Adjustable Track Bar to push the axle back toward the passenger side and provide a stronger link with less deflection for the lifted application. We also include Radius Arm Drop Brackets to recenter your caster adjustment and shift the axle forward to its new center of travel.
Everything is included to support flawless operation of all components. We include bump stop drops to ensure the shocks are cycling in their designed travel range as well as a rear track bar drop bracket minimizing the rear end “wag” associated with opposing track bar suspension designs.
WHEEL AND TIRE FITMENT:
This system will fit up to a 37” tire when utilizing wheels that are no more than 9” wide with 5.75-6” of backspacing. A 12.5” wide should fit with no rubbing on the factory radius arm and only minor trimming required, while a 13.5” will require more trimming and slightly more offset to fit properly. 35” tires will fit with VERY minimal, if any trimming. We Recommend running an 18” diameter wheel for optimal ride quality (more rubber = better small bump compliance) on a 35”-37” E-rated tire running 45psi front, 40psi rear when unloaded.
