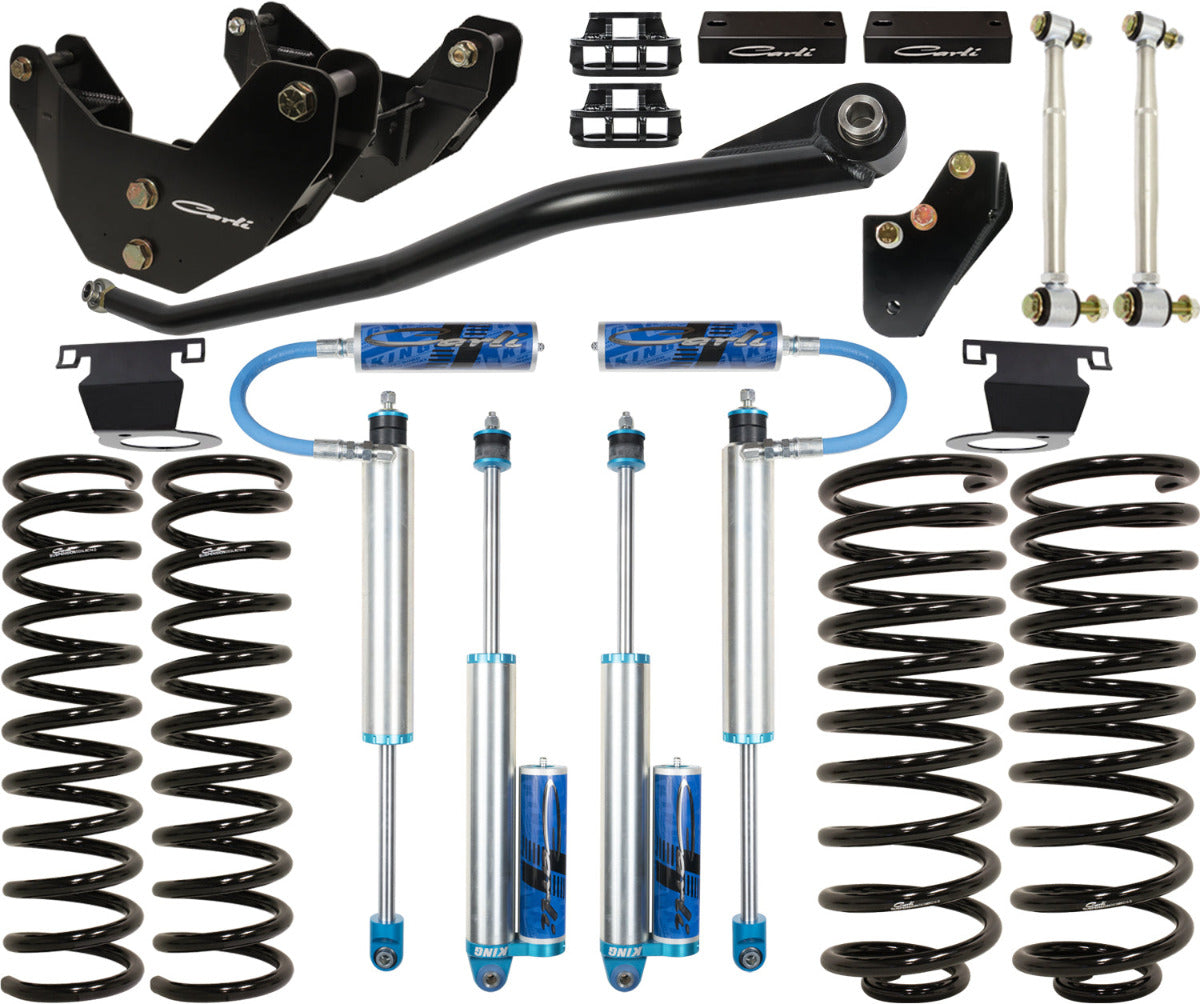

14-24 RAM 2500 4X4 DIESEL 3.25" LIFT PINTOP SYSTEM R2 COILS Display of Included Parts

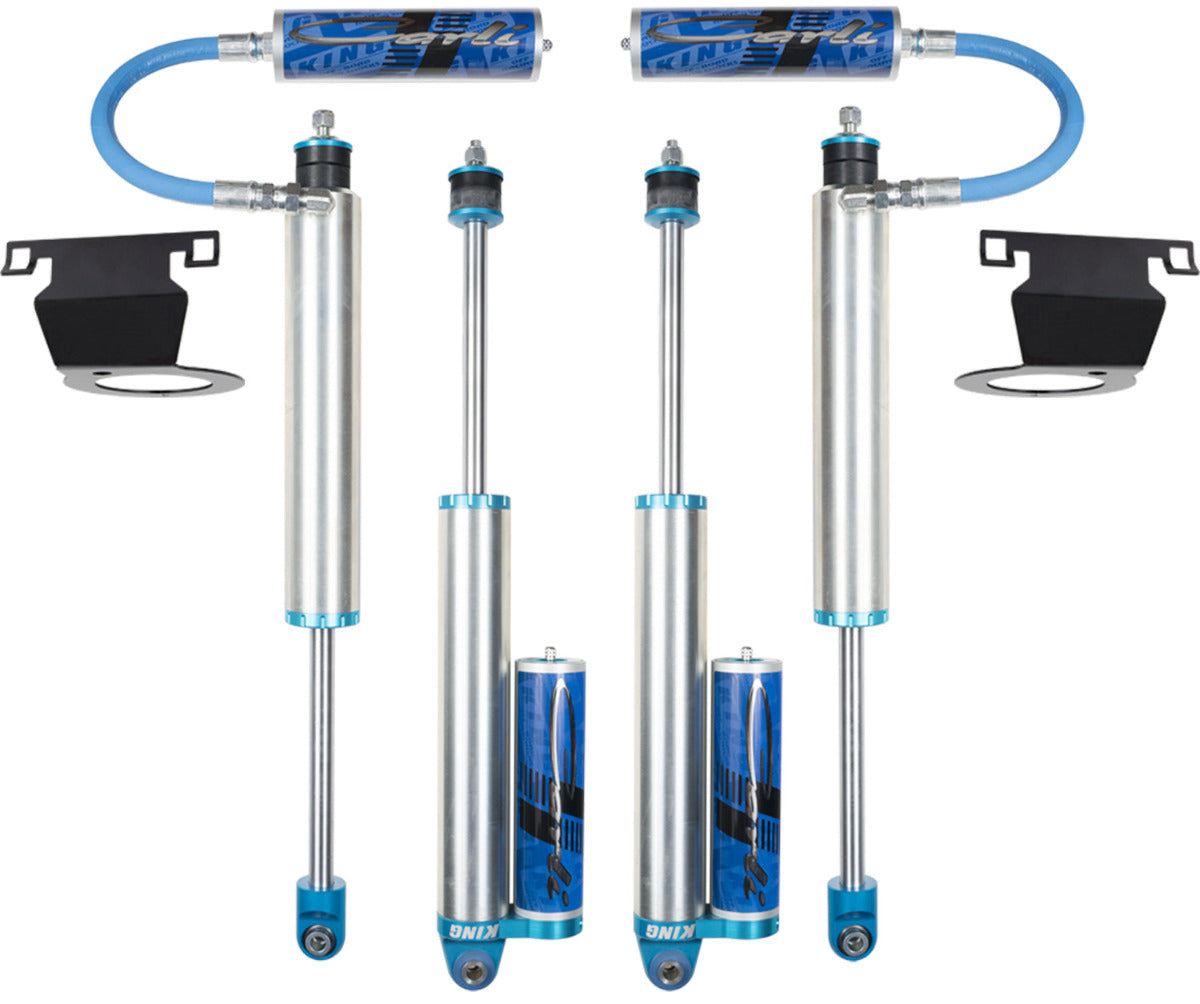

14-24 RAM 2500 4X4 DIESEL 3.25" LIFT PINTOP SYSTEM R2 COILS Shocks Display

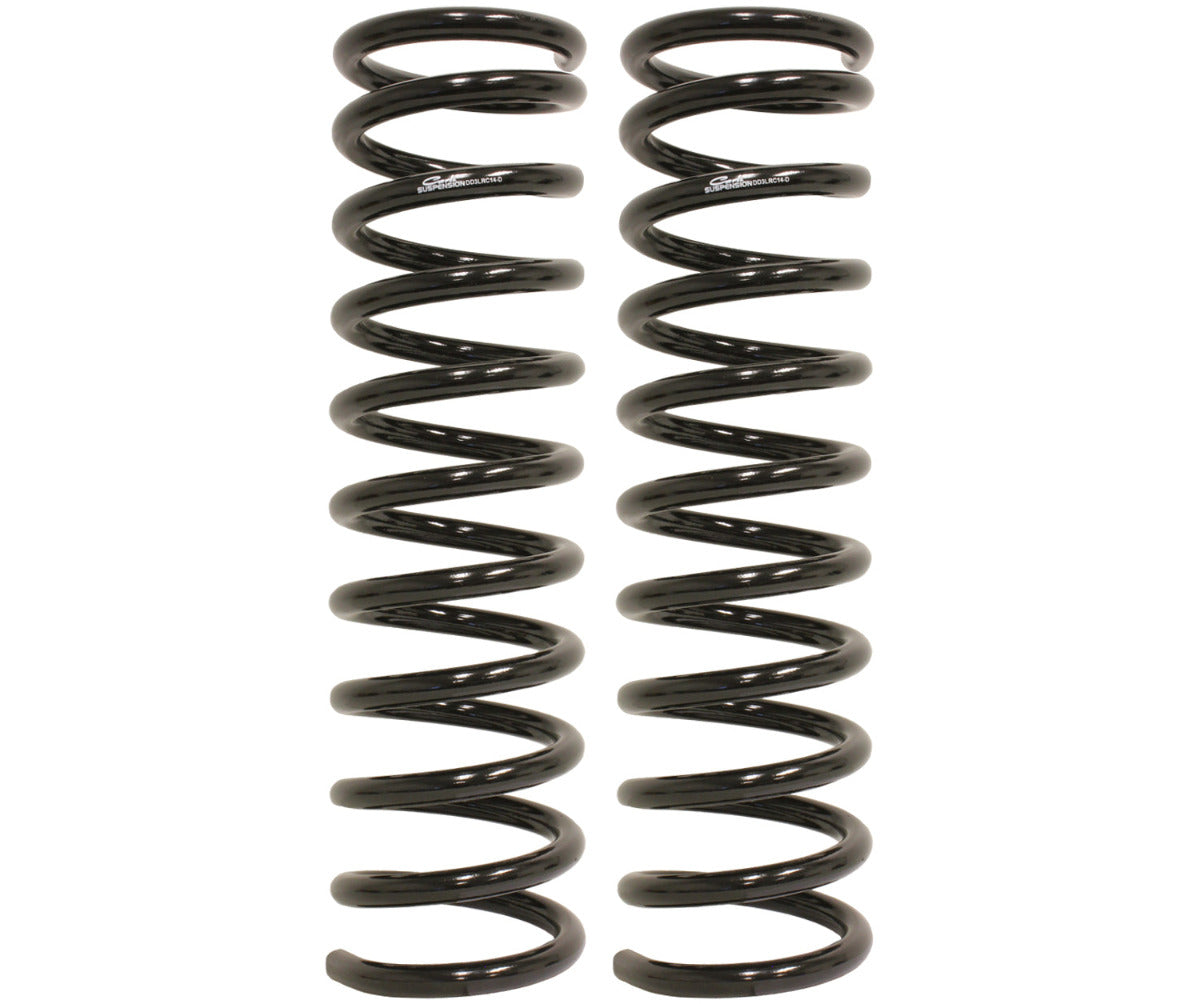

14-24 RAM 2500 4X4 DIESEL 3.25" LIFT PINTOP SYSTEM R2 COILS Coil Spring Display

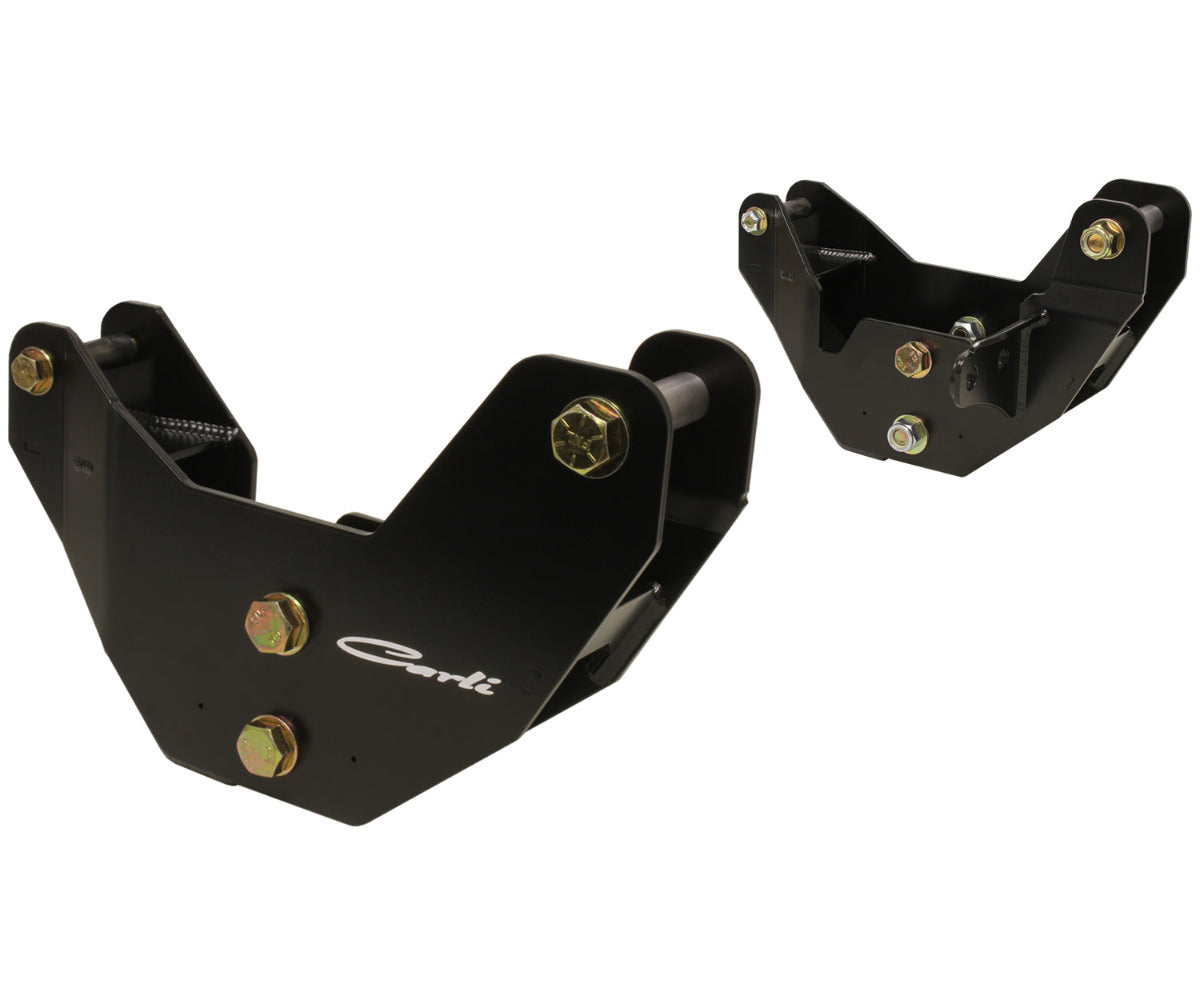

14-24 RAM 2500 4X4 DIESEL 3.25" LIFT PINTOP SYSTEM R2 COILS Radius Arm Drop Display

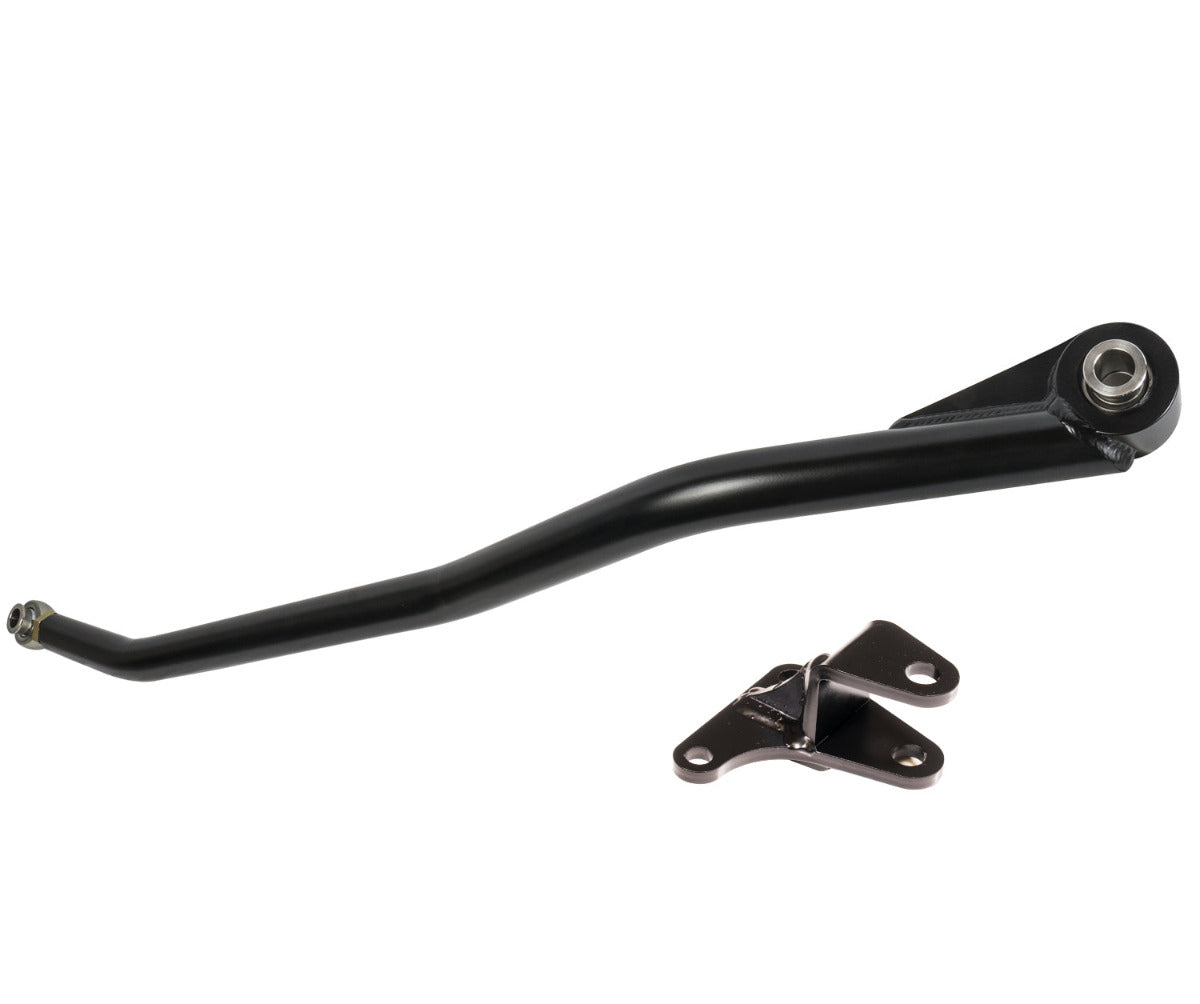

14-24 RAM 2500 4X4 DIESEL 3.25" LIFT PINTOP SYSTEM R2 COILS Track Bar and Bracket Display

Carli Suspension

14-24 RAM 2500 4X4 DIESEL 3.25" LIFT PINTOP SYSTEM R2 COILS

$6,180.00
SKU: CS-DPT25-1419-D-R2 / CS-DSBD-14
Sway Bar:

Sway Bar
Quantity:

14-24 RAM 2500 4X4 DIESEL 3.25" LIFT PINTOP SYSTEM R2 COILS

STOCK SWAY BAR DROP BRACKET - 3.25" LIFT

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

THE JACK-OF-ALL-TRADES:

The Pintop is the Backcountry on steroids, take the description for the Backcountry and throw an exponent on it. This system is our Jack-of-all-trades system from which every Ram owner would benefit. Raising the Ram platform then adding the 2.5” diameter shocks will support the argument that these trucks should come equipped with 2.5” shocks from the factory. This system is our most popular, all around suspension system. It was tuned and rides best with 18” wheels and 37” tires. Both of the aforementioned are recommended.

Base Kit Includes:
CS-DEL-R-14 Rear Sway Bar End Links
CS-DFBD-1 Front Bump Drops
CS-DLRC-14-D Front Linear-Rate Coil Springs
CS-DMRC-14-R2 Rear Multi-Rate Coil Springs, R2
CS-DATB-1419 Adjustable Track Bar with Stabilizer Bracket
CS-DRAD-14 Radius Arm Drops
CS-DCM-20-HK Transmission Crossmember, Extended Hardware Kit
CS-DRBD-AL Rear Bump Drops
CS-DPRBDROP-14-R Rear Track Bar Drop
CS-DPT25SPKG-14-D Carli Tuned King 2.5" Remote Reservoir Pintop Shock Package with Reservoir Mounts, Stainless Shafts, Brake Line Tabs



The Details:

Your truck will sit 3”-3.5” higher in the front (cab configuration dependent) with 50% more suspension travel than the factory platform thanks to the taller, lighter rate coil springs. We offer two base kits separated ONLY by the rear coil springs with which they’re spec’d:

Option 1, R1 coils:

0.5″-1″ lift, reduced capacity soft-ride coils – Max 1,500lb. bed load.

Option 2, R2 coils (this kit):

2”-3” lift. These coils maintain the factory payload. The 2” lift below is shown on the heaviest Ram configuration – a Limited, Diesel Mega-Cab. If you have a shorter cab length or less optioned truck they’ll sit taller than pictured. Through our testing (up to 2,500lbs), we spec them as a factory capacity spring capable of 800lbs. constant payload (or more on lighter trucks) to level to 3.25″ front lift.
