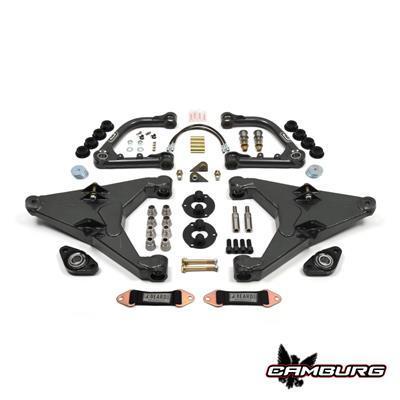

'16-23 Toyota Tacoma Camburg Race Series Long Travel Kit Display of Included Parts

Camburg Engineering

'16-23 Toyota Tacoma Camburg Race Series Long Travel Kit

$3,895.00
SKU: CAM-310101-U
UCA Option:

UCA Option
Quantity:

'16-23 Toyota Tacoma Camburg Race Series Long Travel Kit

Bushing Upper Control Arm

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

Race Series Long Travel Kit

Camburg Engineering Race Series Long Travel Kit for the 2016-Current (3rd Gen) Toyota Tacoma is designed for up to 15" of wheel travel when combined with Fox or King Shocks.

In this high end Camburg Long Travel kit you will find nothing but the very best in A-Arm performance. Starting with our lower arm, uni-balls in the lower frame pivots, uni-ball lower ball joint replacement, and a stout boxed race arm. The upper arm pivots on urethane bushings with zerk fitting and 1.25″ uniballs replace the stock ball joints. We adapt the uniball to the spindle with heat treated stainless steel adapters. Utilizing Camburg SPEC 8″ travel 2.5″ reservoir coilovers by FOX or King there is no need to cut the stock coil-over mounts. The shock design has an external top cap so the shock has a shorter overall extend length then all other off-road race shocks. The steering upgrade includes heat treated stainless steel tie-rod and inner clevis which utilizes a FK 3/4″ heim joint. This system will yield up to 15″ travel on a 2×4 and 14″ on a 4×4. This system can also be upgraded with our dual shock mount and a 2.5″ 3 tube by-pass shock can be added to the system.

SPECS:
Lift Wheel Travel Track Width Wheel Size Max Backspacing Tire Size
2.5-4in (Front) 14-15in +3.5in per side 16-17in 4.75in 33-35in


WHAT'S INCLUDED:
  • Upper Uni-ball A-arms
  • Lower Uni-ball A-arms
  • Lower Uni-ball Spindle Adapter
  • Brake Lines
  • Limit Straps
  • Steering Extensions
  • Coilover Mounts
  • Hardware
SHOCK SPECS:
  • 2.5 x 8″ remote coilover
  • 16″ x 500-600 lb coils
  • 23.9″ extended | 16.4″ collapsed
  • Tapered/Raised lower spring seat
  • 2″ Longer lower rod end
  • 1.25″ width shock spacers
  • 90 degree res. fitting on shock
  • SPEC SHEET
NOTE:
  • Prerunner models are able to run a coilover, bypass shock and air bump stop
  • 4wd models can run a coilover and air bump stop or coilover and bypass shock, not all 3 like the Prerunner model
  • Fiberglass front fenders are required
  • Specific L/T kit coilovers at minimum are required to install this kit and L/T axles on 4wd trucks
