'17-19 Ford Super Duty (F250/F350/F450) SDHQ Built Billet Battery Terminal Kit

$297.65
SKU: SDHQ-11-3003-G4-17
Compression or Solder Lugs?:

Compression or Solder Lugs?
Quantity:

'17-19 Ford Super Duty (F250/F350/F450) SDHQ Built Billet Battery Terminal Kit

Compression

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

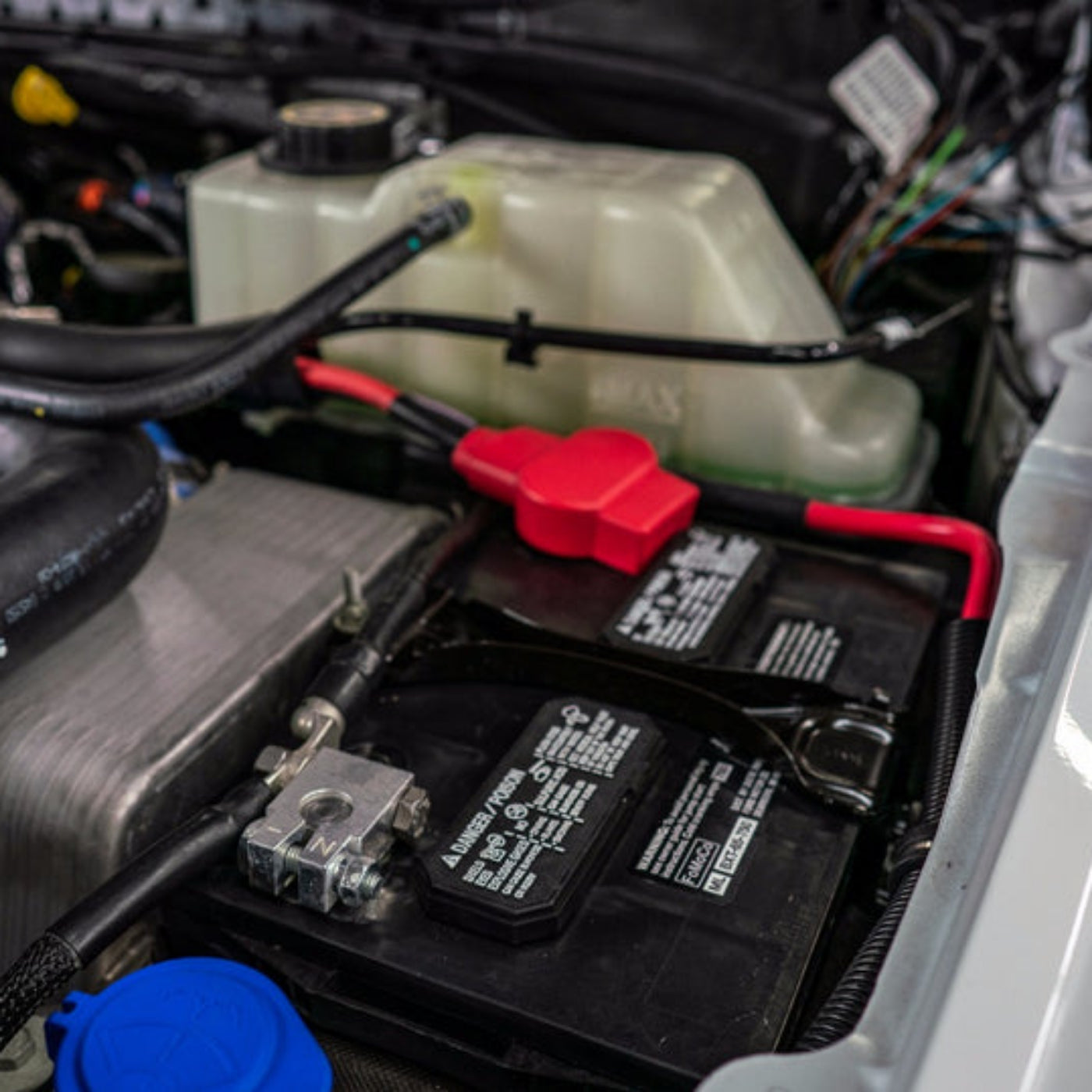

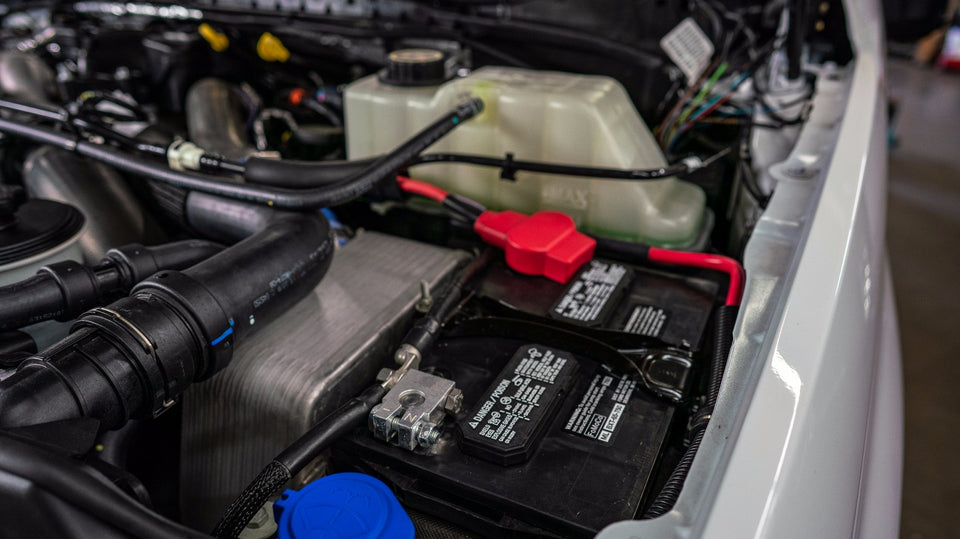

Upgrade your 2017-2019 Ford Super Duty (F250/F350/F450) OEM sheet metal battery terminals with our Billet 6061 Aluminum Battery Terminals. This simple upgrade allows you to run multiple off-road accessories from your main battery or secondary battery without splicing and cutting wires.
VEHICLE FITMENT:
  • 2017-2019 Ford Super Duty (F250/F350/F450)
    If you have a 2020-Current Super Duty we have a Billet Battery Terminal Kit as well
    '20-Current Ford Super Duty (F250/F350/F450) SDHQ Built Billet Battery Terminal Kit
  • This kit is designed for Super Duty owner with a dual battery set up.
    From Ford, there is the factory option to get dual battery in all Super Duty's. This kit will not allow a customer to upgrade to a dual battery, this kit only includes the terminals and required hardware to use with dual batteries.
  • If you have a single battery Ford click here for your single battery terminal upgrade kit
KEY FEATURES:
  • 3D CAD designed, engineered & built in-house for our typical SDHQ Built quality, fit, and finish
  • Upgrades factory sheet metal terminals.
  • Positive and Negative Billet 6061 Aluminum Terminals.
  • Cutting the factory terminals off is required.
  • 1-2 AWG Copper Compression Lugs included to replace terminals.
  • (2) ⅜”, (1) 5/16” and (2) ¼” mounting options for accessories.
  • Stainless Steel Hardware with included Anti-Seize Compound.
  • Recommended for use with sealed batteries.
  • Upgraded 16” Negative 6GA Battery to Body wire included.

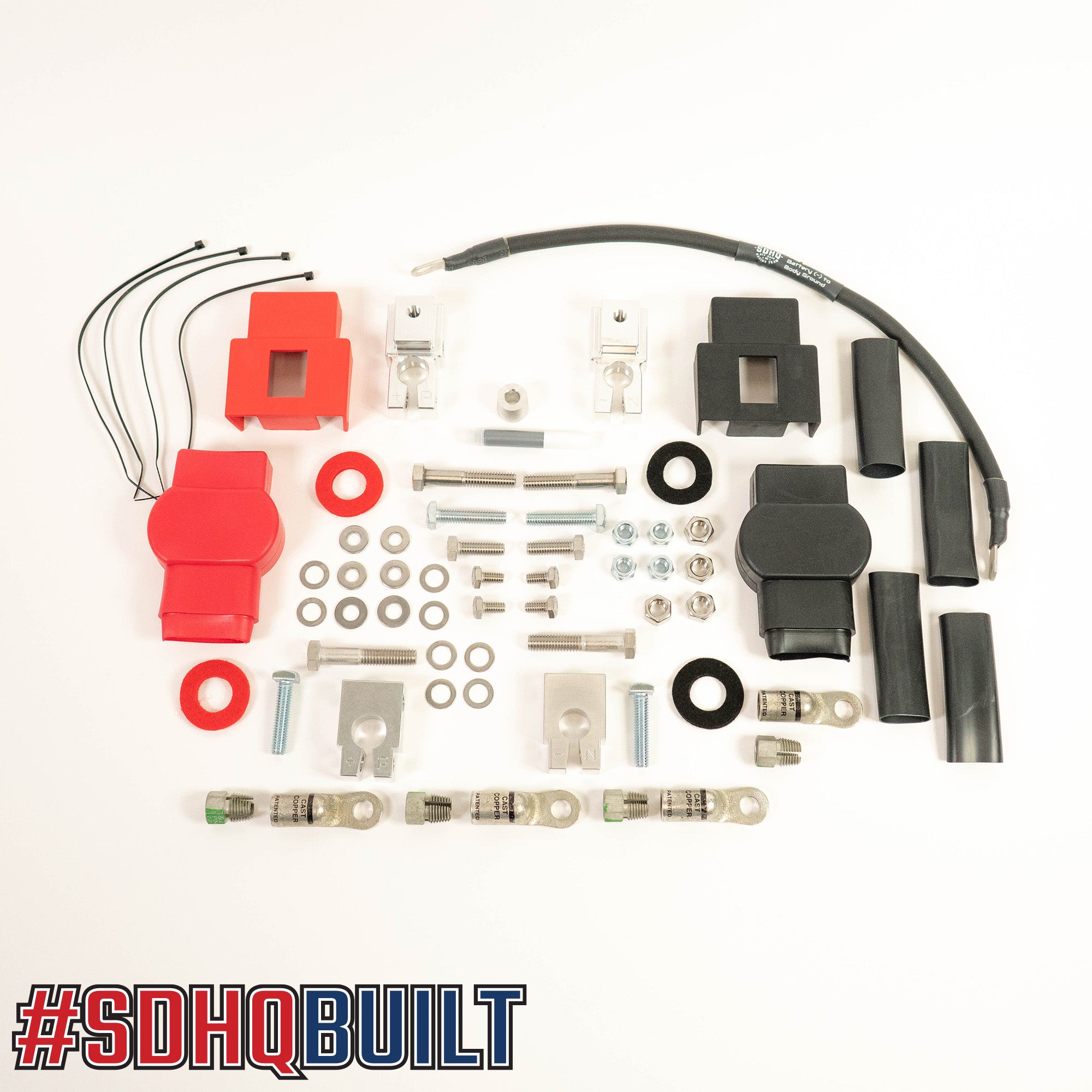

WHAT'S INCLUDED:
  • SDHQ Built Complete Billet Battery Terminal Kit - SDHQ-02-3003-C2 (Main Battery)
    • QTY 1. Billet Positive Battery Terminal
    • QTY 1. SDHQ Billet Negative Battery Terminal
    • QTY 1. SDHQ Negative Terminal Stud
    • QTY 1. Hardware Kit
    • QTY 1. Protective Positive Boot
    • QTY 1. Protective Negative Boot
    • QTY 1. Red Post Washer
    • QTY 1. Black Post Washer
  • SDHQ Built Billet Secondary Battery Terminal Kit - SDHQ-02-3003-C1 (Secondary Battery)
    • QTY 1. Billet Positive Battery Terminal
    • QTY 1. SDHQ Billet Negative Battery Terminal
    • QTY 1. Protective Positive Boot
    • QTY 1. Protective Negative Boot
  • QTY 4. 1-2 Gauge Compression Lug Nut Kit
  • QTY 1. 6GA Negative Battery to Body 16" Ground Cable
Torque Specifications
  • Torque ¼” - 20 Hardware to 4 ft-lb.
  • Torque 5/16” - 18 Hardware to 8 ft-lb.
  • Torque ⅜” - 16 Hardware to 18 ft-lb.



🔧 INSTALL INSTRUCTIONS 🔧
