'17-20 Ford Raptor Long Travel Bypass Mount Kit
Bypass Shock Options
'17-20 Ford Raptor Long Travel Bypass Mount Kit
None
MCQUEEN
190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

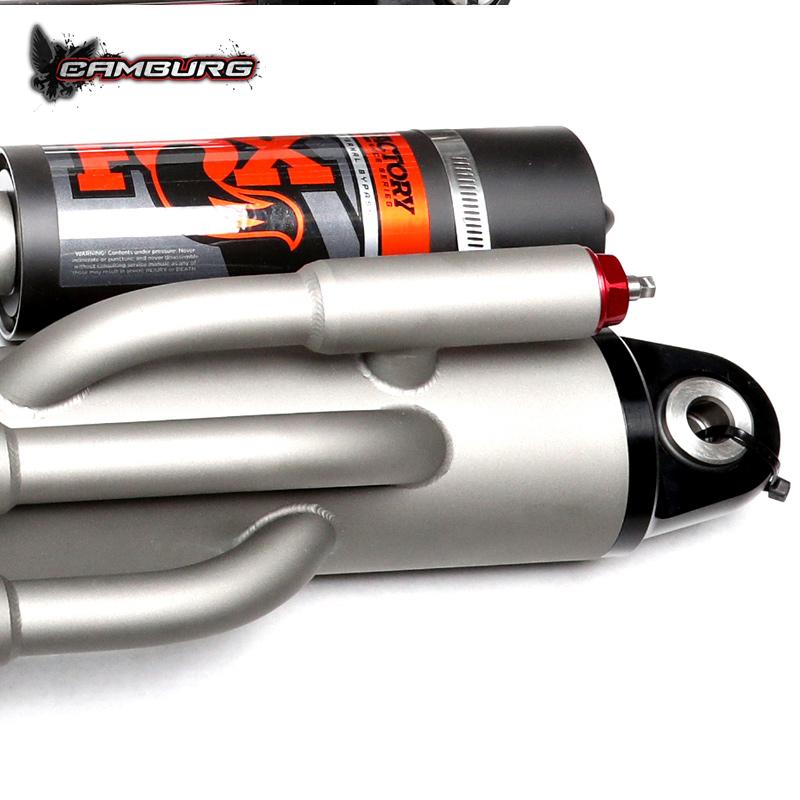

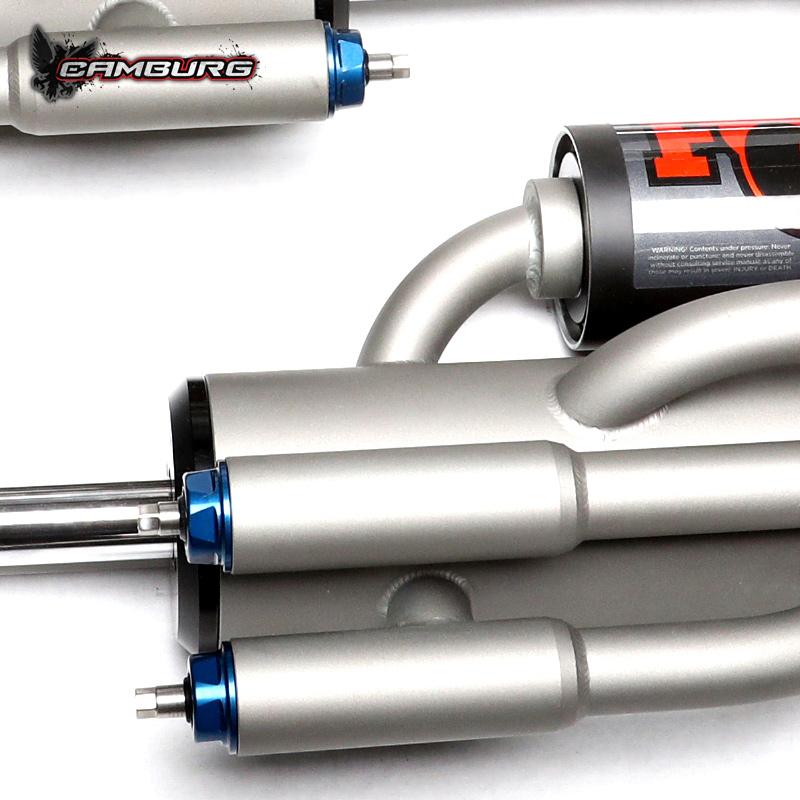

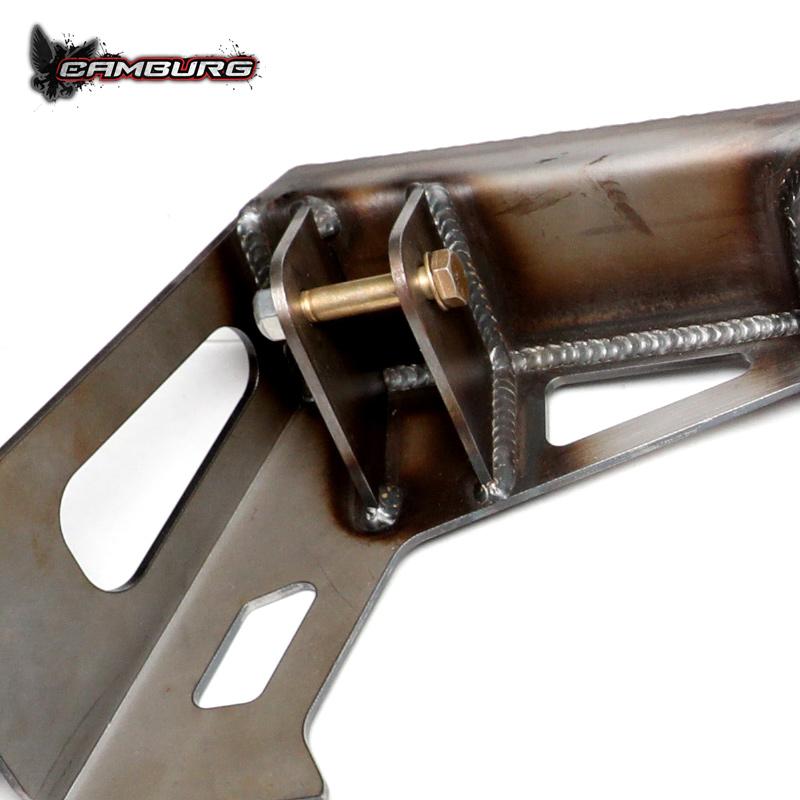

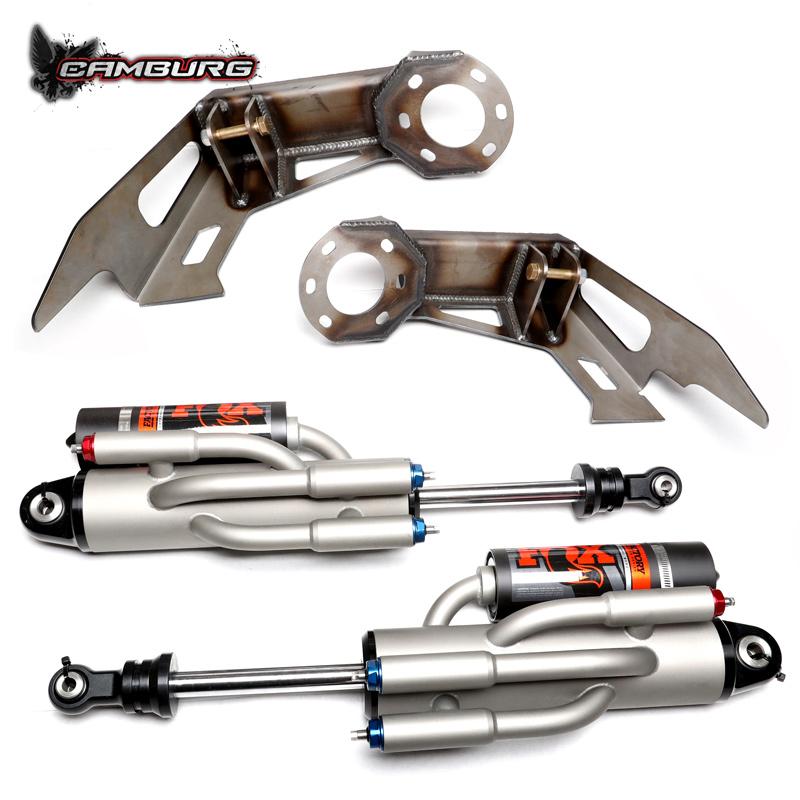

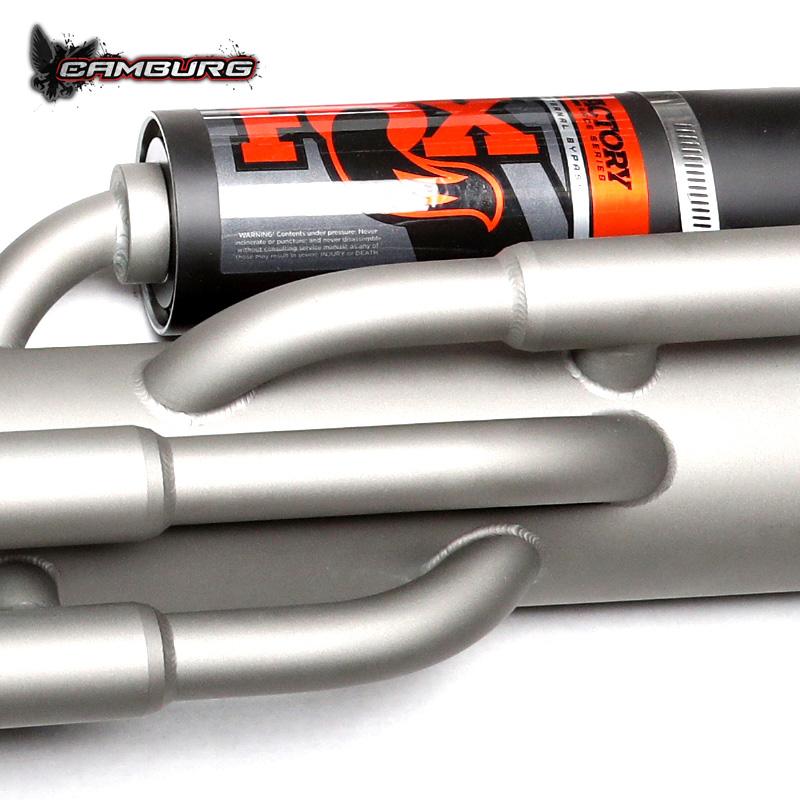

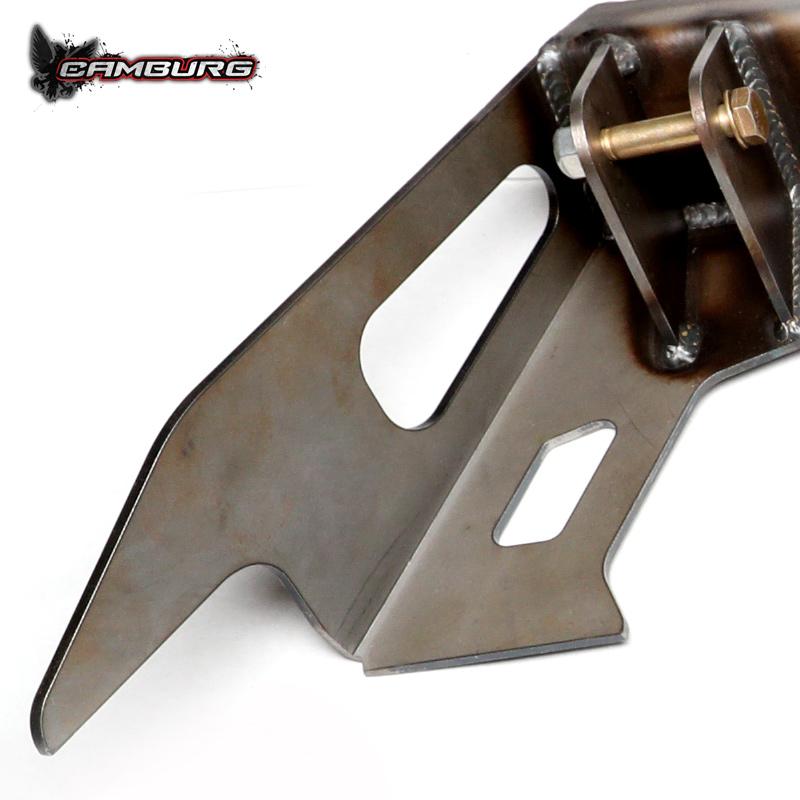

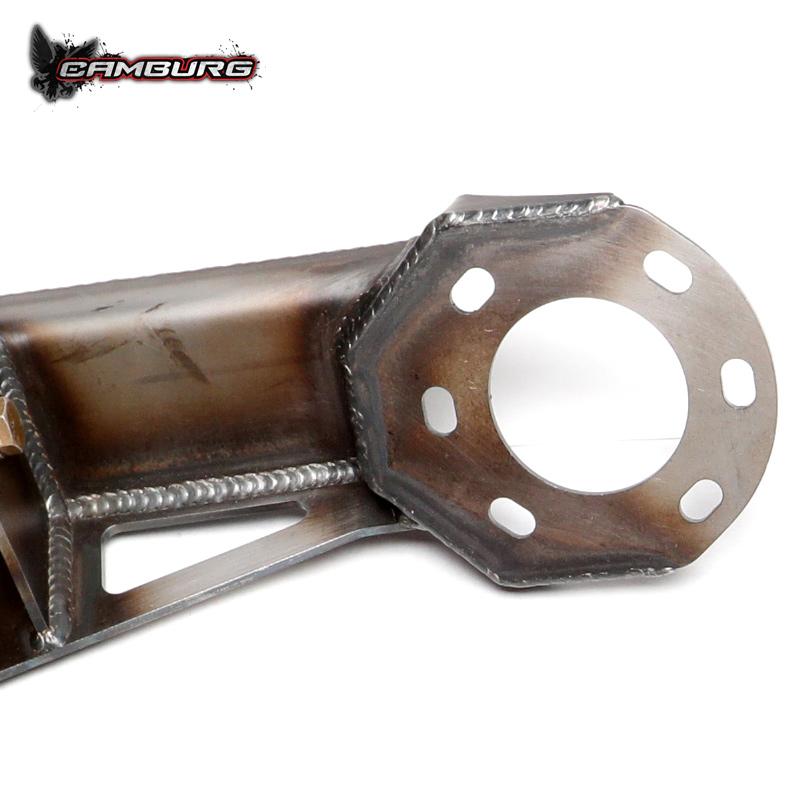

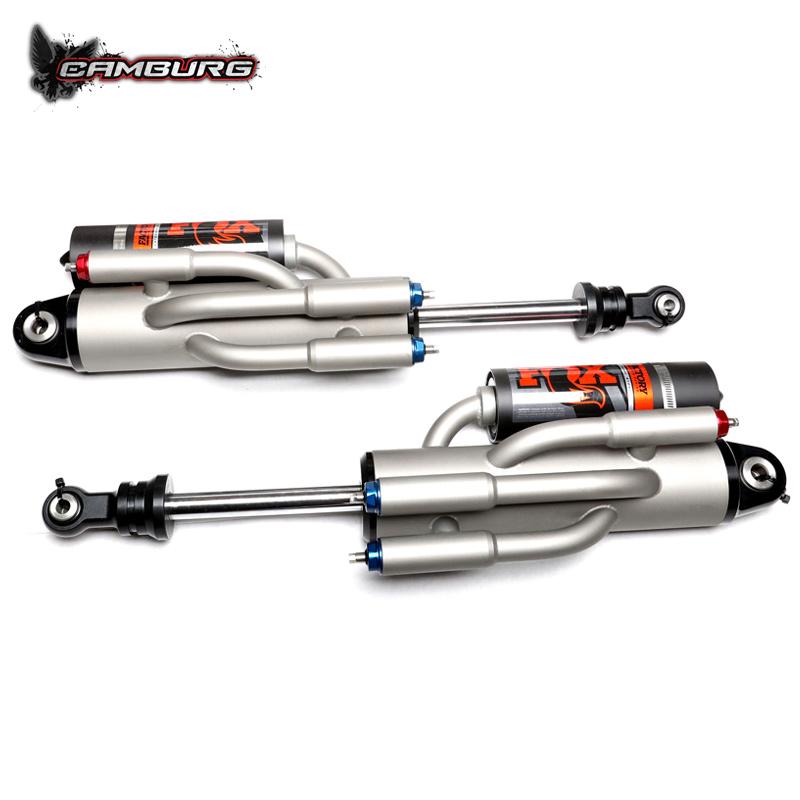

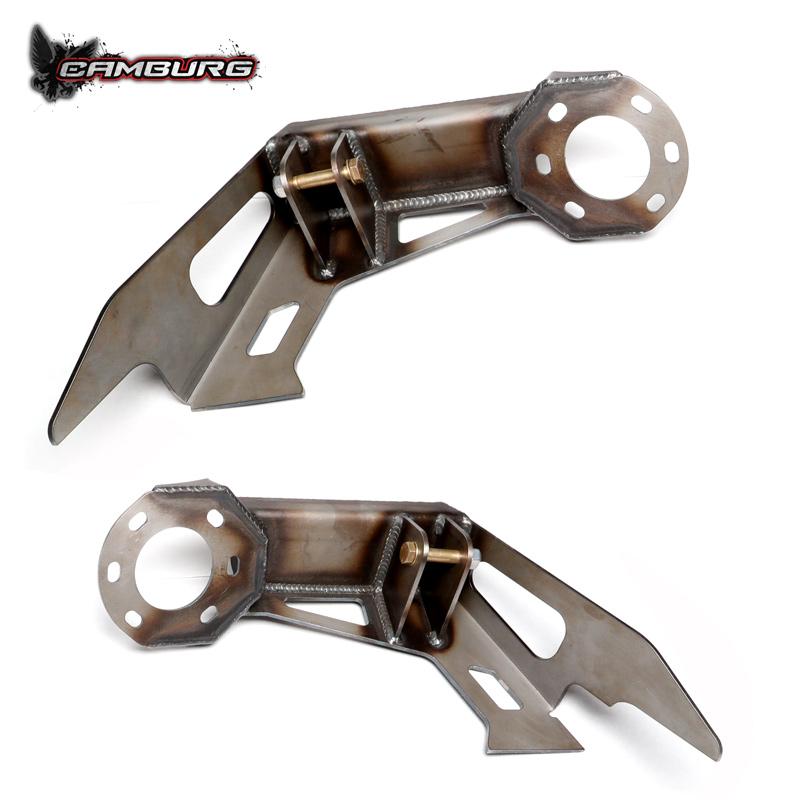

An easy way to add a bypass shock to your 2017-2020 (Gen2) Ford Raptor long-travel kit is with Camburg's pre-made weld-on mounts. Camburg's bypass mounts are laser cut and formed and fully MIG welded ready to go. It locates off the top of the OEM coil bucket and then mounts the frame rails for maximum attachment & strength. This is designed for Camburg's custom FOX 3.5 bypass shocks with the proper tube layout, valving, dimensions and piggyback res. Camburg has spent extensive time testing getting these shocks dialed in for our kit. They also have them cerakoted gray which is a high performance ceramic coating used in FOX’s trophy truck race shocks. Camburg supplies aircraft AN bolts for the upper and lower shock mounts that have the proper grip/shoulder length for maximum strength. They also include bolt-on brackets to relocate the brake lines at the frame for proper clearance and routing.
Why add a bypass?
Adding a bypass shock to your long-travel kit adds a ton more control and bottoming resistance since they are position sensitive. This allows for a soft plush ride through the small stuff that doesn’t bottom out easily through the bigger hits and g-outs. You’re able to tune the shock by adjusting the compression and rebound adjusters to really dial in the ride based on how you’re driving it.
WHAT'S INCLUDED:
- Driver side bypass mount
- Passenger side bypass mount
- Brake line relocation brackets
- Grade 8 and AN hardware
TECH INFO:
- Bypass mounts come raw as they need to be welded on. We recommend spraying them with black Steel-IT after welding.
