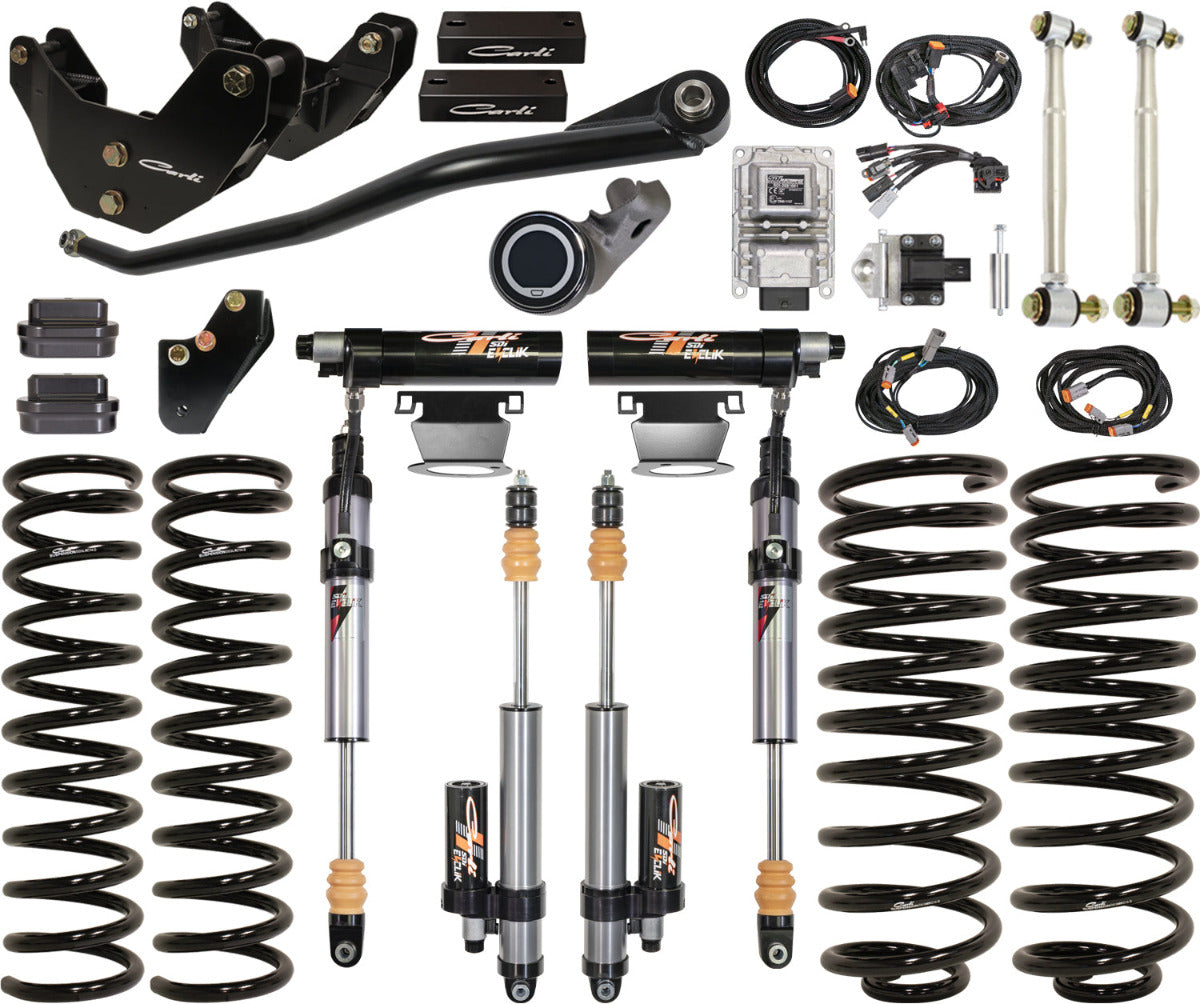

19-24 RAM 2500 4X4 DIESEL 3.25" LIFT EVENTURE SYSTEM R2 COILS Display of Included Parts
19-24 RAM 2500 4X4 DIESEL 3.25" LIFT EVENTURE SYSTEM R2 COILS Display of Included Parts

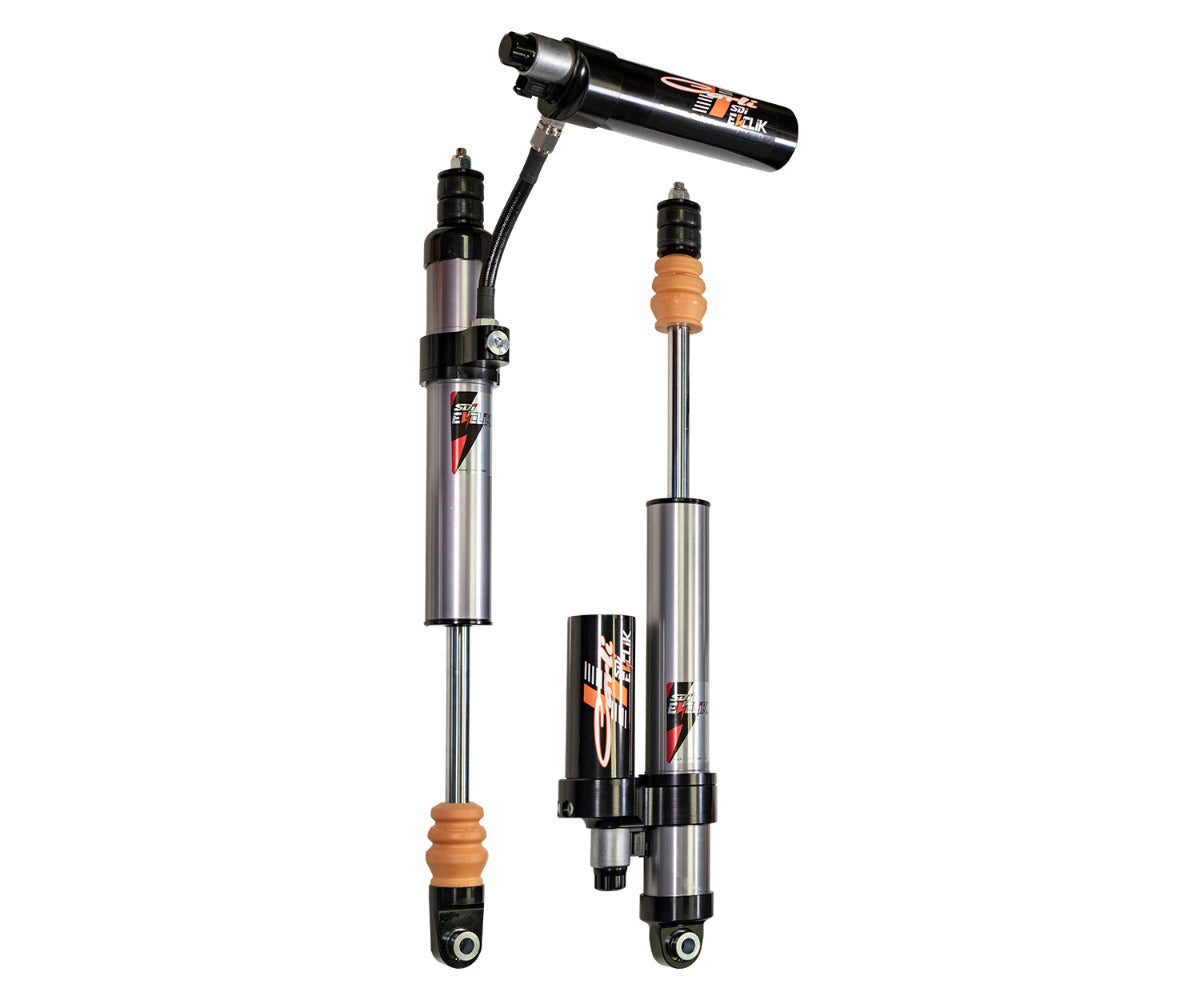

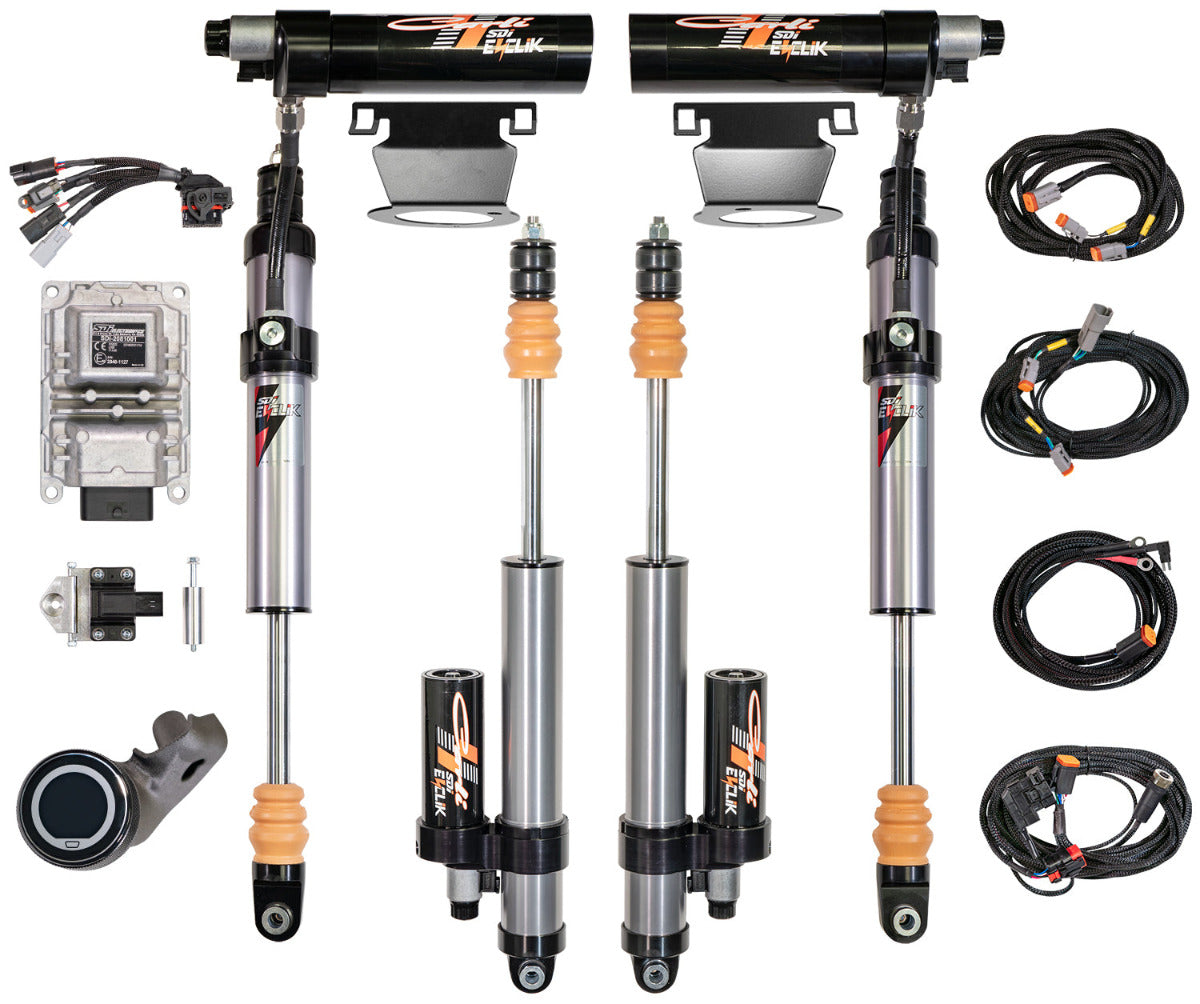

19-24 RAM 2500 4X4 DIESEL 3.25" LIFT EVENTURE SYSTEM R2 COILS Shocks Display

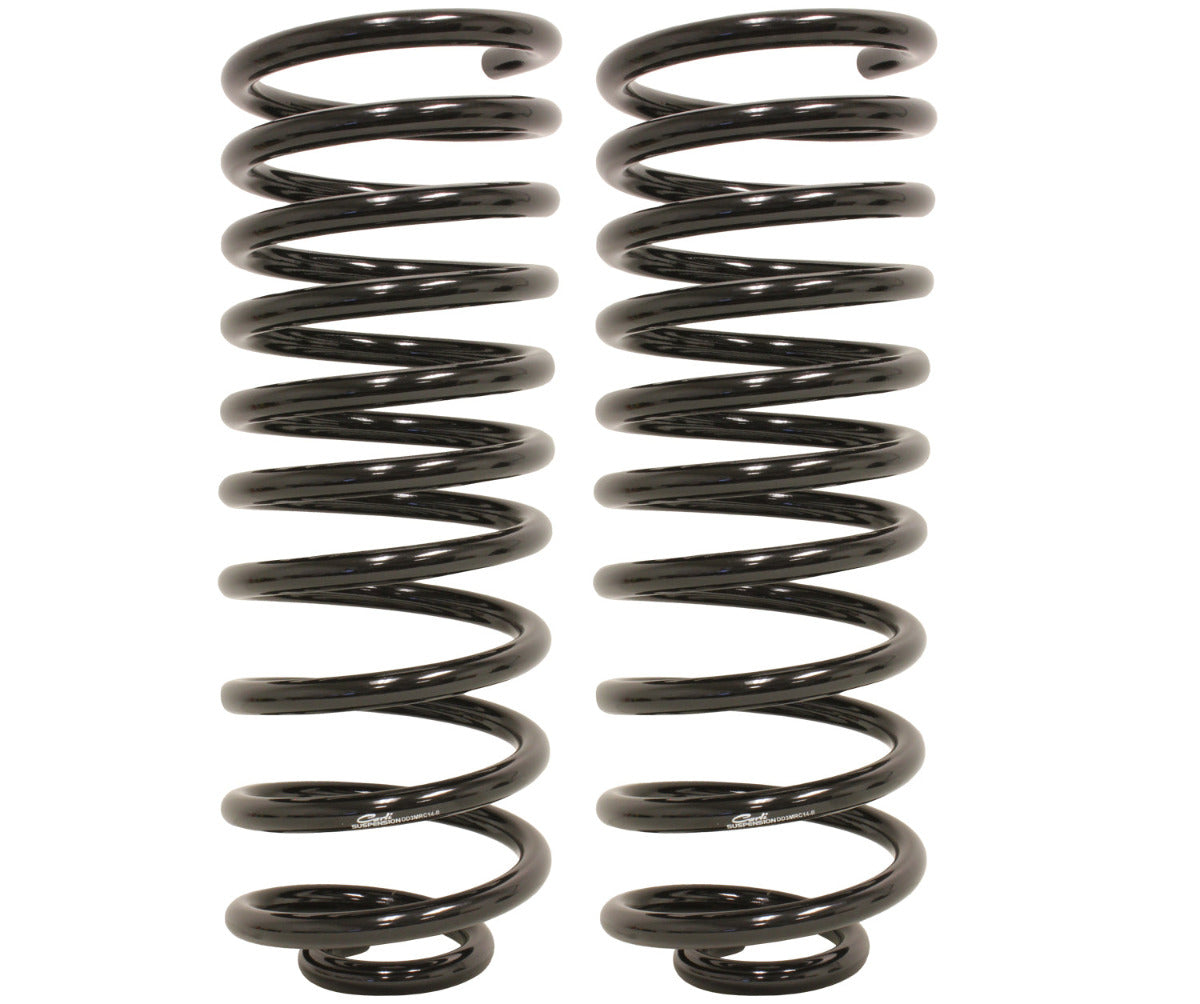

19-24 RAM 2500 4X4 DIESEL 3.25" LIFT EVENTURE SYSTEM R2 COILS Coil Springs Display

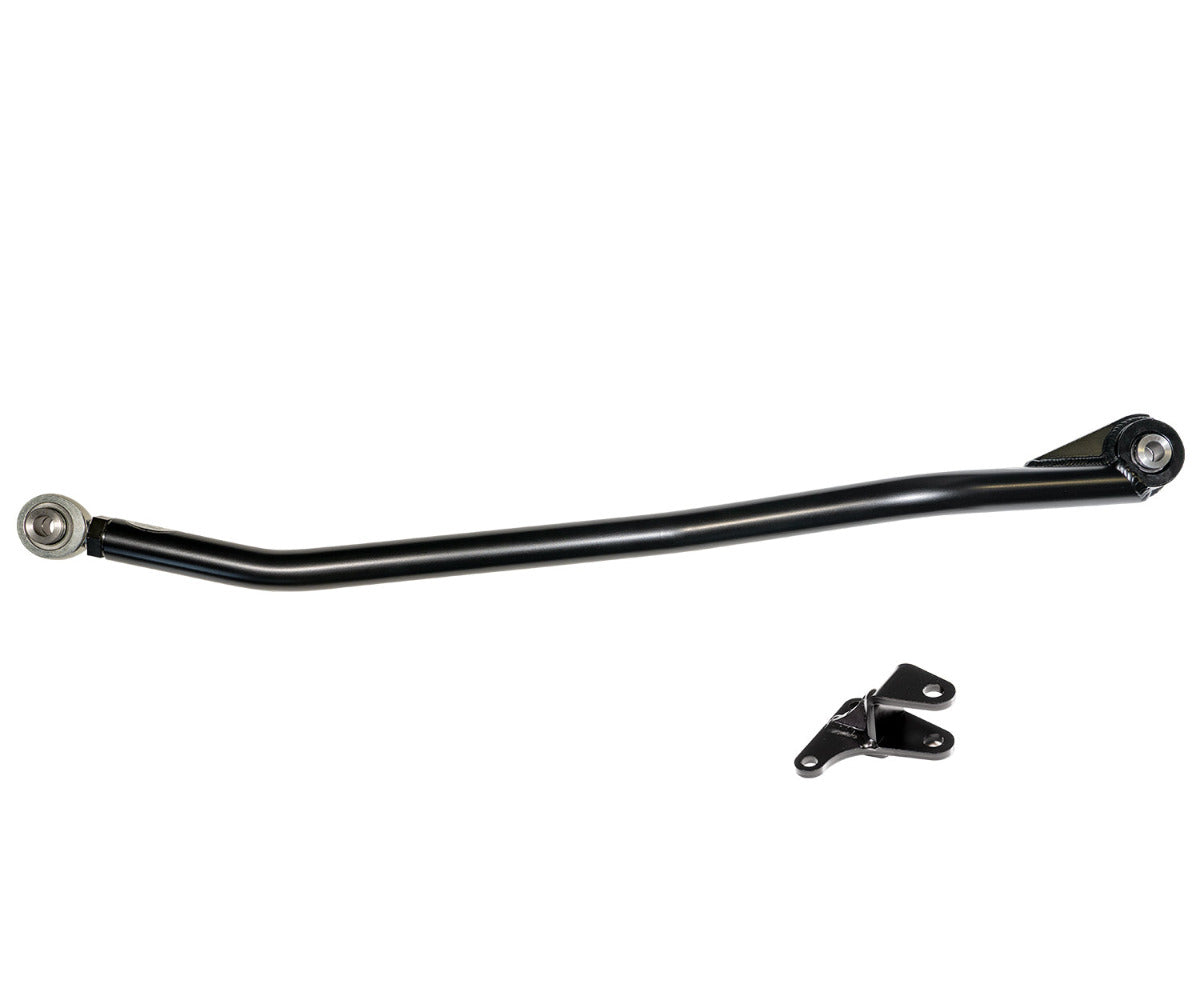

19-24 RAM 2500 4X4 DIESEL 3.25" LIFT EVENTURE SYSTEM R2 COILS Track Bar and Brackets Display

Carli Suspension

19-24 RAM 2500 4X4 DIESEL 3.25" LIFT EVENTURE SYSTEM R2 COILS

$9,050.00
SKU: CS-D3-EV25-19-D-R2 / CS-DTSB3-1419
Sway Bar Option:

Sway Bar Option
Quantity:

19-24 RAM 2500 4X4 DIESEL 3.25" LIFT EVENTURE SYSTEM R2 COILS

TORSION SWAY BAR - 3" LIFT

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

E-Venture Suspension System: Elevate Your Ride Experience

Introducing the E-Venture Suspension System, an advanced driving technology that seamlessly adjusts to the ever-changing demands of both on and off-road terrains.

The “Base Kit” includes everything required to complete the lift aside from a sway bar modification.

Choose either the Torsion Sway Bar or the Stock Sway Bar Drop Bracket to complete the kit.

Included in the E-Venture Suspension Base Kit:
  • CS-DEL-R-14: Rear Sway Bar End Links
  • CS-DFBD-1: Front Bump Drop Set
  • CS-DLRC-14-D: Front Linear-Rate Coil Springs
  • CS-DMRC-14-R2: Rear Multi-Rate Coil Springs (R2 Variant)
  • CS-DATB-1419: Front Track Bar
  • CS-DRAD-1419: Radius Arm Drop Set
  • CS-DRBD-AL: Rear Bump Drops
  • CS-DPRBDROP-14-R: Rear Track Bar Drop
  • CS-DEV25SPKG-19-D: Exclusive Ram E-Venture Shock Package – Complete with Reservoir Mounts, Stainless Shafts, and Brake Line Tabs.
Features & Benefits:

  • Smart Tech Integration: Utilizing sensors on the engine and data from the OBDII port, the system's ECU (Electronic Control Unit) processes this information in real-time, adjusting to the terrain 250 times a second. Whether it's a paved road, gravel, or rutted paths, expect unparalleled ride quality.

  • Durable Shocks: These shocks are built for longevity, featuring hard-anodized aluminum bodies, 17-4 Stainless Shock Shafts, and Teflon lined bearings.

  • Intuitive Touch Screen: SDI's user-friendly touch screen offers real-time feedback, showcasing real-time correction and adjustment intensity. It's strategically placed to ensure easy access without being obtrusive.

  • Customizable Modes: Select from specialized drive modes including Mountain, Street, and Desert. Dive deeper with the Pro Mode, which allows for more intricate adjustments, from pitch and roll to throttle and brake response. If things get too complex, there's always a "Restore Default" option.

  • Hauling Mastery: The Rear Load Adjustment feature offers incremental control over the rear dampers. Especially handy when carrying loads, users can tweak for the ideal balance between comfort and support.

  • Complete Package: The system provides an all-inclusive solution, from harnesses connecting to the ECU to sensors that detect vehicle movements. Plus, it ensures the truck sits higher with more suspension travel, enhancing overall performance.

Fitment:

Compatible with up to 37” tires on wheels up to 9” wide with 5.75-6” backspacing. We recommend 18” diameter wheels for the best ride quality.

Discover the future of driving dynamics with the E-Venture Suspension System - a blend of innovative technology, robust construction, and user-centric design, promising an unmatched driving experience.
