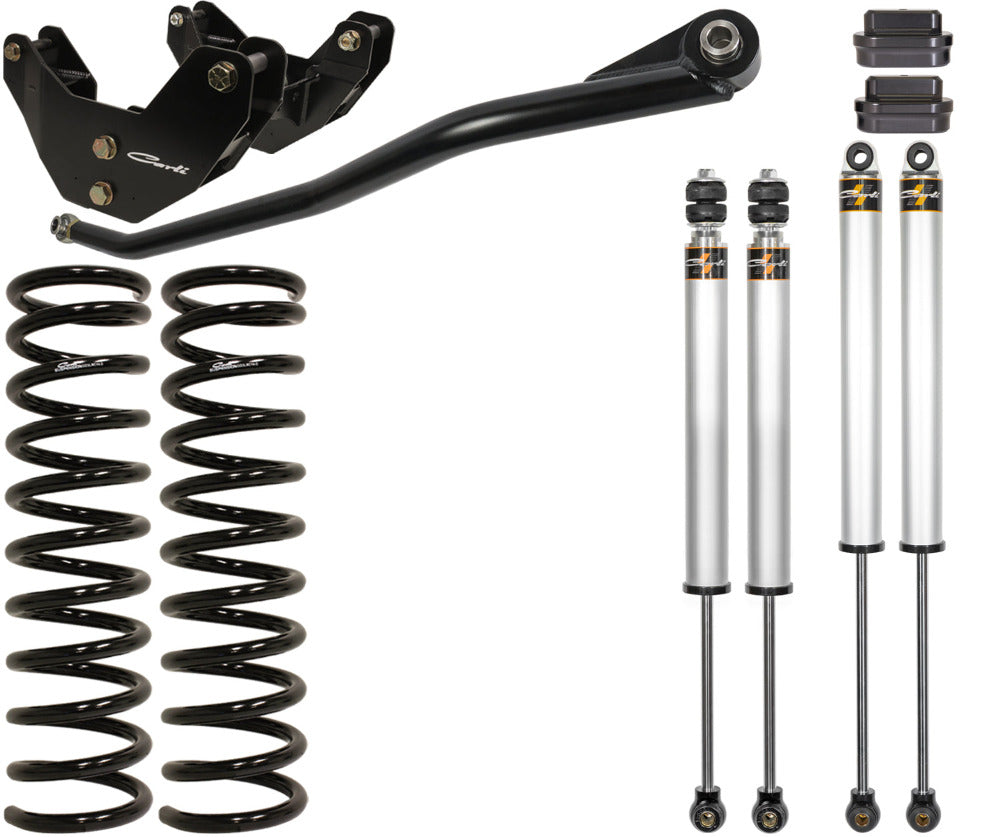

'13-24 Ram 3500 2.0 Commuter System-3" Lift Display of Included Parts

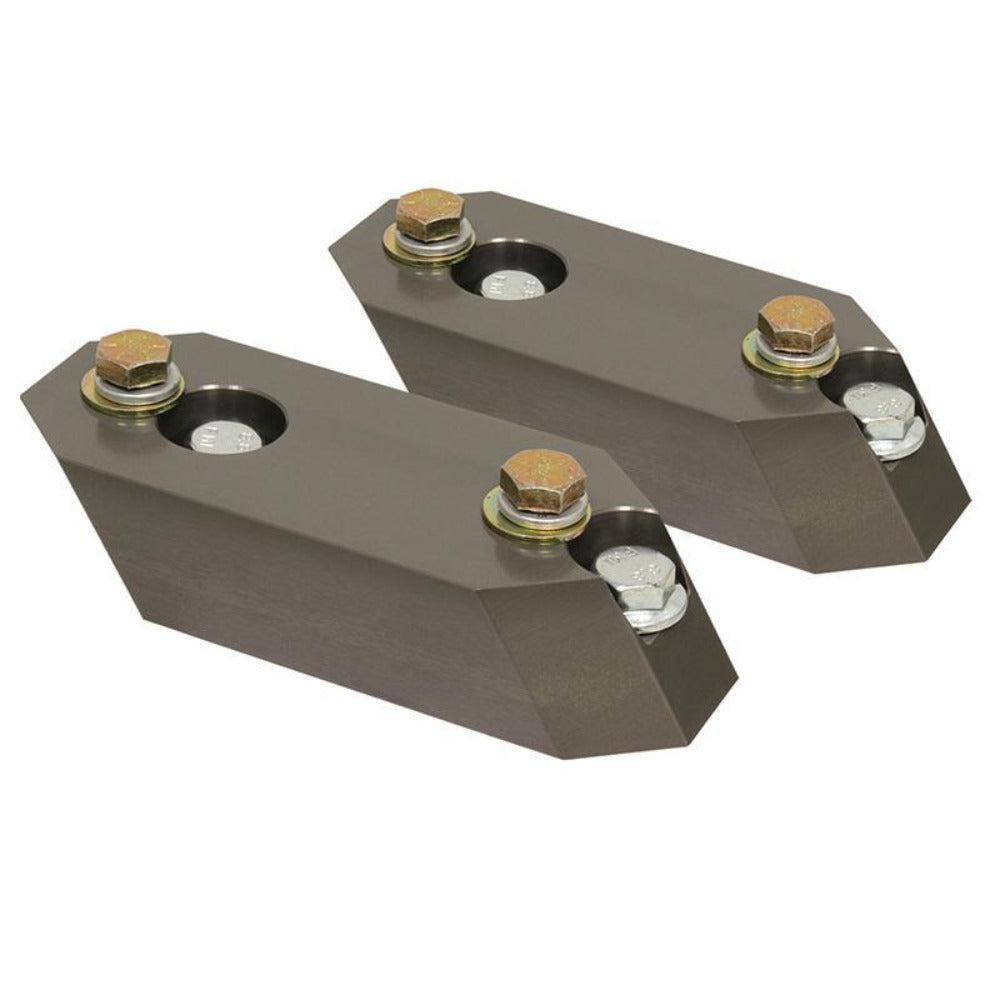

'13-24 Ram 3500 2.0 Commuter System-3" Lift Sway Bar Drop Brackets Display

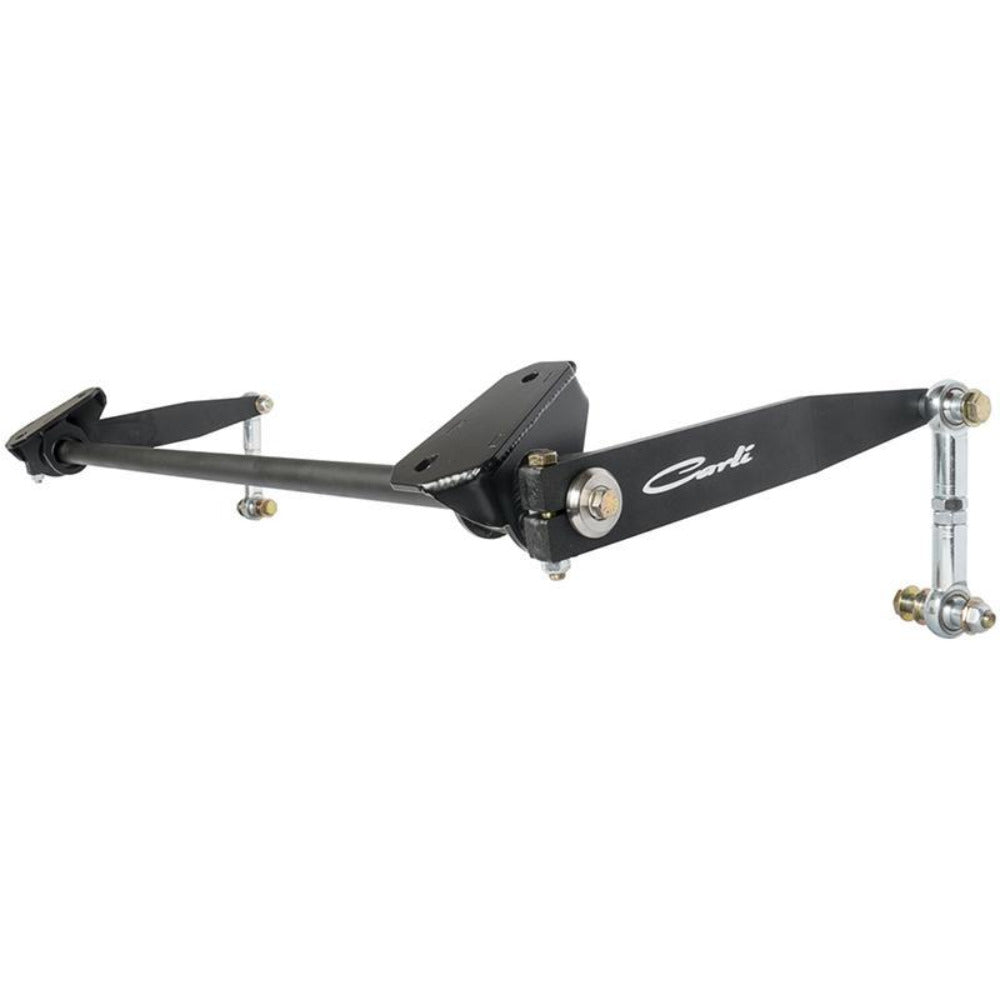

'13-24 Ram 3500 2.0 Commuter System-3" Lift Torsion Sway Bar Display

Carli Suspension

'13-24 Ram 3500 2.0 Commuter System-3" Lift

$2,820.00
SKU: CS-D3-COM-CS-1319-D
Sway Bar Options:

Sway Bar Options
Quantity:

'13-24 Ram 3500 2.0 Commuter System-3" Lift

Base Kit Only

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

THE KIT FOR THE COMMUTE:

The Carli Commuter 2.0 system for the 2013-2024 Ram 3500 is designed for people seeking the best on-road ride quality on a budget. Utilizing front and rear Carli SPEC 2.0” internal reservoir shocks, we’ve developed a Carli Signature shock tune that delivers all around comfort and ride quality designed for on-road, in town, highway, and towing/hauling. The Carli 2.0s are fully rebuildable, built with hour-glass bushings and boast extruded aluminum construction with a clear anodizing for corrosion resistance.

SPECS:
  • Front Lift: 3.25-3.5"
  • Rear Lift: 2-2.5"
  • Front Travel: 9.6"
  • Rear Travel: 11"
  • Shock Diameter: 2.0
  • Tire Fitment: 37"x12.50
BASE KIT INCLUDES:
  • CS-DFBD-1: Front Bump Drops
  • CS-DLRC-14-D: Front Linear-Rate Coil Springs
  • CS-DATB-1419: Front Track Bar
  • CS-DRAD-14: Radius Arm Drops
  • CS-DCM-20-HK: Transmission Crossmember, Extended Hardware Kit
  • CS-DC20SPKG-13-D: Carli SPEC 2.0" IFP Shocks, Front and Rear
PRODUCT OPTIONS:
  • SWAY BAR SELECTION
    A sway bar option must be selected to form a complete kit
    • SWAY BAR DROPS-CS-DSBD-14
      • In-house machined billet aluminum
      • Hard-Anodized for corrosion resistance
      • Correct factory sway bar geometry on 3" Lift
    • TORSION SWAY BAR-CS-DTSB3-1419
      • Easily the best "bang for the buck" upgrade for ride quality
      • Allows front suspension to move freely without giving up control
      • Requires removal of electronic sway bar on Power Wagons
KIT DETAILS:

Your truck will sit 3”-3.5” higher in the front (cab configuration dependent) with 50% more suspension travel than the factory platform thanks to the taller, lighter rate coil springs. The rear is lifted 1”-2” via the Carli Progressive Add-A-Pack. The Progressive Add-A-Pack & Block Combination replaces the factory overload with a 5-Leaf, progressive pack that changes the final rate of the spring pack keeping the rear planted while increasing traction and predictability.

When pairing added down-travel with the taller ride height, the position of the factory, front sway bar will need to be altered as well. For this, we offer two options; Billet Sway Bar Drop Brackets or the replacement Torsion Sway Bar. The Billet Drop Blocks shift the sway bar down and forward to ensure the factory end links cycle properly throughout the entire extended travel range. Carli’s optional Torsion sway bar removes the entire factory sway bar assembly replacing it with a torsion bar supported by fabricated drop brackets and delrin bushings. Fabricated sway bar arms and dual 5/8” FK heim end links round off the package. This is the single best bang for the buck, ride-quality upgrade offered by Carli Suspension.

WHEEL AND TIRE INFO:

This system will fit up to a 37” tire when utilizing wheels that are no more than 9” wide with 5.75-6” of backspacing. A 12.5” wide should fit with no rubbing on the factory radius arm and only minor trimming required, while a 13.5” will require more trimming and slightly more offset to fit properly. 35” tires will fit with VERY minimal, if any trimming. We Recommend running an 18” diameter wheel for optimal ride quality (more rubber = better small bump compliance) on a 35”-37” E-rated tire running 45psi front, 40psi rear when unloaded.
