Carli Suspension

19-24 RAM 2500 4X4 HEMI 3.0" LIFT PINTOP SYSTEM

$6,270.00
SKU: CS-DPT25-19-H
Quantity:

19-24 RAM 2500 4X4 HEMI 3.0" LIFT PINTOP SYSTEM

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

THE JACK-OF-ALL-TRADES:

The Carli Pintop suspension kit boasts 2.5″, Remote Reservoir King Shocks. Designed and tuned in house for the customer looking for substantial on-road and off-road performance improvement. Customers can expect a softer ride with more control and bottom-out resistance than the Backcountry.

This system is our Jack-of-all-trades system from which every Ram owner would benefit. Raising the Ram platform then adding the 2.5” diameter shocks will support the argument that these trucks should come equipped with 2.5” shocks from the factory. This system is our most popular, all around suspension system. It was tuned and rides best with 18” wheels and 37” tires.

Your truck will sit 3”-3.5” higher in the front (cab configuration dependent) with 50% more suspension travel than the factory platform thanks to the taller, lighter rate coil springs. The rear is lifted .5”-1.5” via Carli’s progressive coil springs and will reduce payload and towing capacity 15% from a stock 2500.

SPECS:
Front Lift Rear Lift Front Travel Rear Travel Shock Diameter Tire Fitment
3- 3.25" 0.5 - 1" 9.6" 11" 2.0" 37" x 12.5"

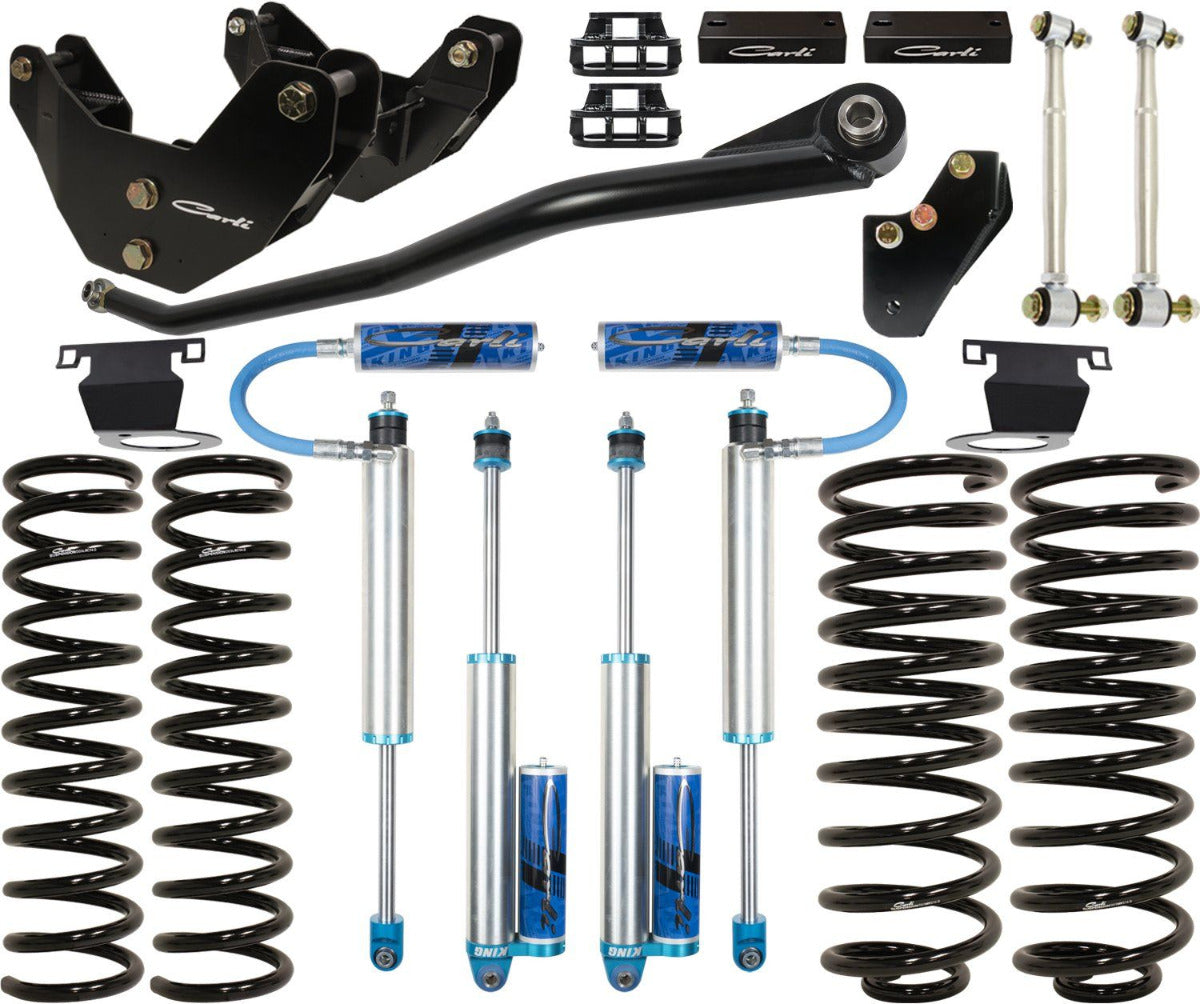

BASE KIT INCLUDES:
  • CS-DEL-R-14: Rear Sway Bar End Links

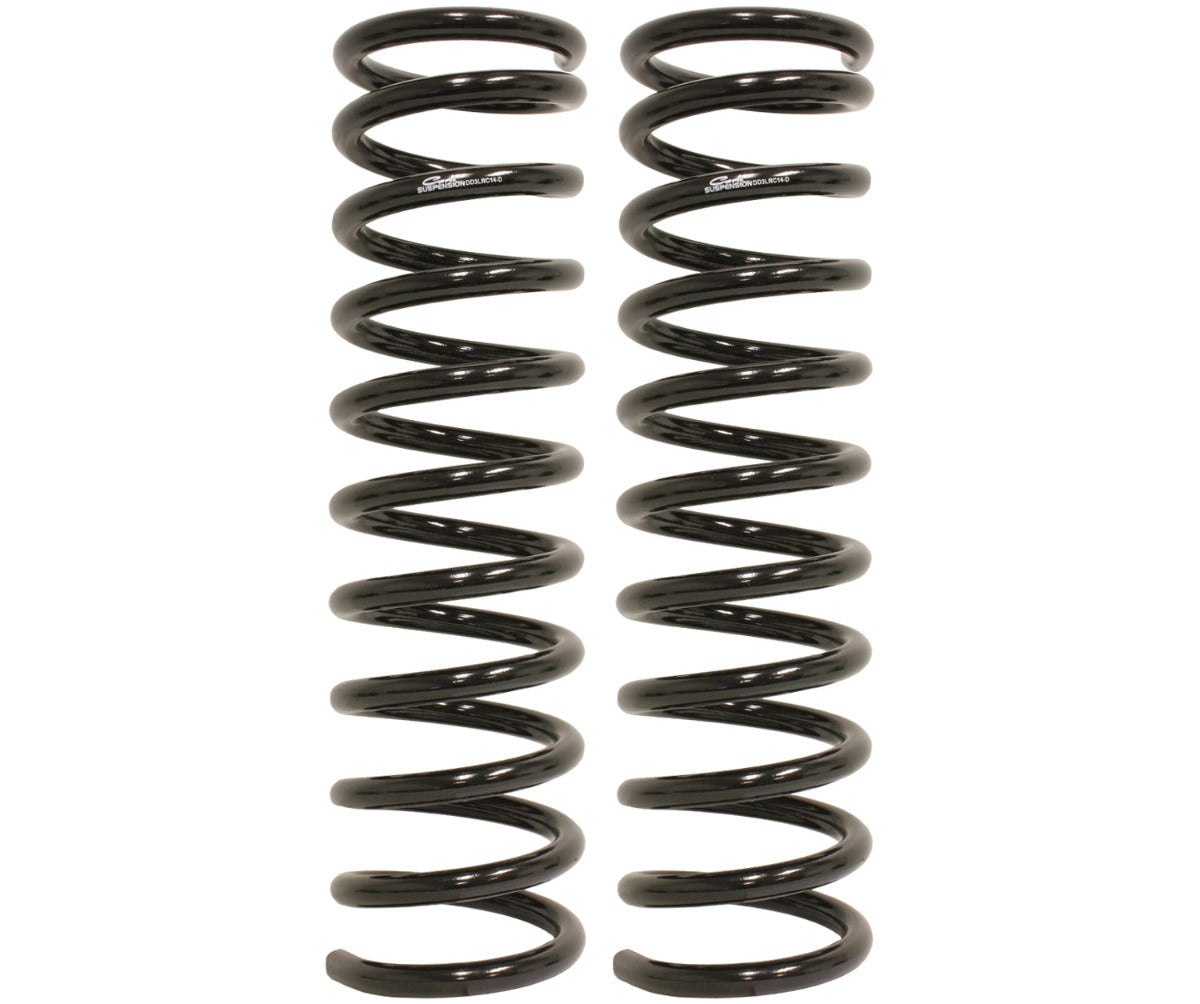

  • CS-DFBD-1: Front Bump Drops CS-DLRC-14-H: Front Linear-Rate Coil Springs
  • CS-DMRC-14-R: Rear Multi-Rate Coil Springs
  • CS-DATB-1419: Front Track Bar
  • CS-DRAD-14: Radius Arm Drops
  • CS-DCM-20-HK: Transmission Crossmember, Extended Hardware Kit
  • CS-DRBD-AL: Rear Bump Drops
  • CS-DPRBDROP-14-R: Rear Track Bar Drop

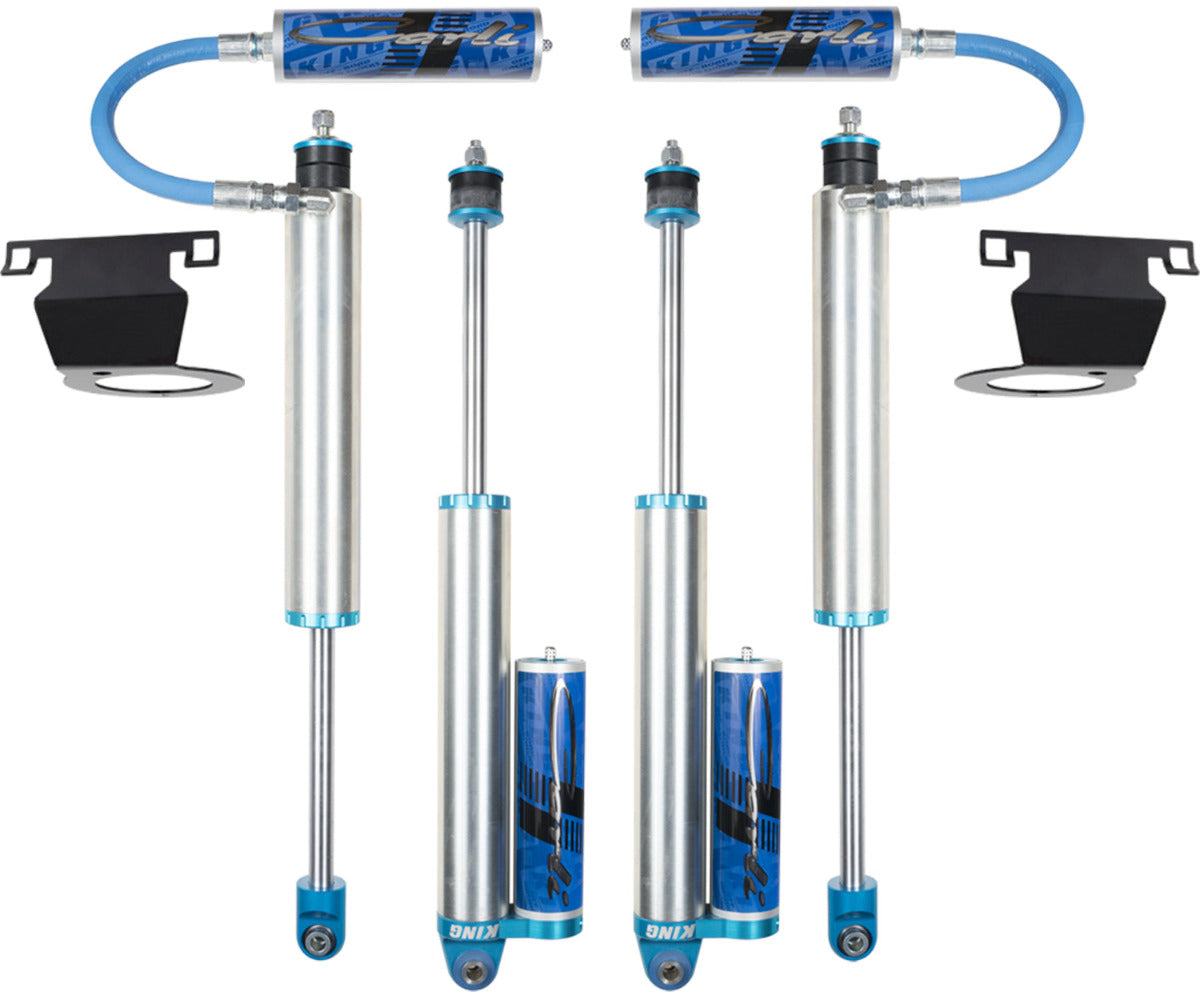

  • CS-DPT25SPKG-14-H: Carli Tuned King 2.5" Remote Reservoir Pintop Shock Package with Reservoir Mounts, Stainless Shafts, Brake Line Tabs
  • CS-DVDBRKT-19: Harmonic Damper Relocation Bracket
PRODUCT OPTIONS:
  • SWAY BAR OPTIONS
    This Carli Suspension Kit must be accompanied by a selection of a Sway Bar option to form a complete system.

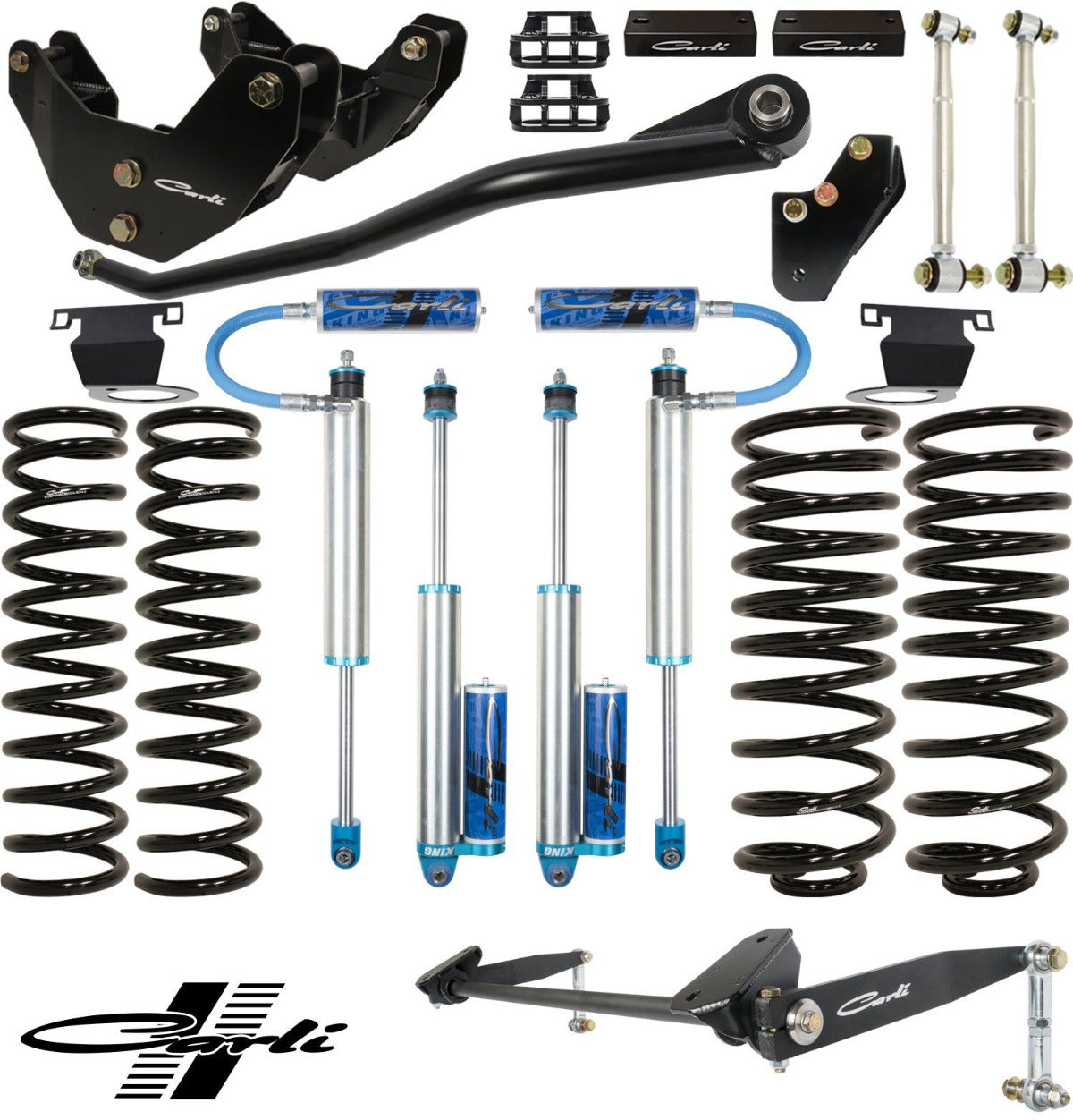

    • TORSION SWAY BAR-CS-DTSB3-03
      • Easily the best "bang for the buck" upgrade for ride quality
      • Allows front suspension to move freely without giving up control
      • For trucks with 0-3" of front lift

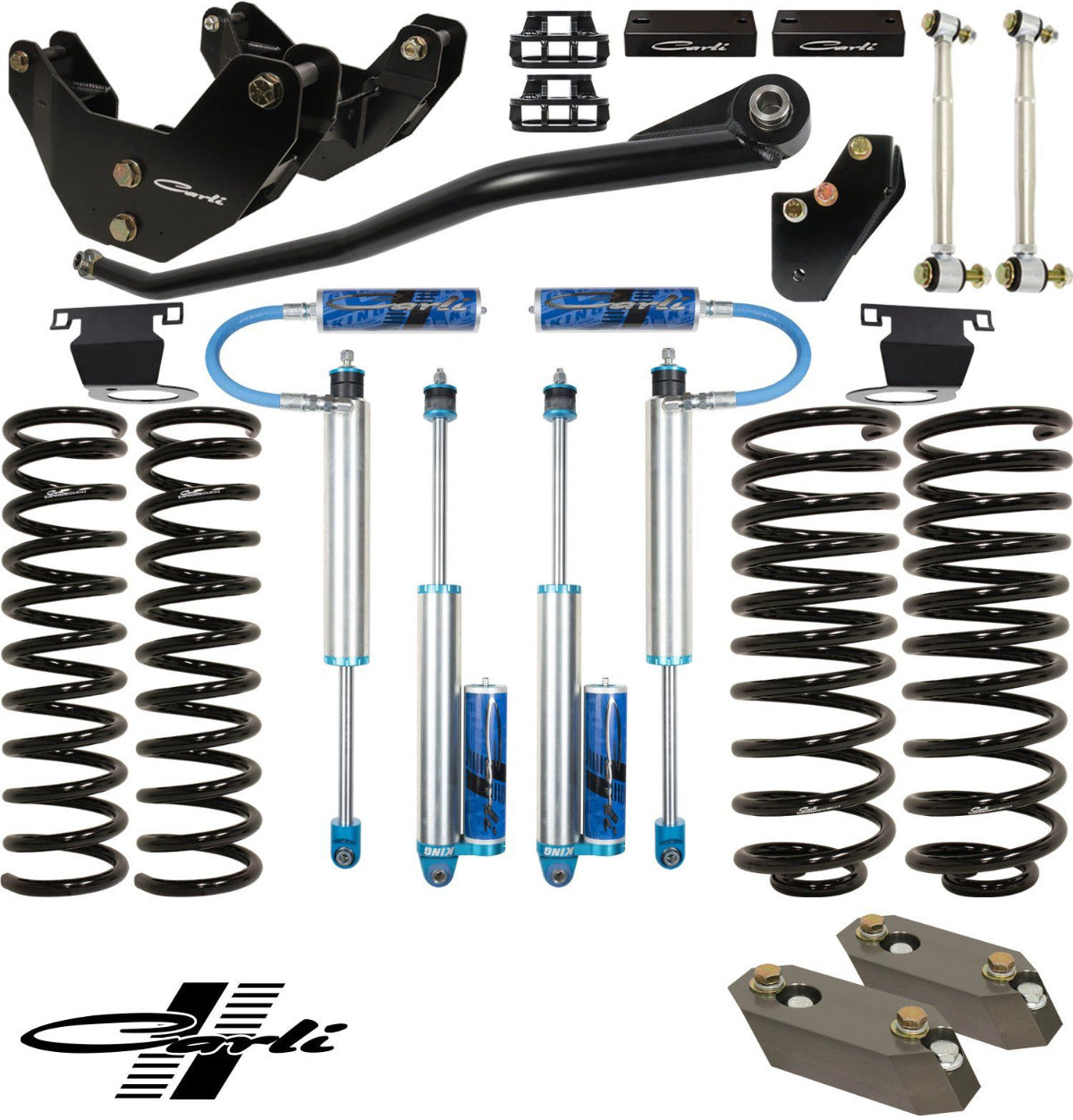

    • SWAY BAR DROPS-CS-DSBD-14
      • In-house machined billet aluminum
      • Hard-Anodized for corrosion resistance
      • Correct factory sway bar geometry on 3" Lift
