'13-24 Ram 3500 Air Ride Carli 2.5 Pintop System-3" Lift Display of Included Parts
'13-24 Ram 3500 Air Ride Carli 2.5 Pintop System-3" Lift Display of Additional Parts
'13-24 Ram 3500 Air Ride Carli 2.5 Pintop System-3" Lift Display of Sway Bar Drop Brackets
'13-24 Ram 3500 Air Ride Carli 2.5 Pintop System-3" Lift Torsion Sway Bar Display

Carli Suspension

'13-24 Ram 3500 Air Ride Carli 2.5 Pintop System-3" Lift

$7,743.00
SKU: CS-DPT25-1319-D-ALAS
Sway Bar Options:

Sway Bar Options
Rear Leaf Options:

Rear Leaf Options

'13-24 Ram 3500 Air Ride Carli 2.5 Pintop System-3" Lift

Sway Bar Drops ( CS-DSBD-14) / Progressive Leaf Springs (CS-DFSP-19-D-ALAS)

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

BEST OF BOTH WORLDS:

By nature, the Pintop kit boasts 2.5″, Remote Reservoir King Shocks. Designed and tuned in house for the customer looking for substantial on-road and off-road performance improvement. Customers can expect a softer ride with more control and bottom-out resistance than the stock suspension.

VEHICLE FITMENT:

2013-Current Ram 3500 with Auto-Leveling Air Suspension

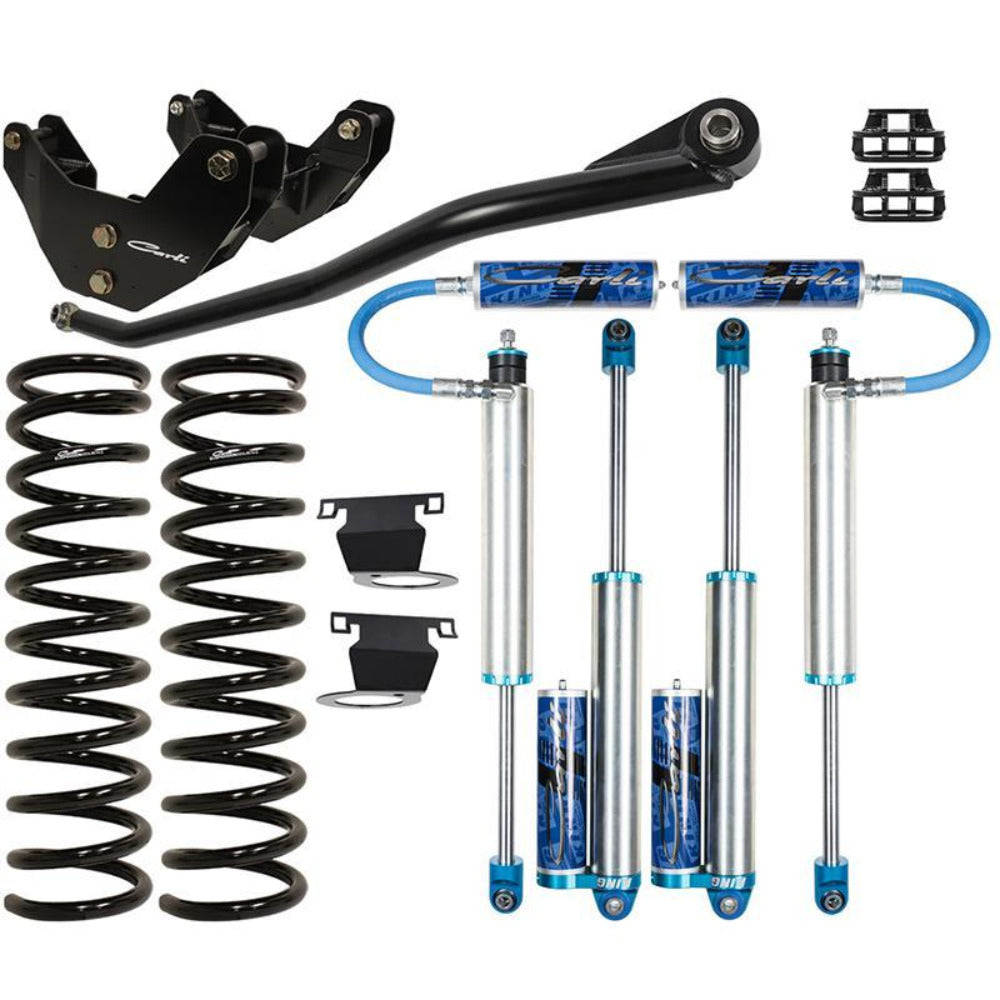

BASE KIT INCLUDES:
  • CS-DFBD-1: Front Bump Drops
  • CS-DLRC-14-D: Front Linear-Rate Coil Springs
  • CS-DATB-1419: Front Track Bar
  • CS-DRAD-14: Radius Arm Drops
  • CS-DPT25SPKG-13-D: Carli Tuned King 2.5" Remote Reservoir Pintop Shock Package with Reservoir Mounts, Stainless Shafts
KIT SPECS:
Front Lift Rear Lift Front Travel Rear Travel Shock Diameter Tire Fitment
3.25″ – 3.5″ 2″ 9.6″ 11″ 2.5″ 37″ x 12.5″


PRODUCT OPTIONS:

YOU MUST SELECT A SWAY BAR OPTION TO FORM A COMPLETE SUSPENSION KIT

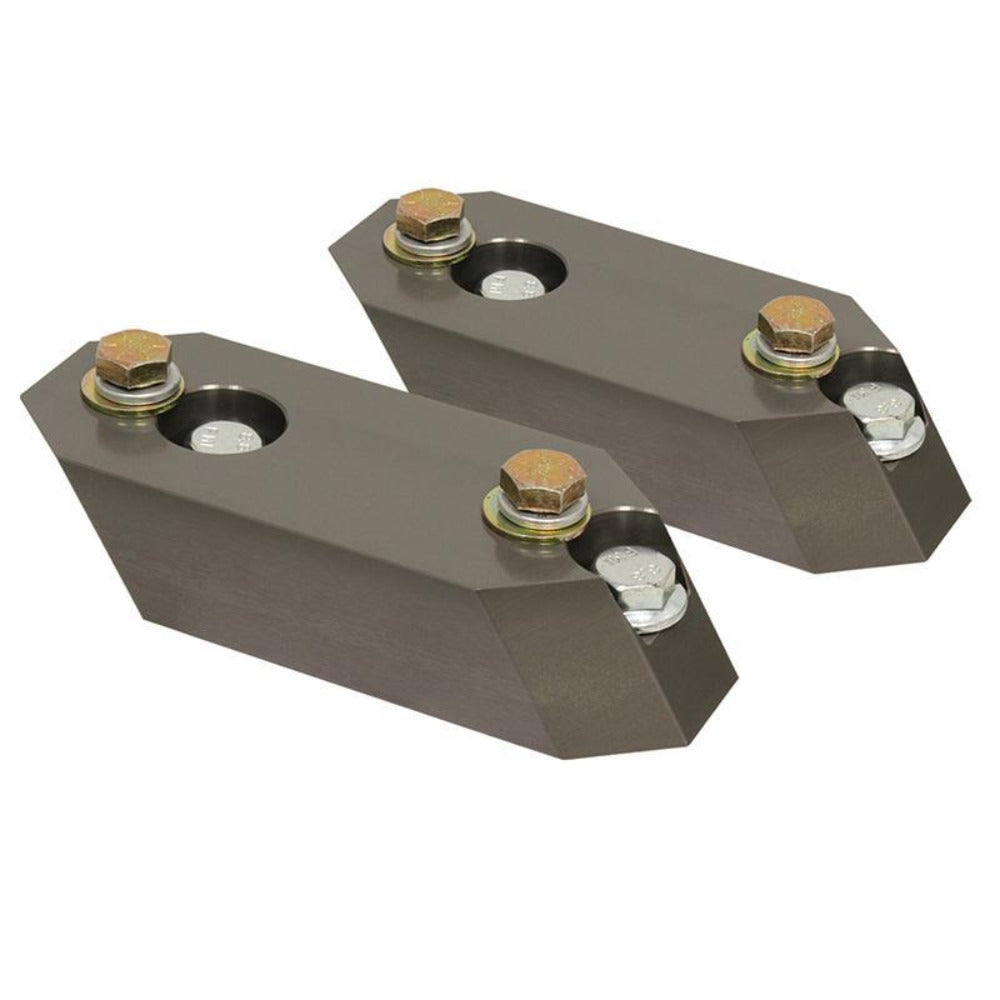

SWAY BAR DROPS: CS-DSBD-14

  • In-house machined billet aluminum
  • Hard-Anodized for corrosion resistance
  • Correct factory sway bar geometry on 3" Lift

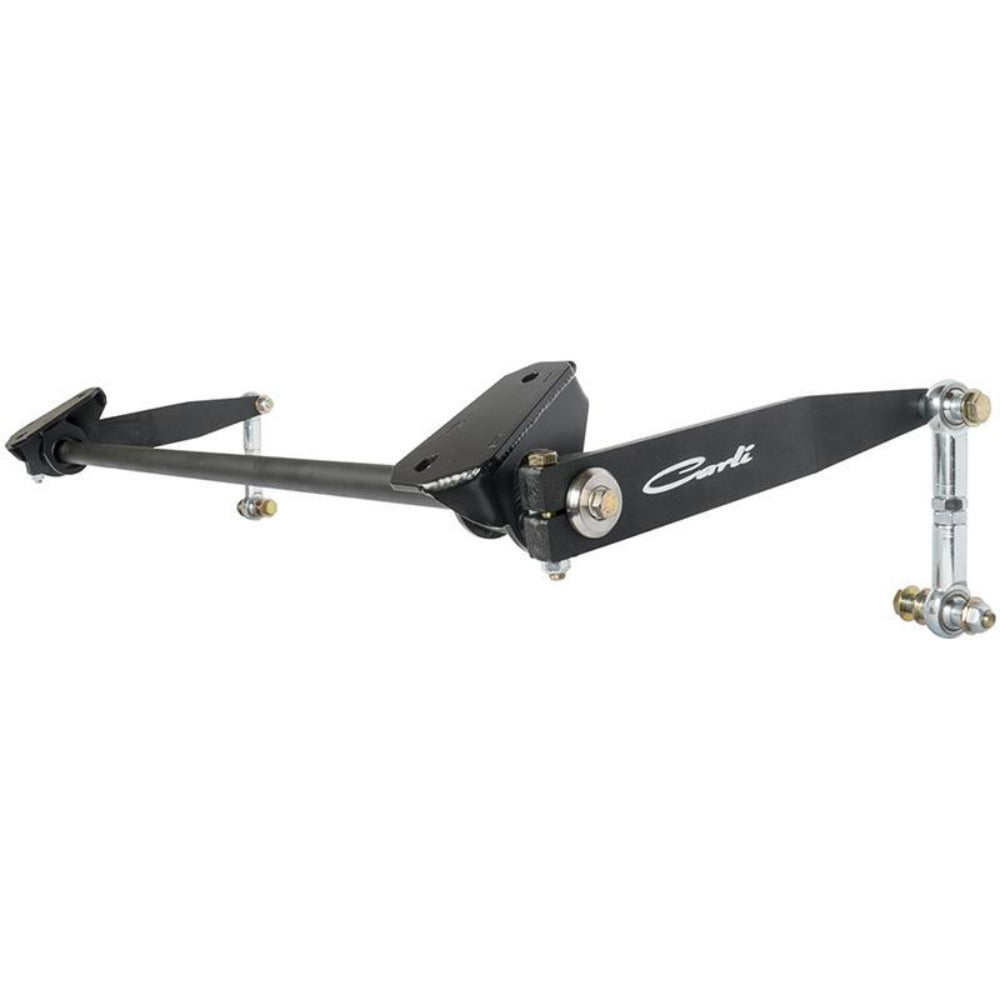

TORSION SWAY BAR: CS-DTSB3-1419

  • Easily the best "bang for the buck" upgrade for ride quality
  • Allows front suspension to move freely without giving up control
  • Requires removal of electronic sway bar on Power Wagons
  • Compatible with 2.5"-4" Front Lift

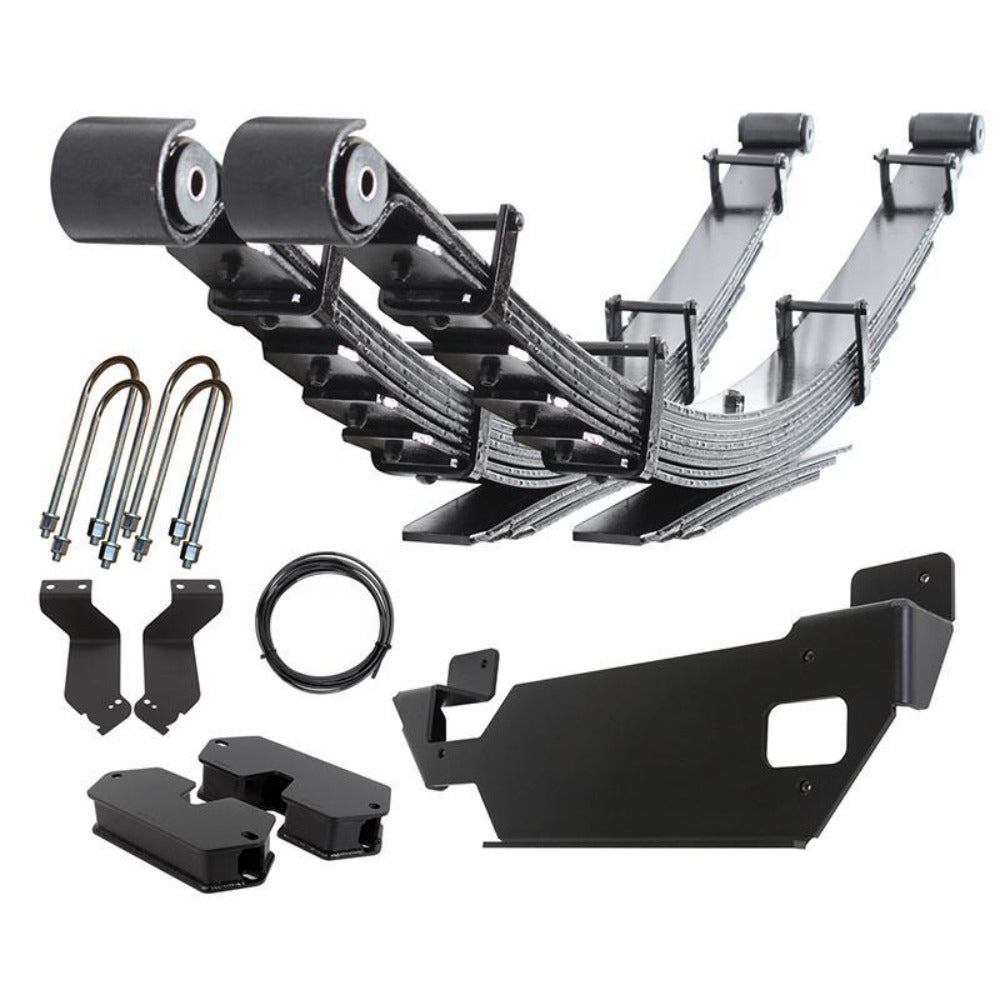

PROGRESSIVE REAR LEAF OPTIONS: CS-DFSP-19-D-ALAS

  • Converts rear to full progressive leaf spring design
  • 2" Rear Lift, Matches a 3" Front Suspension Lift
  • Minimizes axle wrap & wheel hop & maintains factory payload
  • Fitment: Ram 2019+ 3500 4x4, Factory Air Assist
  • Includes Sensor, Bag, and Airtank Relocation, Airline, Hardware and Fittings
  • Will ONLY fit 3500 trucks that have factory air-assist
