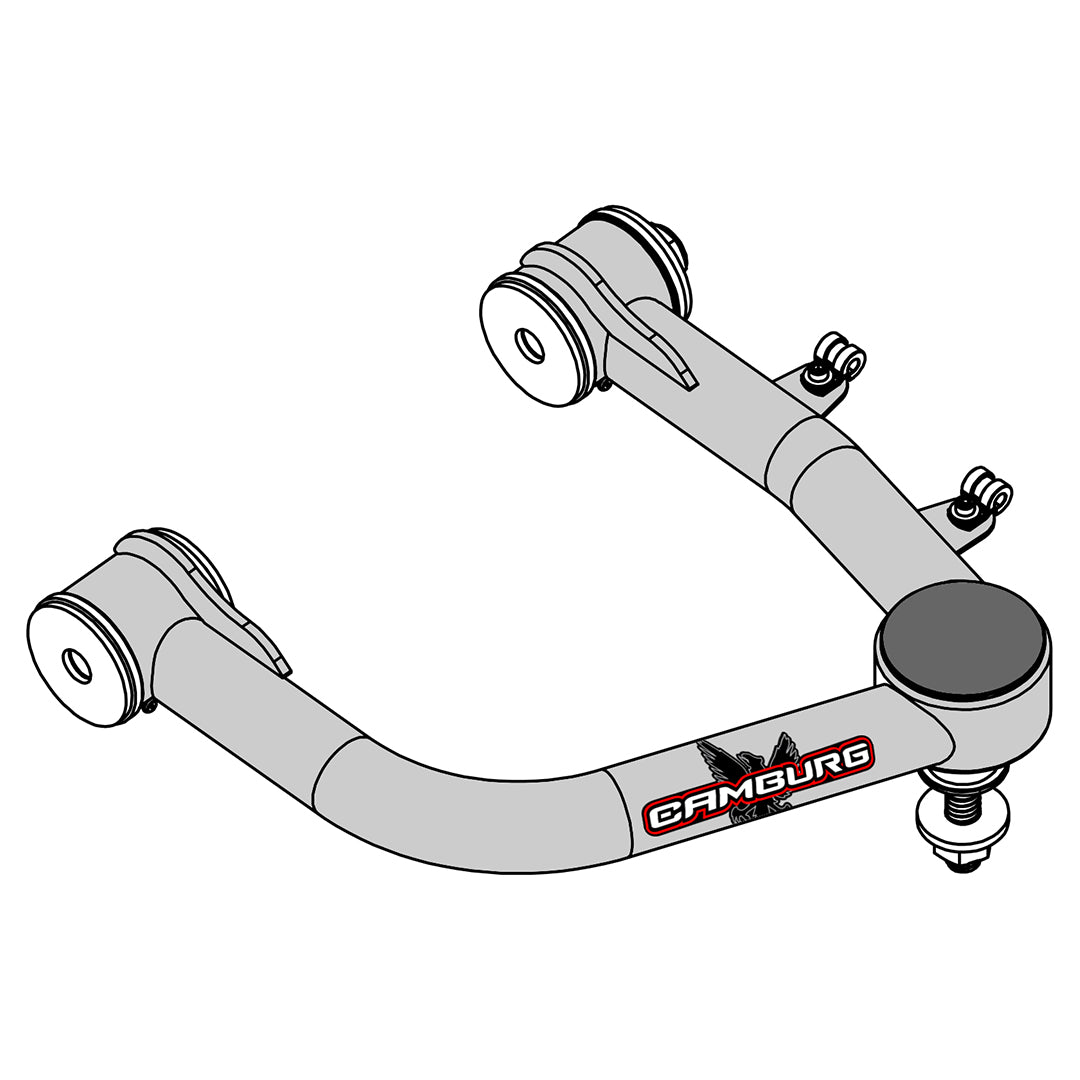

2022+ Toyota Tundra Camburg Tubular Upper Control Arms Design

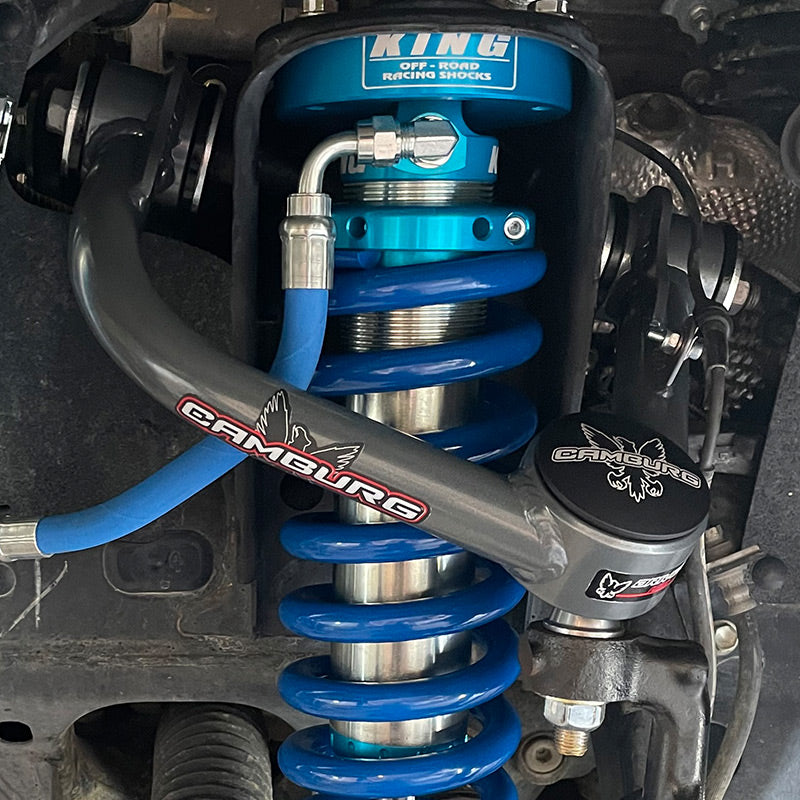

2022+ Toyota Tundra Camburg Tubular Upper Control Arms Close-up Display on Vehicle

Camburg Engineering

2022+ Toyota Tundra Camburg Tubular Upper Control Arms

$1,049.00
SKU: CAM-310197
Quantity:

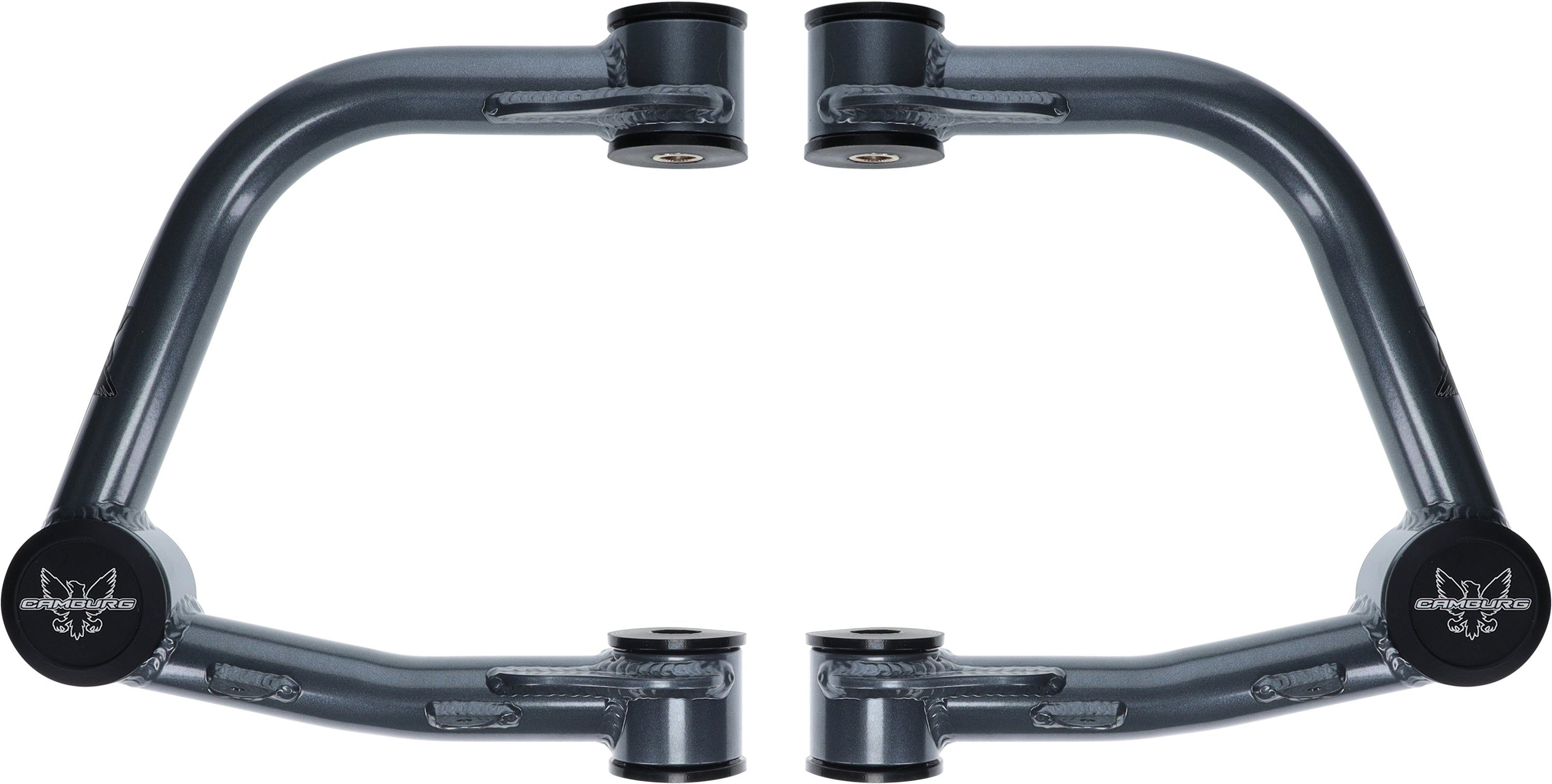

2022+ Toyota Tundra Camburg Tubular Upper Control Arms

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

*PRE-ORDER - CAMBURG IS PRODUCING THE FIRST BATCH OF THESE UPPER ARMS. IF YOU ORDER THIS NOW, THE UPPER ARMS WILL SHIP ONCE A SET IS COMPLETE IN PRODUCTION*

When lifting your truck, the stock upper arms become the limiting factor and hold back your suspension's performance. Our Camburg upper arms address these issues and more.  Replacing the stock ball-joint with a larger 1.25 uniball bearing we’re able to gain wheel travel with a part that is considerably stronger and will last longer under extreme conditions. Camburg builds more caster and changes the camber curve to correct geometry so the vehicle aligns correctly and improves driving characteristics and handling. Camburg's design incorporates a billet aluminum cover for the top of the uniball to keep dirt and other contaminants from working their way into the uniball. This cap is a slight press-fit and uses an o-ring seal.

Using the latest CAD/CAM engineering software we design these arms to the strictest standards using our FARO laser scan arm to model the OEM parts and frames. Manufactured in-house, we have the tubes CNC laser cut and bent, then are MIG welded in precision fixtures before sending out to be sandblasted and powder-coated. Camburg's in-house CNC machine shop makes all the machined parts including the uniball mis-alignment spacers from heat-treated stainless steel. We pride ourselves in producing the best parts available under our own roof and control.

    KEY FEATURES:
    • Increases usable wheel travel
    • Corrects camber and caster
    • Eliminates weak factory ball-joints
    • NEW DESIGN with uniball covers/caps
    • Thicker .156″ wall round tubing
    • Laser cut & CNC bent tubes MIG welded
    • CAD/CAM engineered

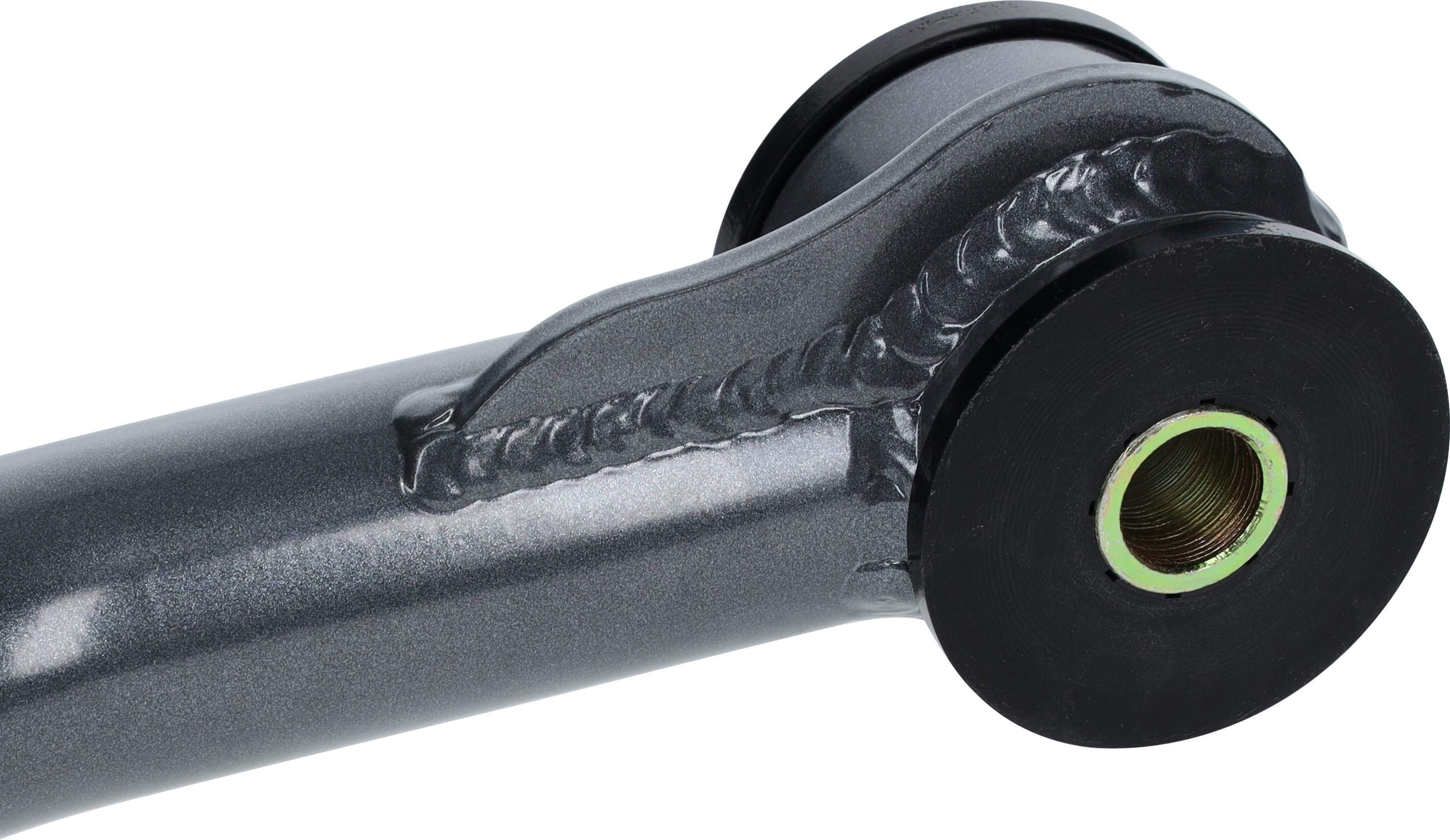

    • Polyurethane frame pivot bushings with grease-able zerk fittings

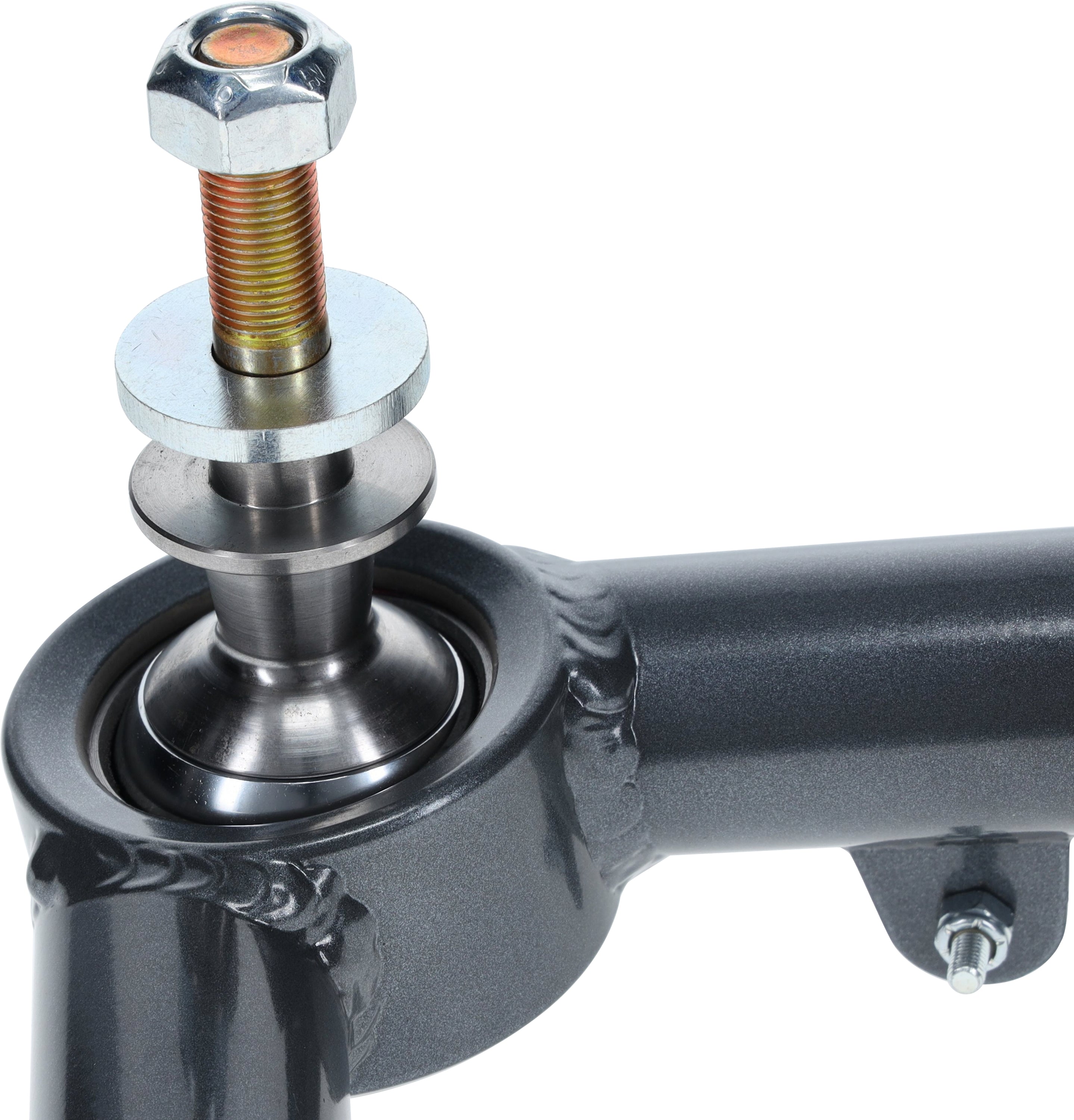

    • FK 1.25″ PTFE-lined uniballs pre-installed
    • Steel gray powder-coating

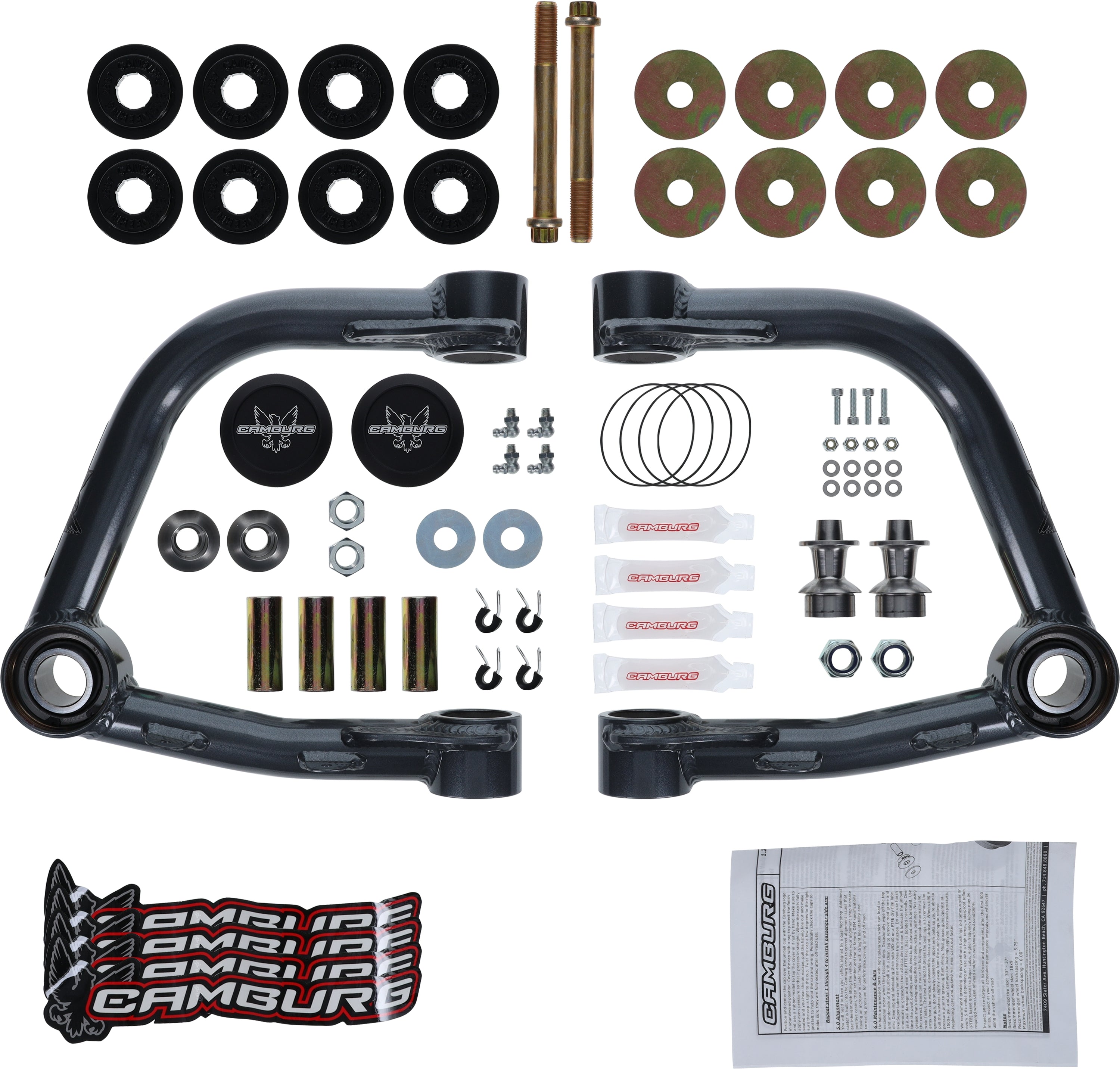

    • All necessary hardware included and ready to install
    • Made in the USA
    • Designed for 1-3″ of lift
    VEHICLE FITMENT:
    • 2022-2024 2WD/4WD Toyota Tundra
