2024–2026 Toyota Tacoma MT PreRunner Kit
2024–2026 Toyota Tacoma MT PreRunner Kit
2024–2026 Toyota Tacoma MT PreRunner Kit

Dirt King Fabrication

2024–2026 Toyota Tacoma MT PreRunner Kit

$5,942.00
SKU: DK-817P02A

2024–2026 Toyota Tacoma MT PreRunner Kit

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

Description:

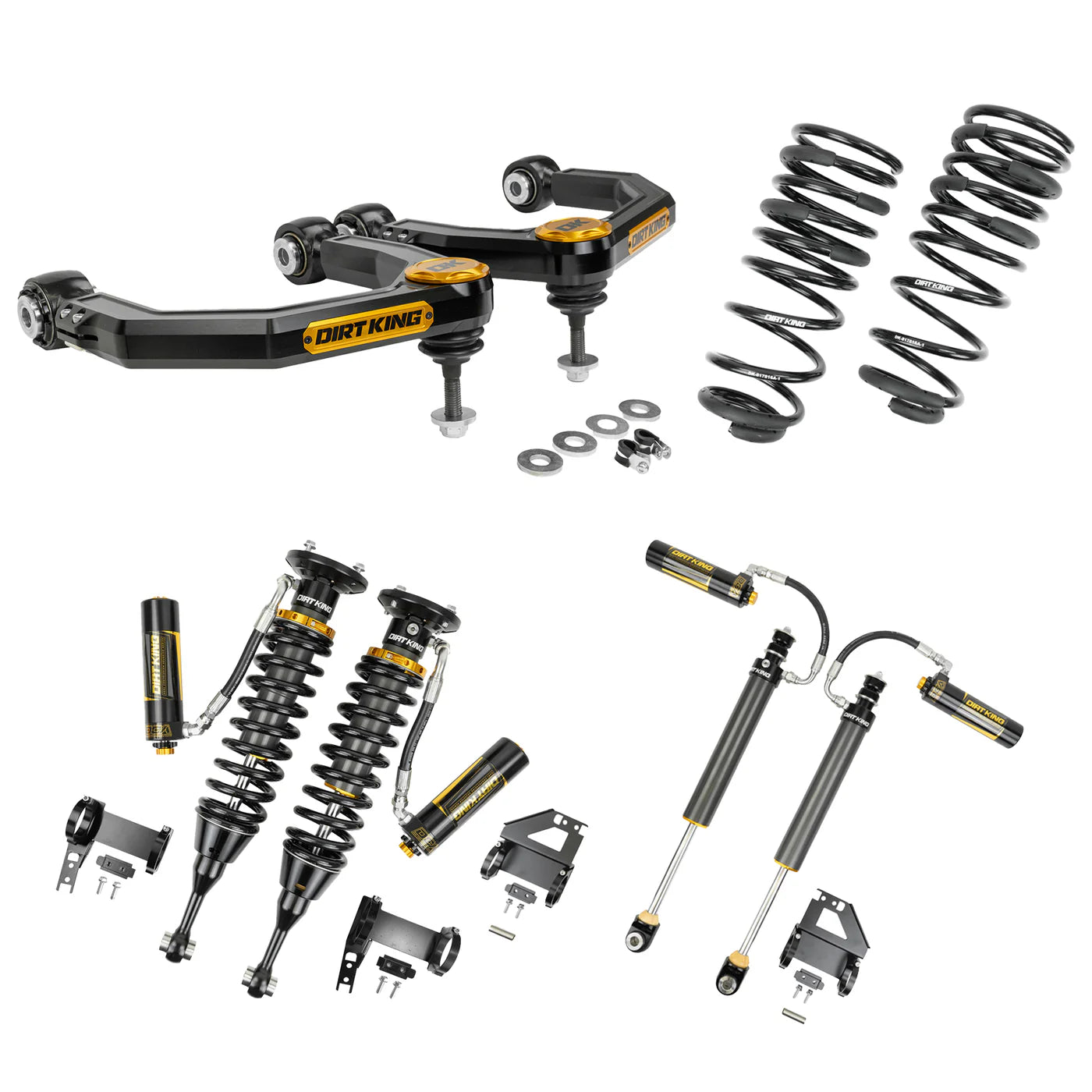

The Dirt King MT Prerunner Kit is a complete suspension package engineered to deliver the ideal blend of aggressive off-road capability and everyday on-road comfort. It includes 2.5" DCA Coilovers, 2.5" DCA Smooth Body Rear Shocks, +1" rear springs, and Billet Upper Control Arms—developed together to ensure the front and rear suspension systems work in perfect sync.

Unlike most manufacturers, we began by tuning spring rates independently from shock damping to achieve optimal front-to-rear balance and roll control before refining compression and rebound valving. The progressive-rate rear springs enhance bottom-out control, reduce sag under load, and improve payload handling.

Both front and rear shocks feature Dirt King's Dual Compression Adjusters (DCA), with high-speed and low-speed compression knobs for terrain-specific tuning. From trail driving to hauling gear, you’ll get consistent control and comfort both on and off the road.

The Billet UCAs are precision-machined from 6061 aluminum, with improved caster settings, re-engineered pivot angles, and an adjustable inner pivot system. They are available with either maintenance-free SilentSpin bushings or ¾” chromoly rod ends, both paired with heavy-duty Probearing ball joints for strength and articulation.

Specs:

Billet Upper Control Arms:

  • CNC machined from 6061-T6 billet aluminum
  • Heavy-duty Probearing ball joints
  • Adjustable inner pivot system with two options:
    • SilentSpin Bushings – self-lubricating, quiet, maintenance-free
    • ¾” Chromoly Rod Ends – with threaded adjustment sleeves for precise camber/caster
  • Improved caster and re-engineered pivot angles for enhanced handling and articulation
  • Fully rebuildable and replaceable components
  • Warranty: Limited lifetime warranty on arms, 1-year on ball joints and bushings/rod ends

Front Coilovers:

  • 2.5" hard-anodized 6061 aluminum shock bodies
  • Dual compression adjusters with 10-click settings per knob
  • Induction-hardened ¾" shafts for reduced seal drag
  • Ride height preset at 2" lift, adjustable up to 3"
  • Must be paired with aftermarket upper control arms

Rear Shocks:

  • 2.5" hard-anodized 6061 aluminum shock bodies
  • Remote reservoirs with dual compression adjusters
  • 10 clicks of adjustment for high- and low-speed compression
  • Induction-hardened ¾" shafts
  • Allows up to 3" of rear lift

Rear Springs:

  • +1" lift progressive-rate coil springs
  • Designed to complement Dirt King rear shock valving
Features:

• Pro 4 Series Ball Joints: SAE4140 housing, 38° of articulation, and induction-hardened ball stud for maximum strength and smoother steering feel
• SilentSpin Bushings: Maintenance-free, greaseless, and engineered for quiet, free-spinning articulation
• DCA Remote Reservoirs: Dual compression adjusters with high-speed and low-speed tuning
• Optimized Lift and Ride Comfort: Vehicle-specific valving tuned for optimal ride quality on both city streets and rugged trails
• Enhanced Suspension Geometry: Billet upper control arms improve caster settings and pivot angles for better handling and increased articulation
• Increased Suspension Travel: Higher articulation and improved damping on uneven terrains
• Durable Construction: Precision-machined from 6061 aluminum for strength and durability
• High-Quality Components: Aluminum shock bodies for cooler operation and corrosion resistance
• Rebuildable and Serviceable: All components are rebuildable or replaceable; tools and replacement parts available from Dirt King
• Direct Bolt-On Replacement: Uses factory mounting locations for straightforward installation
