22-23 Toyota Tundra Icon Stage 3 Suspension System
22-23 Toyota Tundra Icon Stage 3 Suspension System
MCQUEEN
190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States
OVERVIEW
Icon Vehicle Dynamics Stage 3 Suspension System for the 2022-2023 Toyota Tundra features Icon's threaded-body 2.5" VS Series Coilovers in the front, with adjustable lift height from 1.25" to 2.25" when using the OE upper control arms. The coilovers are paired with ICON 2.0 rear shocks sized for 0" to 1" of rear lift.
KEY FEATURES:
- Fitment for up to 35" tires (larger tires may fit with minor fender trimming and modifications)
- Improved suspension performance and ride quality over stock
- Vehicle specific tuned front and rear shocks for superior damping and vehicle control
- PTFE lined bearings for extended longevity and minimal deflection
- 6061 Aircraft grade aluminum CNC machined components with a black anodized finish
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
- CNC machined 6061 aluminum components
- 100% Rebuildable and revalveable
- 2.5 Aluminum Series front coilover shock
- 7/8” diameter induction hardened, chrome plated shock shaft
FITMENT DETAILS:
- VEHICLE FITMENT: 2022-2023 (3rd Gen) 2WD/4WD Toyota Tundra
- LIFT HEIGHT: 1.25" to 2.25"
- 2022-2023 Tundra SR5 Equipped with TRD Sport Package the lift range will be 1.5-4"
- Wheel and Tire Fitment: 35X12.50 ON 17x8.5” WIDE WHEEL W/ 5.75” BACK SPACE
TECH & FITMENT NOTES:
- Shocks are fully serviceable. Lift Heights indicated are for stock equipped vehicles
- Not compatible with Tundras equipped with Load-leveling Rear Height Control Air Suspension.
- Not compatible with Tundras equipped with Adaptive Variable Suspension (AVS)
- Not compatible with Tundra TRD Pro
- 2022-Current Tundra SR5 Equipped with TRD Sport Package the lift range will be 1.5-4"
- Will Not Work with Hybrid Equipped Vehicles

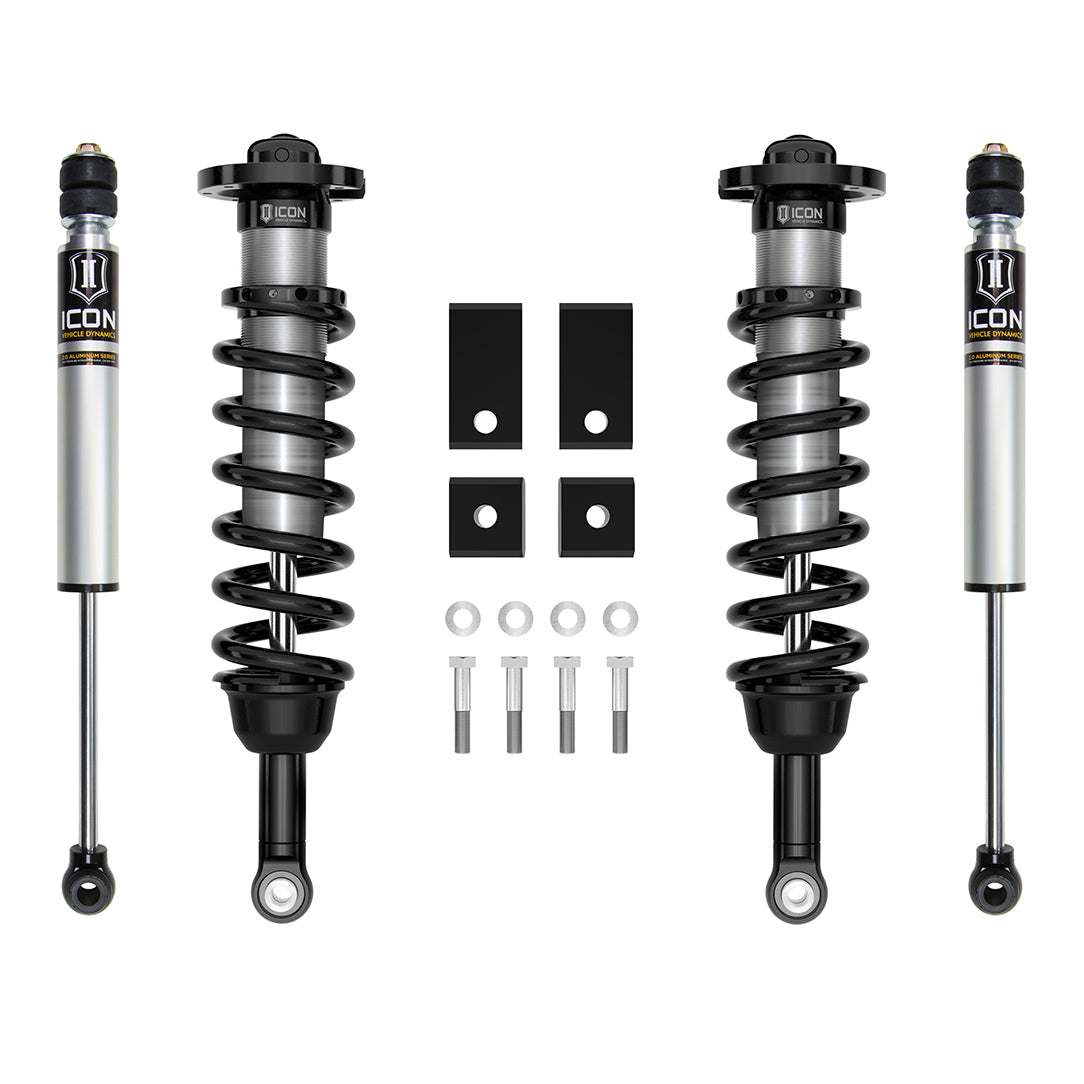

WHAT'S INCLUDED:
- QTY 1. 58670 - 2022-UP TUNDRA 2.5 VS IR COILOVER KIT
- QTY 1. 55154 - 2022-UP TUNDRA SWAY BAR DROP KIT
- QTY 2. 56516 - 2022-UP TUNDRA 0-1" REAR 2.0
WHEEL & TIRE FITMENT INFO:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: 17x8.5" w/ 5.75” Backspace / 25mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
