OVERVIEW

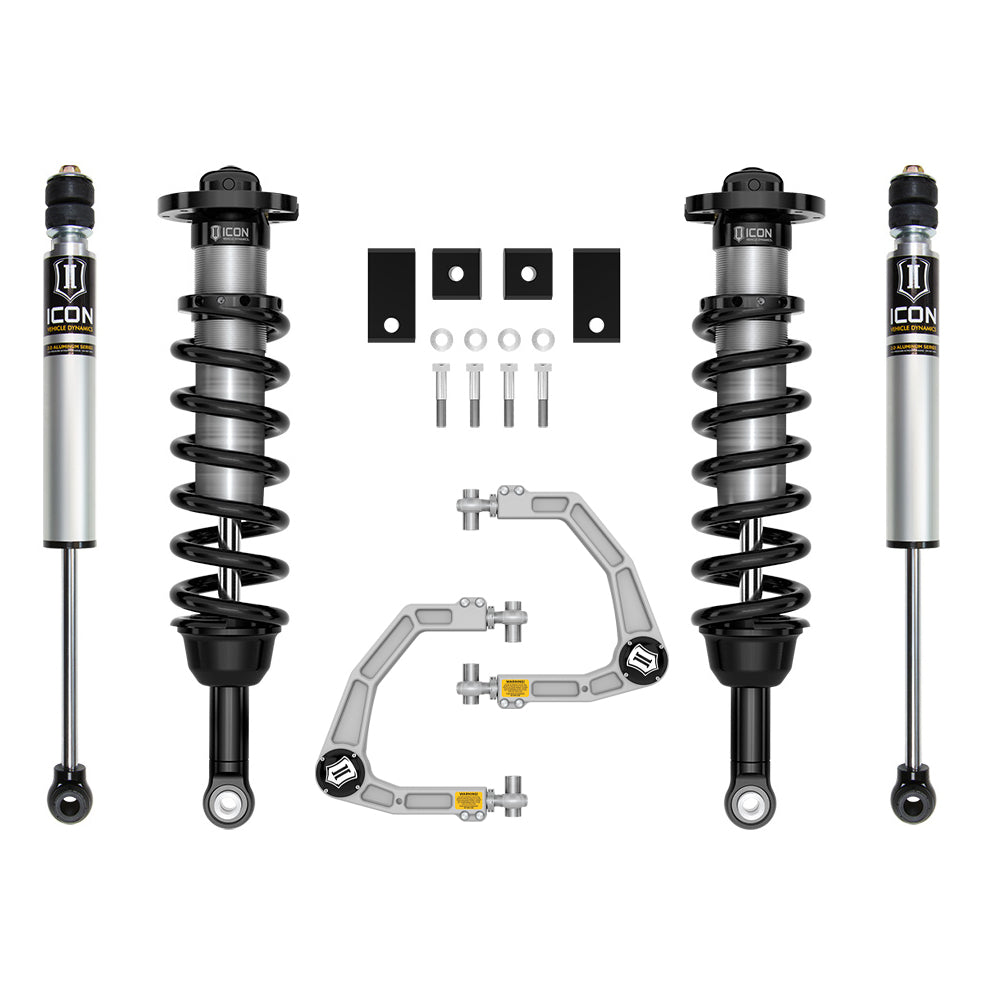

Icon's Stage 4 Billet Suspension System features Icon's 2.5 Front Coilovers, 2.0 Rear shocks, and Billet Upper Control Arms. This aftermarket suspension kit is Icon's maximum travel package.
Get up to 40% more travel versus stock! Stage 4 adds ICON's Billet Control Arms to squeeze every inch of travel out of the Tundra's suspension while increasing available lift height to 1.25 to 3.5" (front).
ICON UCA's are optimized for lifted or leveled trucks, with caster adjustment built into the geometry of the arm, making it easier to dial in your truck's steering alignment. These UCA's feature ICON's proprietary Delta Joint Pro, which is fully serviceable and provides up to 90- degrees of movement to allow bind-free movement throughout the full range of suspension travel afforded by the ICON coilovers.
KEY FEATURES:
- Fitment for up to 35" tires (larger tires may fit with minor fender trimming and modifications)
- Improved suspension performance and ride quality over stock
- Billet UCA for added strength, durability and an additional degree of caster
- UCAs feature the Delta Joint Pro with 90 degrees of total articulation
- Vehicle specific tuned front and rear shocks for superior damping and vehicle control
- PTFE lined bearings for extended longevity and minimal deflection
- 6061 Aircraft grade aluminum CNC machined components with a black anodized finish
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
- Vehicle specific design
- Vehicle specific tuned for superior shock damping and control
- CNC machined 6061 aluminum components
- 100% Rebuildable and revalveable
- 2.5 Aluminum Series front coilover shock
- 7/8” diameter induction hardened, chrome-plated shock shaft
- 2.5” diameter monotube design
ICON DELTA JOINT PRO OVERVIEW:
Icon's Delta Joint Pro provides a host of durability and performance improvements compared to Icon's standard ball joints and uni-balls, including up to 90° of free articulation to maximize suspension travel without bind. It’s also beefier and fully rebuildable.
FITMENT DETAILS:
- VEHICLE FITMENT: 2022-2023 2WD/4WD (3rd Gen) Toyota Tundra
- LIFT HEIGHT: 1.25" to 3.5"
- 2022-2023 Tundra SR5 Equipped with TRD Sport Package the lift range will be 1.5-4"
- Advertised lift height ranges are based on a stock equipped vehicle. Increasing the weight of vehicle due to accessories will alter lift range.
- Wheel and Tire Fitment: 35X12.50 ON 17x8.5” WIDE WHEEL W/ 5.75” BACK SPACE
TECH & FITMENT NOTES:
- Shocks are fully serviceable. Lift Heights indicated are for stock equipped vehicles
- Not compatible with Tundras equipped with Load-leveling Rear Height Control Air Suspension.
- Not compatible with Tundras equipped with Adaptive Variable Suspension (AVS)
- Not compatible with Tundra TRD Pro
- 2022-2023 Tundra SR5 Equipped with TRD Sport Package the lift range will be 1.5-4"
WHAT'S INCLUDED:
- QTY 1. 58670 - 2022-UP TUNDRA 2.5 VS IR COILOVER KIT
- QTY 1. 58561DJ - 2022-UP TUNDRA BILLET UCA DJ PRO KIT
- QTY 1. 55154 - 2022-UP TUNDRA SWAY BAR DROP KIT
- QTY 2. 56516 - 2022-UP TUNDRA TUNDRA 0-1" REAR 2.0
WHEEL & TIRE FITMENT INFO:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: 17x8.5" w/ 5.75” Backspace / 25mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
