22-23 Toyota Tundra Icon Stage 6 Billet Suspension System

$3,257.40 $4,071.75
Save $814.35
SKU: K53196
Quantity:

22-23 Toyota Tundra Icon Stage 6 Billet Suspension System

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

OVERVIEW

Icon's Stage 6 Billet Suspension System for the 2022-2023 (3rd Gen) Toyota Tundra features Icon's 2.5 Front Coilovers w/ Remote Reservoirs, 2.0 rear shocks w/ Remote Reservoirs, and Billet Upper Controls Arms. This aftermarket suspension kit will increase your Tundra's travel up to 40% more than stock.

To provide for sustained shock performance at speed through rough terrain, this Stage 6 aftermarket suspension system adds remote reservoirs to the ICON 2.5 front coilovers and 2.0 rear shocks. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. This kit will lift your Tundra 1.25 to 3.5" (front) and allow you to fit 35" tires on your Tundra.

Also included in this kit are Icon's billet upper control arms. These UCAs are optimized for lifted or leveled trucks, with caster adjustment built into the arm's geometry, making it easier to dial in your truck's steering alignment. These UCA's feature ICON's proprietary Delta Joint Pro, which is fully serviceable and provides up to 90- degrees of movement to allow bind-free movement throughout the full range of suspension travel afforded by the ICON coilovers.

KEY FEATURES:
  • Fitment for up to 35" tires (larger tires may fit with minor fender trimming and modifications)
  • Improved suspension performance and ride quality over stock
  • Billet UCA for added strength, durability and an additional degree of caster
  • UCAs feature the Delta Joint Pro with 90 degrees of total articulation
  • Vehicle specific tuned front and rear shocks for superior damping and vehicle control
  • PTFE lined bearings for extended longevity and minimal deflection
  • 6061 Aircraft grade aluminum CNC machined components with a black anodized finish
  • 100% Bolt-on system - no drilling, cutting, or welding necessary for install
  • Vehicle specific design
  • Vehicle specific tuned for superior shock damping and control
  • CNC machined 6061 aluminum components
  • 100% Rebuildable and revalveable
  • 2.5 Aluminum Series front coilover shock
  • 7/8” diameter induction hardened, chrome plated shock shaft
  • 2.5” diameter monotube design
ICON DELTA JOINT PRO OVERVIEW:

Icon's Delta Joint Pro provides a host of durability and performance improvements compared to Icon's standard ball joints and uni-balls, including up to 90° of free articulation to maximize suspension travel without bind. It’s also beefier and fully rebuildable.

FITMENT DETAILS:
  • VEHICLE FITMENT: 2022-2023 2WD/4WD (3rd Gen) Toyota Tundra
  • LIFT HEIGHT: 1.25" to 3.5"
  • 2022-Current Tundra SR5 Equipped with TRD Sport Package the lift range will be 1.5-4"
  • Advertised lift height ranges are based on a stock equiped vehicle. Increasing the weight of vehicle due to accessories will alter lift range.
  • Wheel and Tire Fitment: 35X12.50 ON 17x8.5” WIDE WHEEL W/ 5.75” BACK SPACE
TECH & FITMENT NOTES:
  • Shocks are fully serviceable. Lift Heights indicated are for stock equipped vehicles
  • Not compatible with Tundras equipped with Load-leveling Rear Height Control Air Suspension.
  • Not compatible with Tundras equipped with Adaptive Variable Suspension (AVS)
  • Not compatible with Tundra TRD Pro
  • 2022-2023 Tundra SR5 Equipped with TRD Sport Package the lift range will be 1.5-4"

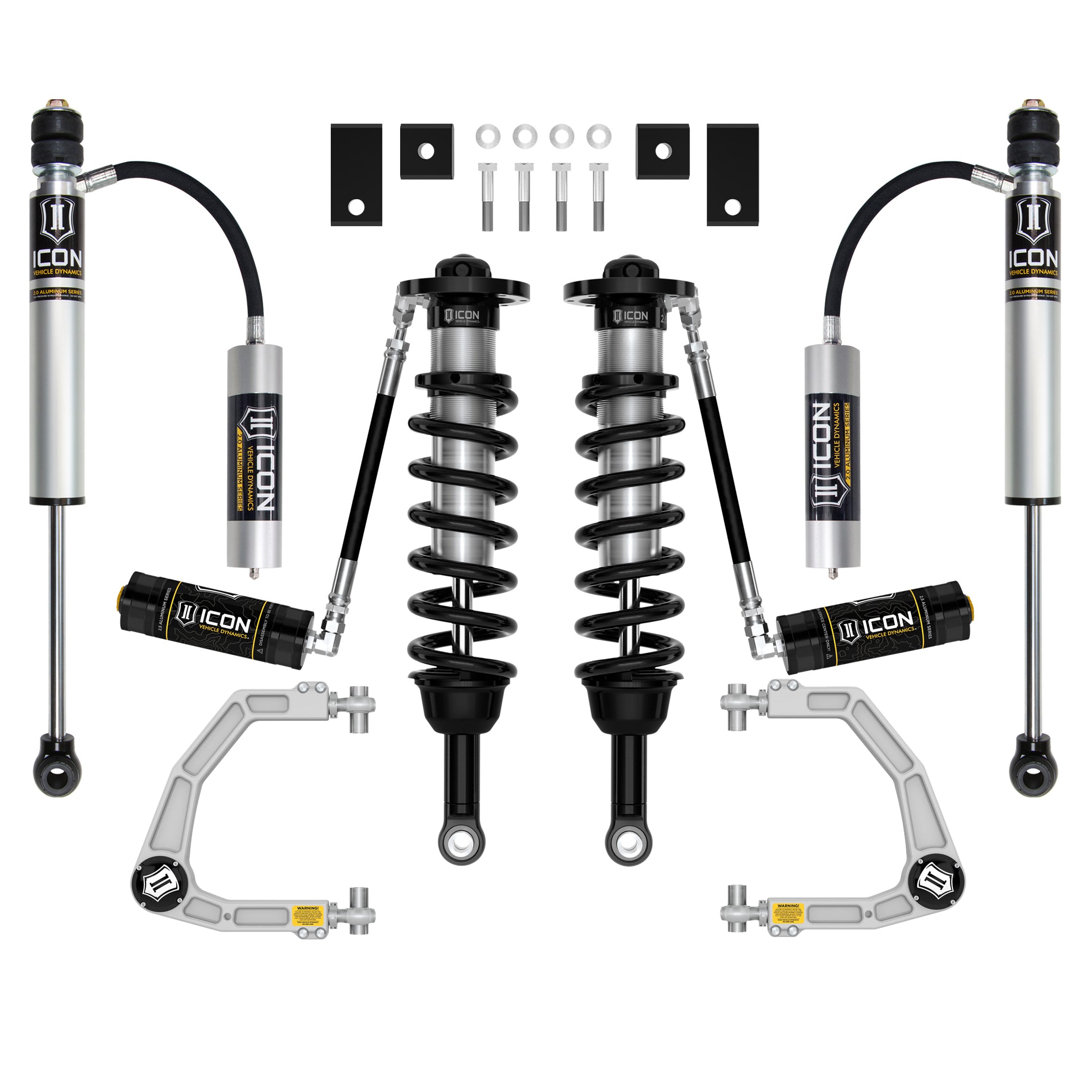

WHAT'S INCLUDED:
  • QTY 1. 58770 - 2022-UP TUNDRA 2.5 VS RR COILOVER KIT
  • QTY 1. 58561DJ - 2022-UP TUNDRA BILLET UCA DJ PRO KIT
  • QTY 1. 55154 - 2022-UP TUNDRA SWAY BAR DROP KIT
  • QTY 2. 56516R - 2022-UP TUNDRA 0-1" REAR 2.0 VS RR
WHEEL & TIRE FITMENT INFO:
  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: 17x8.5" w/ 5.75” Backspace / 25mm Offset
  • Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
