Icon Vehicle Dynamics
22-23 Toyota Tundra Stage 9 Billet Suspension System
22-23 Toyota Tundra Stage 9 Billet Suspension System
MCQUEEN
190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States
OVERVIEW

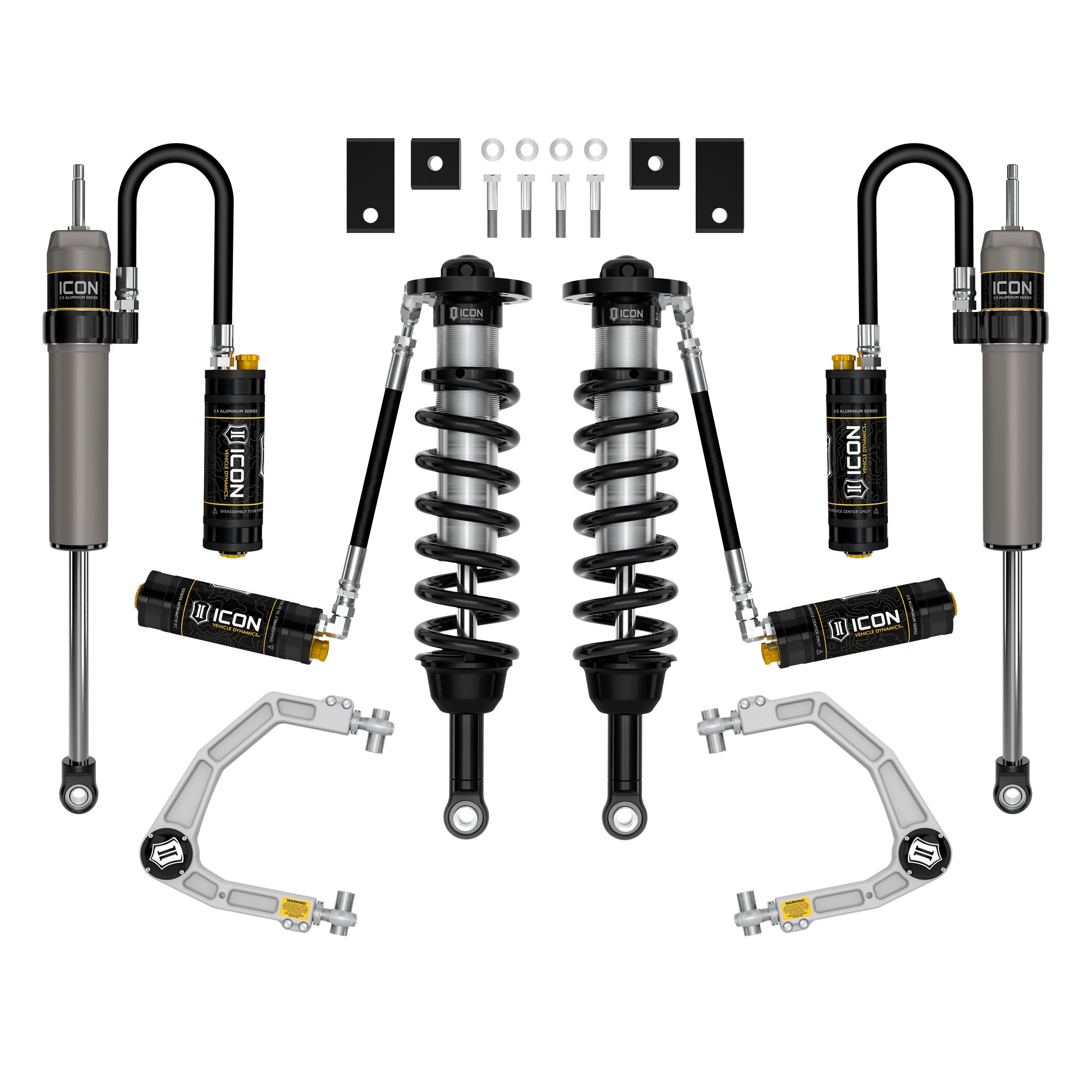

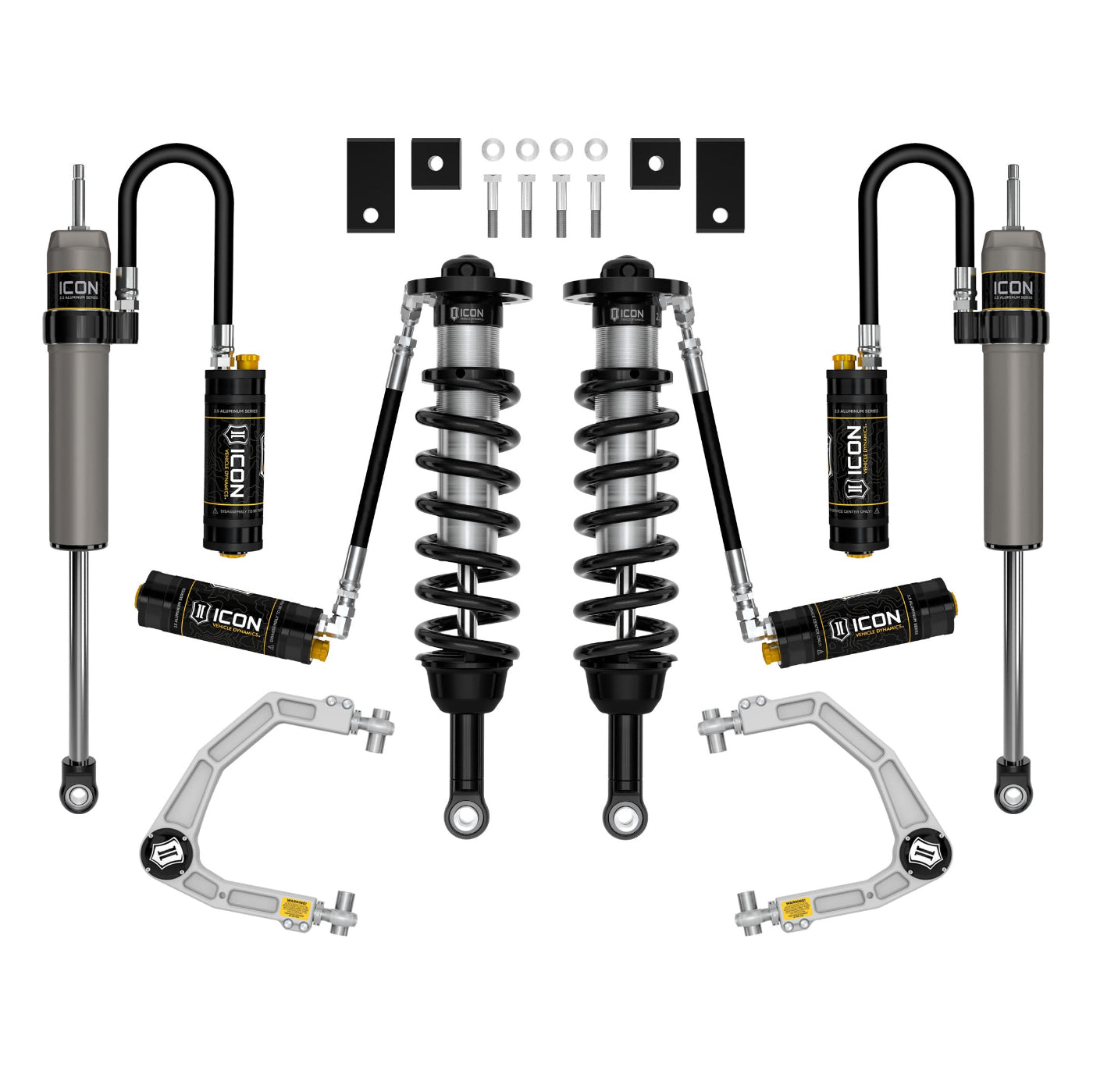

Icon's Stage 9 Billet Suspension System for the 2022-2023 (3rd Gen) Toyota Tundra is the perfect lift kit for those on the trail suspension adjustments.
This lift kit features Icon's 2.5 Front Coilovers w/ Remote Reservoirs and Icon's CDC Valve, 2.5 rear shocks w/ Remote Reservoirs and Icon's CDC Valve, and Billet Upper Controls Arms. This aftermarket suspension kit will increase your Tundra's travel up to 40% more than stock and will provide of on-vehicle adjustability.
This Stage 9 lift kit features ICON's exclusive Compression Damping Control Valves (CDCV) for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle.
Also included in this kit are Icon's billet upper control arms. These UCAs are optimized for lifted or leveled trucks, with caster adjustment built into the arm's geometry, making it easier to dial in your truck's steering alignment. These UCA's feature ICON's proprietary Delta Joint Pro, which is fully serviceable and provides up to 90- degrees of movement to allow bind-free movement throughout the full range of suspension travel afforded by the ICON coilovers.
KEY FEATURES:
- Fitment for up to 35" tires (larger tires may fit with minor fender trimming and modifications)
- Improved suspension performance and ride quality over stock
- Billet UCA for added strength, durability and an additional degree of caster
- UCAs feature the Delta Joint Pro with 90 degrees of total articulation
- Vehicle specific tuned front and rear shocks for superior damping and vehicle control
- PTFE lined bearings for extended longevity and minimal deflection
- 6061 Aircraft grade aluminum CNC machined components with a black anodized finish
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
- Vehicle specific design
- Vehicle specific tuned for superior shock damping and control
- CNC machined 6061 aluminum components
- 100% Rebuildable and revalveable
- 2.5 Aluminum Series front coilover shock
- 7/8” diameter induction hardened, chrome plated shock shaft
- 2.5” diameter monotube design
ICON DELTA JOINT PRO OVERVIEW:
Icon's Delta Joint Pro provides a host of durability and performance improvements compared to Icon's standard ball joints and uni-balls, including up to 90° of free articulation to maximize suspension travel without bind. It’s also beefier and fully rebuildable.
CDC VALVE FEATURES:
The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. If you are looking for a more user defined tune, consider looking into the Omega Series bypass shocks.
- CDC Valve shocks are application specific tuned like all ICON shocks
- Internally calibrated per application based on motion ratio, shaft diameter, and vehicle weights
- 10 detented stops and large adjuster knob provide easy-to-feel adjustments
- Allows the end user to optimize vehicle's ride specific to his/her liking on all types of terrain
- Clearly engraved knob for direct reading of current setting
WHEEL & TIRE FITMENT INFO:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: 17x8.5" w/ 5.75” Backspace / 25mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
FITMENT DETAILS:
- VEHICLE FITMENT: 2022-2023 2WD/4WD (3rd Gen) Toyota Tundra
- LIFT HEIGHT: 1.25" to 3.5"
- 2022-Current Tundra SR5 Equipped with TRD Sport Package the lift range will be 1.5-4"
- Advertised lift height ranges are based on a stock equiped vehicle. Increasing the weight of vehicle due to accessories will alter lift range.
- Wheel and Tire Fitment: 35X12.50 ON 17x8.5” WIDE WHEEL W/ 5.75” BACK SPACE
TECH & FITMENT NOTES:
- Shocks are fully serviceable. Lift Heights indicated are for stock equipped vehicles
- Not compatible with Tundras equipped with Load-leveling Rear Height Control Air Suspension.
- Not compatible with Tundras equipped with Adaptive Variable Suspension (AVS)
- Not compatible with Tundra TRD Pro
- 2022-Current Tundra SR5 Equipped with TRD Sport Package the lift range will be 1.5-4"
WHAT'S INCLUDED:
- QTY 1. 58770C - 2022-UP TUNDRA 2.5 VS RR CDCV COILOVER KIT
- QTY 1. 58561DJ - 2022-UP TUNDRA BILLET UCA DJ PRO KIT
- QTY 1. 55154 - 2022-UP TUNDRA SWAY BAR DROP KIT
- QTY 1. 57840CP - 2022-UP TUNDRA 0-1" REAR 2.5 VS CDCV RR PAIR
