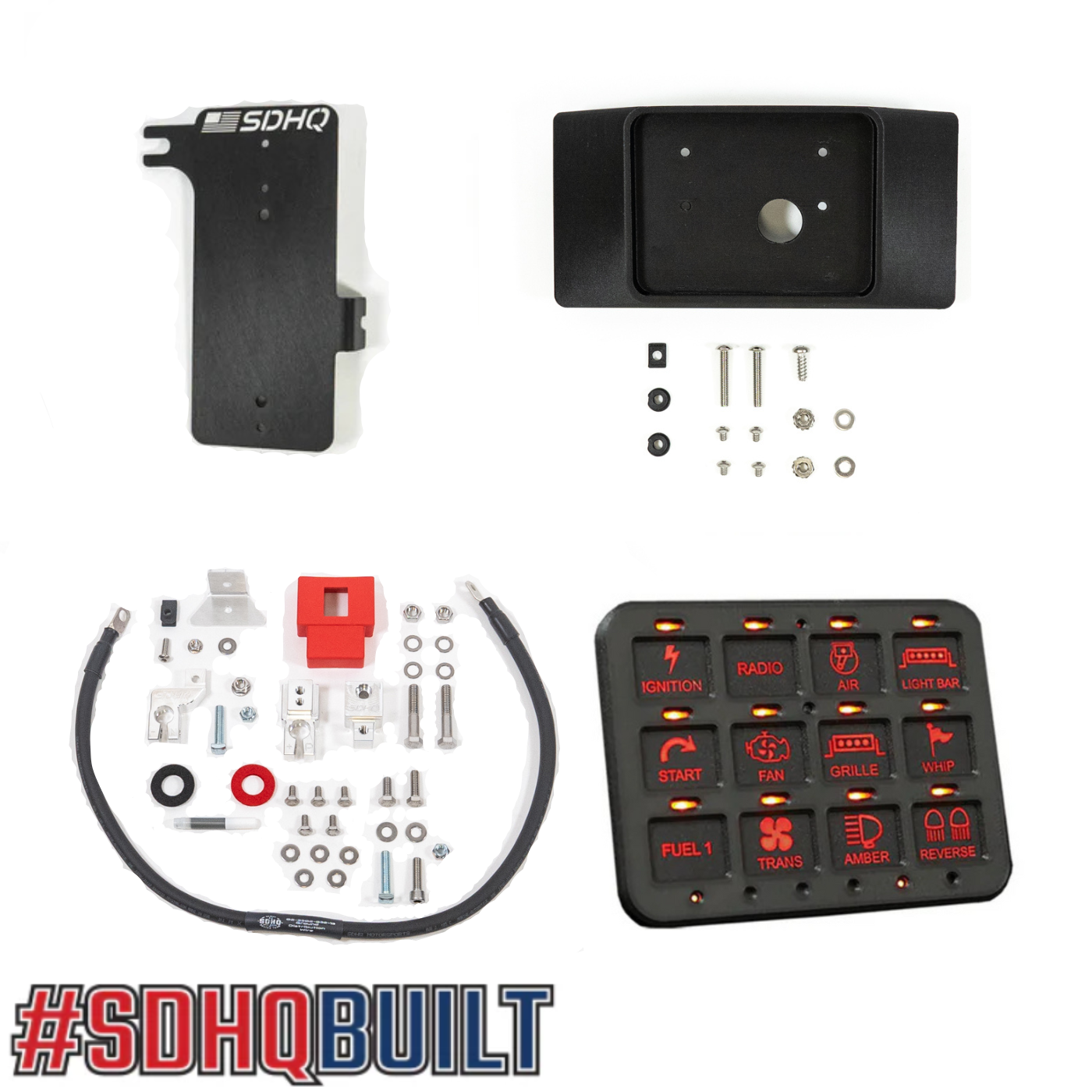

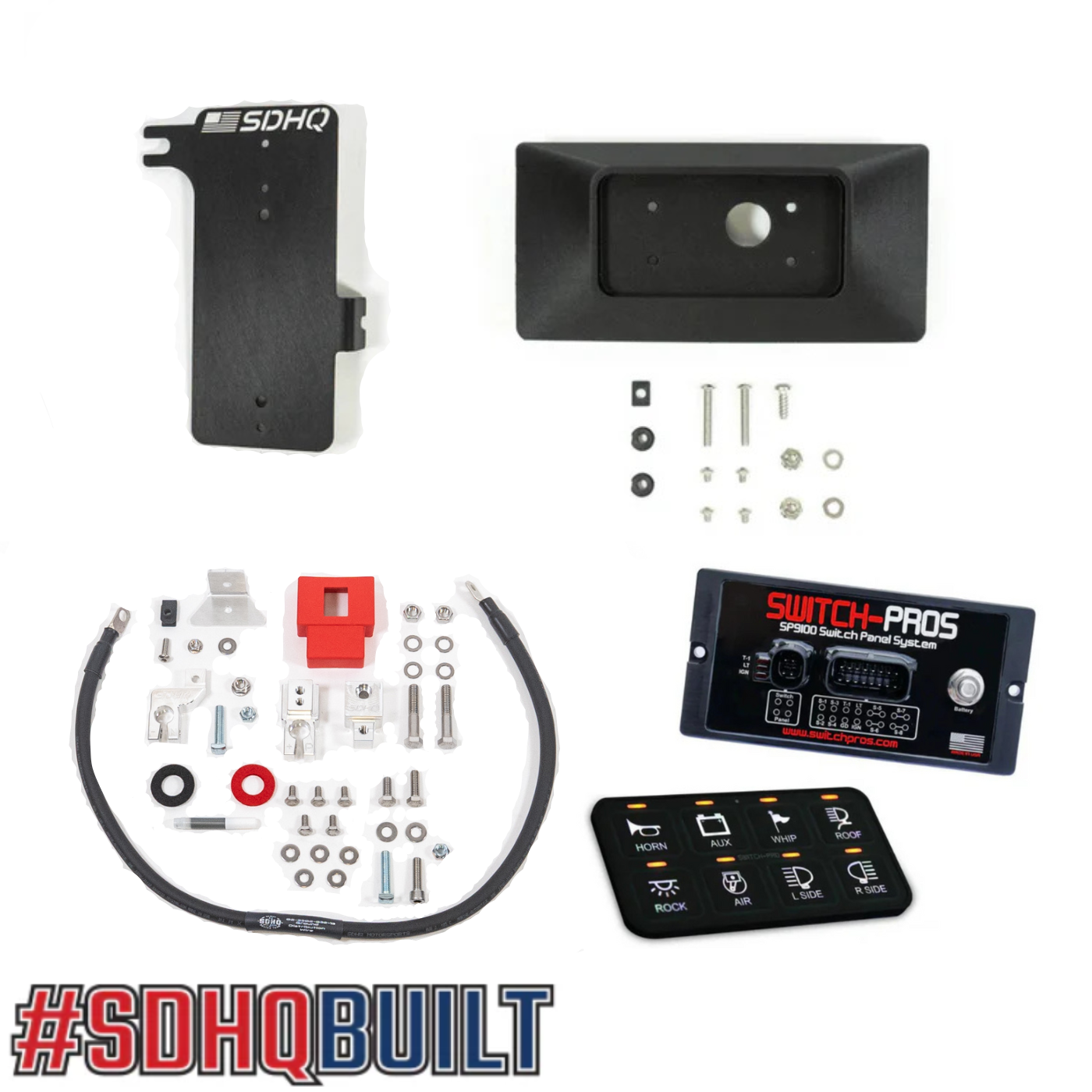

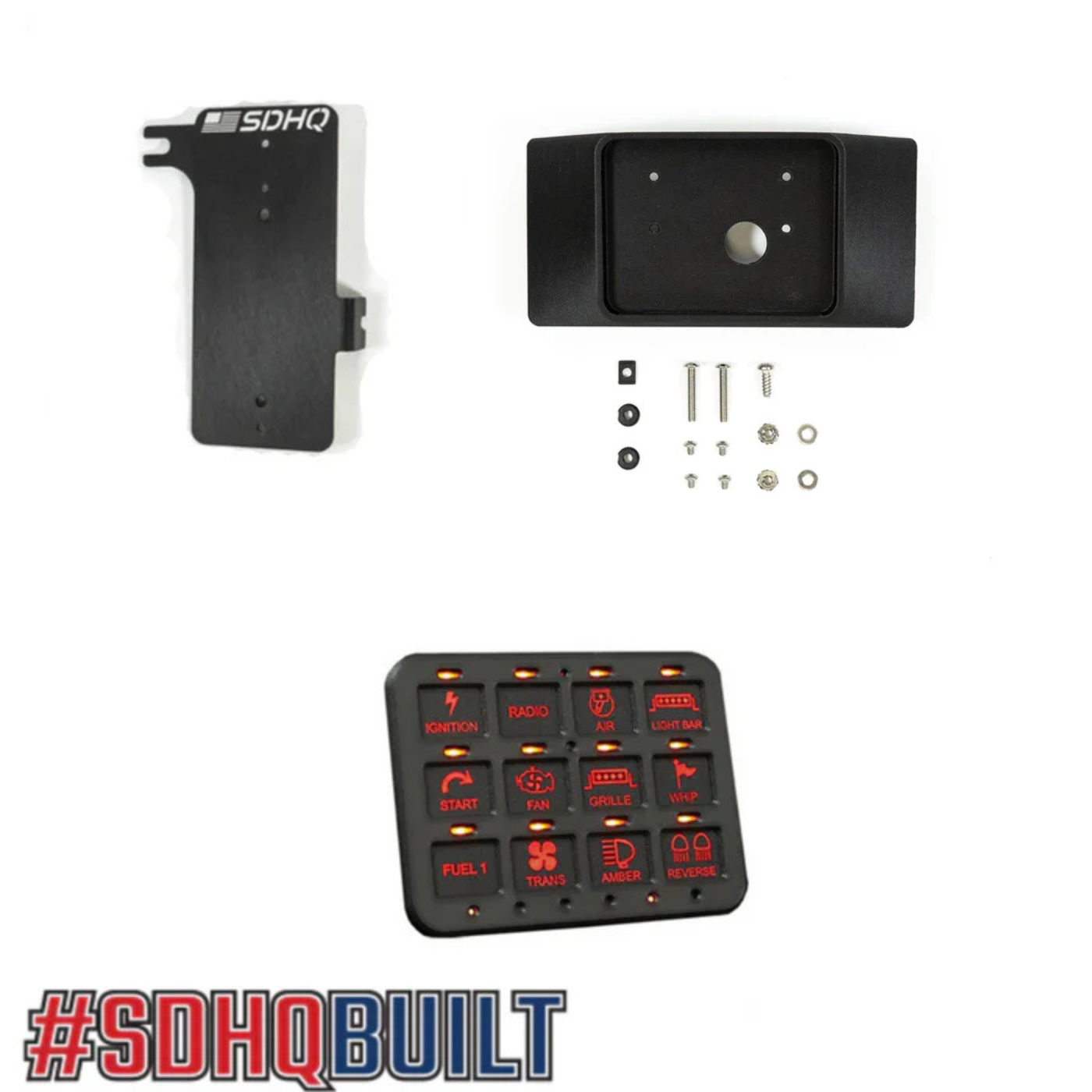

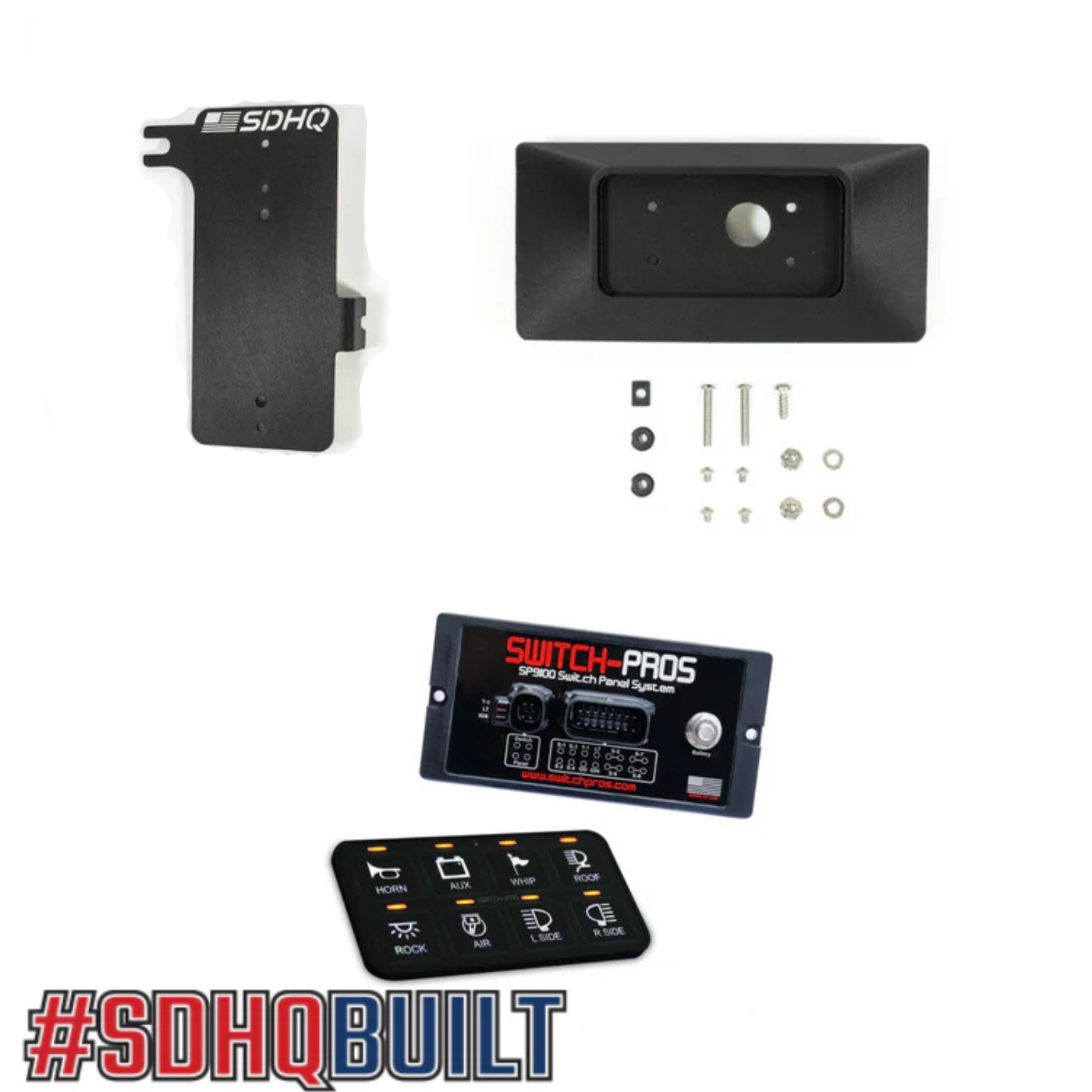

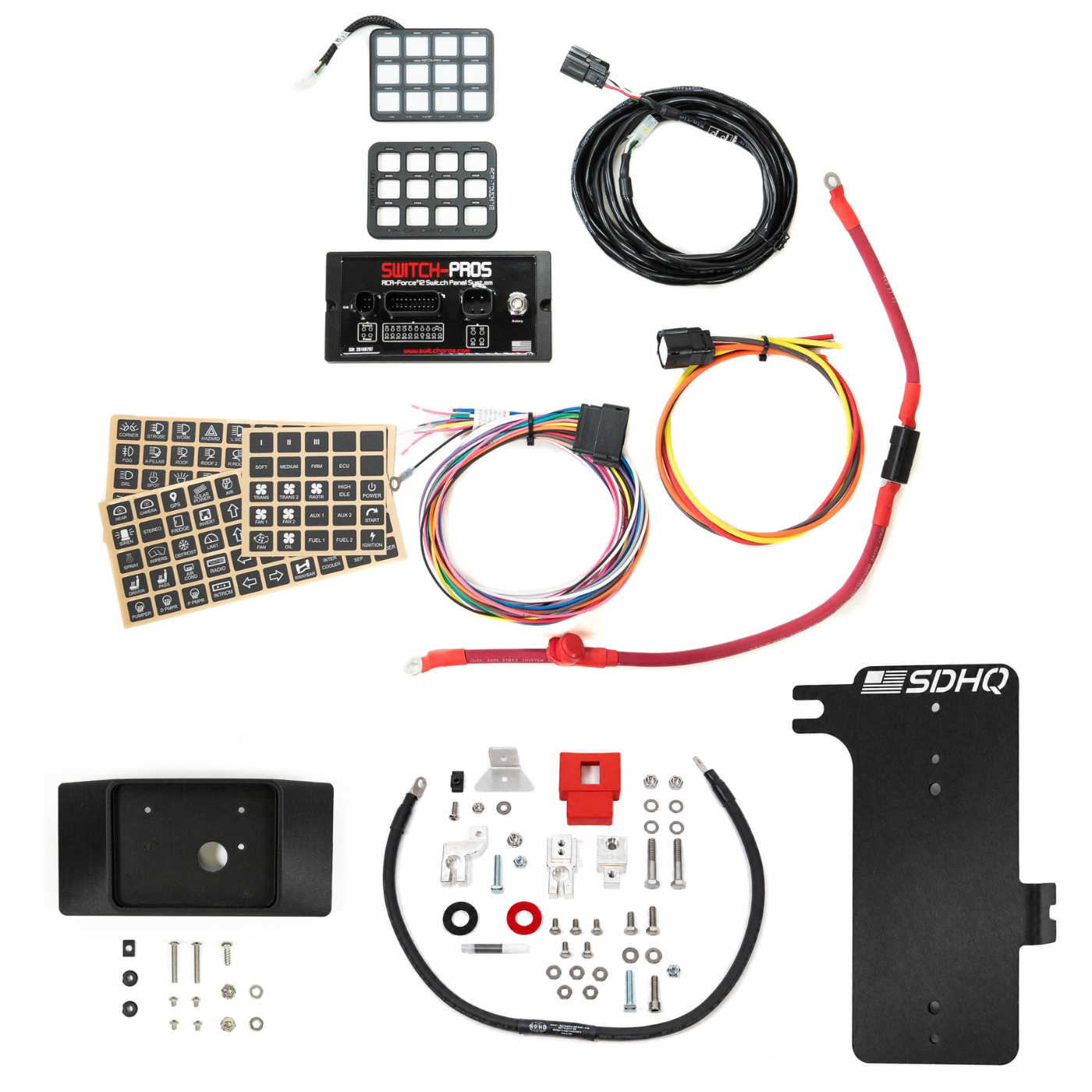

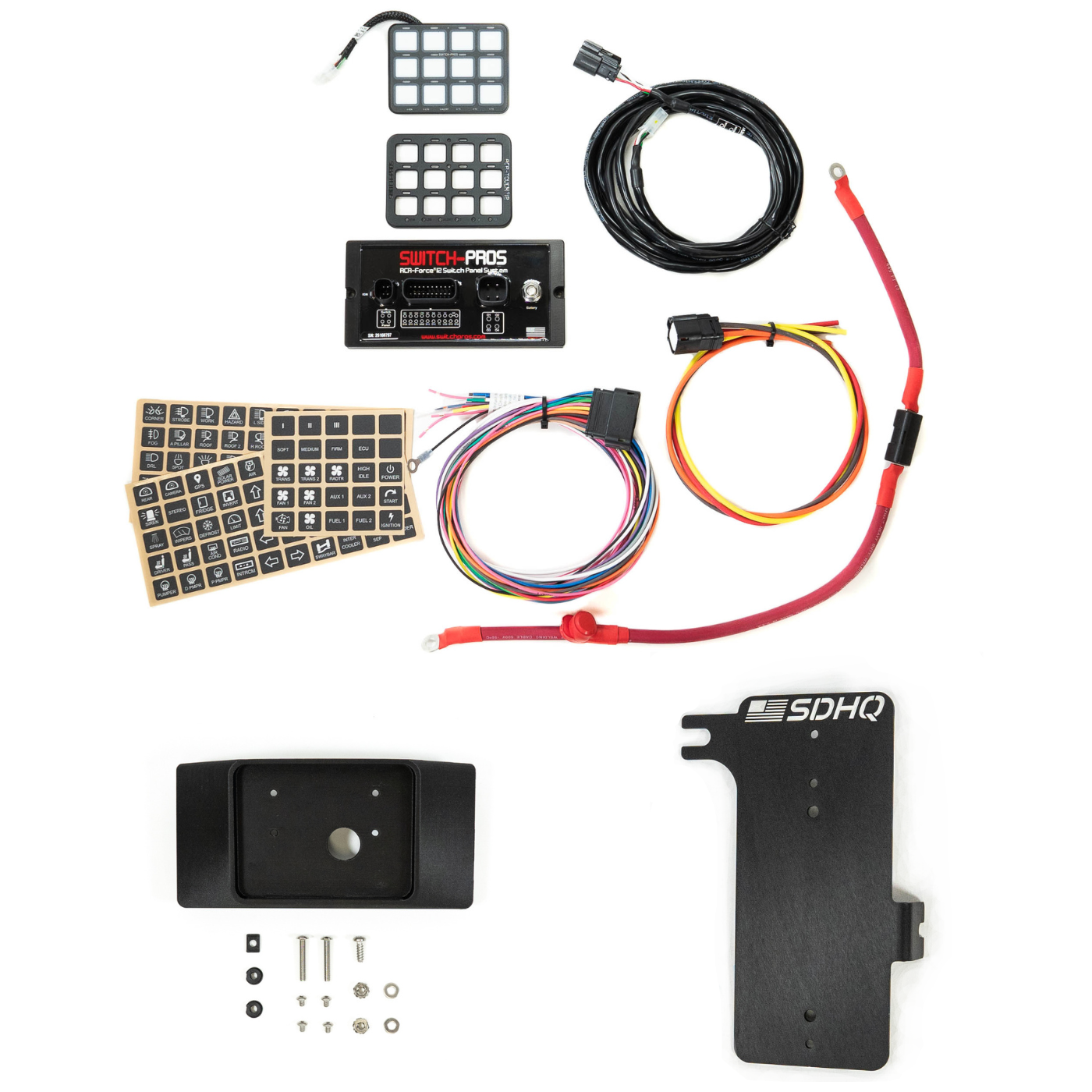

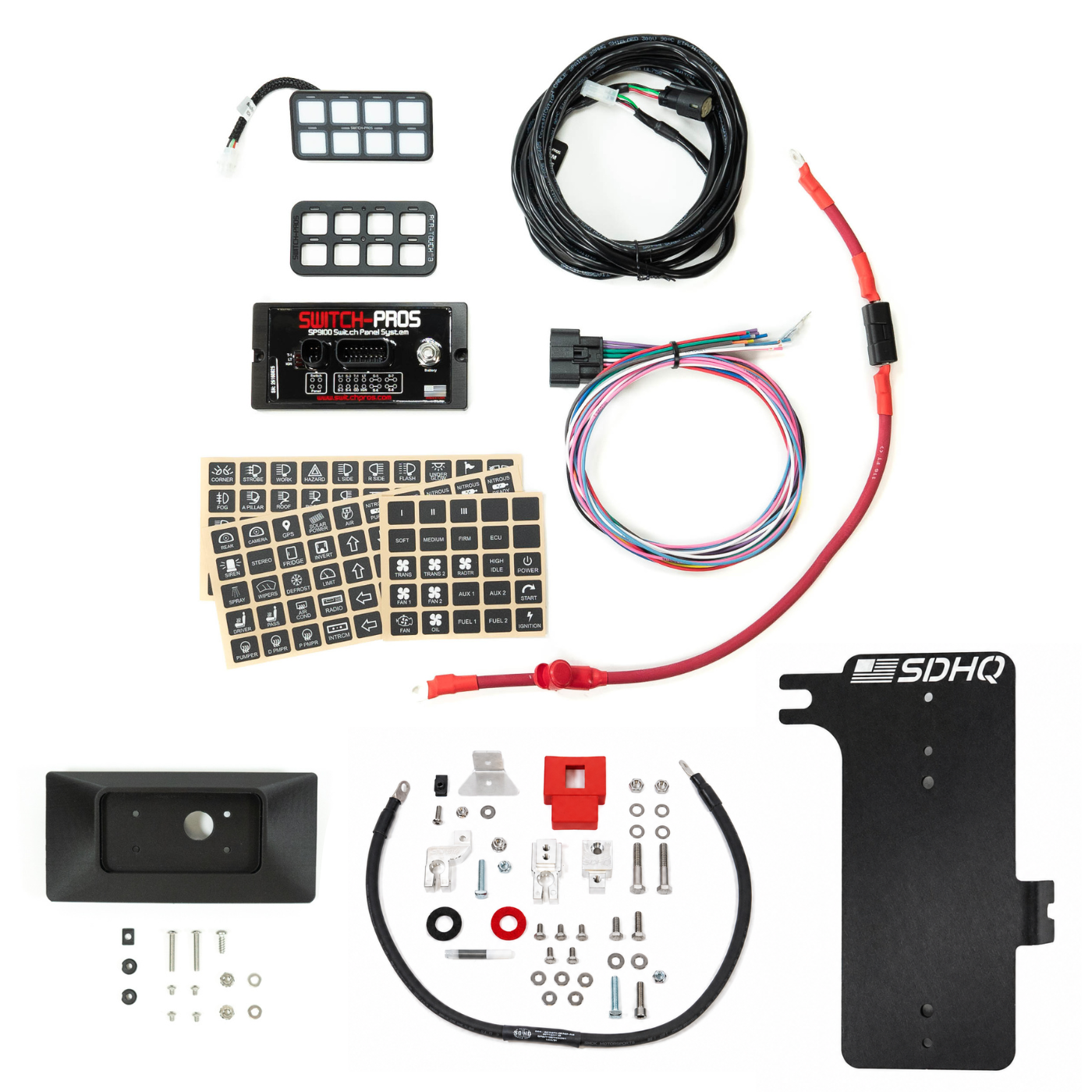

'24 Ford Ranger Complete Switch Pros Kit
Switch-Pros Kit Option
Include SDHQ Built Rnager/Ranger Raptor Billet Battery Terminal Upgrade Kit?
'24 Ford Ranger Complete Switch Pros Kit
SP9100 / Yes
MCQUEEN
190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

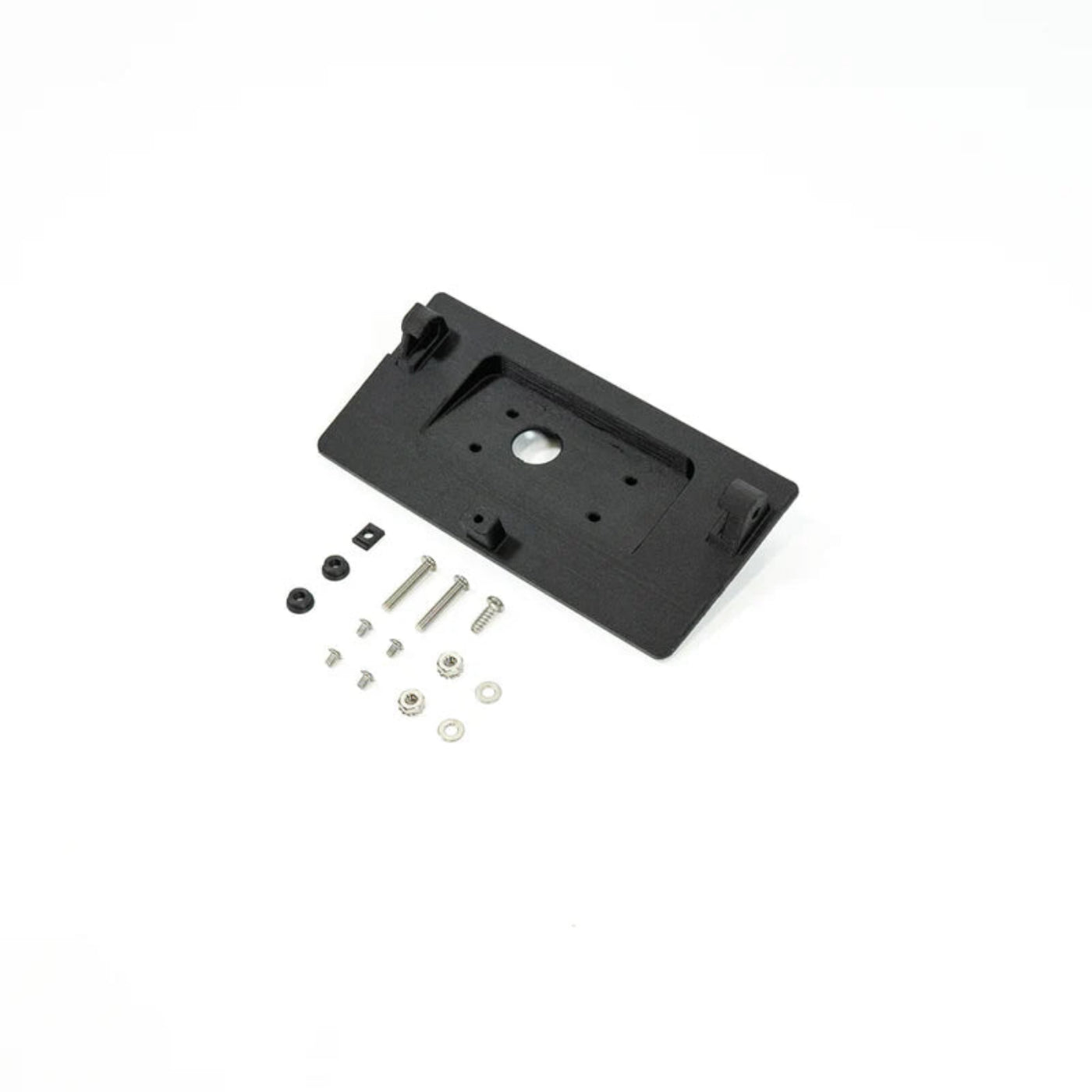

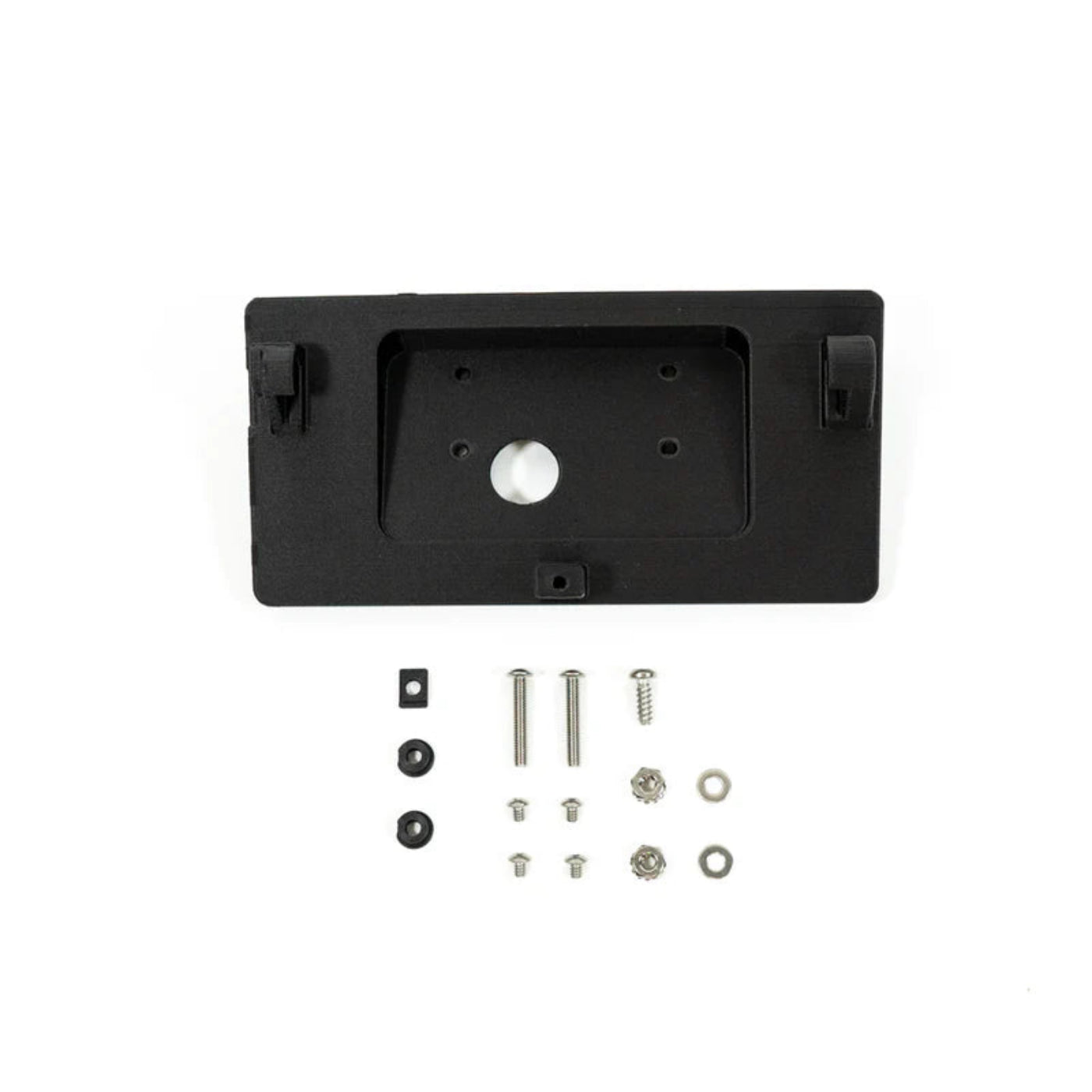

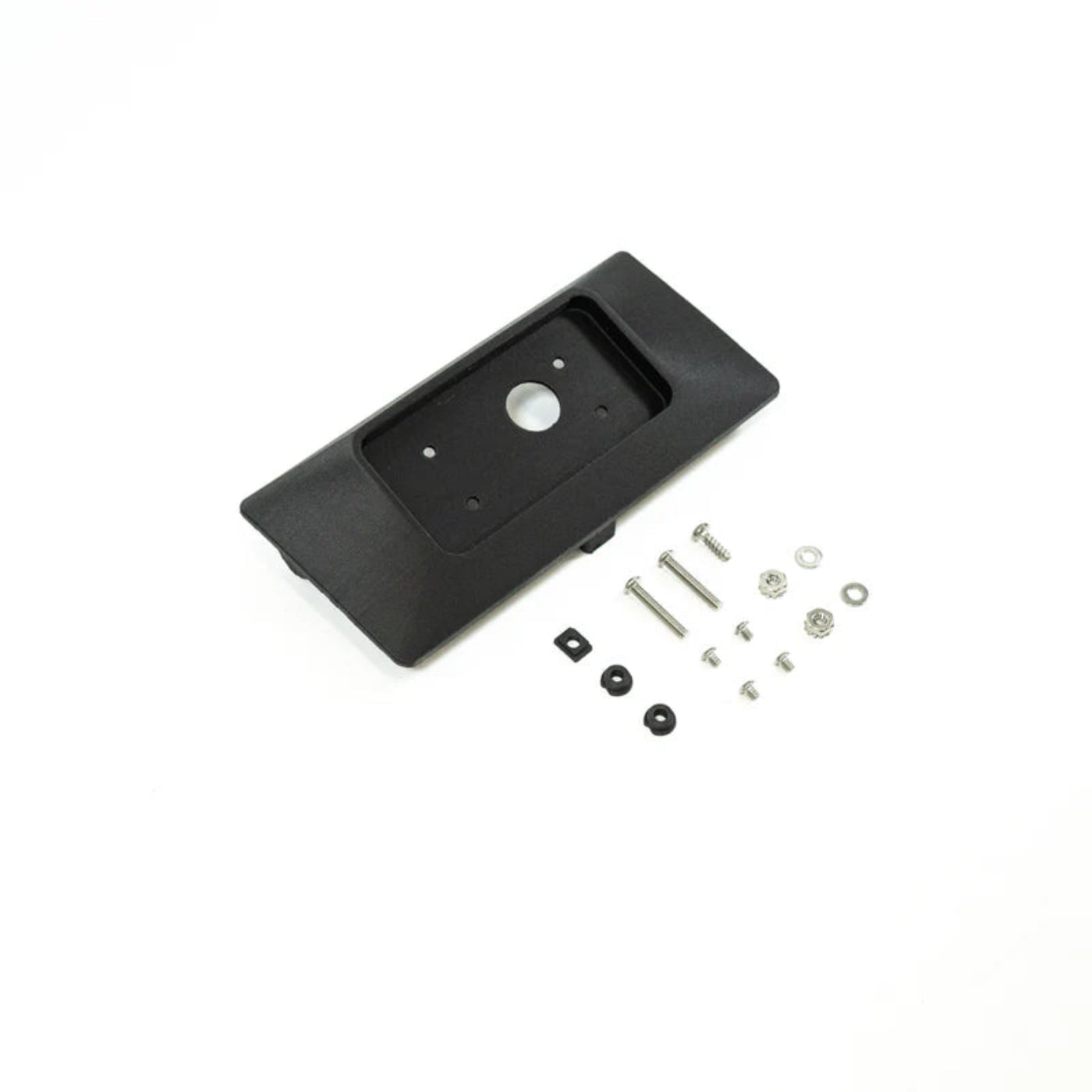

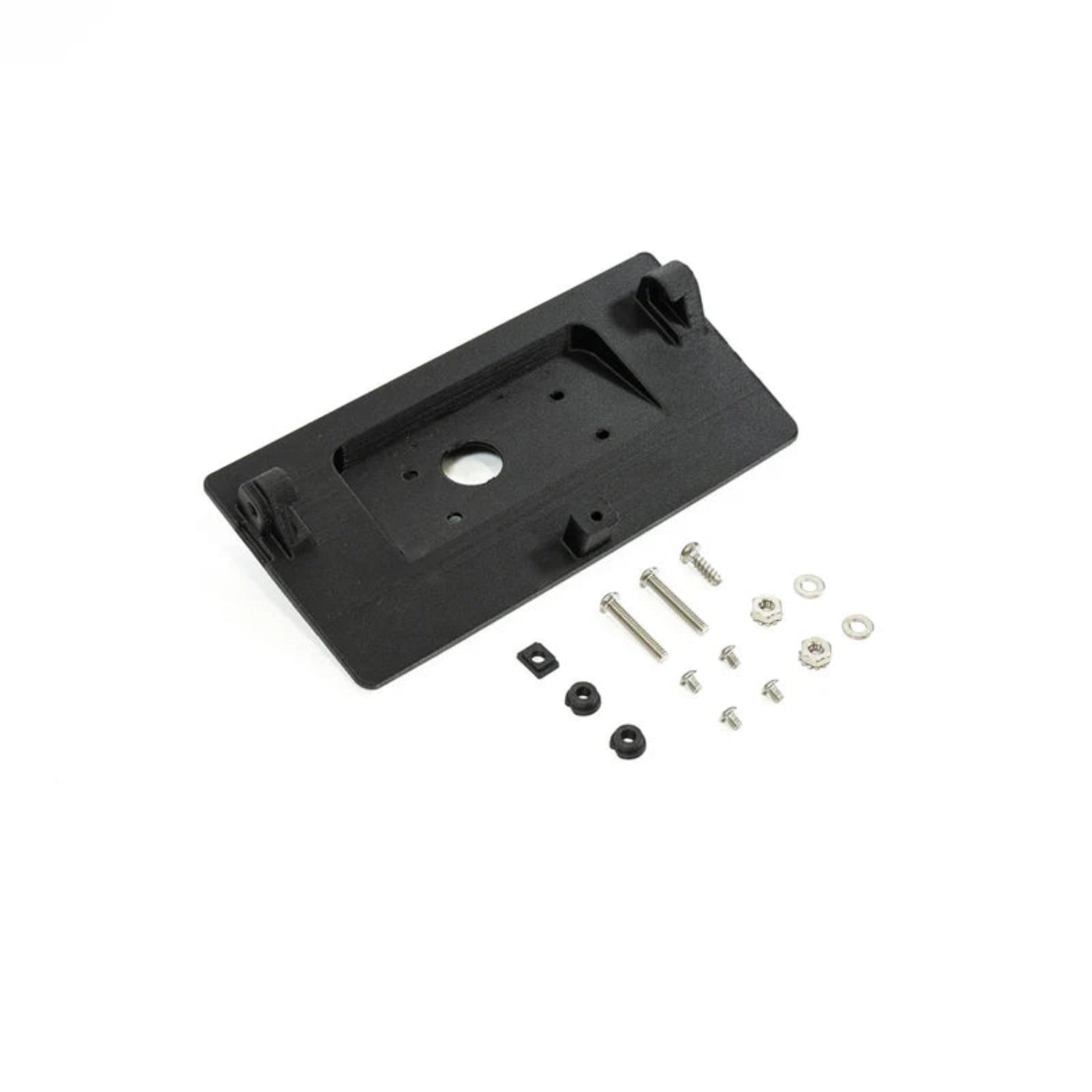

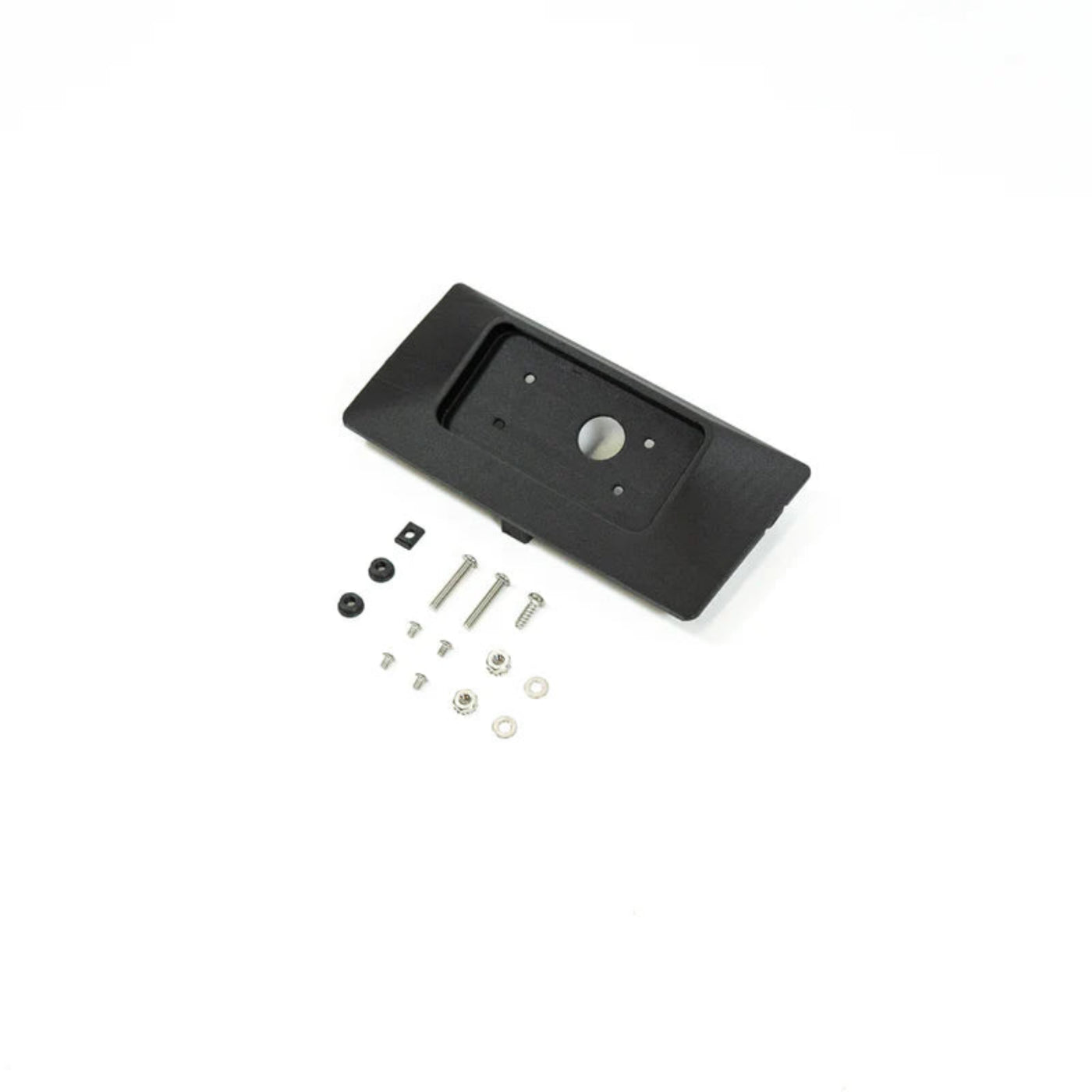

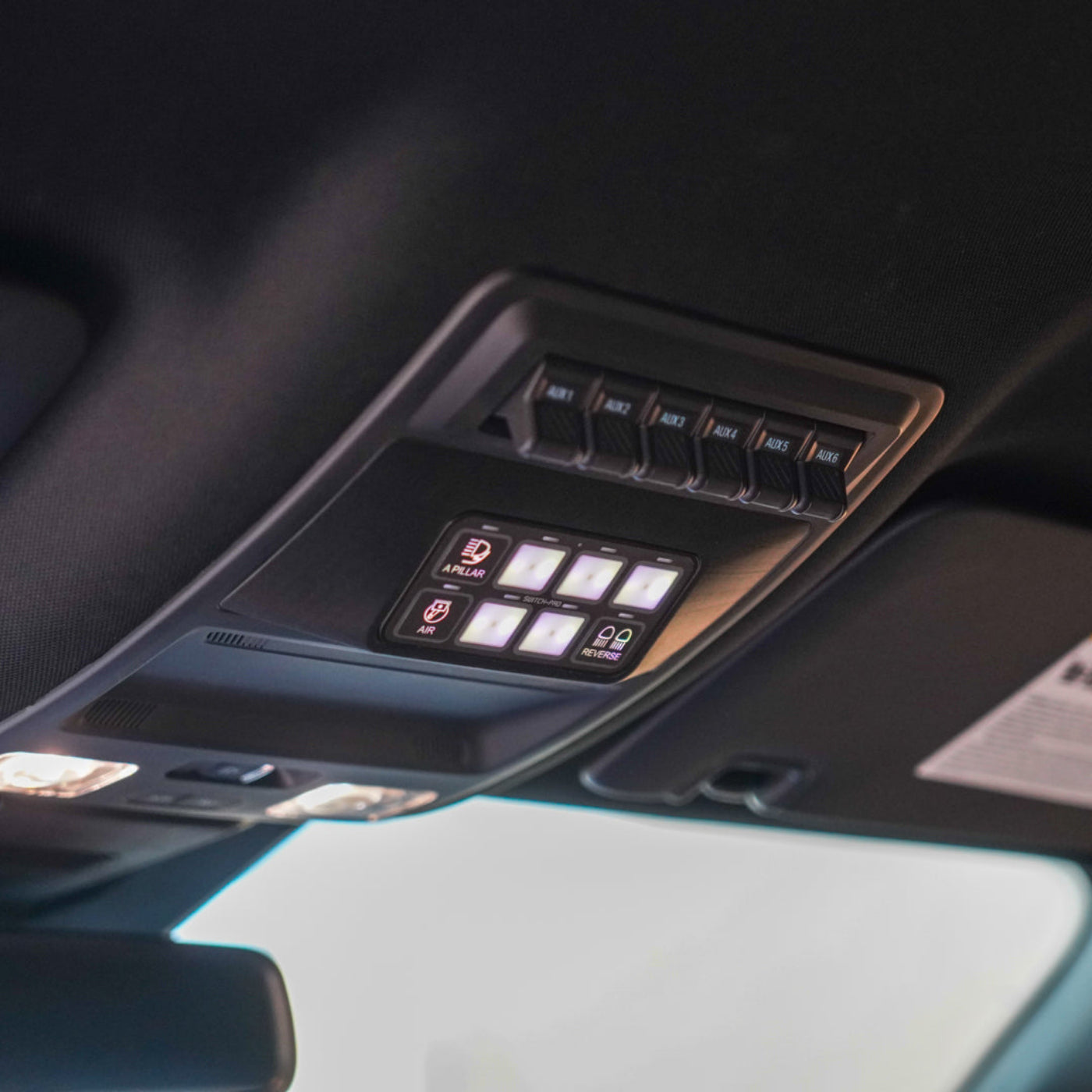

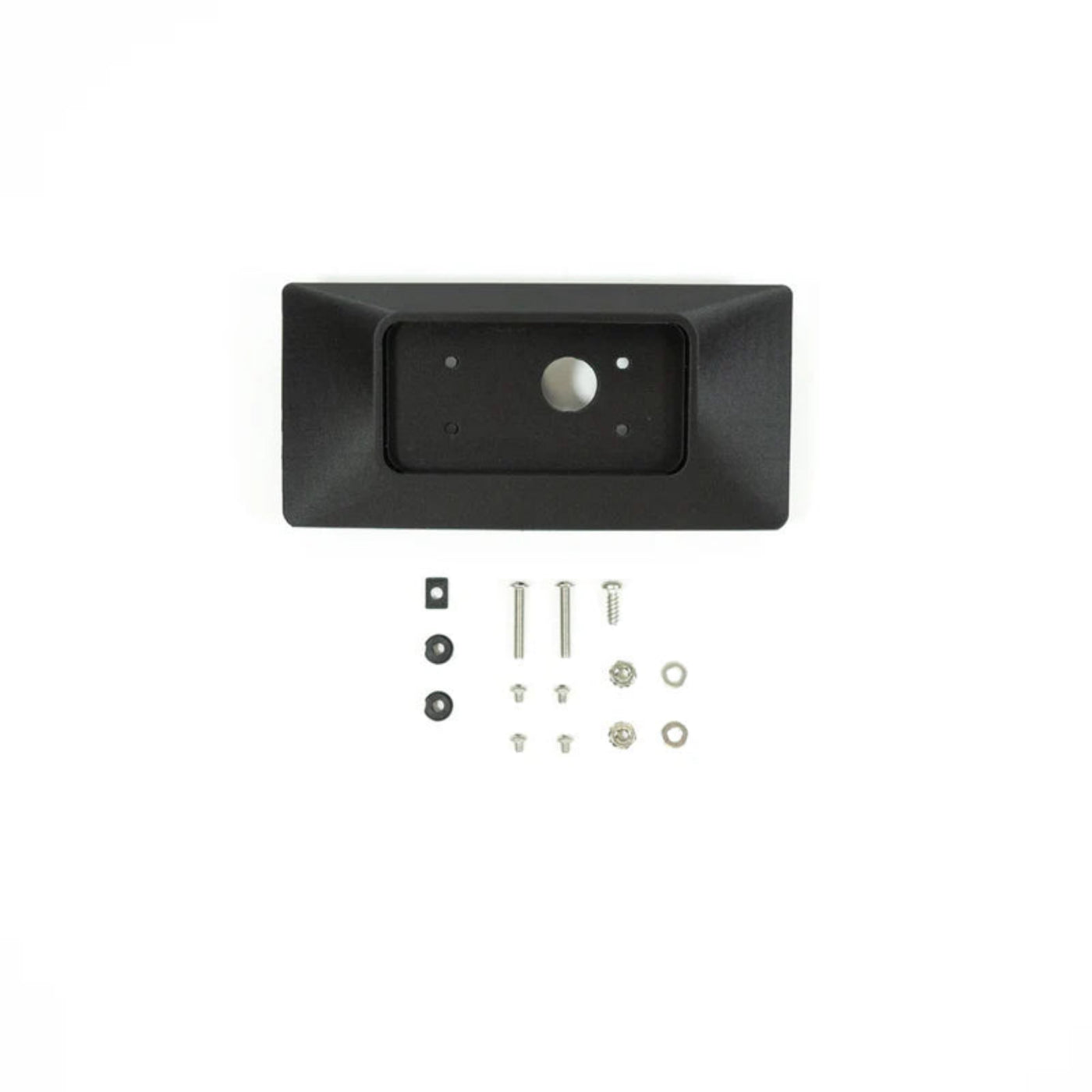

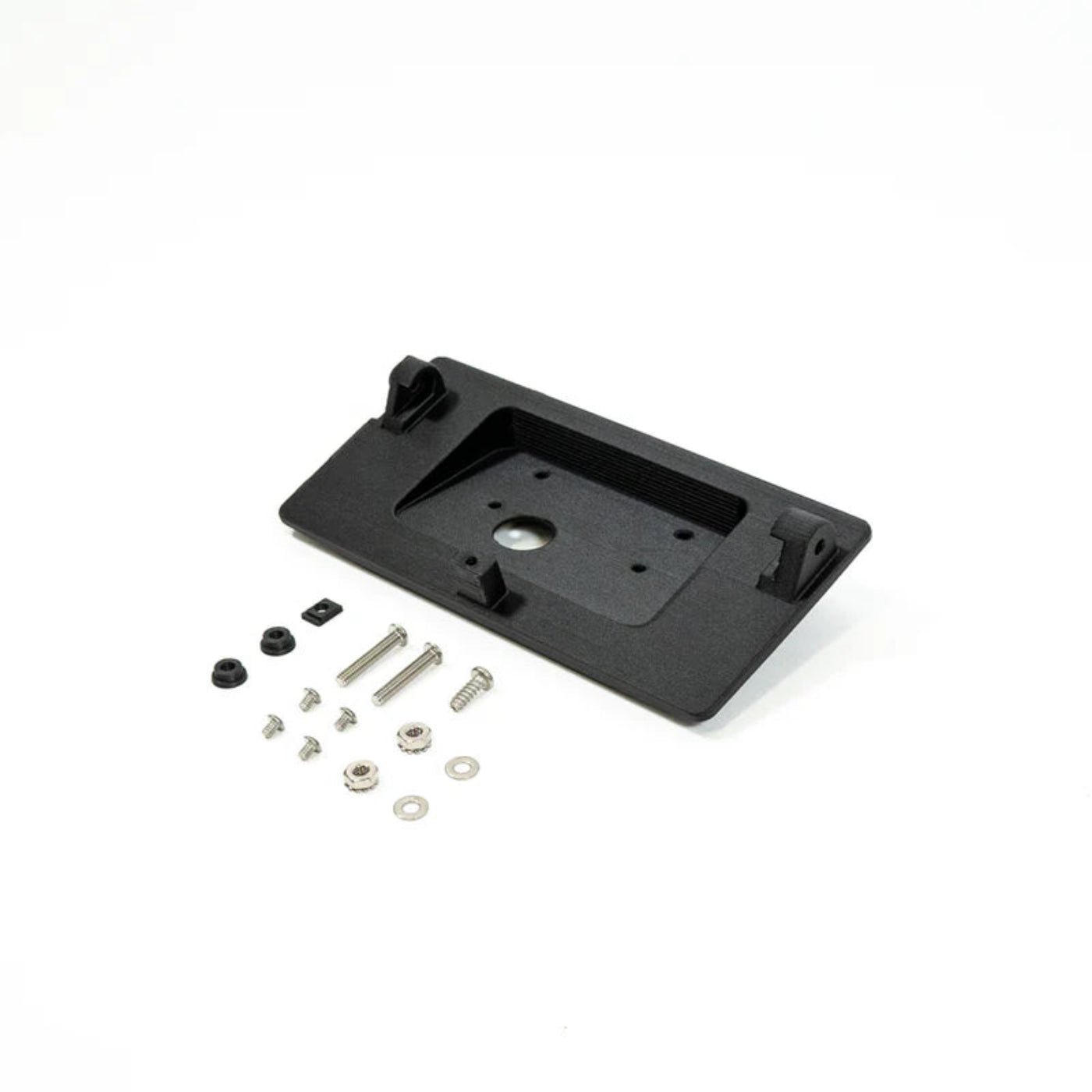

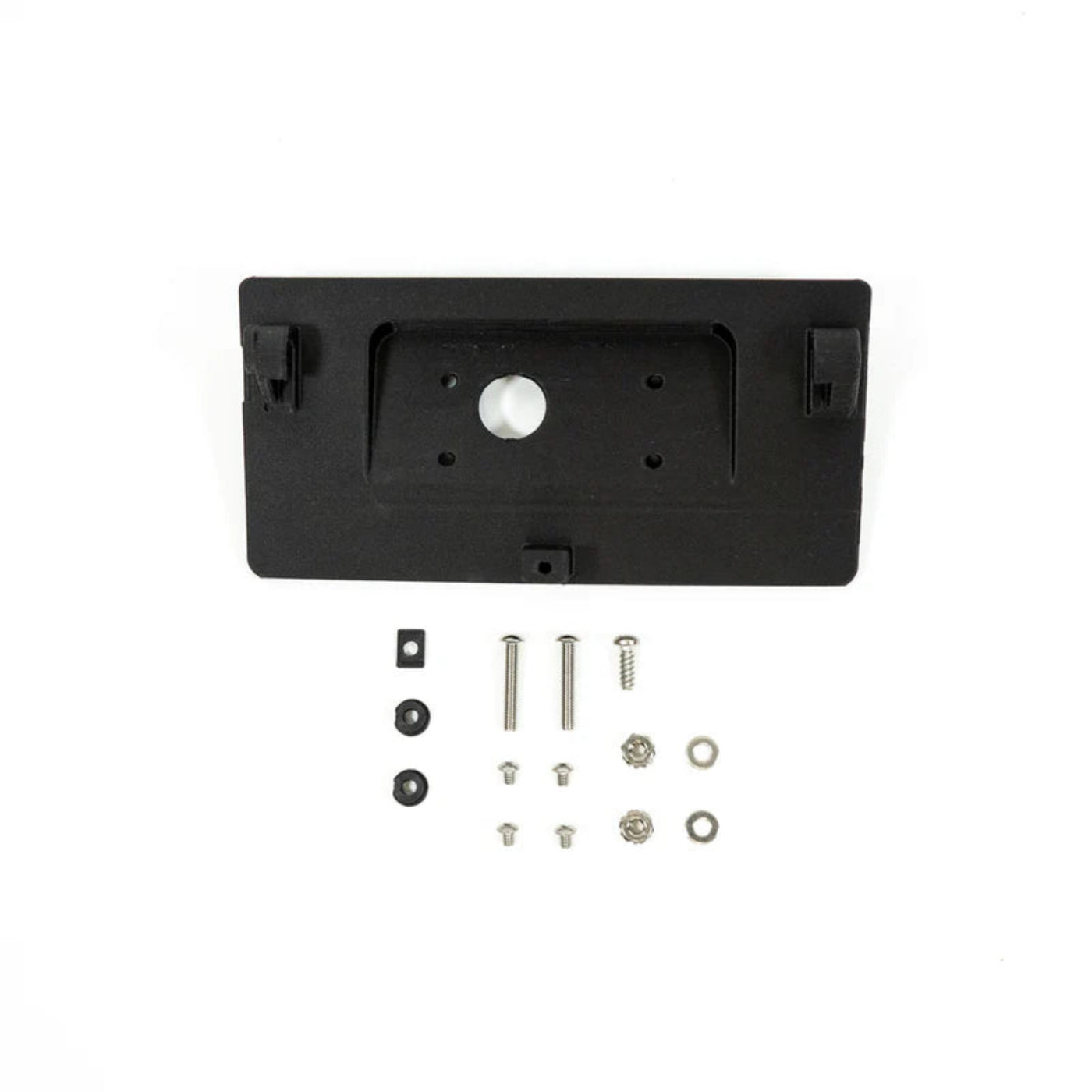

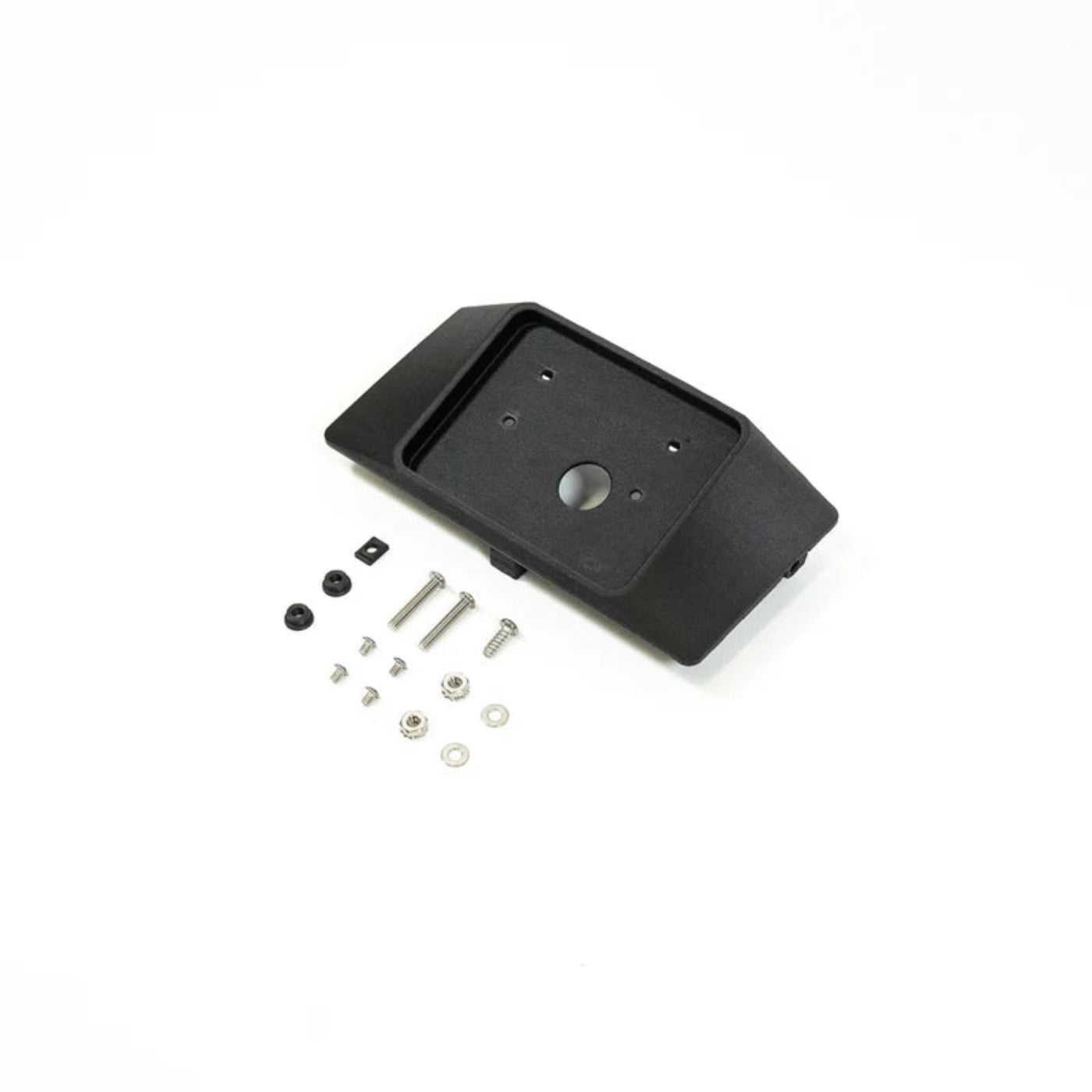

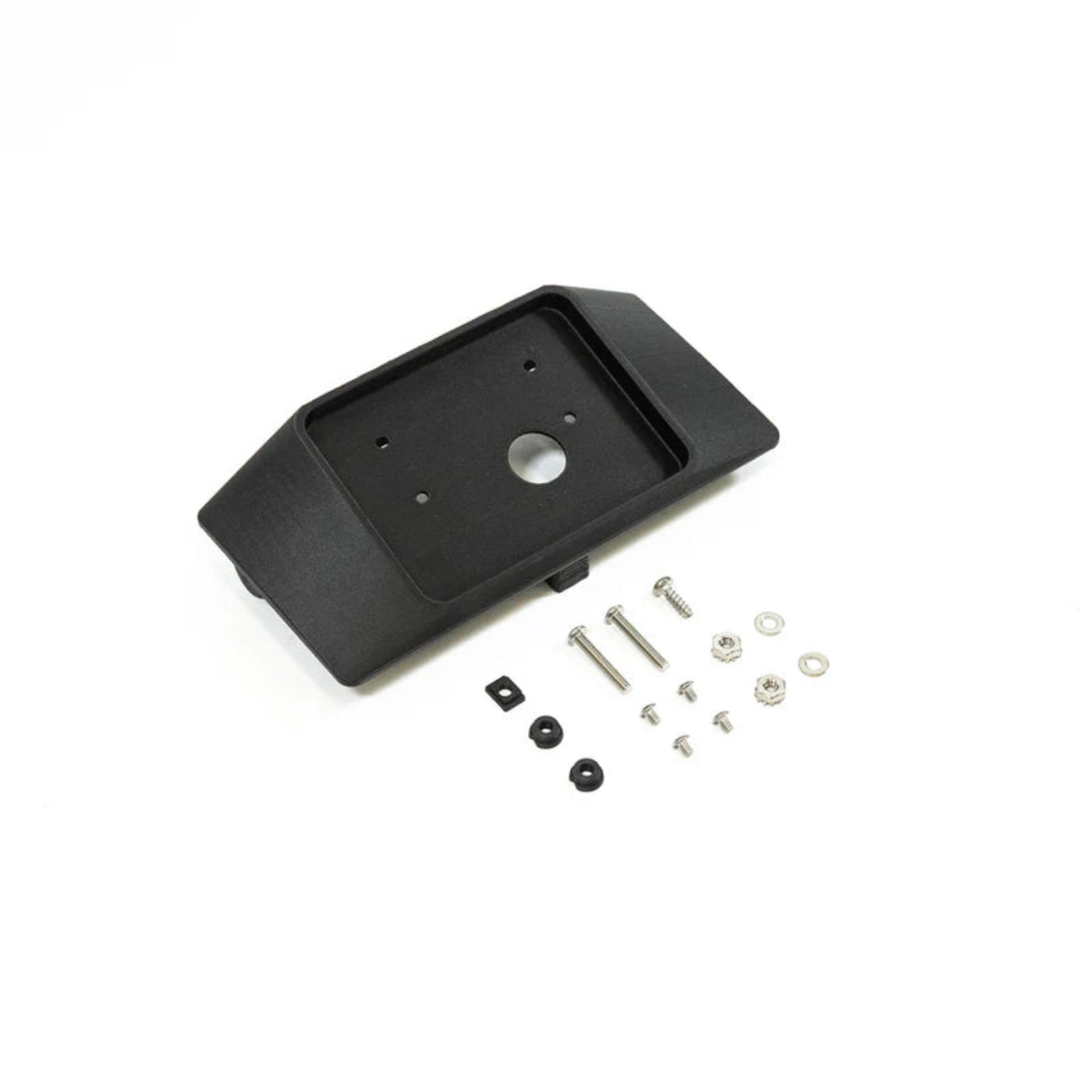

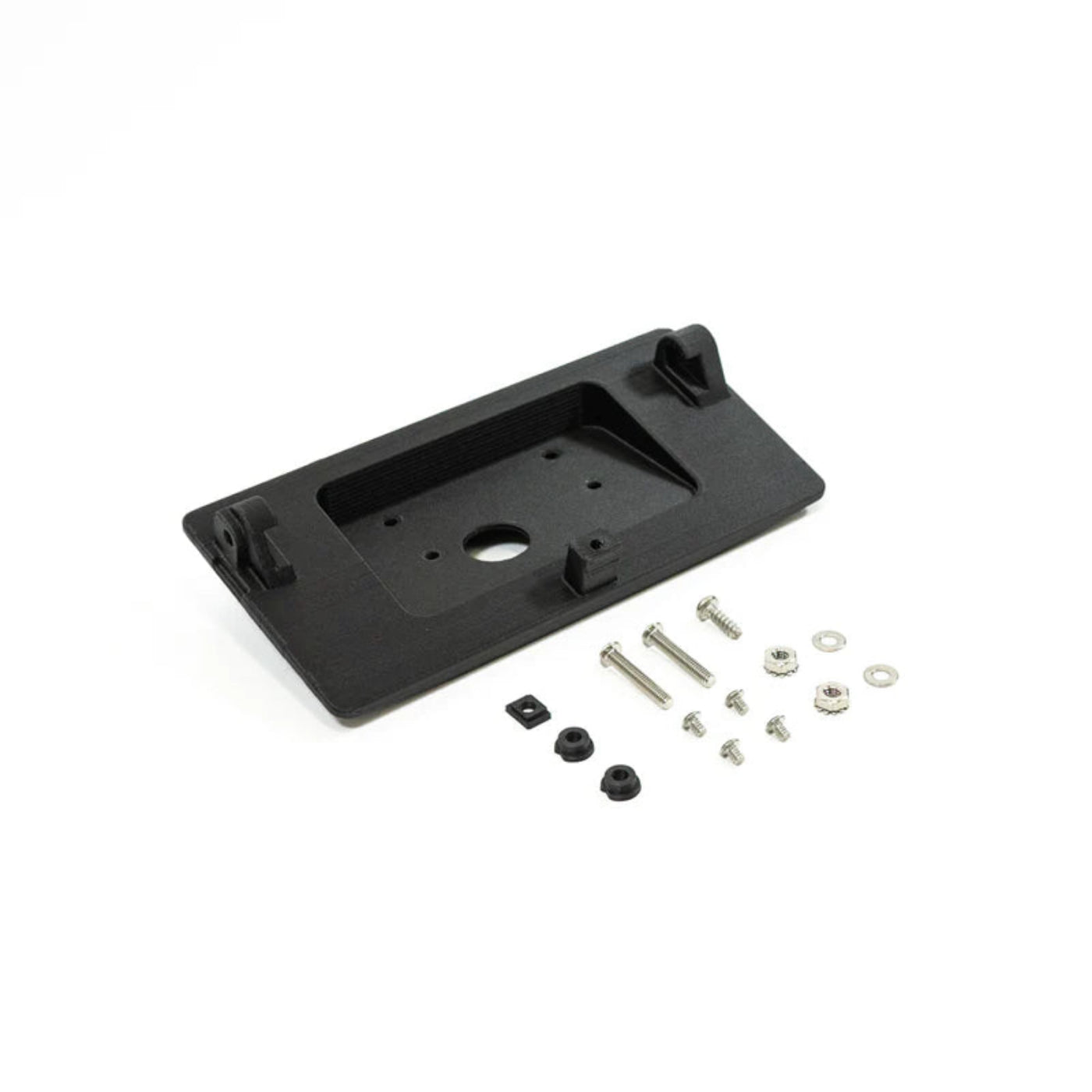

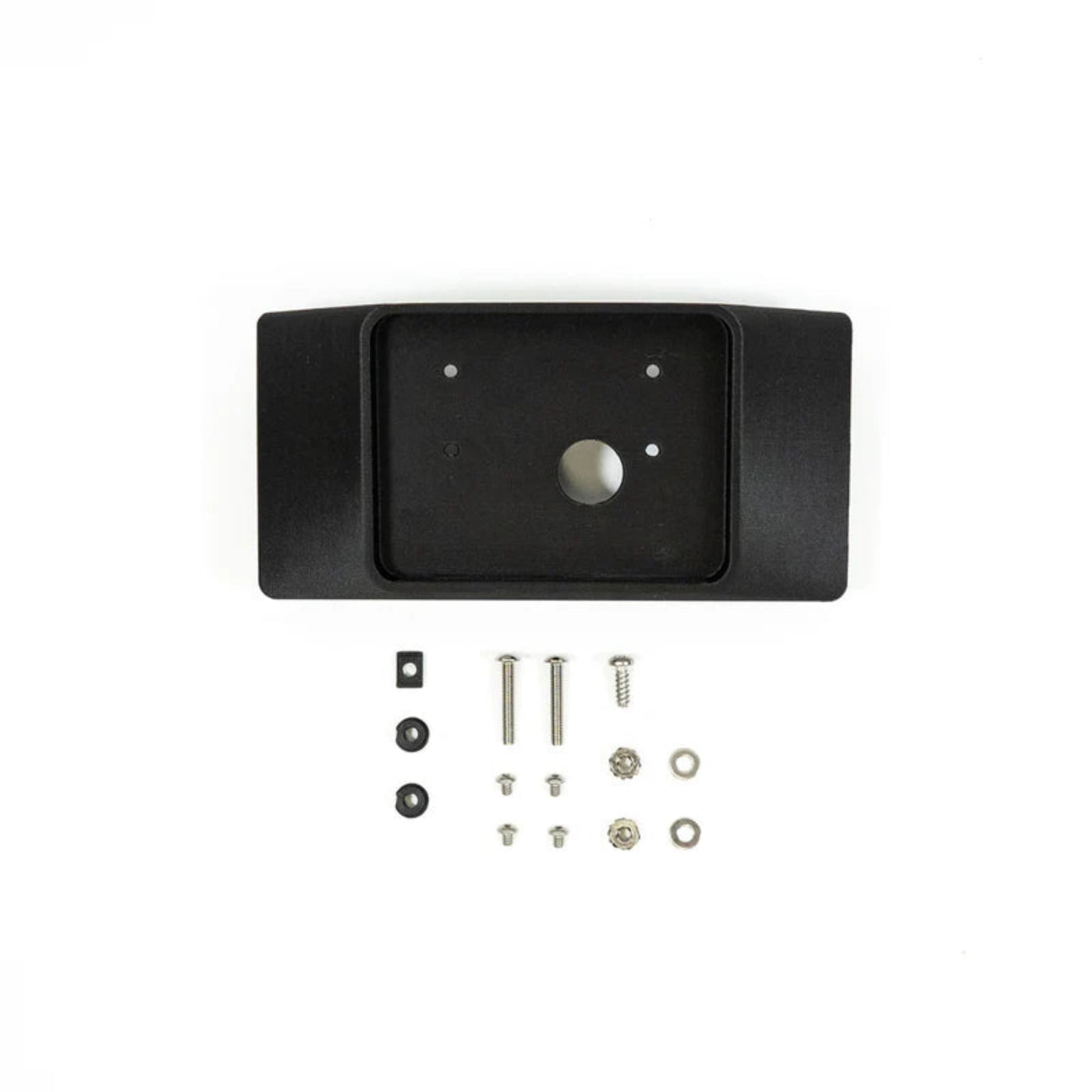

interior mount overview
- 3D CAD Designed and 3D Printed for a OEM Quality Fit and Finish
- Fits 2024 Ford Ranger sunglass holder, all models with or without factory upfitters
- Difficulty of Installation: Easy
- Approximate Install Time: 30 Minutes (not including wiring)
- Fitment allows for a Switch Pros SP9100 or RCR12
- Switch Pros SP9100 or RCR 12 SOLD Separately
- Direct replacement of overhead sunglass holder.
🔧 INSTALL INSTRUCTIONS 🔧

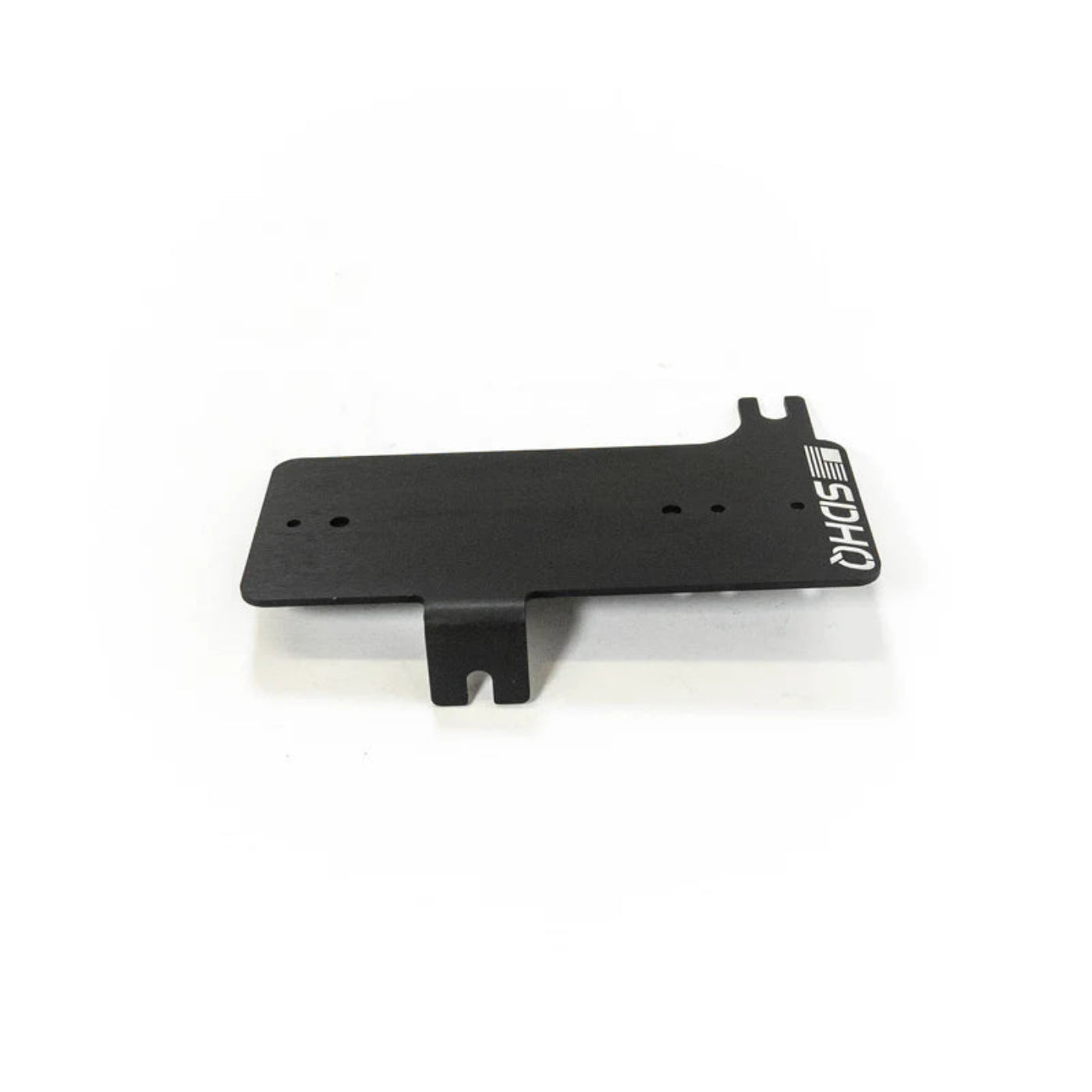

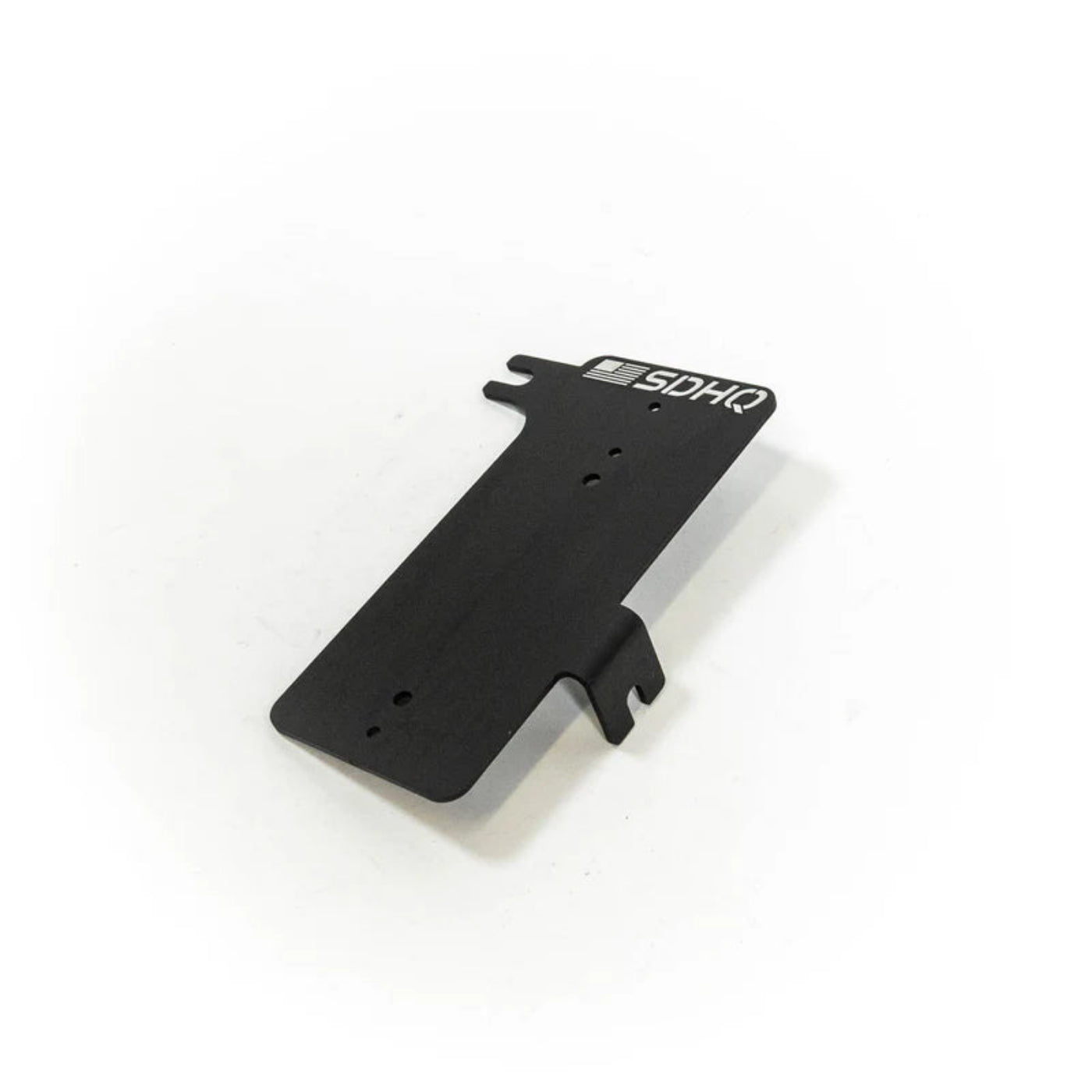

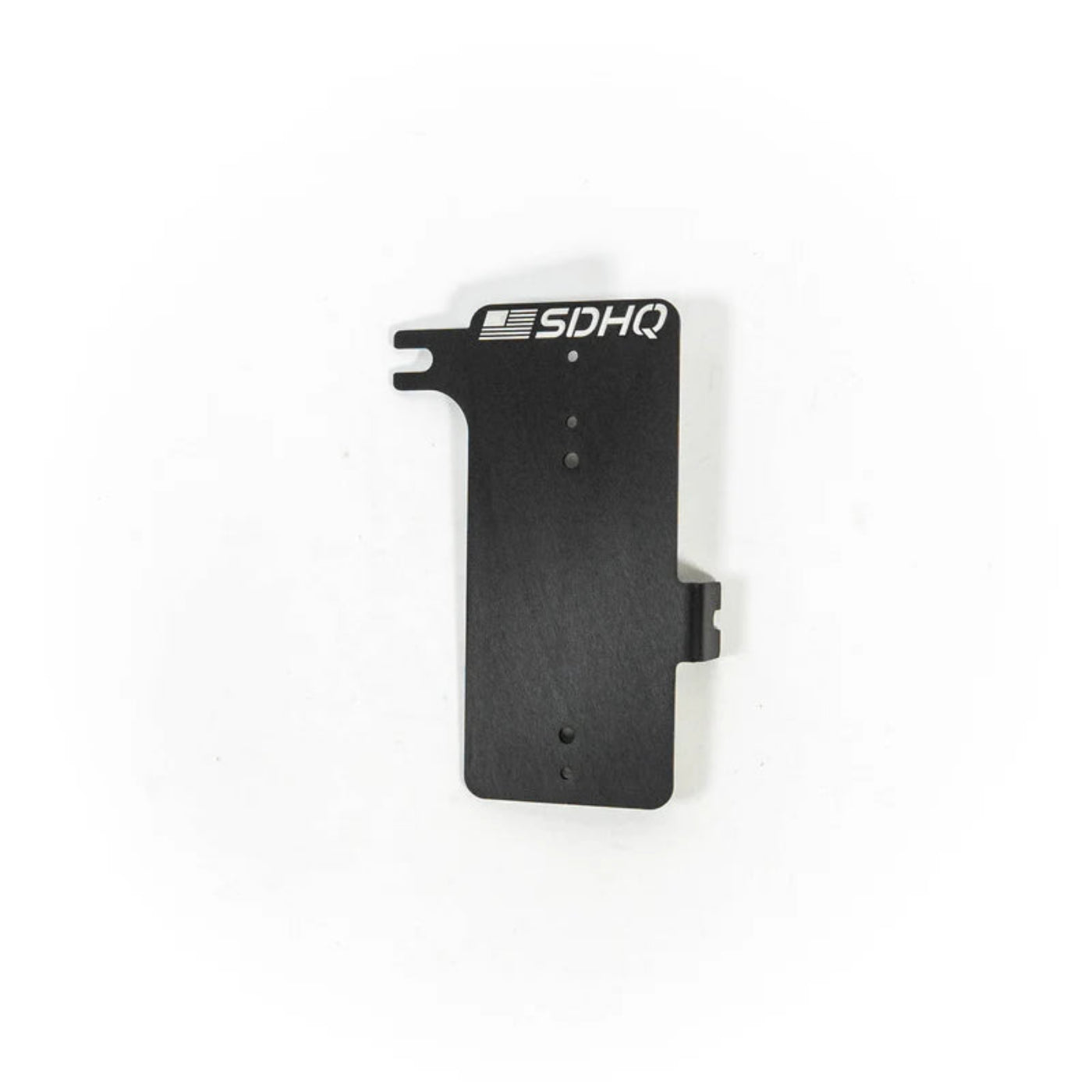

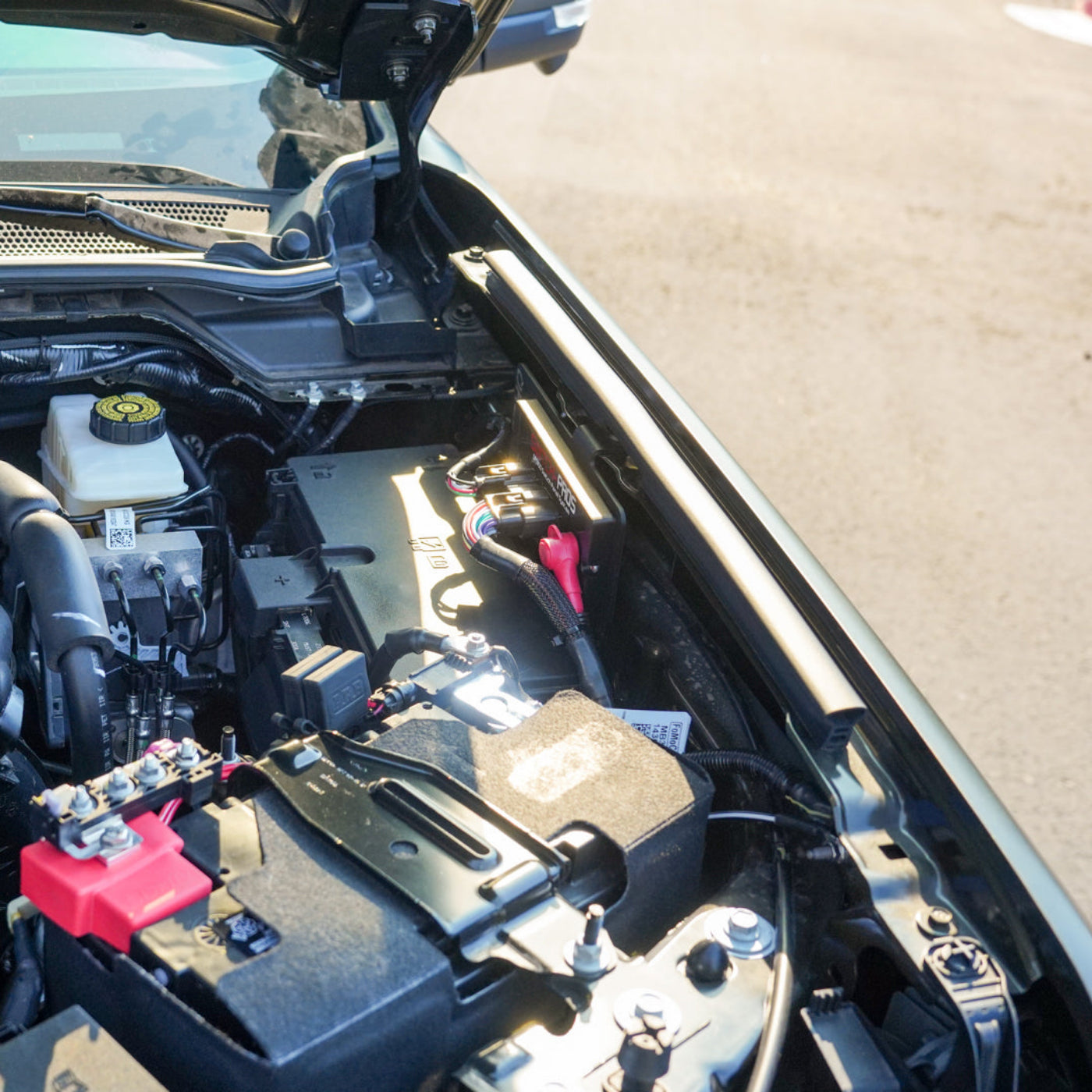

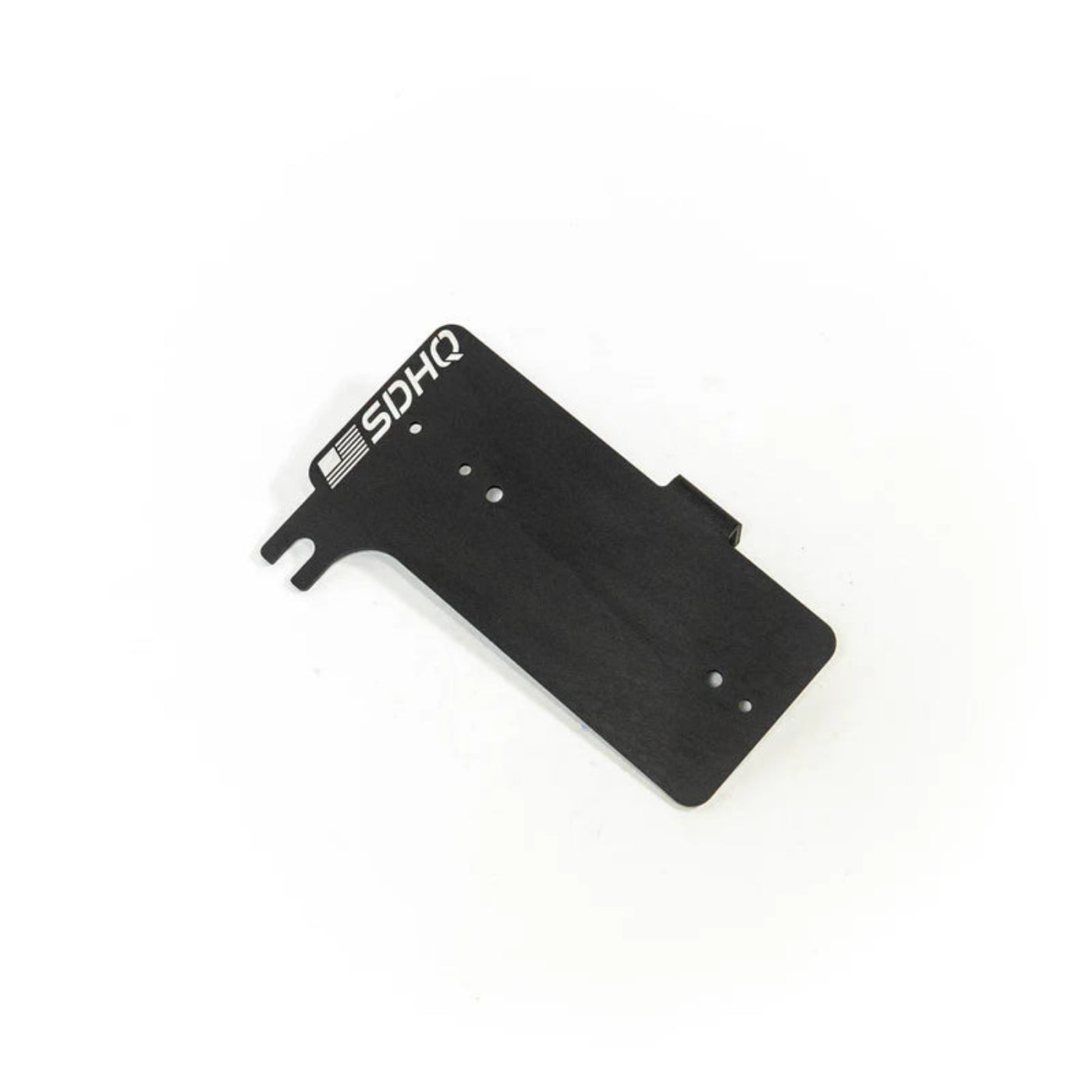

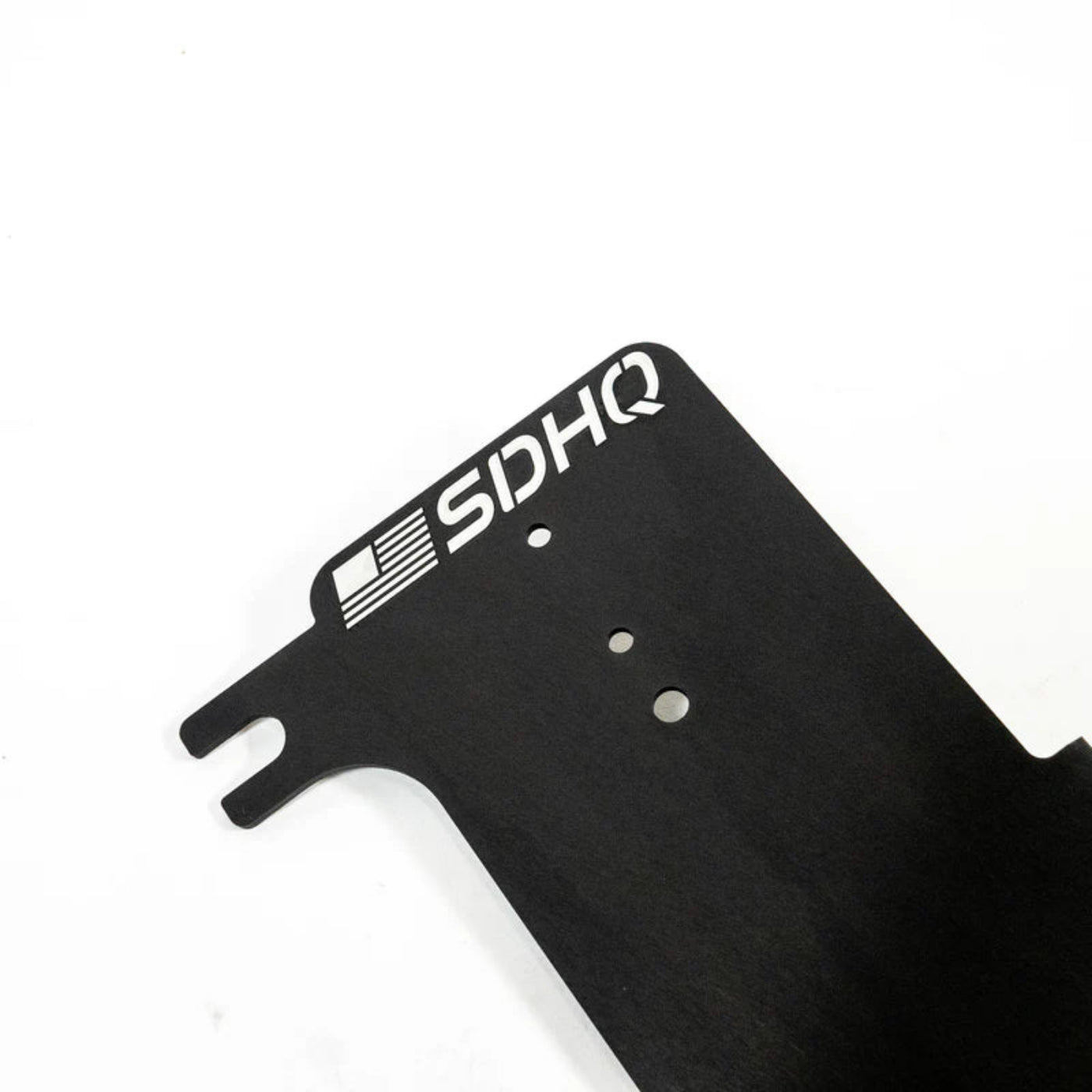

underhood power module mount overview
- 3D CAD Designed for a OEM Quality Fit and Finish
- No cutting or drilling required.
- Uses Switch Pros hardware to mount to the mounting plate.

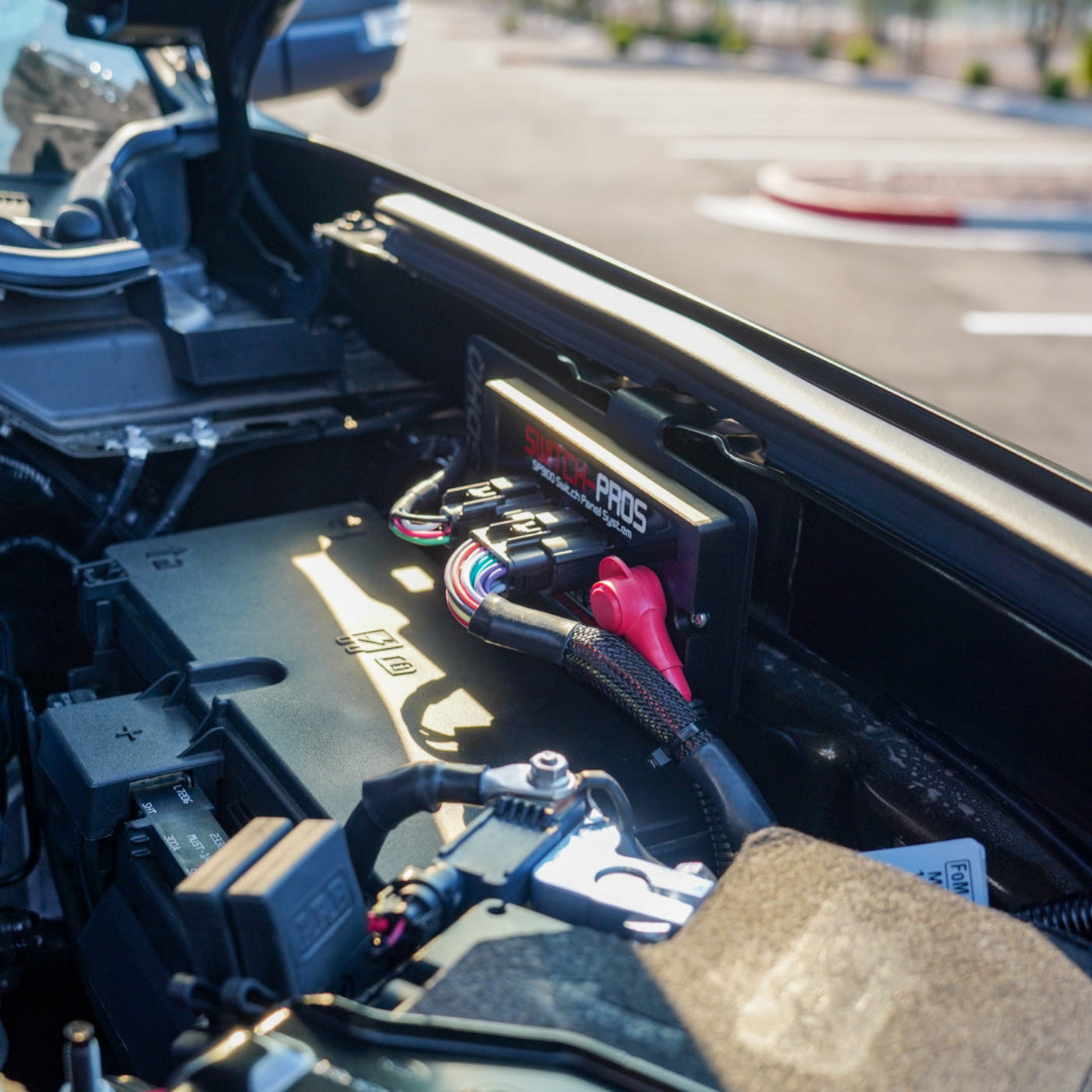

- Located close to the vehicle’s battery for simple wiring.
- Simple and clean solution for mounting the Switch Pros Power Module.
- Fits Switch Pros 9100 and RCR12.
- Fits Garmin Power Switch.
- Ships Anodized Black.
- Difficulty of Installation: Easy
- Approximate Install Time: 20 minutes (not including wiring)
🔧 INSTALL INSTRUCTIONS 🔧

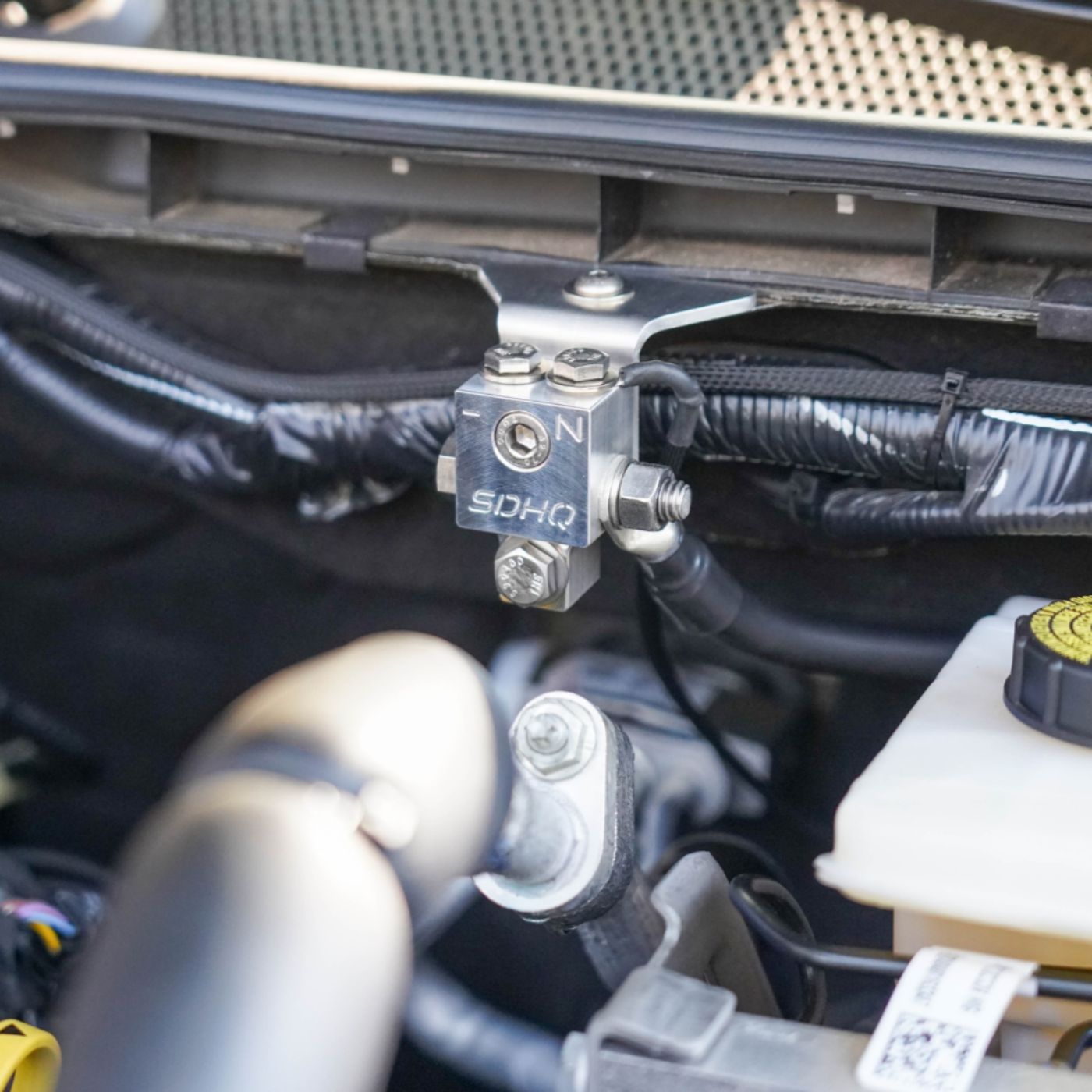

Optional billet battery terminal upgrade kit
- Designed to 2024 Ford Ranger/Ranger Raptor.
- Compatible with OEM Upfitters. Kit replaces OEM positive terminals and negative terminal and adds a secondary negative/ground distribution location.
- Negative 6061 Aluminum Distribution Block and Terminal Sensors machined In-House.
- Ability to retain all factory wiring. Designed for use with amperage sensors built into the negative terminal.
- Terminal Kit includes Positive Terminal Protective Boot and Post Washers.
- (2) ⅜”, (1) 5/16” and (2) ¼” mounting options for accessories. When the third ¼” mounting is in use, the 5/16” threads are inaccessible due the small footprint of the terminal.
- Stainless Steel Hardware with included Anti-Seize Compound.
- Recommended for use with sealed batteries.
- Includes a new 32” 2GA wire to ground the distribution block to the battery.
-
Torque Specifications:
-
- Torque ¼” - 20 Hardware to 4 ft-lb.
- Torque 5/16” - 18 Hardware to 8 ft-lb.
- Torque ⅜” - 16 Hardware to 18 ft-lb.
-
🔧 INSTALL INSTRUCTIONS 🔧
SP9100 overview
The Switch Pros SP-9100 8 Switch Panel Power System. Putting an end to dashboard clutter is easy, with the Switch-Pros 9100 Switch Panel Power System. Featuring eight user-programmable switches, this compact panel is the most advanced and versatile switch panel on the market.
Compatible with iPhone and Android based Smart Phones, you can command your vehicle accessories with the touch of your handset screen.
These features make this off-road power panel system the best off-road switch panel on the market today
KEY FEATURES:
- Eight user-programmable switches
- Four 35A circuits and four 18A circuits, with over-current and short circuit protection
- Waterproof, Solid State 125A Power Module
- RGB Backlighting provides unlimited color options, using Color Picker on App
- Daisy Chain up to 3 Switch Panels to One Power Module
SWITCHES CAN BE PROGRAMMED FOR:
- On/Off or Momentary
- Ignition or Battery Input
- Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation
- Memory Function
- Master Mode, with ability to turn multiple outputs On AND Off with one touch
- Automatic Power-Up upon vehicle start up
- Two External trigger inputs can each activate up to four outputs (Active Hi or Active Low)
- Lighting outputs can dim from 100% to 10%, with ability to dim during Flash or Strobe patterns
- Sleep Mode for minimal power consumption
- Color Coded Output wires
- 100 User-selectable switch legends
- LED Input Status Indicators for easy troubleshooting
- Time Delay Off function available for all circuits
- Splash proof switch panel with Polycarbonate overlay faceplate
- Program and control the system from switch panel pad or smart phone
- Bluetooth interface with FREE Apple or Android App
- Battery Voltage Readout on App screen
- No Fuses or Bulky Relay box
- Built-In Bluetooth Module
SPECS:
- RGB Backlighting provides unlimited color options, allows for exact matching to factory dash lighting
- Built-In Bezel Style Switch Panel enclosure measures 4 L x 2 W x .375 H ; includes concealed mounting hardware for factory-look installation
- Orange LED switch indicators
- 100 User-Selectable Legends
- POWER MODULE SPECS:
- 8 Outputs: 4 rated @ 35A, 4 rated @ 20A
- 125A maximum rating
- Waterproof and Solid State
- 6L x 3W x .5H (excluding connectors)
- LED Input Status Indicators for easy troubleshooting
- Underhood rated 125°C to -40°C
WHAT'S INCLUDED:
- 11 of Communication Cable between Switch Panel and Power Module
- Color Coded Output wires
- Wire harness with Waterproof, sealed automotive grade connectors
- Power Cable with 125A inline fuse
- Switch Pros standard switch legend
RCR Force 12 Overview
The Switch-Pros RCR-FORCE-12 includes twelve tactile switches, in a three-row configuration that is user-programmable, with the same style of the previous Switch-Pros systems. The twelve circuit, 170 amp power module will control up to seventeen outputs, using a combination of direct and trigger inputs. Five of the circuits can handle inductive loads, and one circuit is a low side driver.
The RCR-FORCE-12 Kit includes everything required for installation, plus the all-new RCR-Touch snap on bezel, which will help the driver select switches with precision even while traveling rough terrain or wearing gloves.
KEY FEATURES:
- 12 user-programmable switches
- RCR-TOUCH™ switch cover
- Waterproof, solid state power module
- 150amp capacity with 17 outputs
- 4 rated @ 35A and 1 rated @ 30A
(High In-Rush circuits) - 11 rated @ 15A, which can be combined for larger loads
- 1 Low Side driver switch, rated @ 2A
- 4 rated @ 35A and 1 rated @ 30A
- Built-in Bluetooth module
- Program and operate accessories with phone or tablet
- System can be used to start vehicle
- No bulky relay box
- RGB Backlighting with unlimited color options
- Three External Trigger inputs can each activate up to four outputs (Active Hi or Active Low)
- Sleep Mode for minimal power consumption
- Color coded output wires
- Daisy Chain up to 3 Switch Panels to One Power Module
- Free app for iOs and Android platforms
- Splash proof switch panel with Polycarbonate overlay faceplate
- LED Input Status Indicators for easy troubleshooting
- Battery Voltage Readout on App screen
SWITCH PANEL SPECS:
- RCR-Touch™ cover, snaps on for ease of specific switch selection while wearing gloves or riding rough terrain
- Switch Panel enclosure measures
4” L x 3” W x .375” H - Splashproof with Polycarbonate overlay faceplate
- Pre-machined for factory- look installation
- RGB backlighting
- Orange LED switch indicators
- 6 Programmable LED Status indicators
POWER MODULE SPECS:
- 17 Outputs: 4 rated @ 35A, 1 rated @ 30A, 11 rated @15A, 1 Low Side rated @ 2A
- 150A maximum rating
- 7”L x 3.5”W x .5”H (excluding connectors)
- Waterproof and Solid State
- Underhood rated 125° to -40°C
- LED Ignition Input Status Indicator
KIT INCLUDES:
- Switch Pros RCR-Force-12 Panel
- Switch Pros RCR-Force-12 Power Module
- RCR-TOUCH™ switch cover
- 11’ of Communication Cable between Switch Panel and Power Module
- Power Cable with 150A inline Circuit protection
- 100 User Selectable Legends included (Horizontal orientation)
- Installation brackets and hardware
- Color Coded Output wires
- Wire harness with waterproof, sealed automotive grade connectors
SWITCH PROGRAMABLE FEATURES:
- Preset Dimming function WITH MEMORY (100% to 10% brightness)
- Master Mode, with ability to turn multiple outputs On AND Off with one touch
- Every Master Switch can control up to 4 other switch outputs
- On-On-Off logic
- Touch Panel lockout
- On/Off or Momentary
- Ignition or Battery Input
- Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation
- Automatic Power-Up upon vehicle start up
- Safety Lockout for specific switches
- Time Delay off
American-made Excellence
SDHQ: Built for Adventure
Experience American-made excellence from SDHQ, your fellow off-road enthusiasts. We take pride in crafting high-quality, custom products right at our headquarters for unparalleled performance and durability.
Check out what 'SDHQ Built' means for us as well as our customers:
