AEV Crestone DualSport Wheel for 2015-2022 Colorado & Canyon
Finish
Select Hardware or Ring
AEV Crestone DualSport Wheel for 2015-2022 Colorado & Canyon
Satin Black / Hardware Kit - Required Without Ring (M10)
MCQUEEN
190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States
Description:
The 17×8 Crestone DualSport Wheel was AEV's first dedicated wheel for the 2015-22 Chevrolet Colorado and GMC Canyon mid-size pickups. The Crestone's split 6-spoke design gives it an ultra-modern look while providing drivers with the flexibility and versatility that AEV's line of DualSport Wheels are known for.
The DOT-compliant AEV Crestone DualSport Wheel is made from heat-treated A356 T6 cast aluminum for maximum strength and to minimize weight. Further, AEV thoroughly tested the Crestone wheel to stringent SAE J2530 standards.
The AEV Crestone DualSport Wheel for Colorado & Canyon is Tire Pressure Monitoring System (TPMS) compatible and features a valve stem recess to protect the tire valve from being damaged out on the trail. AEV's Crestone wheel is available in an Onyx or Satin Black finish.
These wheels WILL work with OE lug nuts, wheel locks, and lug wrenches.
Available Configuration Options:
There are three options available when configuring your Crestone DualSport wheel. The optional Beadlock Ring and Protection ring are both available in a Silver, Onyx, or a Satin Black (unavailable for Onyx wheel finish) that can easily be painted for a truly customized appearance.

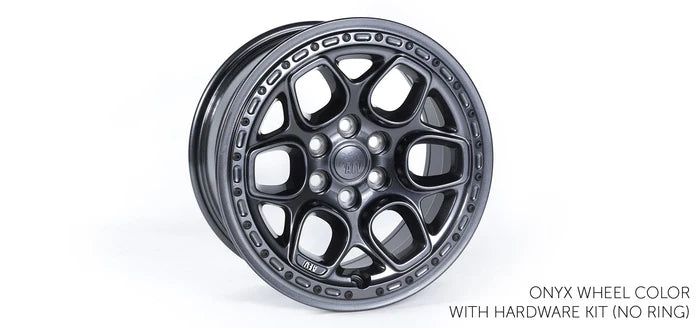

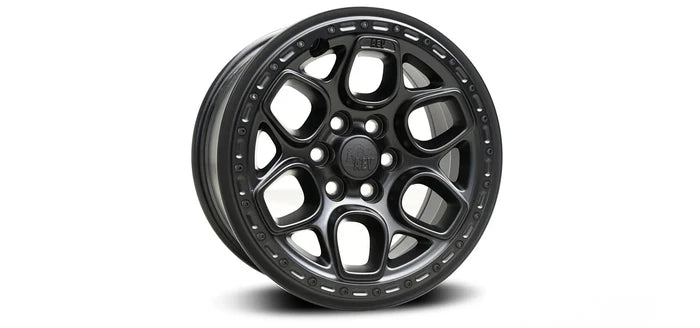

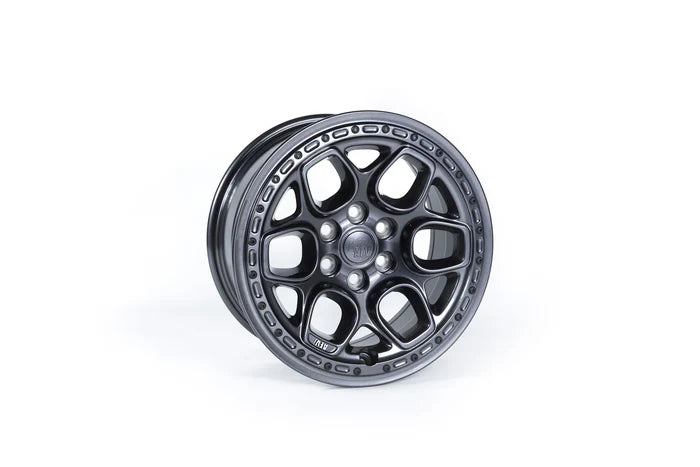

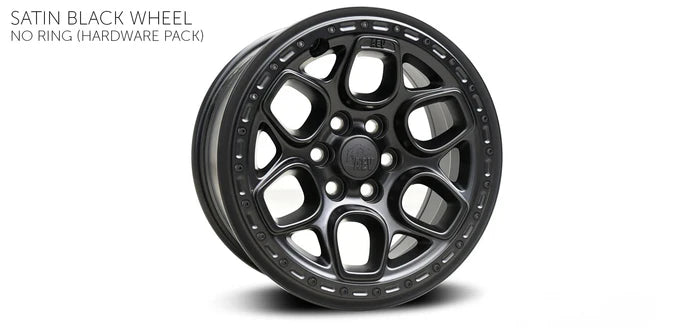

- No Ring - The Crestone wheel can be installed without a ring for a simple one-color look. AEV supplies black nylon hardware for this configuration to prevent dirt and debris from building up inside the threaded bolt holes.

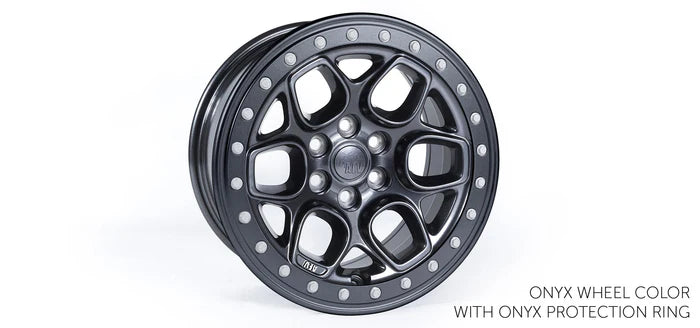

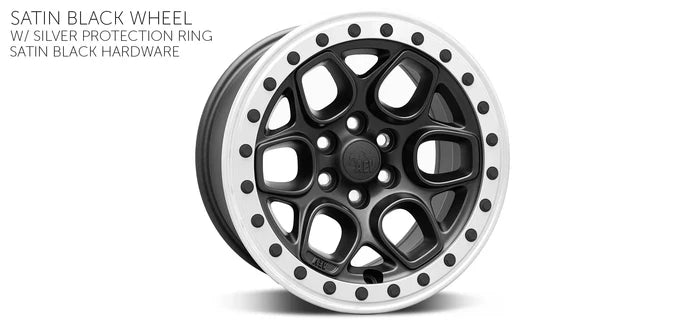

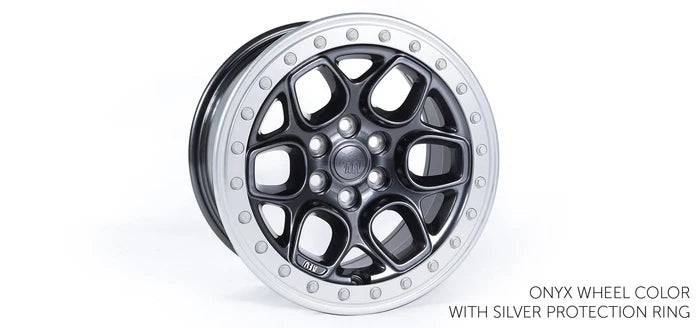

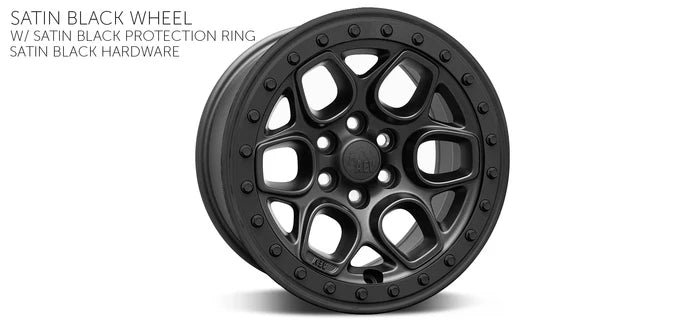

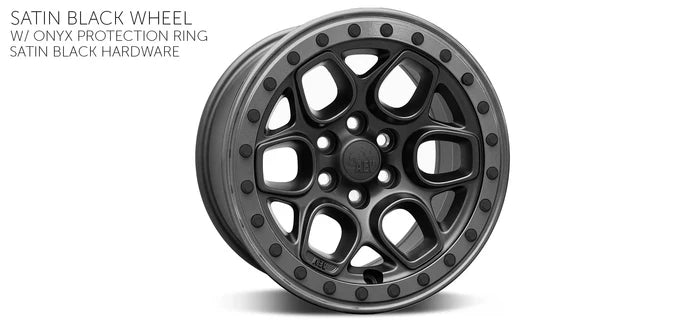

- Protection Ring - The Protection Ring is a non-functional cast aluminum ring, designed as a sacrificial part to protect the wheel from trail scratches while also providing the same look as the Beadlock Ring. The Protection Rings marked M8 includes Grade 8.8 hardware in a Silver finish while the new M10 hardware is Satin Black and Grade 10.9.

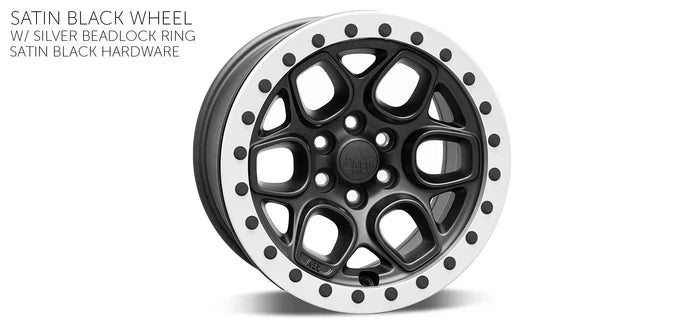

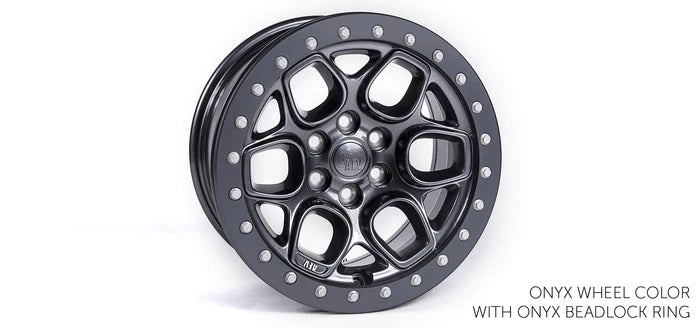

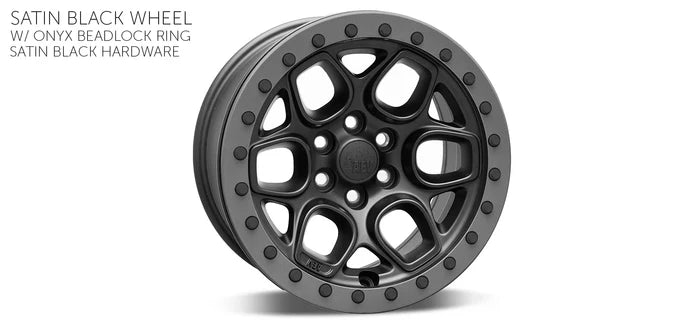

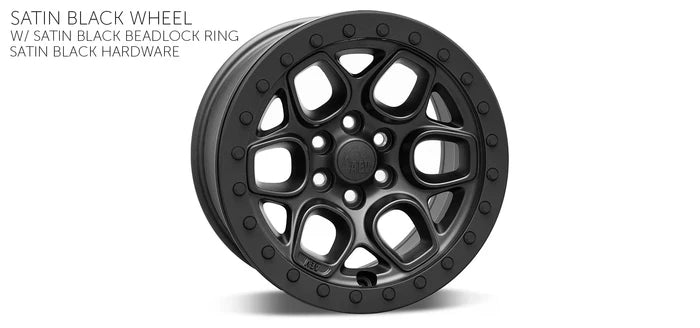

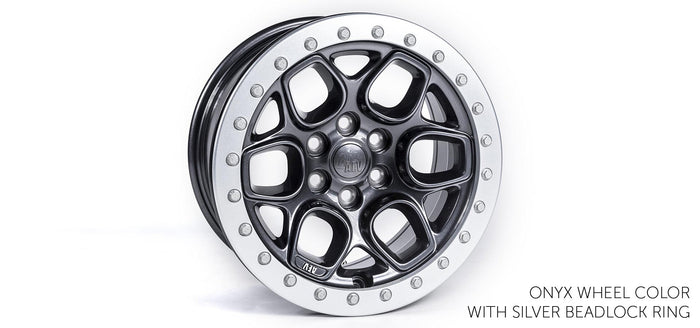

- Beadlock Ring - The Beadlock Ring is designed with maximum strength and off-road durability in mind by utilizing a 16mm thick, forged aluminum beadlock ring and custom Grade 10.9 metric hardware for increased shear strength and higher torque requirements. Beadlock Rings marked M8 are supplied with hardware in a Silver finish while the new M10 hardware is supplied in a Satin Black finish. AEV recommends that the Beadlock Ring be used for off-road purposes only.
Important Fitment Notes:
- Off Road Use Only: The Crestone wheel with the Beadlock Ring installed is DOT compliant but that does not necessarily mean it is legal for street use in every U.S. state. Check state and local restrictions on beadlock installation and use BEFORE ordering. Beadlock wheels must be properly installed and require routine maintenance. As a general policy, AEV recommends that beadlock wheels be used for off-road purposes only.
-
AEV Beadlock Tire Compatibility: Due to the inherent variances in bead thickness between different tire models/manufacturers, the Borah/Crestone wheel is not compatible with some tires. We have confirmed that the tires listed below are compatible with this wheel. Other tire brands and models may also work but AEV only recommends using the tires listed on this chart. Tires that are not listed on this chart may have a bead that is too thick for this wheel which can lead to wheel failure, vehicle damage and personal injury. AEV will be updating this list with additional tire manufacturers and models as we test them. Please contact the AEV Sales Team at (248) 926-0256 if you have any questions or concerns about tire compatibility before ordering. This advisory affects the Borah/Crestone wheel in the functional beadlock configuration only.
BFGoodrich All-Terrain KO2 LT285/70R17
BFGoodrich All-Terrain KO2 LT315/70R17
BFGoodrich All-Terrain KO2 34×10.50R17
BFGoodrich All-Terrain KO2 35×12.50R17
BFGoodrich All-Terrain KO2 37×12.50R17
BFGoodrich Mud-Terrain KM2 LT285/70R17
BFGoodrich Mud-Terrain KM2 35×12.50R17
BFGoodrich Mud-Terrain KM2 37×12.50R17
BFGoodrich Mud-Terrain KM3 LT285/70R17
BFGoodrich Mud-Terrain KM3 LT295/70R17
BFGoodrich Mud-Terrain KM3 35×12.50R17
BFGoodrich Mud-Terrain KM3 37×12.50R17
General Grabber X3 37×12.50R17
Nitto Ridge Grappler 37×12.50R17
Toyo Open Country M/T 35×12.50R17
Toyo Open Country M/T 37×12.50R17
Yokohama Geolander MT G003 LT285/70R17
