Baja Designs S1 Series LED Light - Pair
Beam Pattern
Baja Designs S1 Series LED Light - Pair
Spot
MCQUEEN
190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States
A COMPACT POWERHOUSE:
Baja Designs introduces the S1 LED Light, a compact powerhouse that delivers the performance of a large light in a remarkably small package. Engineered with a specialized reflector and LED setup, the S1 outshines competitors effortlessly. Measuring just 2.1 inches in each dimension, it offers immense versatility for various applications, from driving illumination to lighting up a campsite.
INCLUDED IN YOUR PACKAGE:
- Two S1 LED Lights
- Mounting Bracket
TECHNICAL SPECIFICATIONS (FOR EACH LIGHT):
- Luminosity: 2,375 Lumens using 1 LED
- Power Usage: 20W / 1.45A
- Dimensions: 2.1" x 2.1" x 2.1"
- Weight: 0.4 lbs
- LED Lifespan: Approximately 49,930 Hours
- Front Lens: Hard-Coated Polycarbonate
- Enclosure: Hard Anodized & Powder Coated Cast Aluminum
- Bezel: Billet Machined Aluminum
- Hardware & Bracket: Stainless Steel
- Surpasses MIL-STD810G Military Testing Standards
- Overvoltage Protection: Built-In
- Waterproof Rating: IP69K (Submersible up to 9ft & Pressure Washable)
- Impact Resistance: IK10 Compliant
BEAM PATTERNS:

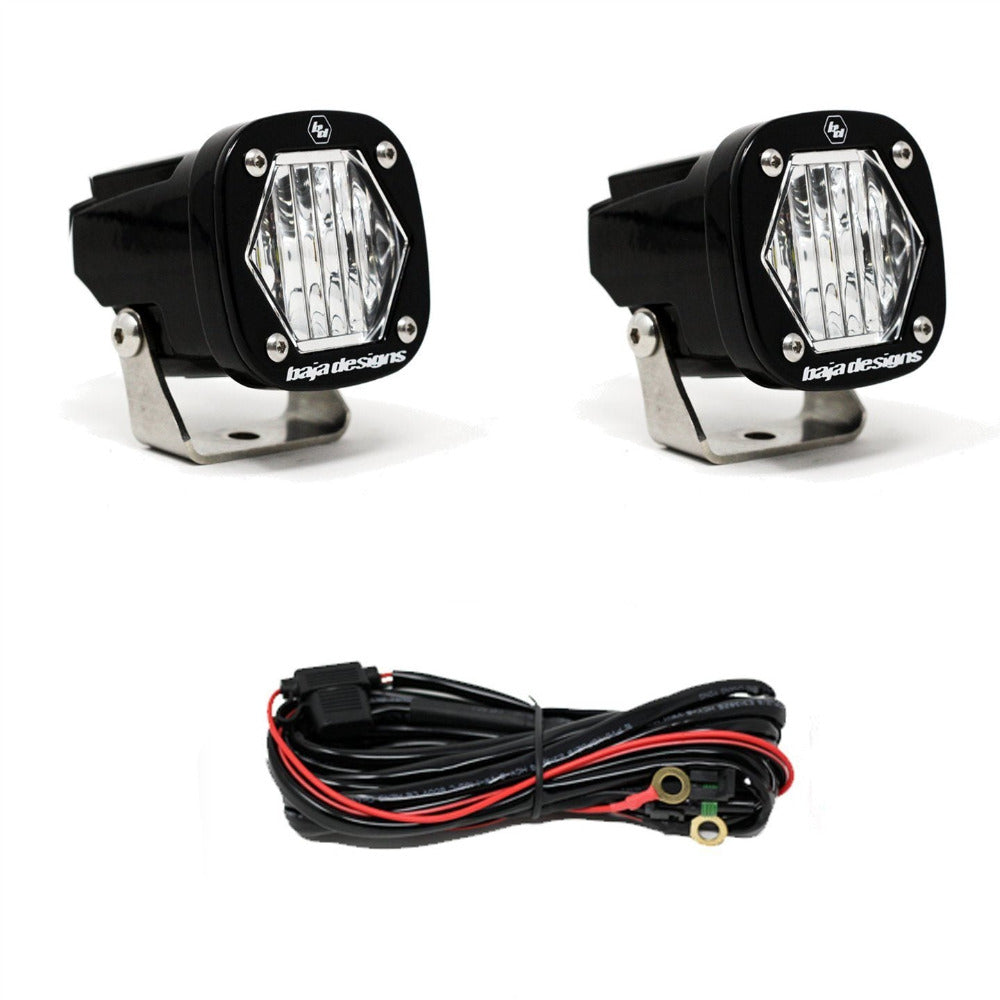

- Wide Cornering: First developed by BD, this pattern provides a 42° flat horizontal beam, perfect for cornering, dust, or fog conditions. (Ideal for Lighting Zones 1 & 2)
- Spot: Focuses a narrow 9° beam to illuminate further distances. Best when used alongside additional Wide Driving or Driving/Combo beam lights. (Targets Lighting Zones 4 & 5)

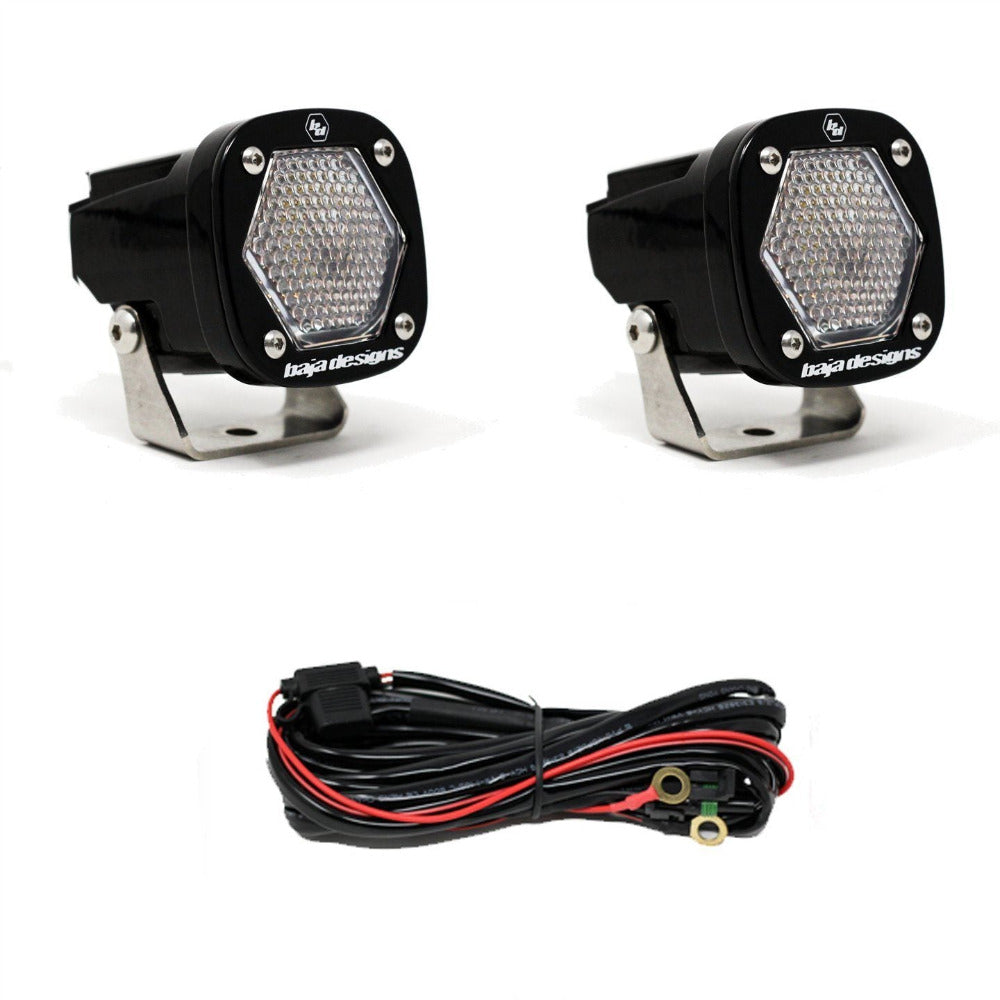

- Work/Scene: An excellent choice for stationary use, offering a smooth, wide circle of light around 40ft. Not recommended for driving. (Suited for Lighting Zone 7)
