Currie 44/60 Jeep Portal Axle Package
Currie 44/60 Jeep Portal Axle Package
Currie 44/60 Jeep Portal Axle Package
Currie 44/60 Jeep Portal Axle Package
Currie 44/60 Jeep Portal Axle Package
Currie 44/60 Jeep Portal Axle Package

74WELD

Currie 44/60 Jeep Portal Axle Package

$33,349.00
Vehicle:

Vehicle
Locker:

Locker

Currie 44/60 Jeep Portal Axle Package

JL / ARB Air Locker

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

Description:

The Currie Portal set includes the acclaimed Currie 44 front and 60 rear axle assemblies paired with 74Weld four-gear bolt on portals. This is the ultimate axle package designed to bolt right into the JK/JL/JT platform giving you all the benefits of a Dana 60 knuckle, ball joints, and axle shafts. The full 35 spline units are designed to tackle the toughest off-road trails and obstacles, giving you the confidence to push your vehicle to its limits.

The Currie 44/60 Hybrid Portal Axles are complete bolt-in axle assemblies with all required brackets and mounts in place. The vehicle’s factory rear driveshaft will require modification or replacement to accommodate the larger 1350 series u-joint and 60 series housing. New 8-lug wheels are required.

Brakes: For the JK Portal Axle package, you must also purchase the Wilwood Aero6 Front Brake Package. Factory brakes are NOT compatible.

Front Axle Disconnect (FAD): This axle assembly eliminates the factory FAD and requires a computer programmer, such as the Tazer Mini or Tazer Lite, to disable the factory sensor and turn off the FAD warning message

Wheel Bolt Pattern and Offset: Requires 8 x 6.5 (8 x 165.1 mm) bolt pattern wheels. We strongly recommend a 25 mm positive offset (approximately a 5.5-inch backspace)

Overall Width: The axle width with portals installed is 73.25 inches. The effective overall width with a 25 mm positive offset wheel is 71 inches.

Vehicle Lift: If using the factory height suspension or a leveling kit without bump stop spacers, an aftermarket track bar is required to clear the differential cover. The RockJock 4×4 track bar RJ-9120FJLF provides ample clearance.

Tie Rod: Does not include tie rods, but we recommend Steer Smart PN:78076001.

Tire Size: Up to 42-inches

Lead times are based around Currie’s lead time on building the housings. Typically 8 weeks. Call us for most updated information.

4.10s Eaton or ARB

What's Included:

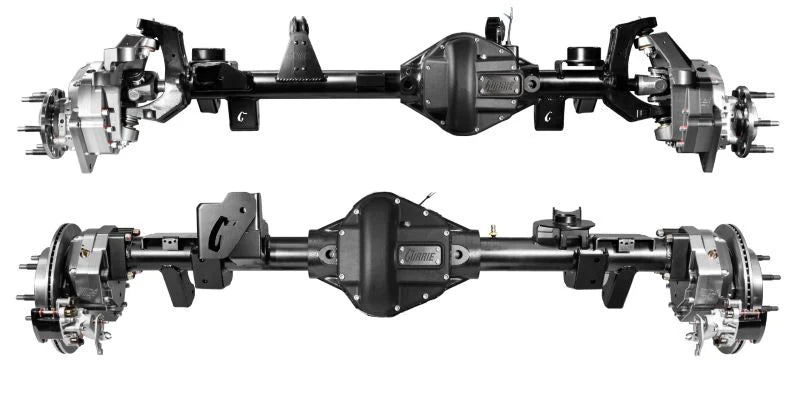

Complete ready to bolt in front hybrid 44/60 front portal axle

Complete ready to bolt in rear 60 portal axle

Larger front and rear rotors

Wilwood rear brake caliper with integrated parking brake kit

All necessary installation components

Fully ABS compatible direct swap

Specs:
Currie 44 Hybrid Portal Front Axle:
  • Currie 44 High-Pinion Center Section with Thick Walls and Webbing
  • 3 x .5 in. Wall DOM Axle Tubes
  • Forged 05+ Superduty UD60 1-Ton Inner Knuckles and Ball Joints
  • 74Weld Sealed Chromoly Upper Ball Joint
  • 1480 Currie 2-Piece Inner 35 Spline Axle
  • 1480 Forged 1-Piece 35 Spline Stub shaft
  • 71-Inch Effective Width with Recommended Wheel Offset (See Notes)
  • Satin Black Powder Coat Finish for Long Lasting Protection
Currie HD60 Portal Rear Axle:
  • Currie HD60 Center Section with Thick Walls and Webbing
  • 3.5 in. Diameter, .375 in. Wall DOM Axle Tubes
  • 35-Spline Full-Floating 4340 Chromoly Axles
  • 71-Inch Effective Width with Recommended Wheel Offset (See Notes)
  • Satin Black Powder Coat Finish for Long Lasting Protection
74Weld Portals:
  • 4-Gear Portal Design for Ultimate Strength and Reliability
  • Provides 3.9-Inches of Axle Lift for Maximum Ground Clearance
  • Provides 22% Gear Reduction to Reduce Drivetrain Stress
  • 14 in. Front and 13.750 in. Rear Vented Rotors Provide Abundant Stopping Power
  • Retains the Factory Front and Rear Brake Calipers
  • 1-Ton, 8 Lug Unit Bearings with JK/JL/JT Compatible ABS Tone Ring
