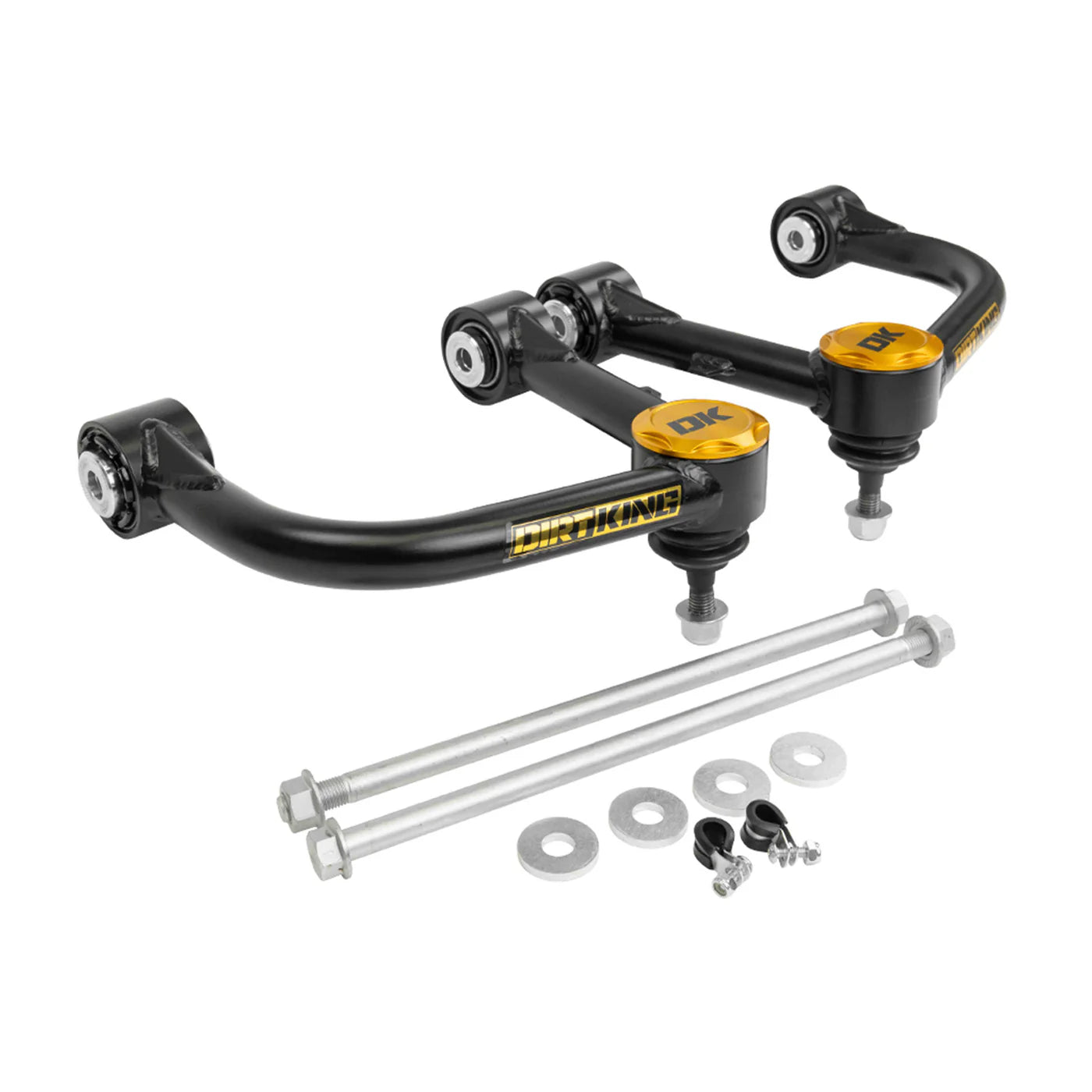

Dirt King 4130 Balljoint Upper Control Arm Kit Display of Included Parts
Dirt King 4130 Balljoint Upper Control Arm Kit Display of included Parts

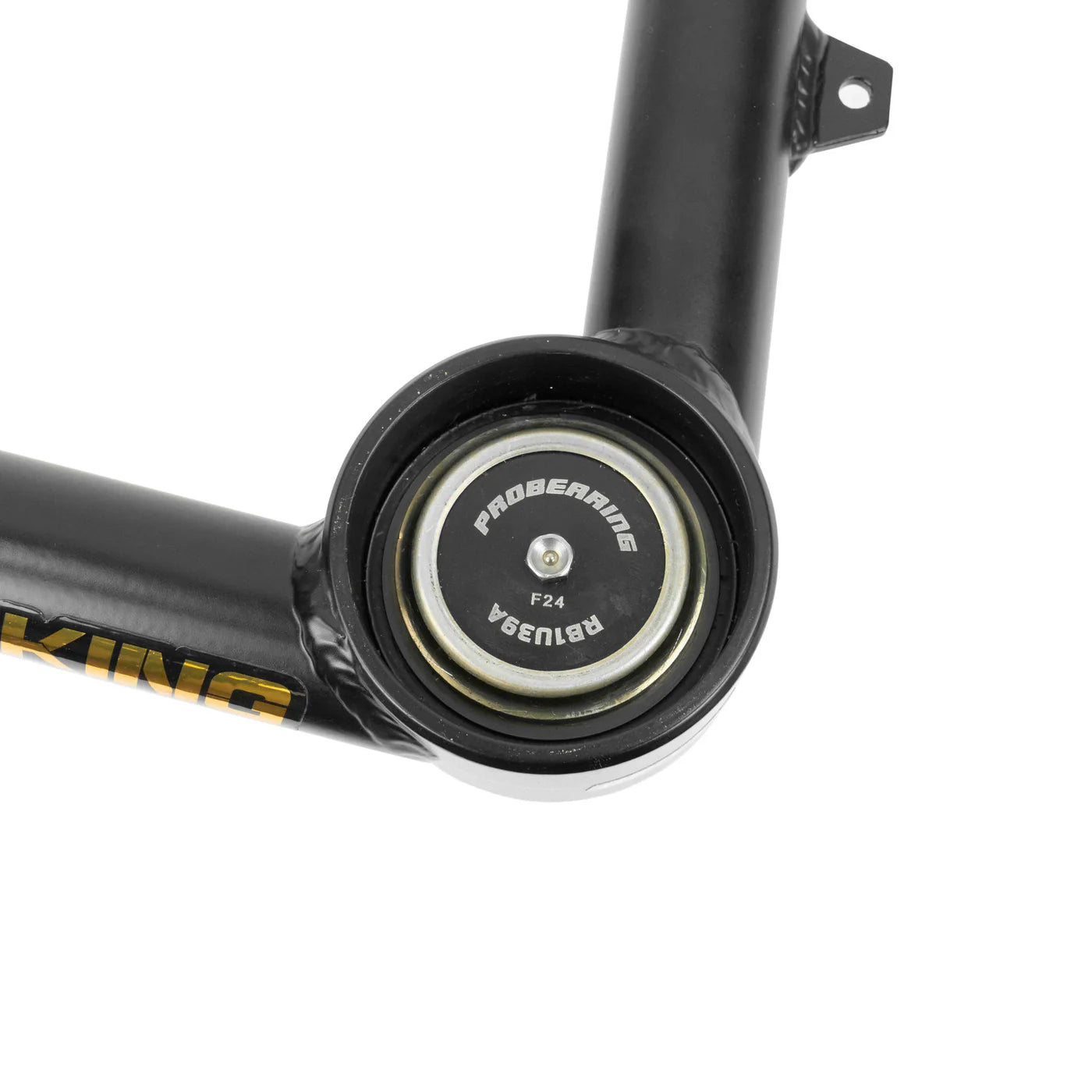

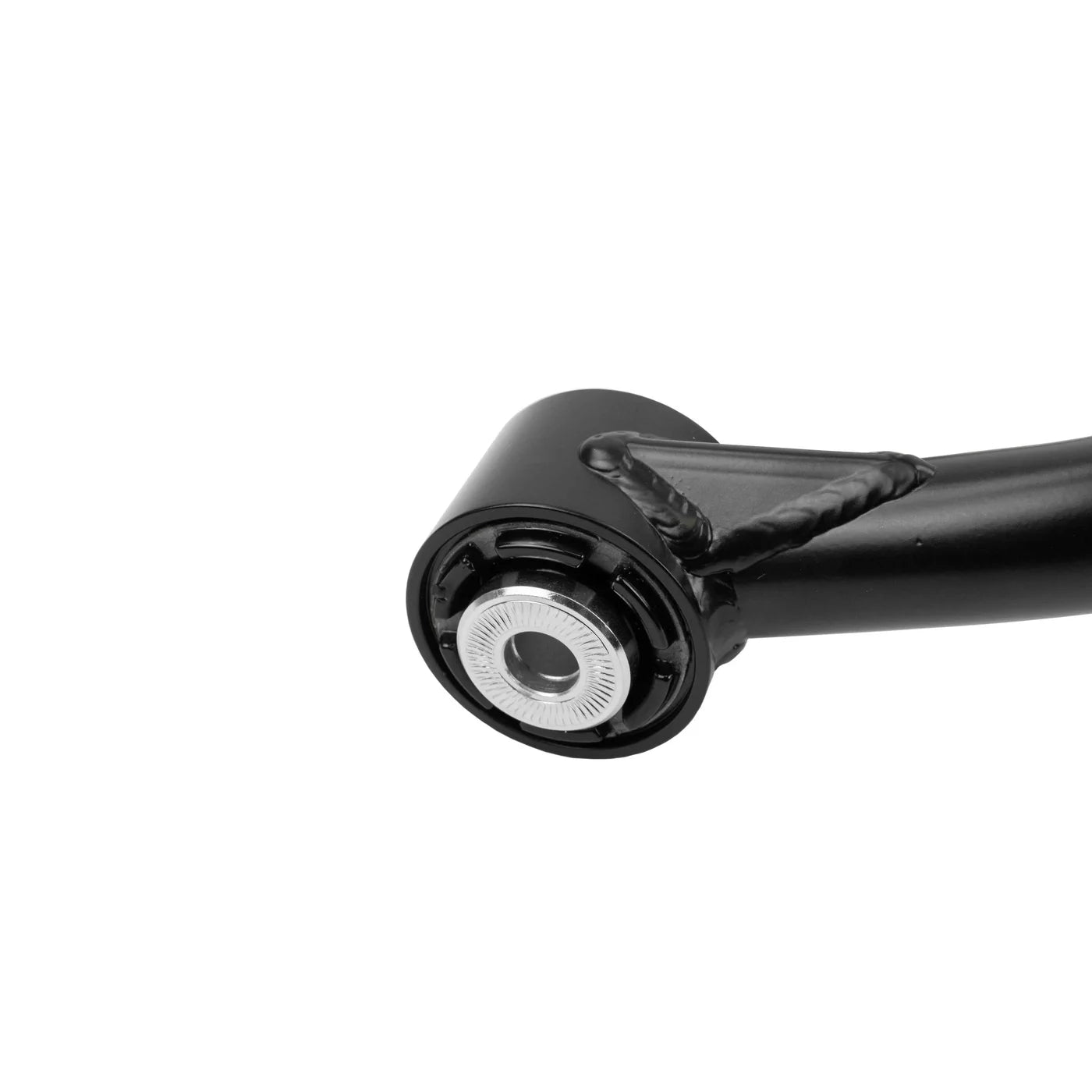

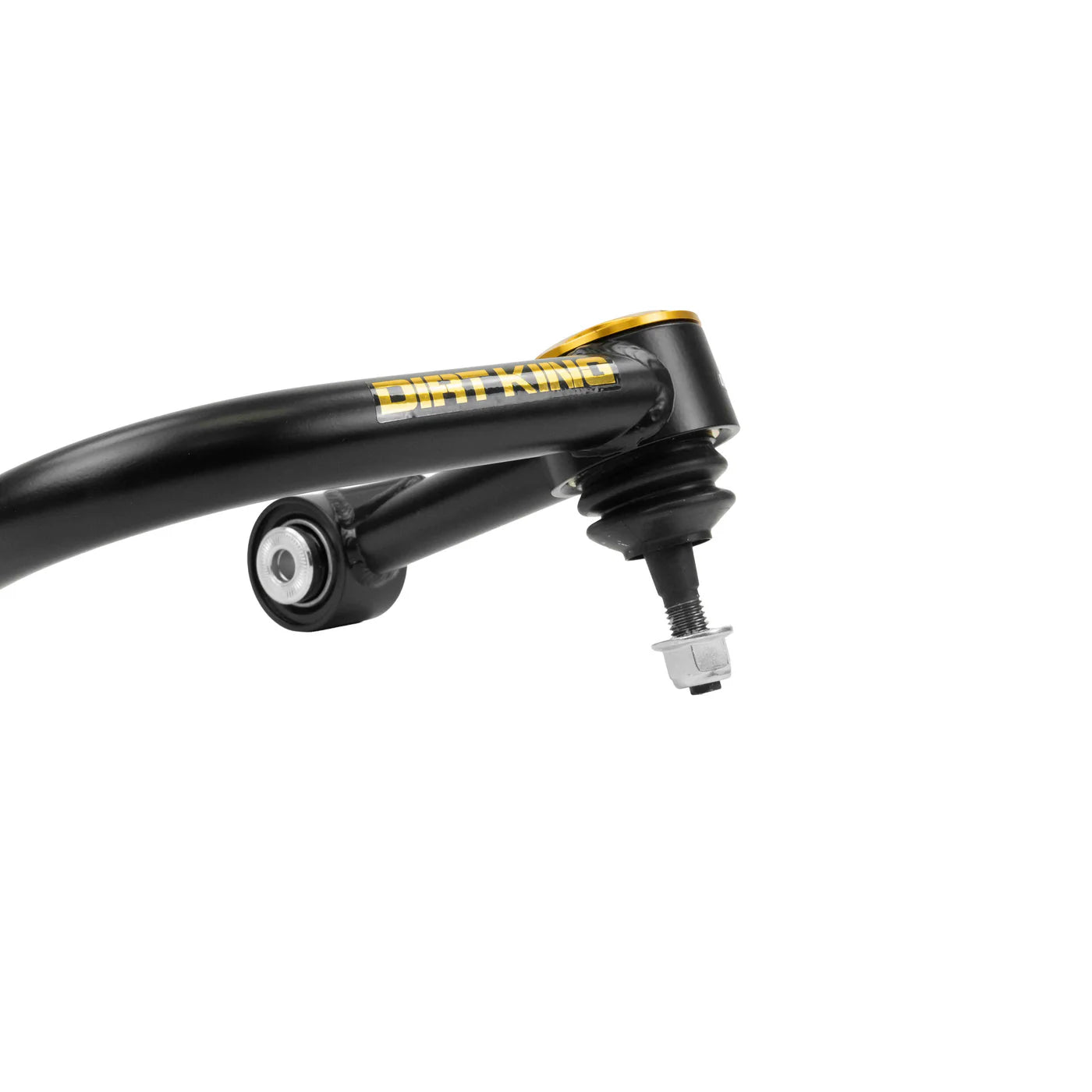

Dirt King 4130 Balljoint Upper Control Arm Kit Close-up Display
Dirt King 4130 Balljoint Upper Control Arm Kit Close-up Display on vehicle

Dirt King Fabrication

Dirt King 4130 Balljoint Upper Control Arm Kit

$674.10 $749.00
Save $74.90
SKU: DK-812991
Quantity:

Dirt King 4130 Balljoint Upper Control Arm Kit

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

overview

The Dirt King ball joint upper control arms are engineered to improve suspension geometry, enabling additional front lift when paired with Dirt King shocks. Lifting a vehicle with stock upper control arms compromises both the geometry and structural strength due to excessive articulation at the factory joints. The Dirt King arms address these issues with improved caster settings for enhanced handling and re-engineered pivot angles for increased articulation. The inner pivots feature Probearing SilentSpin bushings, offering the ideal combination of a free-spinning inner sleeve, typical of poly bushings, with the maintenance-free and greaseless advantages of OE elastomer bushings. Additionally, the standard ball joints have been upgraded to heavy-duty Moog ball joints ensuring superior durability. All components of these upper control arms are rebuildable or replaceable, promoting long-term durability and ease of maintenance. These arms arrive preassembled with detailed instructions for a straightforward installation.

features
  • CAD designed
  • Formed steel bushing gussets
  • Constructed with 4130 chromoly tubing
  • Preassembled for fast installation
  • Maintenance free bushings
  • Zinc plated components for corrosion resistance
  • Durable black powder coat
  • Professionally MIG welded
  • Proudly made in the USA
specs
  • Wheel Travel: Additional 1” of down travel compared to stock
  • Amount of Lift: Allows for 0-3” of lift
  • Track Width: Stock
  • Maximum Backspacing: 4.75”
  • Minimum Rim Size: 16”
wheel travel/lift

The Dirt King upper control arms must be paired with aftermarket coilover shocks to lift the vehicle. The Dirt King arms offer an additional 1” of down travel compared to the stock upper control arms. These arms are compatible with Dirt King, King, Fox, Bilstein, ADS and Icon coilovers. Do not install these upper control arms with coil spacers paired with extended length aftermarket shocks.

vehicle Compatibility
  • 2003-2024 Toyota 4Runner 2WD / 4WD
  • 2007-2014 Toyota FJ Cruiser 2WD / 4WD
  • 2003-2009 Lexus GX470 4WD
  • 2010-2023 Lexus GX460 4WD
