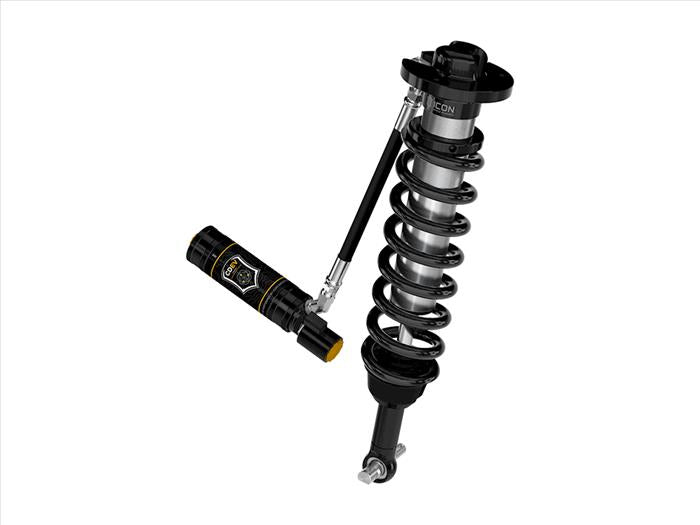

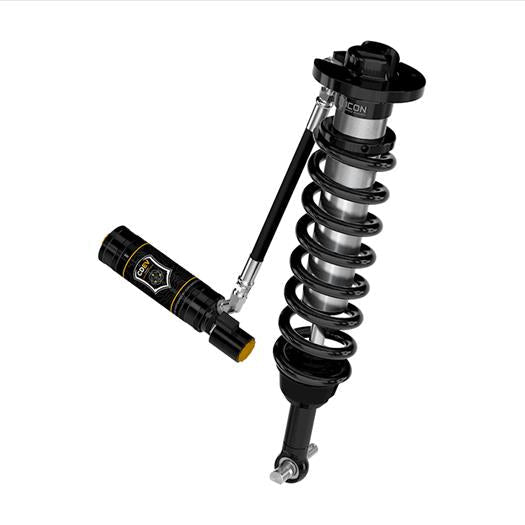

21-23 F150 4WD 3" LIFT 2.5 VS RR CDEV COILOVER KIT

Icon Vehicle Dynamics

21-23 F150 4WD 3" LIFT 2.5 VS RR CDEV COILOVER KIT

$2,119.96 $2,649.95
Save $529.99
SKU: 91825E
Quantity:

21-23 F150 4WD 3" LIFT 2.5 VS RR CDEV COILOVER KIT

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

An incredible upgrade for the front end of 2021-2023 Ford F-150 4WD trucks. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 2.75-3.5” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly. When paired with ICON rear 2.5 Aluminum Series CDEV shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your F-150 truck.

FEATURES & BENEFITS
  • Increased wheel travel and ride quality over stock
  • FK rod end bearings for extended longevity and minimal deflection
  • Vehicle specific tuned for superior shock damping and control
  • Adjustable for 2.75-3.5" of lift height over stock
  • Remote reservoir to attain cooler operating temperatures during extended off-road use
  • ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
  • ICON engineered coil Springs
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated shock body with 7/8" shaft
  • High strength alloy CNC machined lower bar pin
  • 100% Bolt-on - no cutting or welding necessary for installation
TECH INFO:
  • Factory Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
  • Recommended Aftermarket Tires: 34" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
  • TECH NOTE: Only compatible with 4-wheel drive (4WD) models
  • TECH NOTE: Requires ICON Delta Joint Pro front upper control arms. DO NOT install in conjuction with OE or other brand aftermarket UCAs.
  • TECH NOTE: Also requires installation of IIC kit (Part # 93500) and CDEV rear shocks (Part # 97720EP)
  • TECH NOTE: Models equipped with PowerBoost hybrid engines will have lift height range of 2.5-3.25" over stock
  • TECH NOTE: Models equipped with Power-Stroke diesel engines will have lift height range of 2.25-3" over stock
  • TECH NOTE: Not compatible with F-150 Tremor or F-150 Raptor
  • TECH NOTE: Not compatible with models equipped with Continuously Controlled Damping (CCD) system
  • TECH NOTE: Not compatible with models equipped with BlueCruise
