ICON 2005-2023 Toyota Tacoma, Front, Lower Control Arm Kit

$1,439.96 $1,799.95
Save $359.99
SKU: 54300
Quantity:

ICON 2005-2023 Toyota Tacoma, Front, Lower Control Arm Kit

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

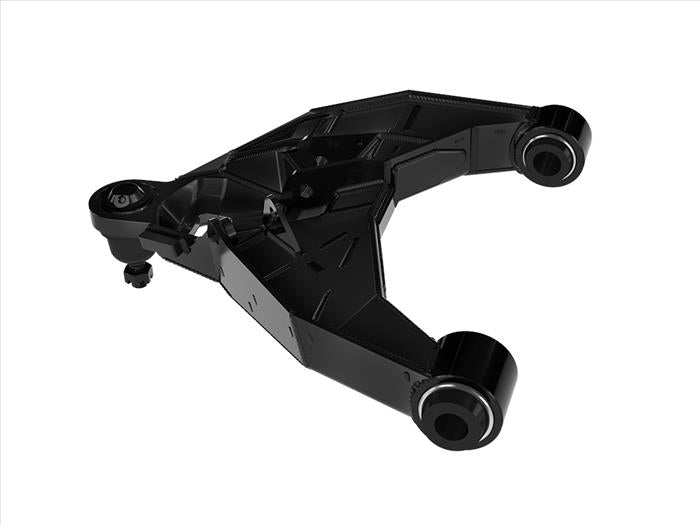

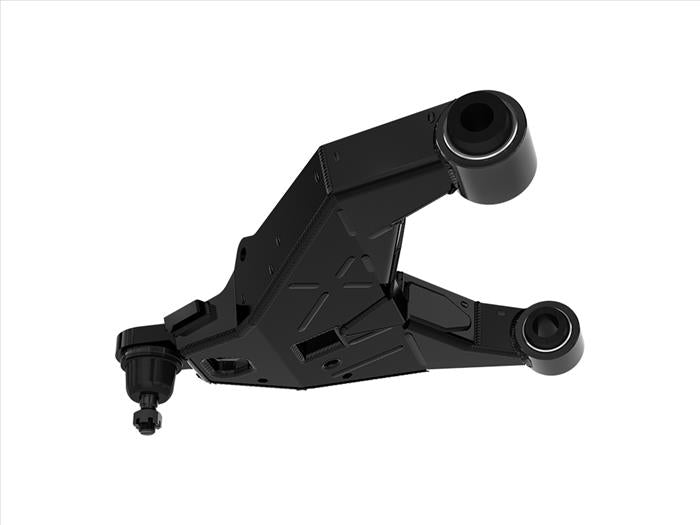

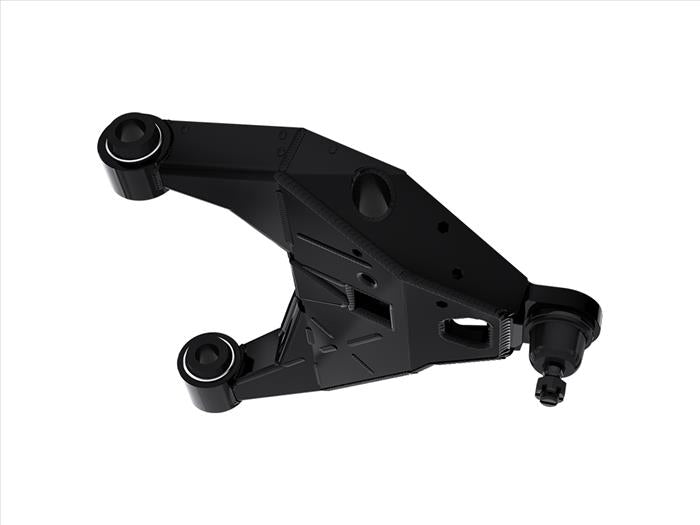

The ICON Vehicle Dynamics 2005-2023 Toyota Tacoma Lower Control Arm Kit is designed to be the ultimate stock width replacement control arm upgrade. Their fully welded, boxed, CNC laser cut and brake formed steel plate construction is internally braced with multiple ribs to offer significantly improved strength over the stock Tacoma LCAs. Featuring a high ground clearance design, specially angled plates also allow the arms to easily slide over larger obstacles out on the trail. CNC machined forged steel ball joint housings maintain the highest possible ground clearance while also ensuring strength and appropriate CV boot clearance on 4WD Tacoma models. Rather than using traditional top mounted coilover mounting tabs, these LCAs utilize recessed coilover mounts, further increasing strength and provide race inspired styling. Their incorporated secondary shock mounting tabs tie seamlessly into the ICON S2 Secondary Shock System for a fully bolt-on installation of multiple secondary shock options to effectively double the shock damping ability of the front suspension and improve off-road performance. To make these arms as much at home on the street as they are on the trail, the lower ball joints are of a metal on metal and greaseable design to avoid the short service life and noises typically associated with uniballs while also being able to withstand the abuses of aggressive off-road use. The inner pivot bushings are bonded polyurethane to minimize deflection and improve handling characteristics while allowing unhindered suspension movement though the entire travel range. Additionally, these specialty bushings do not require any greasing or other maintenance throughout their service life. With features like these, the ICON 2005-2023 Toyota Tacoma Lower Control Arm Kit would make an incredible addition to round out your Tacoma’s suspension system.

features & Benefits

  • High clearance, stock width design
  • Fully welded boxed steel construction with internal ribs for maximum strength
  • CNC laser cut and brake formed steel plate
  • ICON secondary shock compatibility with ICON S2 Shock Hoops (sold separately)
  • Recessed coilover mounting points
  • Pocketed lower plates allow drainage and easy access to coilover mounting hardware
  • Angled front plates and relocated steering stops help arms slide over obstacles and prevent trail hang ups
  • CNC machined forged ball joint housings ensure strength and CV boot clearance
  • Metal on metal, greaseable lower ball joints for longevity and noise free operation
  • Maintenance free bonded polyurethane bushings
  • Semi-gloss black powder coat finish for corrosion resistance
  • Fabricated components covered by ICON’s Limited Lifetime Warranty

download installation guide

Tech Info:

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.00” Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.00” Backspace / 0mm Offset
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #167: 2005-2015 Tacoma also requires part # 43502
  • APPLICATION NOTE #168: 2016-2023 Tacoma also requires part # 43501
  • TECH NOTE: Fits 2005-2015 4WD and PreRunner and 2016-2023 2WD/4WD Toyota Tacoma models
  • TECH NOTE: Will not fit 2005-2015 2WD 5-Lug Toyota Tacoma models
  • TECH NOTE: Not compatible with OE front coilovers. Aftermarket coilovers with COM10 lower bearings are required.
