ICON 2023+ Ford F-250/F-350 Super Duty 4WD, 4-5.5" Lift, Stage 9 Coilover Conversion System w/ Radius Arms & Expansion Packs

Icon Vehicle Dynamics

ICON 2023+ Ford F-250/F-350 Super Duty 4WD, 4-5.5" Lift, Stage 9 Coilover Conversion System w/ Radius Arms & Expansion Packs

$9,915.40 $12,394.25
Save $2,478.85
SKU: K63179RL
Quantity:

ICON 2023+ Ford F-250/F-350 Super Duty 4WD, 4-5.5" Lift, Stage 9 Coilover Conversion System w/ Radius Arms & Expansion Packs

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

This ICON Vehicle Dynamics 4-5.5” coilover conversion system is a great way to lift your 4WD 2023-2024 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance and allowing fitment of larger, more aggressive wheel and tire combinations. This Stage 9 system is perfect for on-road and towing use, as well as job site duty, washboard gravel roads, and more aggressive off-road adventures.

ICON's 4-5.5” Lift Stage 9 Coilover Conversion System features 2.5 Series CDEV remote reservoir coilovers that provide superb on-road comfort and off-road performance while at the same time allowing for end-user ride height adjustability. Their remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. To take advantage of the coilover's option to mount secondary shocks in the stock location, 2.5 Aluminum Series CDCV remote reservoir secondary front shocks are included, effectively doubling shock damping ability on the front of the vehicle. Fabricated radius arms offer significantly more strength over the OE units and feature built in caster cams for on-vehicle caster adjustment, maintenance free bushings, and improved tire clearance at full steering lock, all while eliminating the need for drop brackets and thus raising ground clearance under the chassis. The fabricated track bar drop bracket allows the axle to be properly centered under the frame and reduces road feedback throughout the steering system with improved on- and off-road manners thanks to the elimination of bump steer. An adjustable track bar allows for on-vehicle adjustment to fine tune track alignment as well as eliminating the deflective OE track bar bushings for an overall more rigid unit to improve the vehicles handling characteristics.

ICON’s Centerline steering stabilizer kit features a 2.5 Aluminum Series shock absorber with a piggyback reservoir for improved steering damping compared to ICON dual 2.0 steering stabilizers, better controlling undesirable steering feedback caused by larger tires while also improving ground clearance. Leaf spring expansion packs provide 2" of rear lift over stock with improved ride quality and small bump compliance while also reducing axle wrap compared to lift blocks. ICON 2.5 Aluminum Series CDEV piggyback reservoir rear shocks feature a vehicle specific tune for improved vehicle handling and excellent ride quality on- and off-road with improved performance compared to 2.0 Aluminum Series shocks. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. The included box kit includes fabricated front sway bar drop brackets to prevent bind, heavy-duty aluminum bump stop spacers, and high quality stainless steel extended brake lines.

This suspension system features high quality CNC machined, laser cut, and brake formed components and with the endless hours ICON has spent testing and tuning our suspension components and shock absorbers as a complete system, you can rest assured you have the best suspension solution on the market.

features & Benefits

  • Fits 2023-2024 F-250 / F-350 4WD applications
  • Bolt-in system fits in OE coil bucket location
  • Ride height adjustable ICON 2.5 Series coilovers provide 4-5.5" of front lift
  • Vehicle-specific shock valving provides unparalleled ride quality and control
  • ICON 2.5 Aluminum Series remote reservoir secondary front shocks for increased damping ability and off-road performance
  • ICON 2.5 Aluminum Series piggyback reservoir rear shocks
  • ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
  • ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
  • Increased wheel travel and ride quality over stock
  • Fabricated radius arms provide increased strength, on vehicle caster adjustment, improved tire clearance at steering lock, and higher ground clearance
  • Track bar drop bracket reduces track bar angle and corrects bump steer geometry
  • Adjustable track bar allows fine tuning of track alignment and improves handling characteristics
  • ICON 2.5 Centerline steering stabilizer kit with piggyback reservoir offers increased steering damping
  • Stainless steel braided front brake lines
  • Leaf spring expansion packs improve ride quality and provide 2" of rear lift
  • Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
  • Corrosion resistant hard anodized steering stabilizer, front-secondary, and rear shock bodies with 7/8" shafts
  • Shocks are fully rebuildable and re-tunable
  • Lifetime guarantee against coil spring breakage or sagging
  • Lifetime guarantee against ICON fabricated component breakage or manufacturer defect

download installation guide

Tech Info:

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
  • APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
  • APPLICATION NOTE #88: Removal of the coil centering cup in factory coil bucket required for installation
  • APPLICATION NOTE #115: Lift heights based on 4WD crew cab diesel
  • APPLICATION NOTE #151: Fits single rear wheel models only
  • APPLICATION NOTE #163: If equipped with OnBoard Scales also requires sensor bracket part number 66204
  • TECH NOTE: Super Duty diesel models without Tremor package will have front lift height range of 4-5.5" over stock
  • TECH NOTE: Super Duty diesel models equipped with Tremor package will have front lift height range of 3-4.5" over stock
  • TECH NOTE: Super Duty gas models without Tremor package will have front lift height range of 4.5-6" over stock
  • TECH NOTE: Super Duty gas models equipped with Tremor package will have front lift height range of 3.5-5" over stock
  • TECH NOTE: Will not fit F-350 Cab & Chassis models
  • TECH NOTE: An iOS operated device is required to run ICON Intelligent Control App
  • TECH NOTE: Reduction in rear spring rate may reduce accuracy of OnBoard Scales, if equipped
  • TECH NOTE: Due to tight clearances and varying placement of vehicle’s wiring harness in the upper front-passenger wheel well area, installer must ensure adequate clearance between the harness, coilover reservoir, and other components to prevent chafing/damage to wire harness. If adequate clearance cannot be achieved, please contact ICON Customer Service.

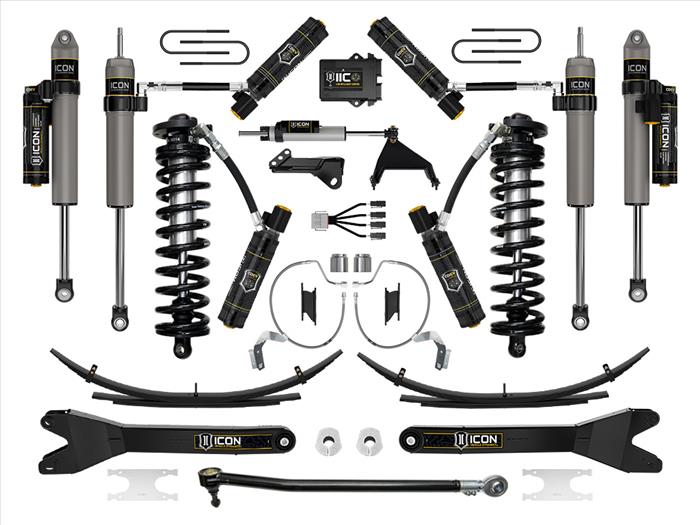

System Components:



  • 64051 (QTY: 1) | 23-24 FSD FRONT 4.5" BOX KIT
  • 61721E (QTY: 1) | 05-24 FSD 4WD 4-5.5" 2.5 VS RR CDEV BOLT IN CO CONVERSION KIT
  • 64039 (QTY: 1) | 08-24 FSD TRACK BAR BUMP STEER BRACKET KIT
  • 64038 (QTY: 1) | 17-24 FSD ADJ TRACK BAR KIT
  • 64042 (QTY: 1) | 23-24 FSD RADIUS ARM SYSTEM
  • 62530 (QTY: 1) | 05-24 FORD F250/F350 SUPER DUTY 2.3 DEG ALIGNMENT CAM KIT
  • 65053 (QTY: 1) | 23-24 FSD 2.5 PB CENTERLINE STABILIZER KIT
  • 168507 (QTY: 2) | 08-24 F250/F350 LEAF SPRING EXPANSION PACK
  • 67003 (QTY: 1) | 11-24 FSD REAR 15" U-BOLT KIT
  • 93502 (QTY: 1) | 23-24 FSD IIC INSTALL KIT
  • 191207 (QTY: 1) | IIC CONTROLER ALT FUNCTION PLUG KIT
  • 611003 (QTY: 1) | 2.5 RESI DOUBLER MOUNT 7.5" KIT
  • 67811EP (QTY: 1) | 23-24 FSD 4.5" FRONT 2.5 VS RR CDEV PAIR
  • 37705EP (QTY: 1) | 99-24 FSD 0-3" REAR 2.5 VS PB CDEV PAIR
