ICON 2023+ Ford F-250/F-350 Super Duty 4WD Diesel, 4.5" Lift, Stage 1 Suspension System

Icon Vehicle Dynamics

ICON 2023+ Ford F-250/F-350 Super Duty 4WD Diesel, 4.5" Lift, Stage 1 Suspension System

$2,362.80 $2,953.50
Save $590.70
SKU: K64541
Quantity:

ICON 2023+ Ford F-250/F-350 Super Duty 4WD Diesel, 4.5" Lift, Stage 1 Suspension System

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

This ICON Vehicle Dynamics 4.5” suspension system is a great way to lift your 4WD 2023-2024 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance and allowing fitment of larger, more aggressive wheel and tire combinations. This entry level system is perfect for on-road and towing use, as well as mild off-road use like job site duty and washboard gravel roads.

ICON's 4.5" Stage 1 System is comprised of 4.5” lift coil springs optimized for trucks equipped with diesel engines with a dual rate design that allows for a softer initial rate for superb on-road comfort and a firmer secondary rate that increases during compression for excellent bottoming resistance and off-road performance. Fabricated radius arm drop brackets correct suspension geometry and ensure proper wheel alignment with the OE radius arms. The fabricated track bar drop bracket allows the axle to be properly centered under the frame and reduces road feedback throughout the steering system with improved on- and off-road manners thanks to the elimination of bump steer. Heavy-duty fabricated 5" rear blocks and U-bolt kit lift the rear of the vehicle and are designed to withstand heavy towing/hauling duty as well as the stresses of aggressive off-road use. ICON 2.0 Aluminum Series internal reservoir front and rear shocks feature a vehicle specific tune for improved vehicle handling and excellent ride quality on- and off-road. The included box kit includes fabricated front sway bar drop brackets to prevent bind, heavy-duty aluminum bump stop spacers, and high quality stainless steel extended brake lines.

This suspension system features high quality CNC machined, laser cut, and brake formed components and with the endless hours ICON has spent testing and tuning our suspension components and shock absorbers as a complete system, you can rest assured you have the best suspension solution on the market.

features & Benefits

  • Fits 2023-2024 F-250 / F-350 4WD diesel applications
  • ICON engineered dual rate coil springs deliver 4.5" of front lift with exceptional vehicle control over varying terrain
  • ICON 2.0 Aluminum Series internal reservoir shocks feature vehicle specific tune for superior performance and ride quality
  • Approximately 50% increased front wheel travel over stock
  • Radius arm drop brackets correct geometry and caster for optimal alignment specs
  • Track bar drop bracket reduces track bar angle and corrects bump steer geometry
  • Stainless steel braided front brake lines
  • Heavy-duty fabricated rear lift blocks
  • Corrosion resistant anodized shock bodies with 5/8" shafts
  • Shocks are fully rebuildable and re-tunable
  • Lifetime guarantee against coil spring breakage or sagging
  • Lifetime guarantee against ICON fabricated component breakage or manufacturer defect

download installation guide

Tech Info:

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
  • APPLICATION NOTE #6: Springs are rated for diesel engines only
  • APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
  • APPLICATION NOTE #115: Lift heights based on 4WD crew cab diesel
  • APPLICATION NOTE #151: Fits single rear wheel models only
  • TECH NOTE: Trucks equipped with Tremor package with have front lift height of 3.5" over stock
  • TECH NOTE: Will not fit F-350 Cab & Chassis models

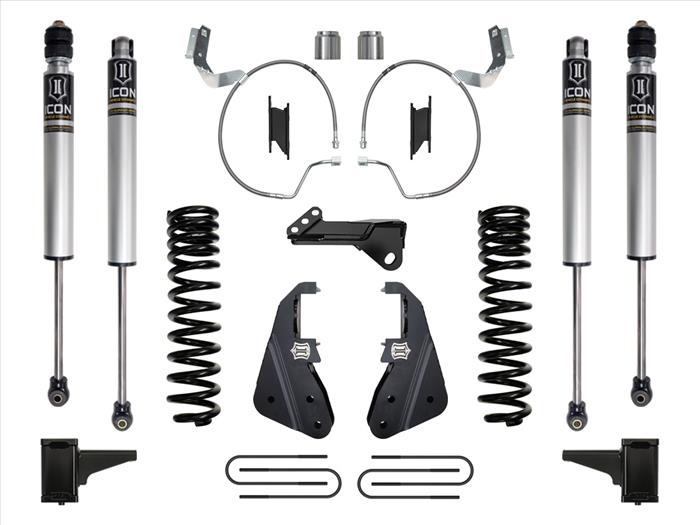

System Components:



  • 64051 (QTY: 1) | 23-24 FSD FRONT 4.5" BOX KIT
  • 64012 (QTY: 1) | 23-24 FORD F-250/F-350 FRONT 4.5" DIESEL DUAL RATE SPRING KIT
  • 64039 (QTY: 1) | 08-24 FSD TRACK BAR BUMP STEER BRACKET KIT
  • 64046 (QTY: 1) | 23-24 FSD RADIUS ARM DROP KIT
  • 195275 (QTY: 1) | 99-24 FSD 5" BLOCK KIT
  • 67003 (QTY: 1) | 11-24 FSD REAR 15" U-BOLT KIT
  • 66518 (QTY: 2) | 23-24 FSD 4WD 4.5" FRONT 2.0 VS IR
  • 66516 (QTY: 2) | 17-24 FSD REAR 0-2" 2.0 VS IR
