ICON 2025-2026 Toyota 4Runner 2WD, 1.25-3" Lift, Stage 5 Suspension System, Tubular

Icon Vehicle Dynamics

ICON 2025-2026 Toyota 4Runner 2WD, 1.25-3" Lift, Stage 5 Suspension System, Tubular

$4,181.81
SKU: K53425T

ICON 2025-2026 Toyota 4Runner 2WD, 1.25-3" Lift, Stage 5 Suspension System, Tubular

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

Description:
ICON Vehicle Dynamics 2025-2026 Toyota 4Runner suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. The Stage 5 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON’s specifically designed coilover lengths, optimized for 2WD models, maximizes the available front wheel travel for improved suspension performance.

The included ICON tubular upper control arm kit is designed to improve overall performance with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance while .75” of rear lift height over stock allows a for level stance front to rear. ICON 2.5 Aluminum Series remote reservoir rear shocks with integrated bump zones provide improved shock damping ability and utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2025-2026 Toyota 4Runner Stage 5 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

Key Features
  • Vehicle specific tuned 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
  • Increased wheel travel and improved ride quality over stock
  • Vehicle specific coilover lengths optimized for 2WD models yield maximum front wheel travel
  • Adjustable 2.5 Series coilovers provide 1.25-3" front lift height over stock
  • Tubular UCAs for added strength, durability, and alignment correction for better drivability
  • UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
  • 6061 aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
  • Dual rate rear coil springs improve performance and ride quality while providing .75" of rear lift
  • FK Rod End bearings for extended longevity and minimal deflection
  • 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
Specifications
Brand ICON Vehicle Dynamics
UPC 840103435732
Proxy Number 53425
Shipping Width 13.00 in
Shipping Length 31.00 in
Shipping Depth 7.00 in
Shipping Weight 177.0000 LB
Technical Notes
  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: 17x8.5 with 6.32” Backspace / 40mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.6” Backspace / 40mm Offset
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #4: Advertised lift heights based on models equipped with gasoline engine
  • APPLICATION NOTE #30: An adjustable track bar is recommended to realign the axle but not required
  • APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
  • APPLICATION NOTE #150: Shocks are fully serviceable
  • APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
  • APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
  • APPLICATION NOTE #232: Only fits 2WD models. Installation onto 4WD models will result in damage to front axles.

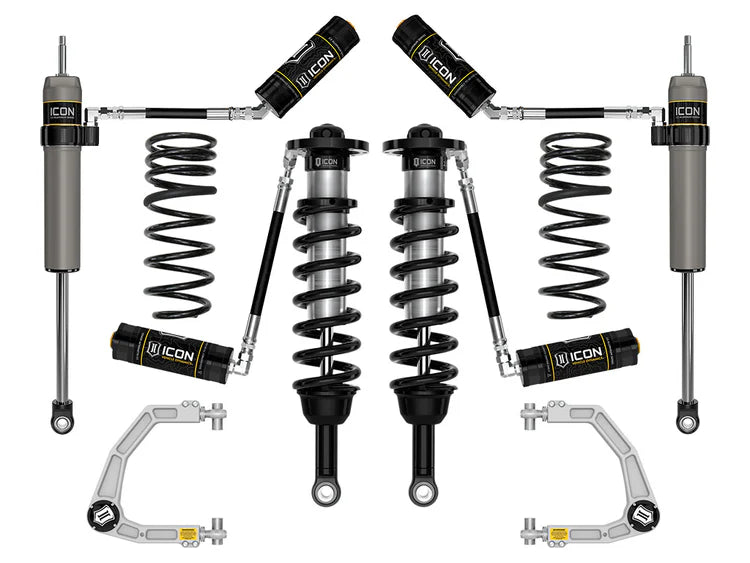

System Components
  • 58796 (qty: 1) | 25 4RUNNER 2WD FRONT 2.5 VS RR COILOVER KIT
  • 58452DJ (qty: 1) | 24-25 TACOMA/24-25 LC250/24-25 GX550/25 T4R TUBULAR UCA DJ PRO KIT
  • 52753 (qty: 1) | 25 4RUNNER .75" DUAL RATE REAR SPRING KIT
  • 57872P (qty: 1) | 25 4RUNNER 0-3" REAR 2.5 VS RR PAIR
