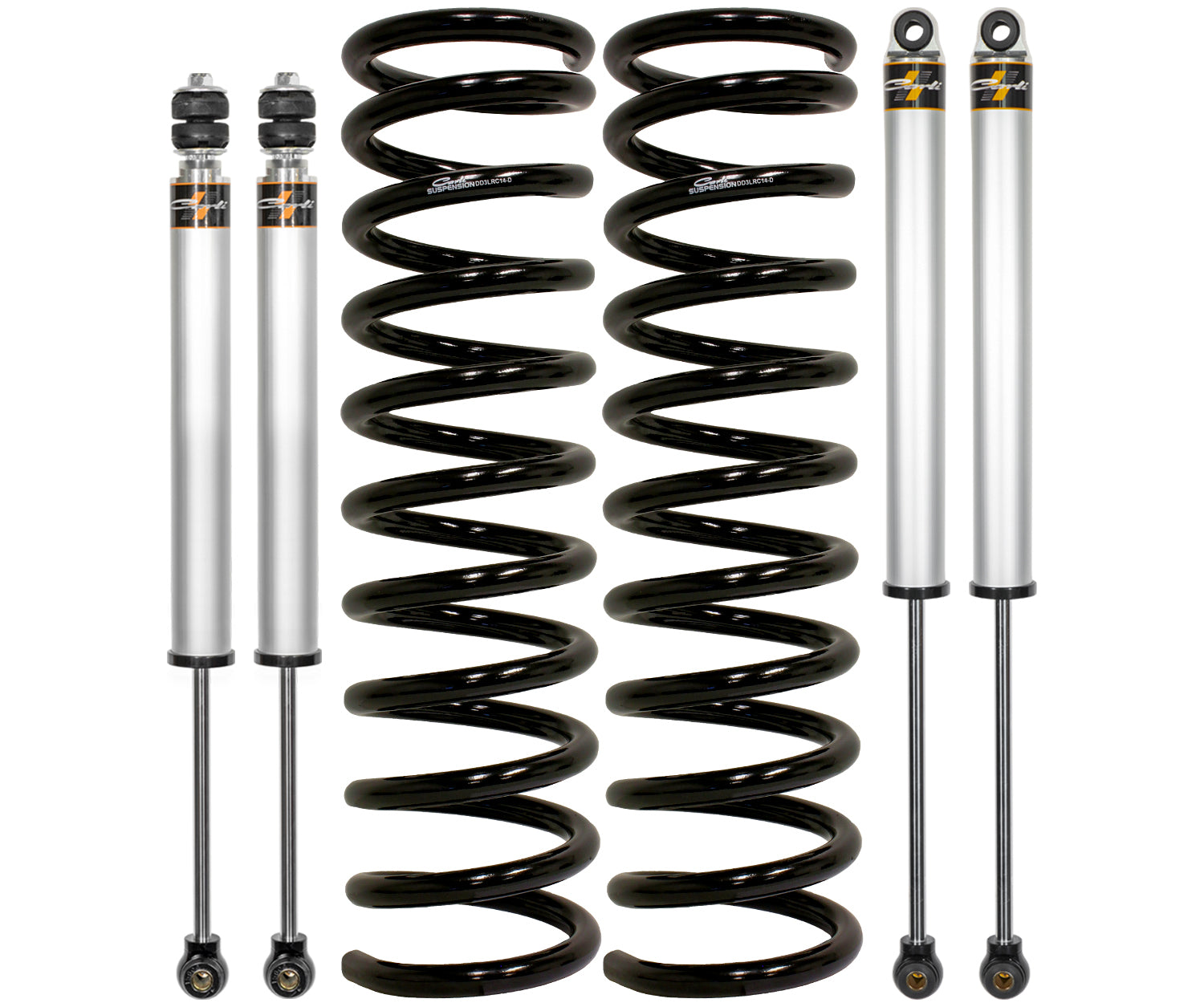

13-18 Ram 3500 2.5" Leveling System, Diesel, Carli-SPEC- NON AIR RIDE Display of Included Parts

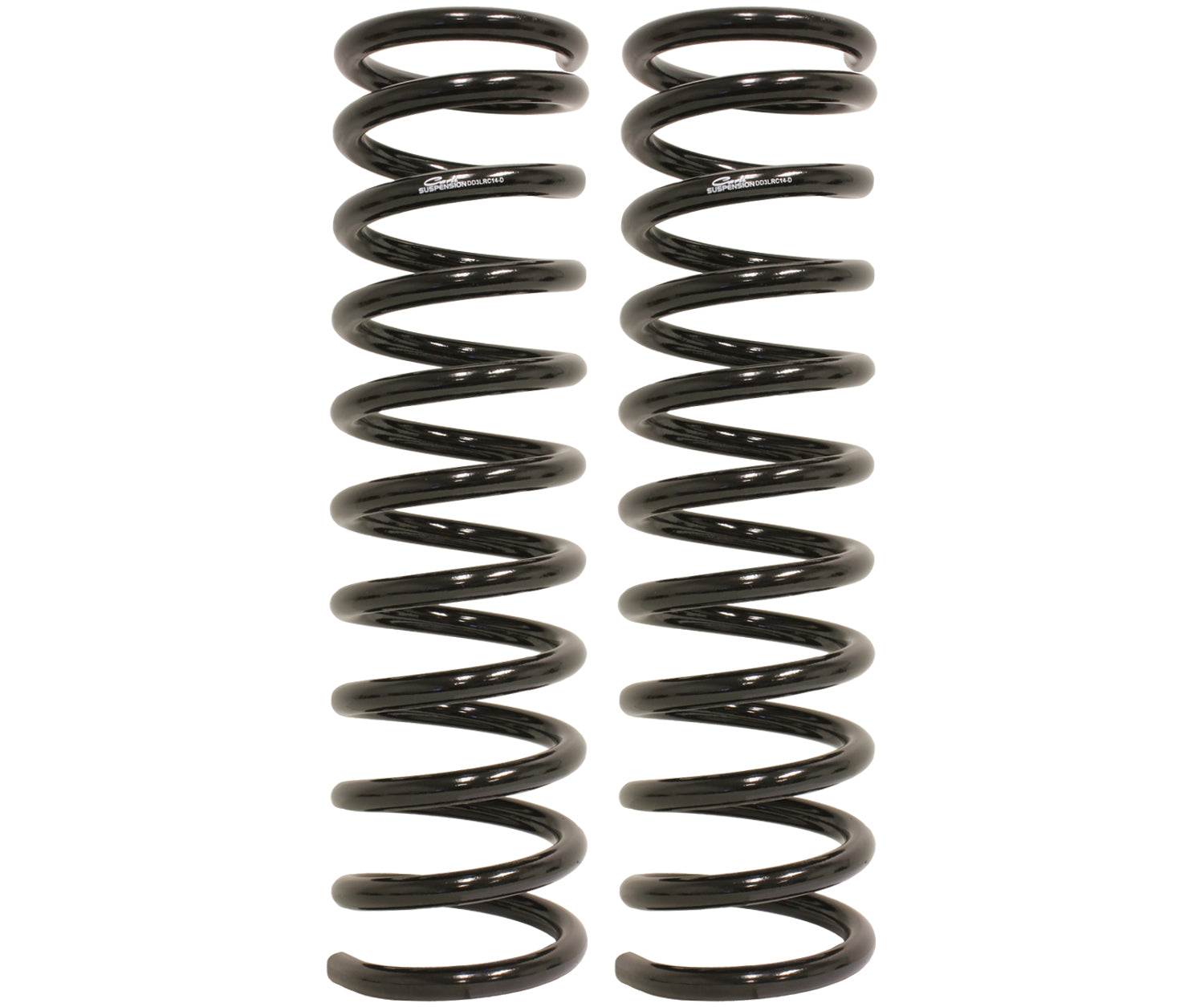

13-18 Ram 3500 2.5" Leveling System, Diesel, Carli-SPEC- NON AIR RIDE Coil Spring Display

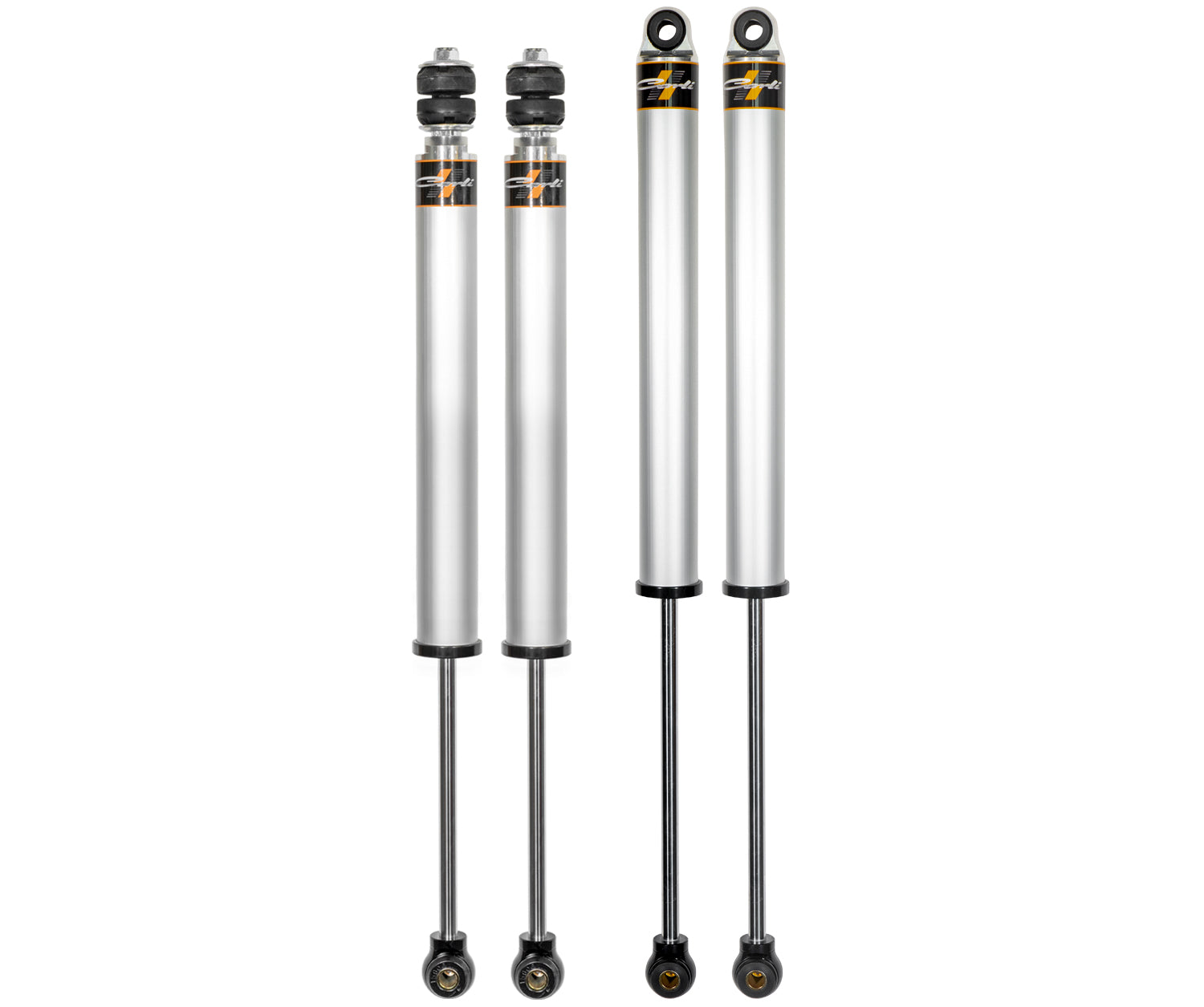

13-18 Ram 3500 2.5" Leveling System, Diesel, Carli-SPEC- NON AIR RIDE Shock Display

Carli Suspension

13-18 Ram 3500 2.5" Leveling System, Diesel, Carli-SPEC- NON AIR RIDE

$1,320.00
SKU: CS-DLVL-CS-13-D
Quantity:

13-18 Ram 3500 2.5" Leveling System, Diesel, Carli-SPEC- NON AIR RIDE

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

ALL AROUND COMFORT:

Designed for quality-conscious truck owners seeking exceptional value, this system features Carli SPEC 2.0″ Diameter, Internal Reservoir shocks and a custom tune for all-around comfort on-road, in town, highway, and while towing/hauling. With a 2.5" lift height, no front or rear geometry correction is needed, unlike our 3" Systems.

At its core, this system boasts a 2.5" lift, Linear Rate Coil Spring paired with the Carli SPEC 2.0 shocks. These high-performance shocks are built with 6063 Aluminum construction, anodized body for corrosion resistance, a hardened steel chrome plated shaft, and offer full serviceability & rebuildability. Backed by a 1-year warranty serviced by Carli, these shocks deliver consistent damping with premium 5WT oil for optimal performance.

Custom-tuned rear shocks are included to maximize ride quality while maintaining the factory rear coil springs' load capacity. This kit is perfect for those seeking improved ride quality and handling without significant travel increases.

Installation may slightly pull the front axle to the Driver's side, which can be corrected using our Adjustable Track Bar. Adding our Torsion Sway Bar substantially enhances ride quality. We recommend a 35" tire on a wheel no wider than 9" with 5.5"-6" Backspace. Optimal ride quality is achieved with an 18" diameter wheel (more rubber = better small bump compliance), and we suggest an unloaded tire pressure of 45F/40R. For larger tires, our Carli Low-Mount Steering Stabilizer is recommended.

Please note that this system is not compatible with other Carli Suspension Systems, as it is designed to provide a quality solution with minimal lift and part inclusion. We recommend slight eccentric bolt compensation for caster correction since no Radius Arm Drops are included. While we didn't experience coil bow in our test trucks, it may occur at the 2.5" lift height without a Radius Arm Drop Bracket.

FITMENT:
  • 2013-2018 3500. SRW & DRW
  • 2019+ 3500 DRW ONLY
