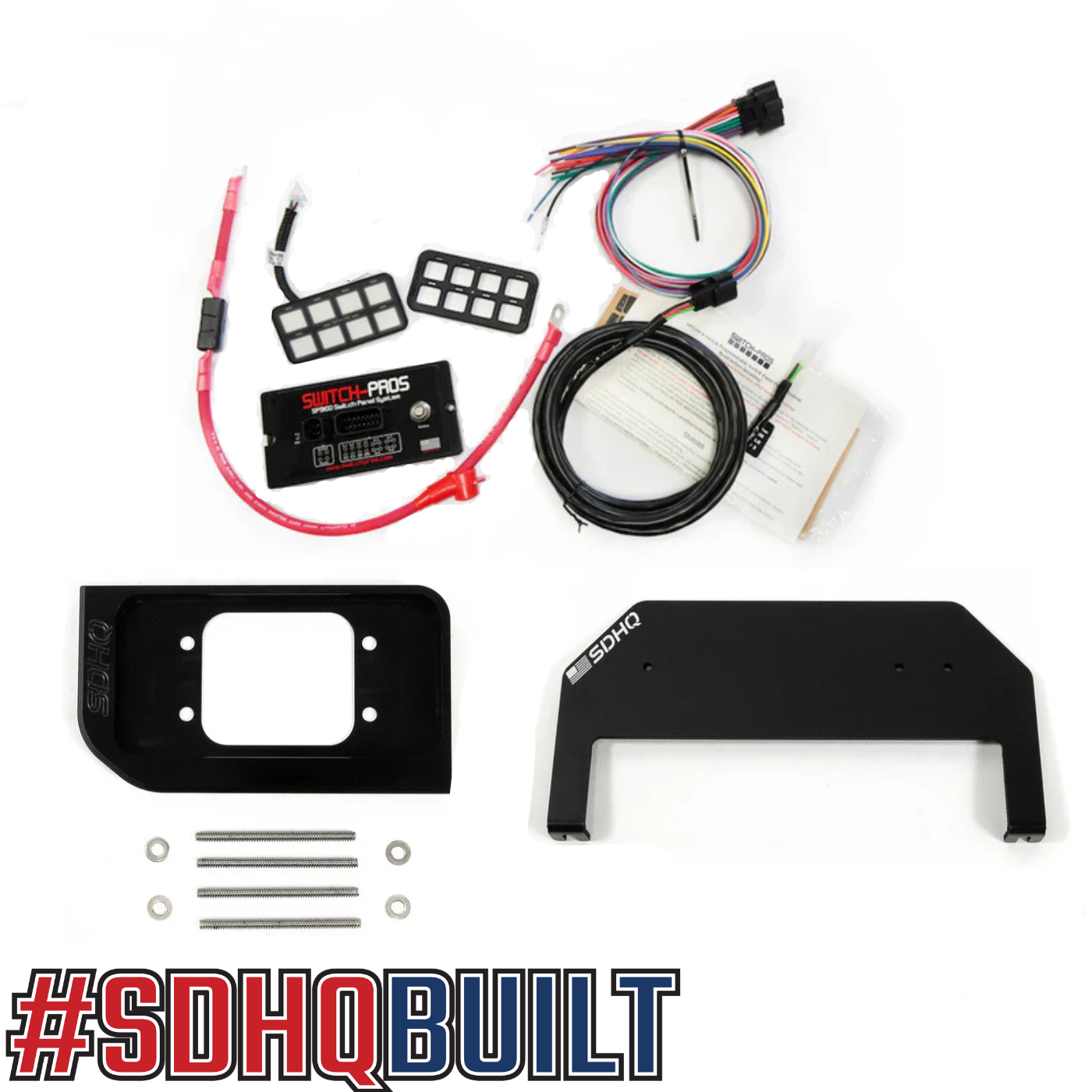

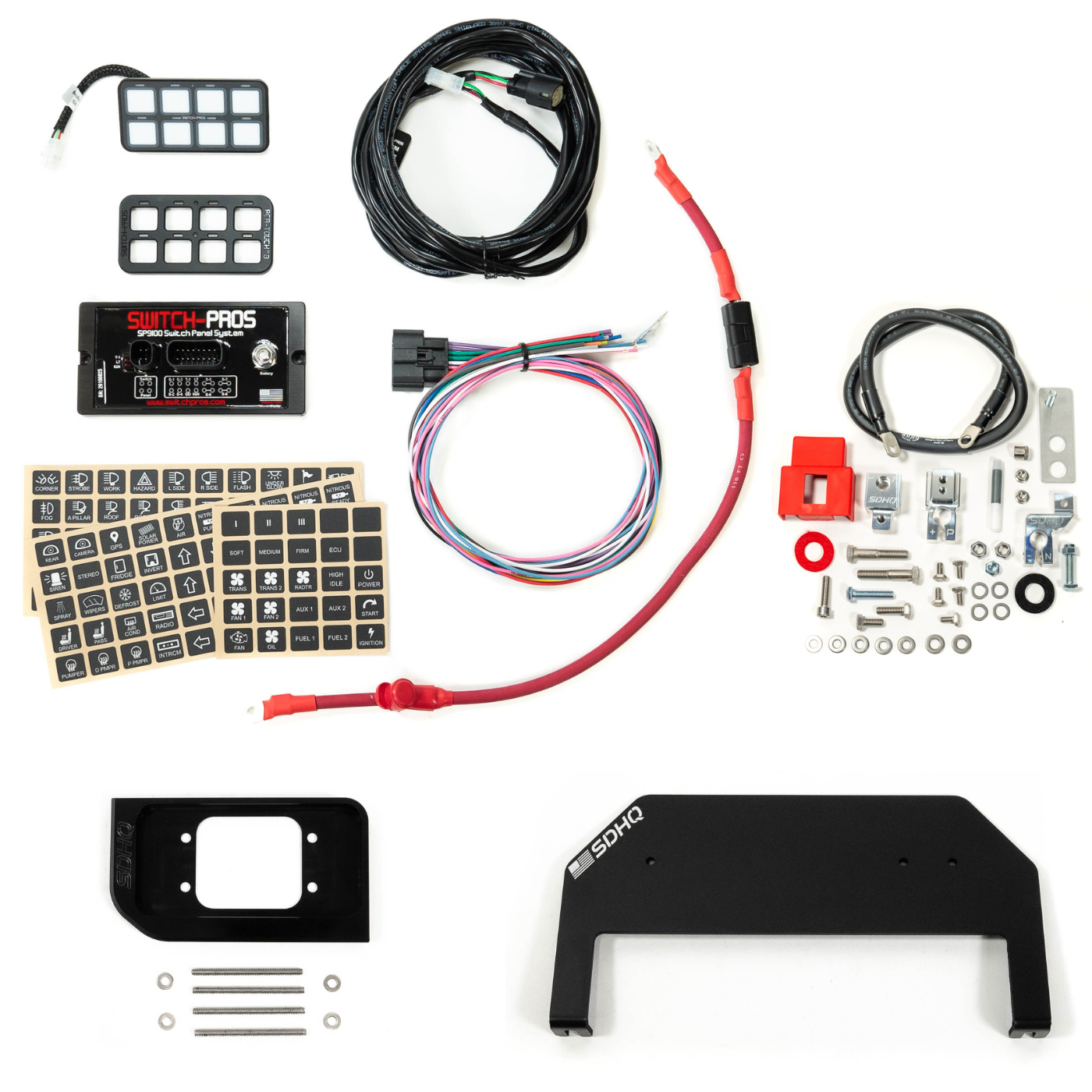

If you're looking for a clean and easy way to manage your lighting and electrical accessories on your TRX, look no further than this complete kit we have put together. This kit includes everything you need to get your accessories organized and ready to use! Below is a complete breakdown of the included and optional components.

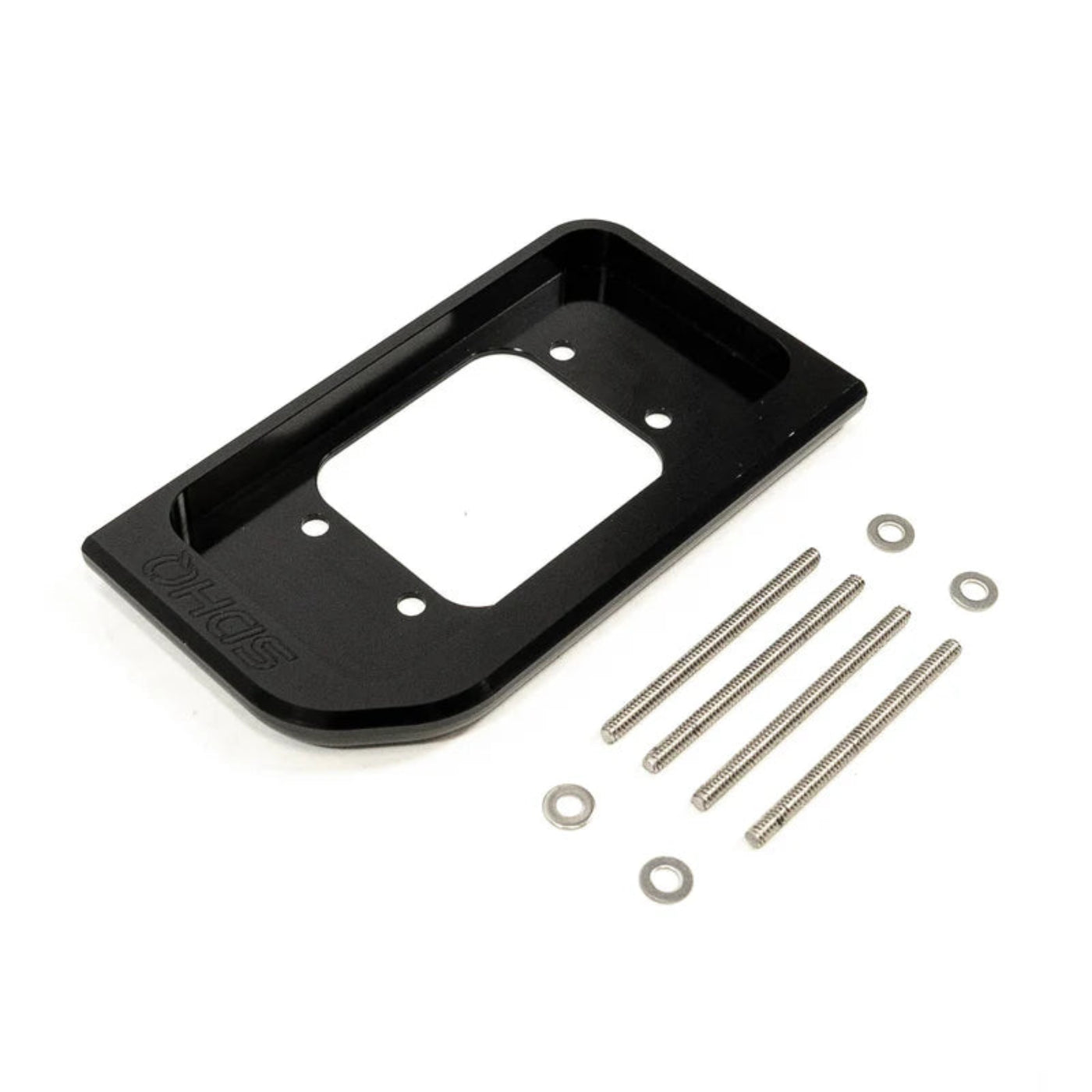

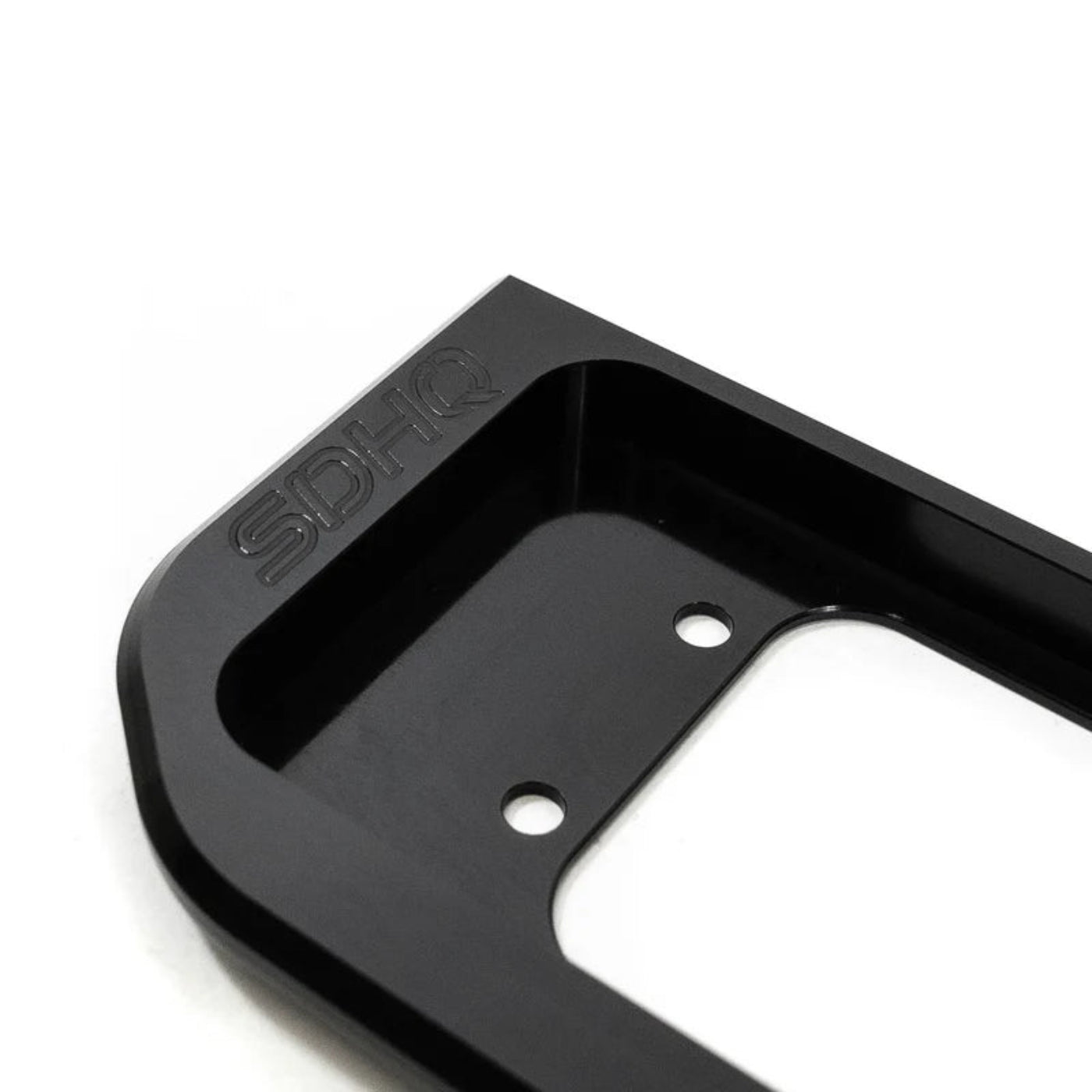

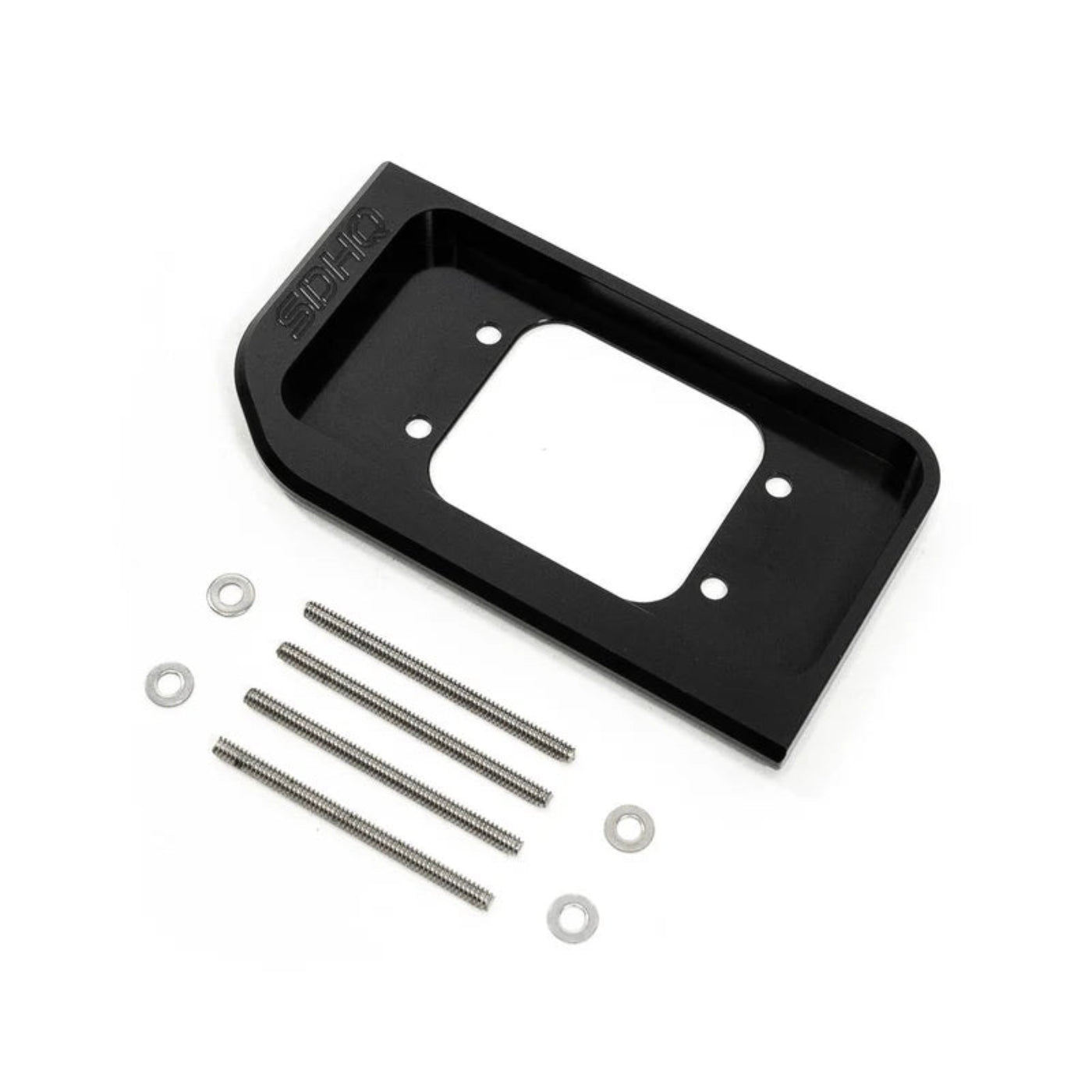

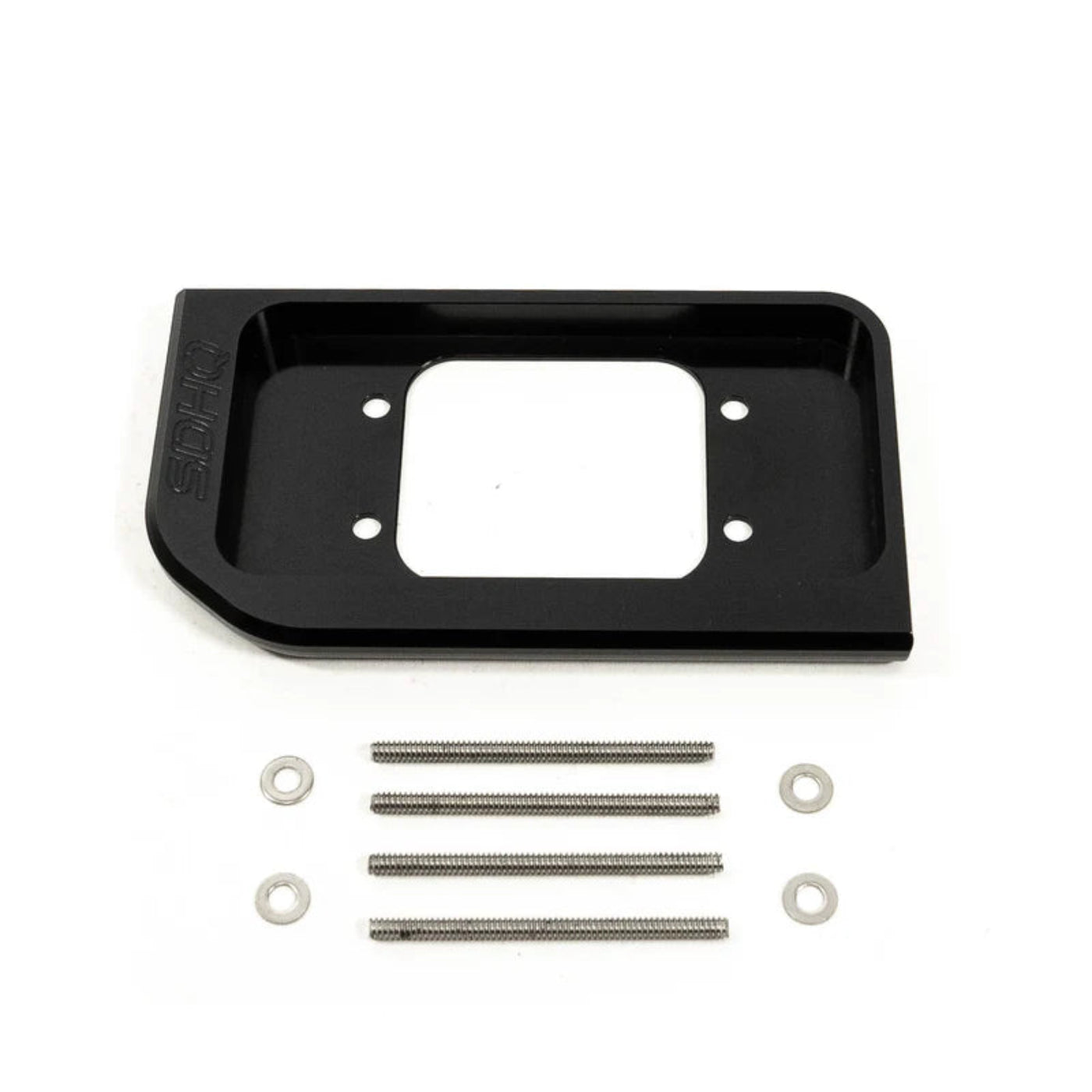

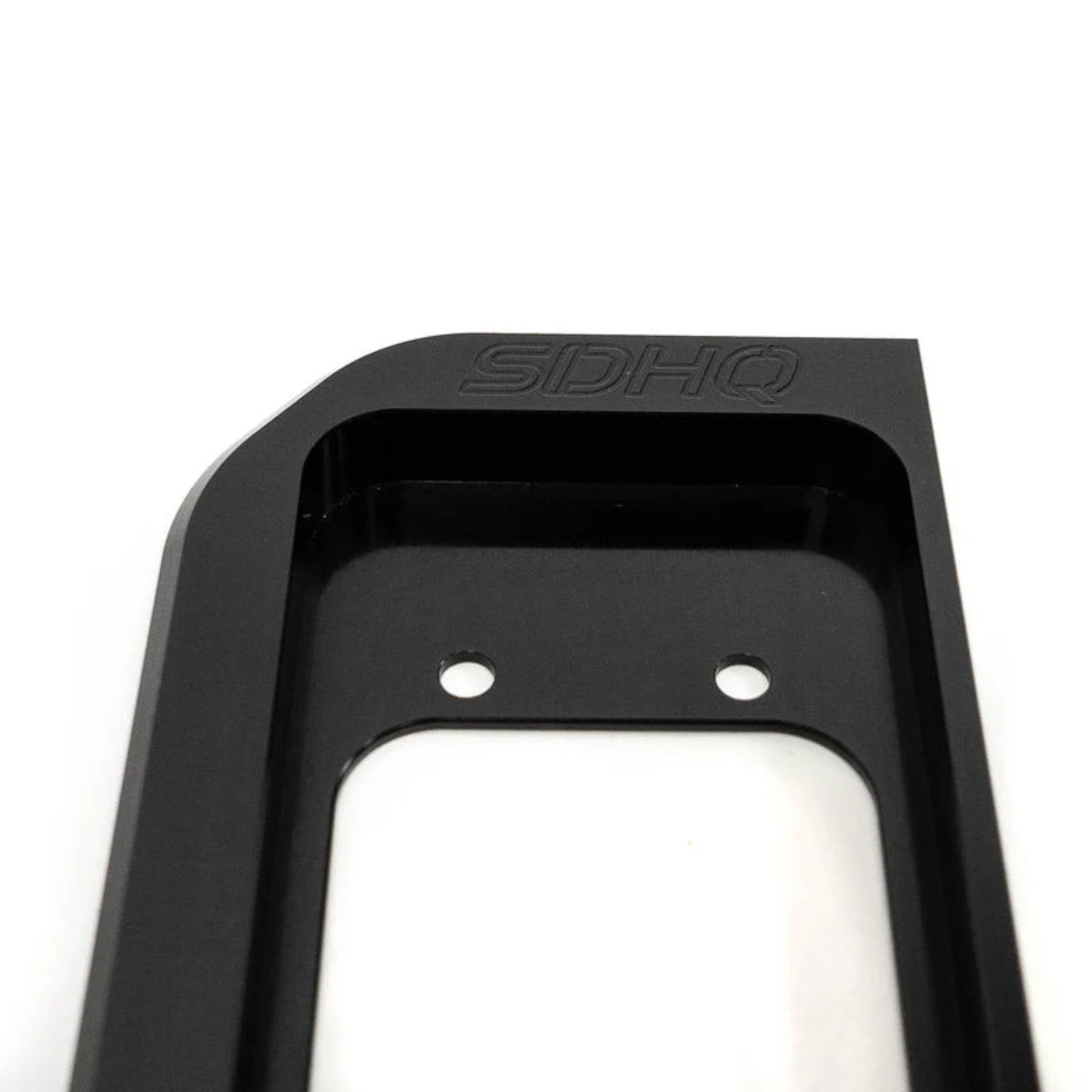

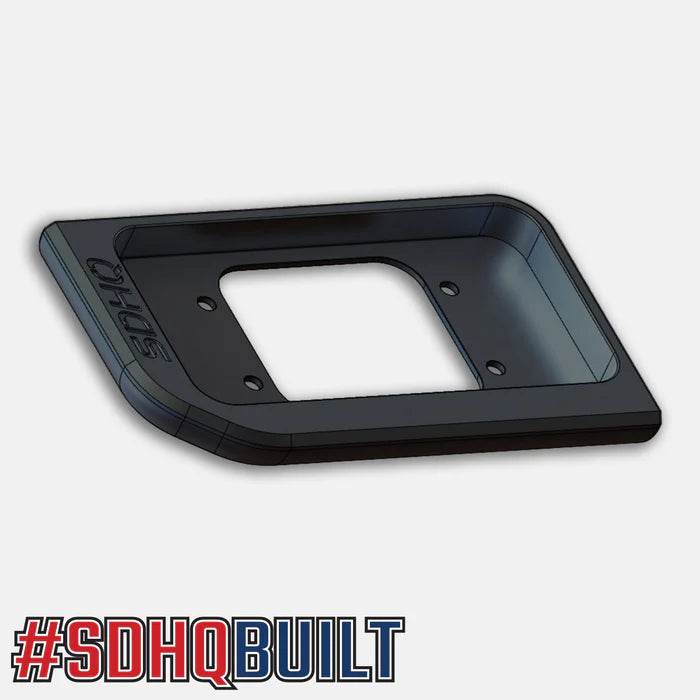

SDHQ Built Billet Aluminum Interior Keypad Mount

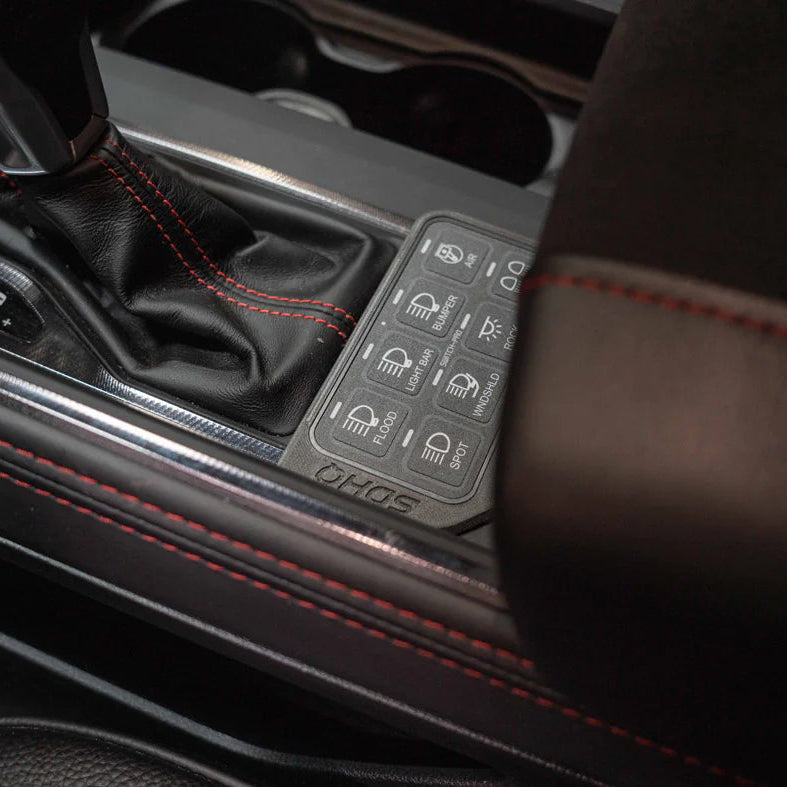

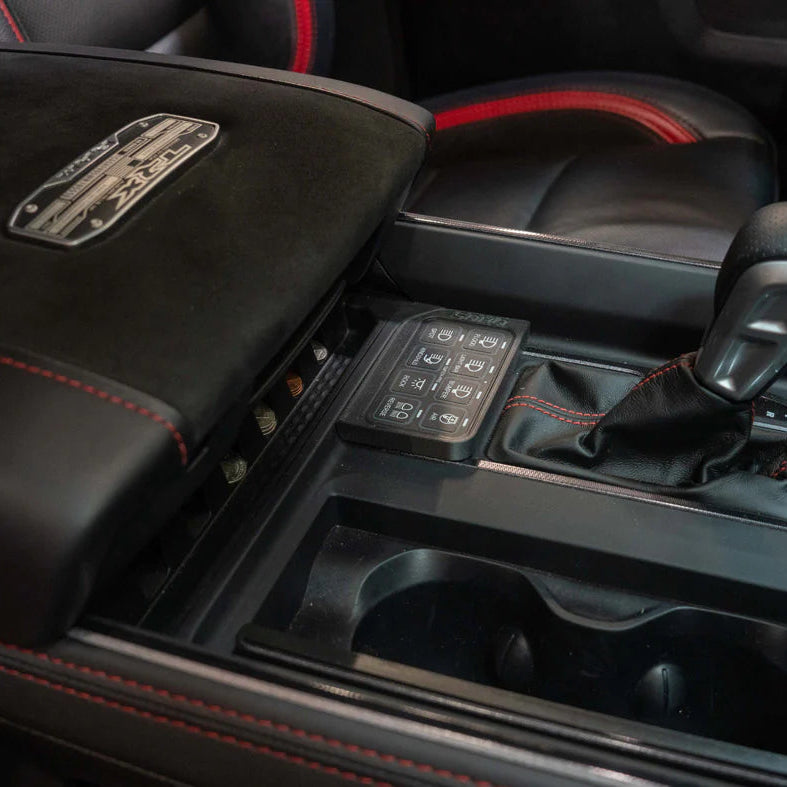

Our SDHQ Built Billet Keypad mount for the Switch-Pros SP-9100 allows you to mount the keypad component of your Switch-Pros SP-9100 in your TRX's OEM shifter panel. This billet keypad mount is machined from 6061 aluminum and has a Type II black anodized finish.
FITMENT DETAILS
- VEHICLE FITMENT: 2021-2024 Ram 1500 TRX
- MOUNTING LOCATION: OEM console shifter
- SWITCH-PROS FITMENT: Switch-Pros SP-9100 Keypad (8-Switch)
- Drilling into to the factory center console required for install
KEY FEATURES:
- 3D CAD designed, engineered & built in-house for our typical SDHQ Built quality, fit, and finish
- Securely mounts the keypad component of your Switch-Pros SP-9100 in a easy to reach location
- Machined from 6061 Aluminum
- Drilling into the factory shifter panel required to install
- Designed for a tight fit with Switch-Pros SP-9100 Keypads.
- DOES NOT FIT Switch-Pros RCR-Touch 8 Cover
- Coated in Type II Black Anodize

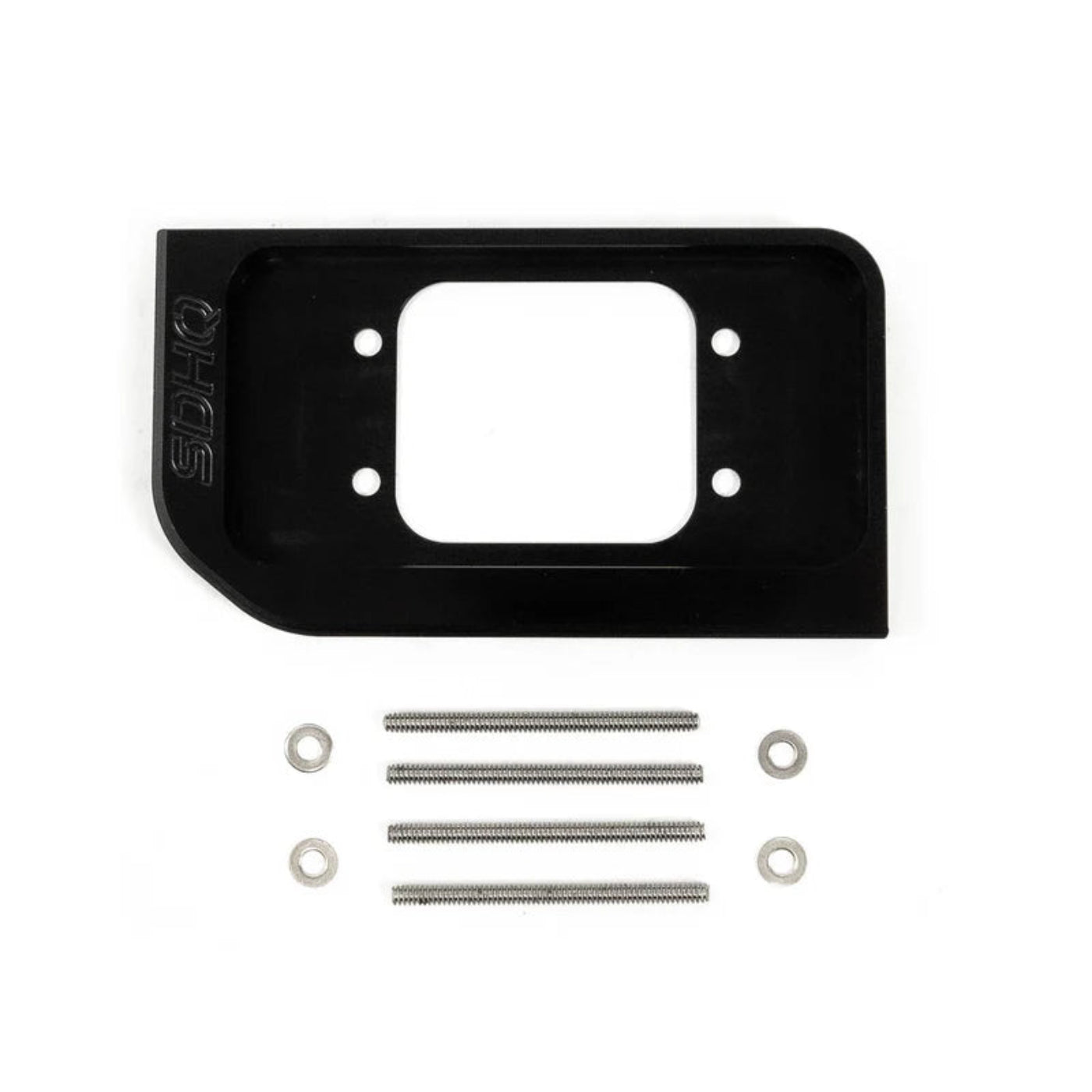

WHAT'S INCLUDED:
- QTY(1) SDHQ Billet RAM TRX Shifter Panel Switch-Pros Mount
- QTY(1) Hardware Kit
- NOTE:
- Does not include any OEM shifter panel components
- Does not include any Switch-Pros SP-9100 components
🔧 INSTALL INSTRUCTIONS 🔧

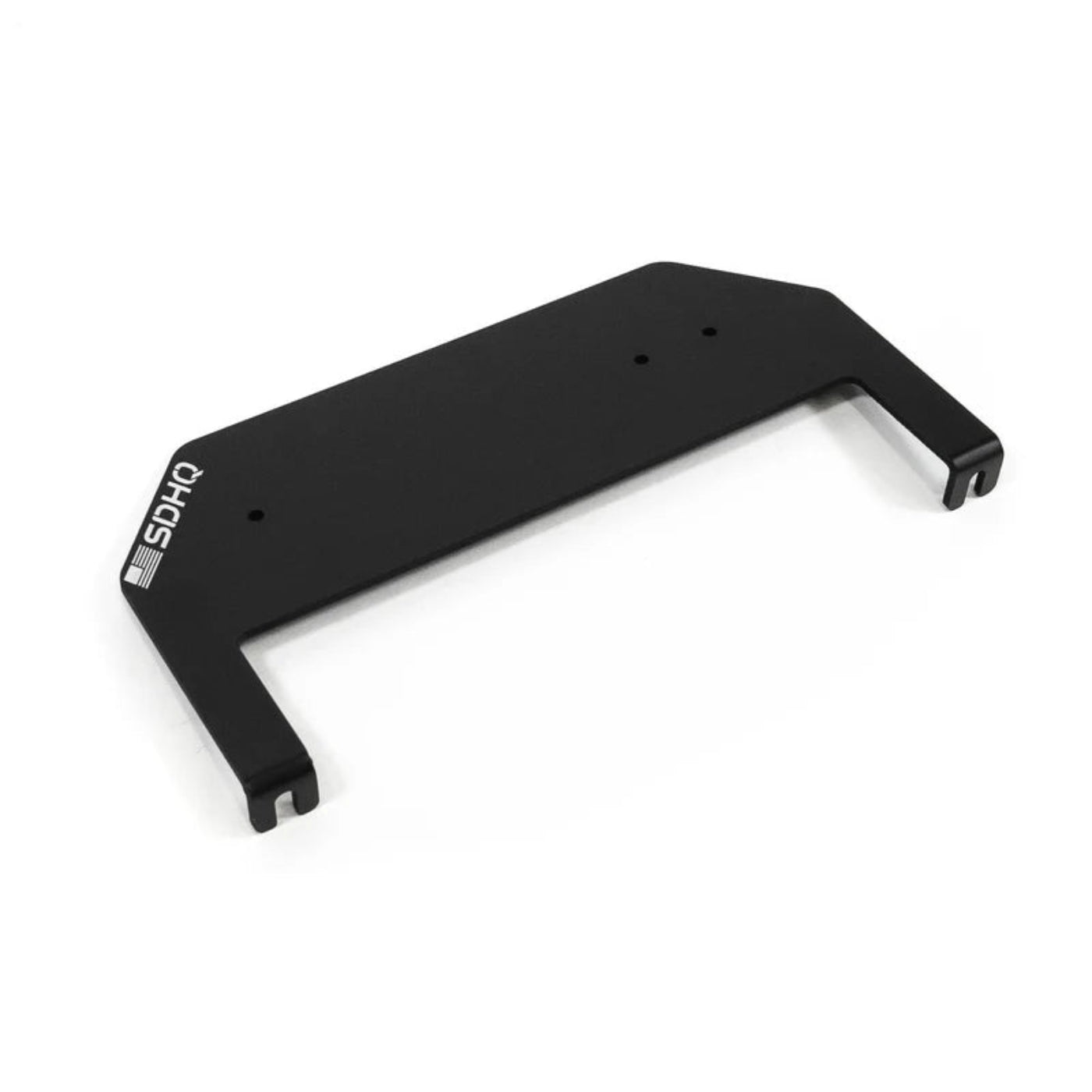

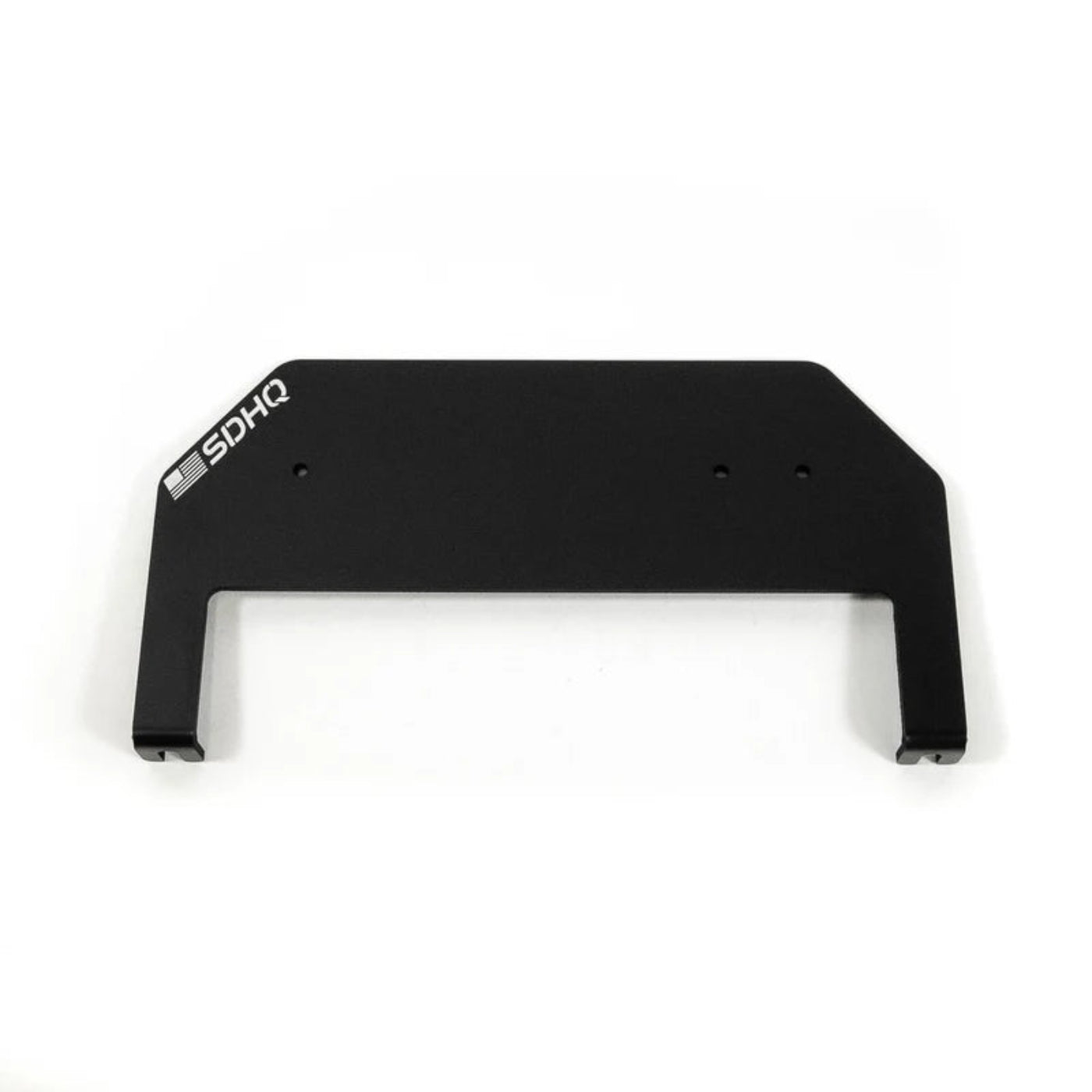

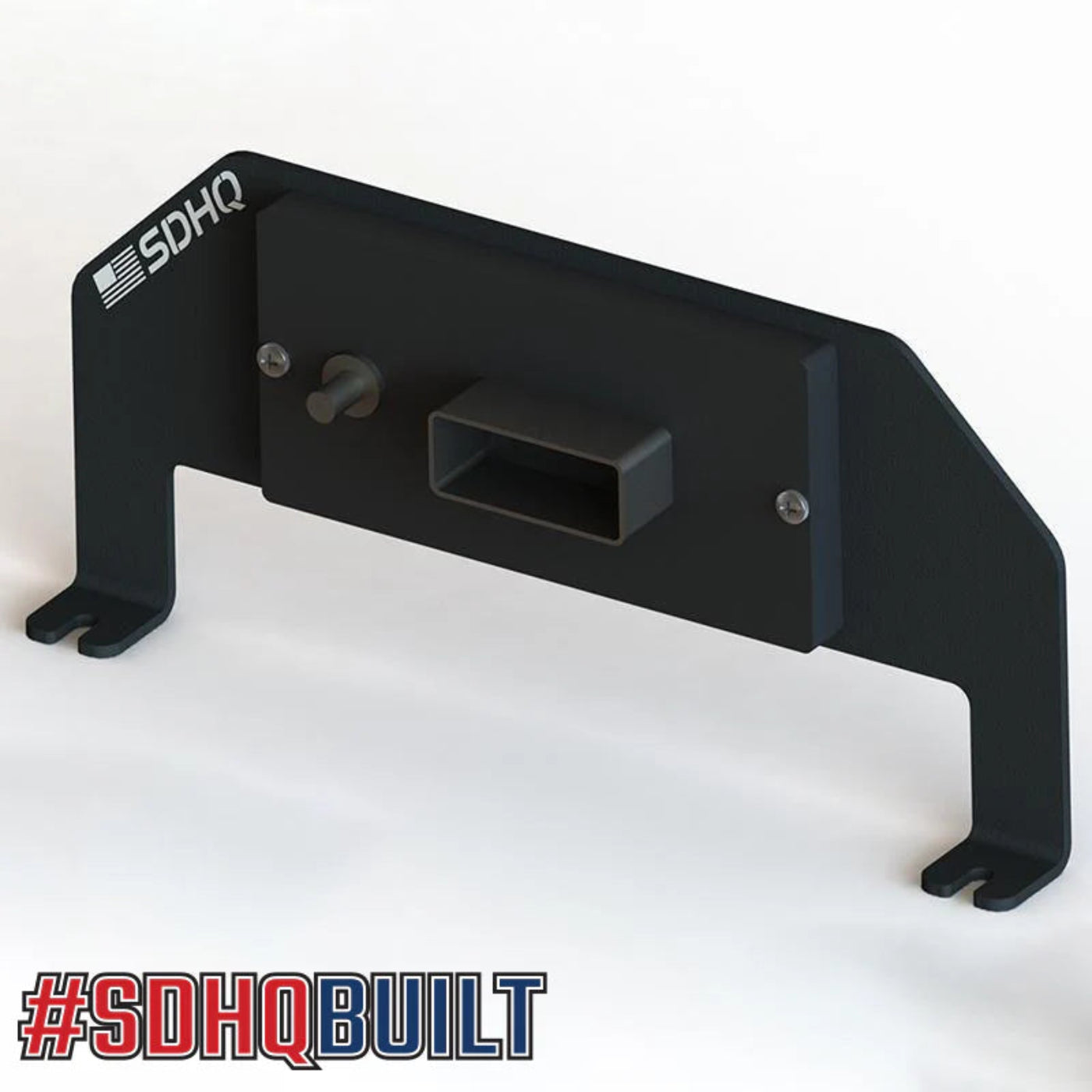

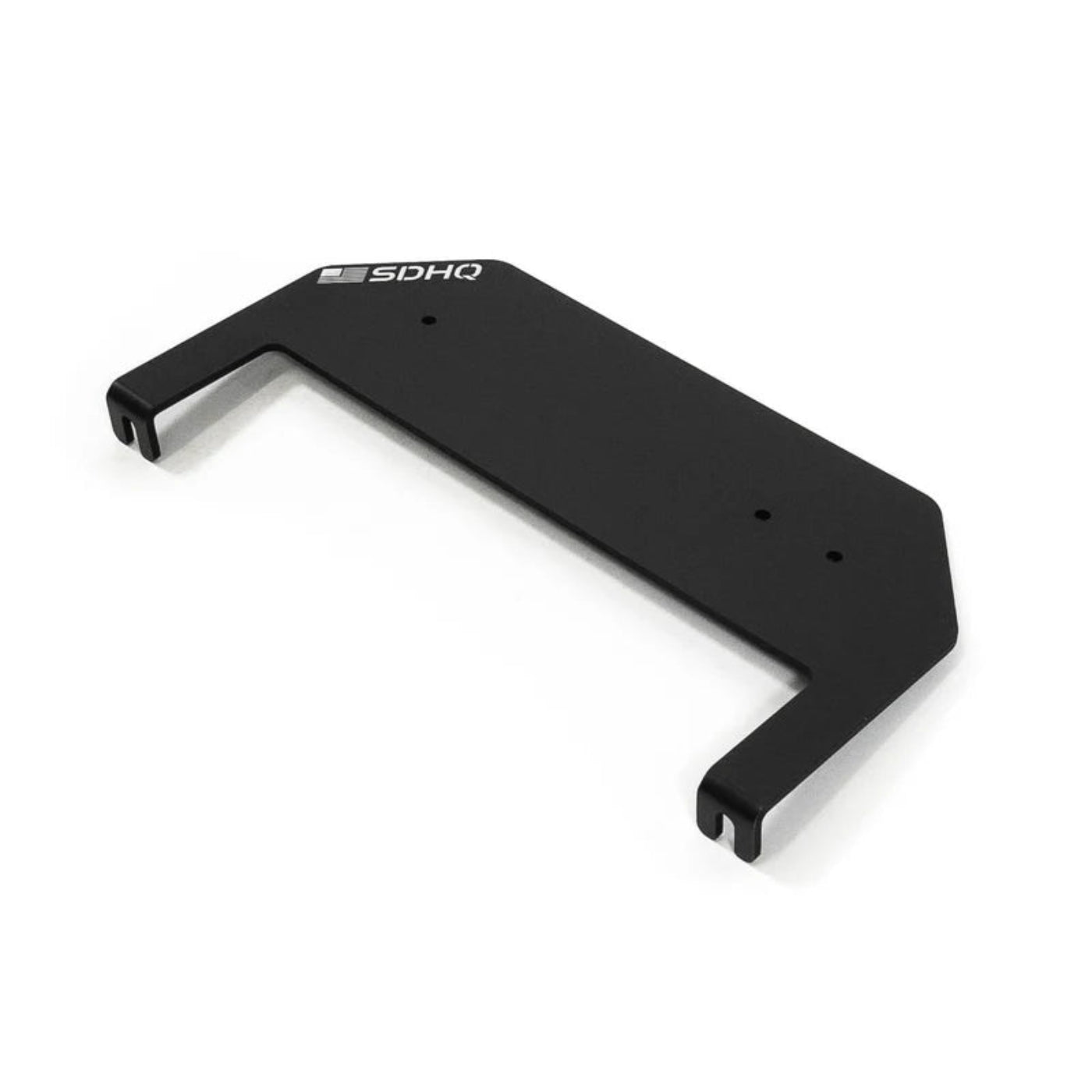

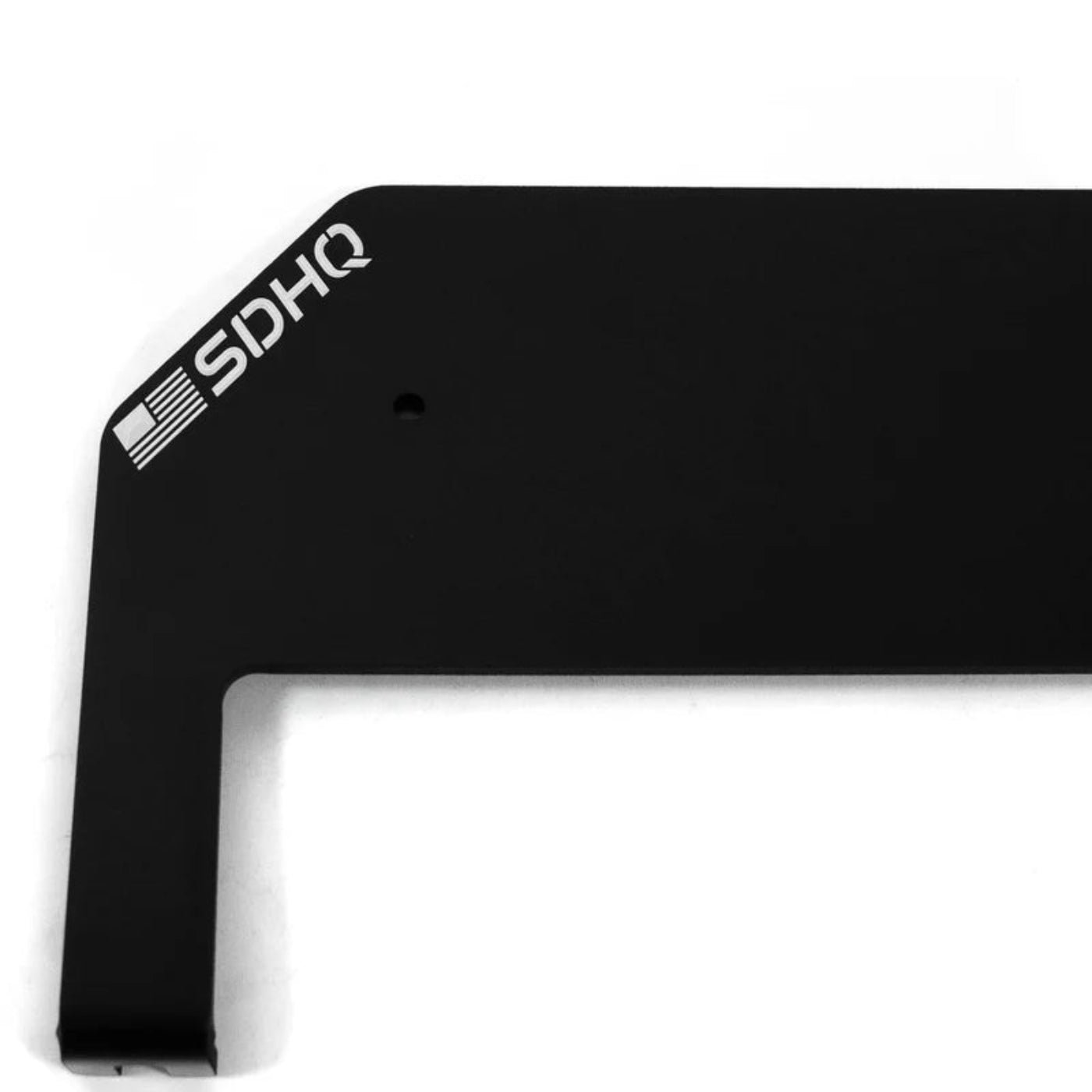

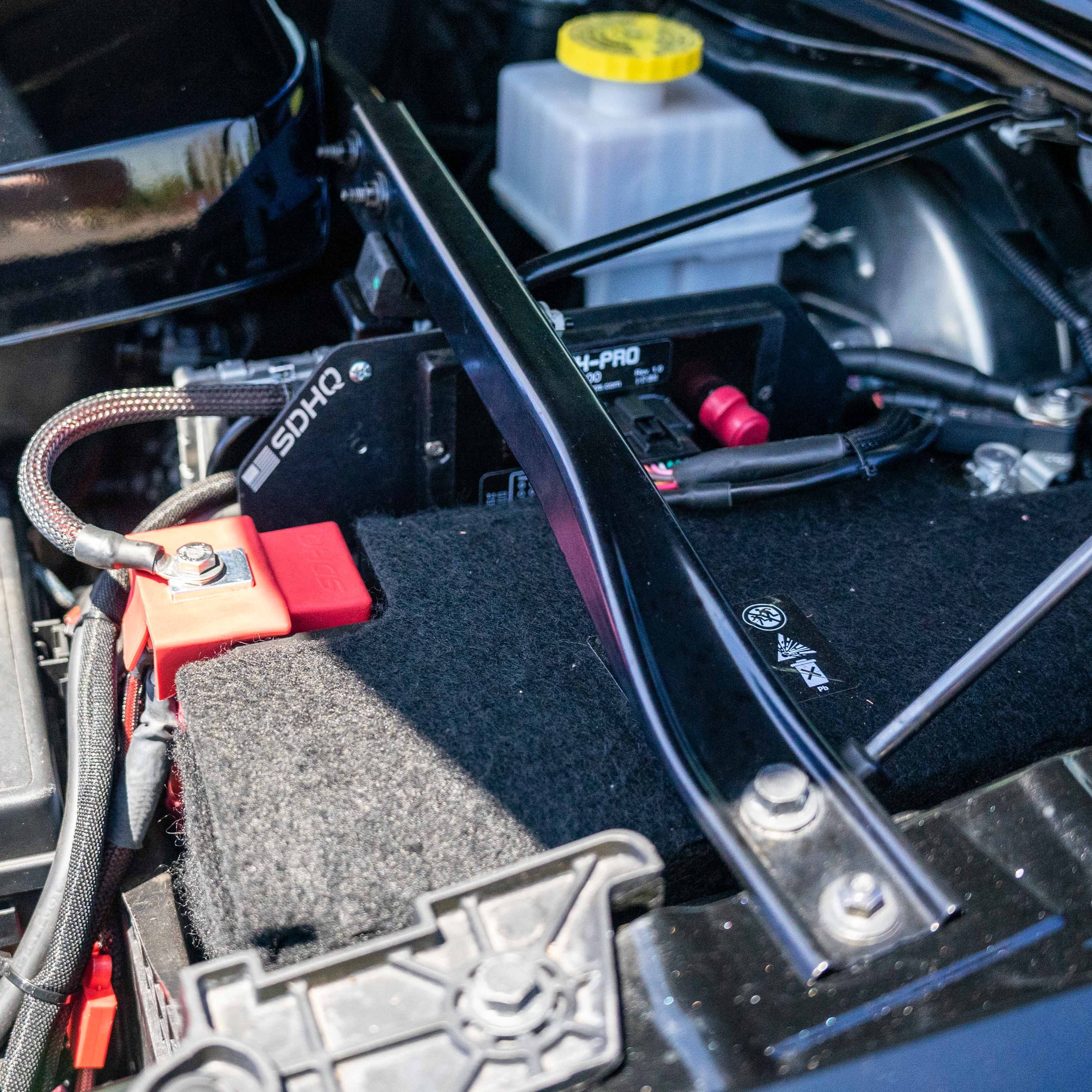

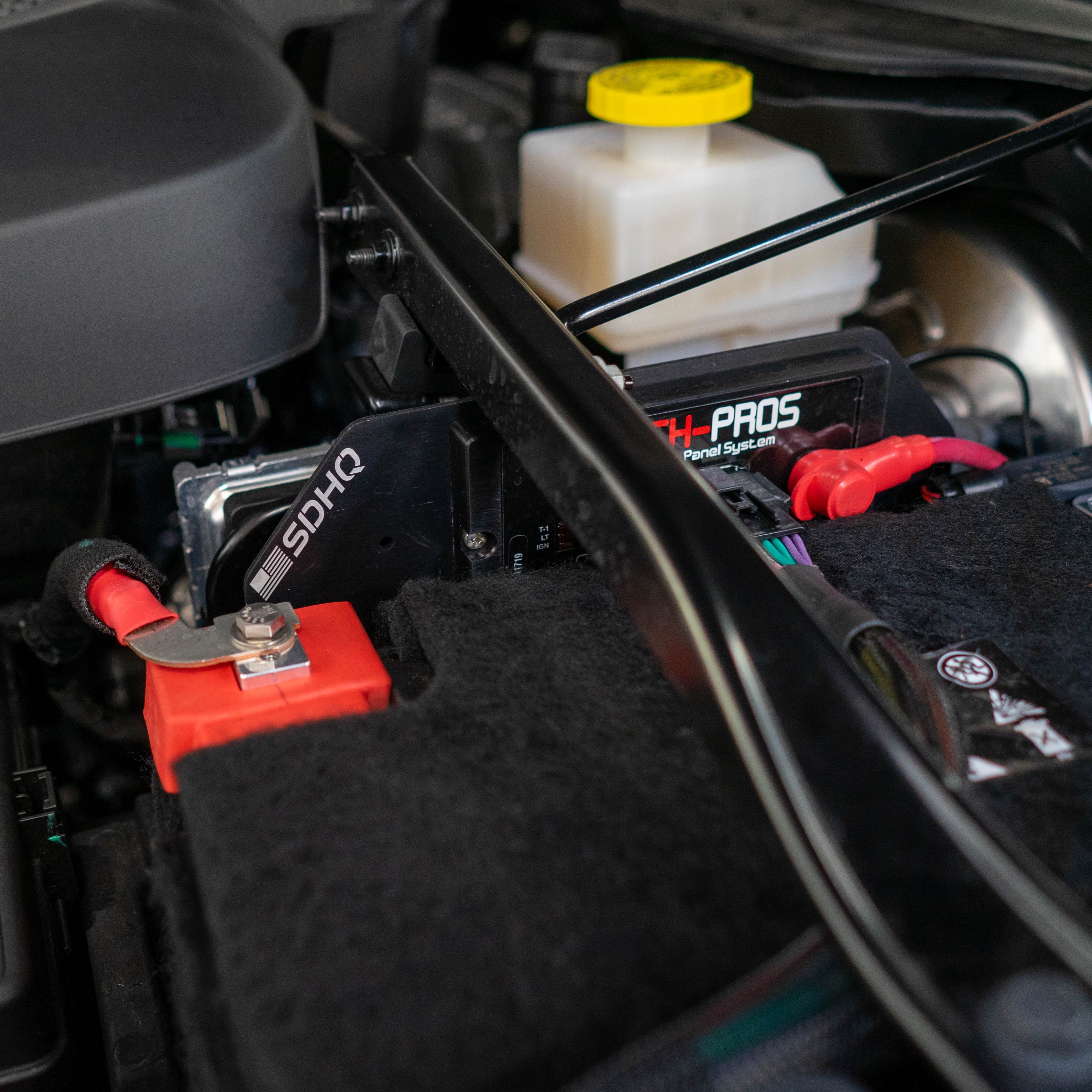

SDHQ Built Switch-Pros Under-hood Power Module Mount
This under the hood the hood mount gives TRX owners the ability to mount their Switch-Pros with a direct from the factory fit and finish.
KEY FEATURES:
- 3D CAD designed, engineered & built in-house for our typical SDHQ Built quality, fit, and finish
- Mounts to existing factory mounting points in the 2021-Current RAM 1500 TRX
- Simple and clean solution for mounting the Switch-Pro Power Module.
- Mounts close to battery for ease of wiring.
- Utilizes Switch Pro Hardware for mounting the Power Module.
- Anodized Black.
COMPATIBLE SWITCH-PROS PRODUCTS:
- Switch-Pros SP-9100 (8 button)
- Switch-Pros RCR-Force-12 (12 button)
TECH INFO:
🔧 INSTALL INSTRUCTIONS 🔧
Switch Pros SP9100
Eliminate dashboard clutter with the Switch-Pros 9100, the market's leading advanced and versatile switch panel system. Control your vehicle's accessories directly from your iPhone or Android.
Key Features:
- Eight customizable switches.
- Four 35A and four 18A circuits; equipped with over-current and short circuit protection.
- Waterproof, 125A Solid State Power Module.
- RGB Backlighting with unlimited colors using App's Color Picker.
- Connect up to 3 Switch Panels to one Power Module.
Switch Capabilities:
- Programmable for On/Off, Momentary, Ignition/Battery, Flash/Strobe with adjustable patterns.
- Memory Function and Master Mode for streamlined control.
- Automatic activation on vehicle start.
- External triggers can control up to four outputs.
- Adjustable lighting dimness; can dim during flash patterns.
- Sleep Mode minimizes power consumption.
- Color-coded wires, 100 selectable switch legends, LED status indicators, Time Delay Off function.
- Splash-proof panel with Polycarbonate faceplate.
- Control via panel or smartphone with built-in Bluetooth. App shows battery voltage readout.
What's Included:
- 11' communication cable.
- Color-coded output wires with waterproof connectors.
- Power Cable (125A inline fuse).
- Standard switch legend.
- Includes RCR-TOUCH-8 PANEL.

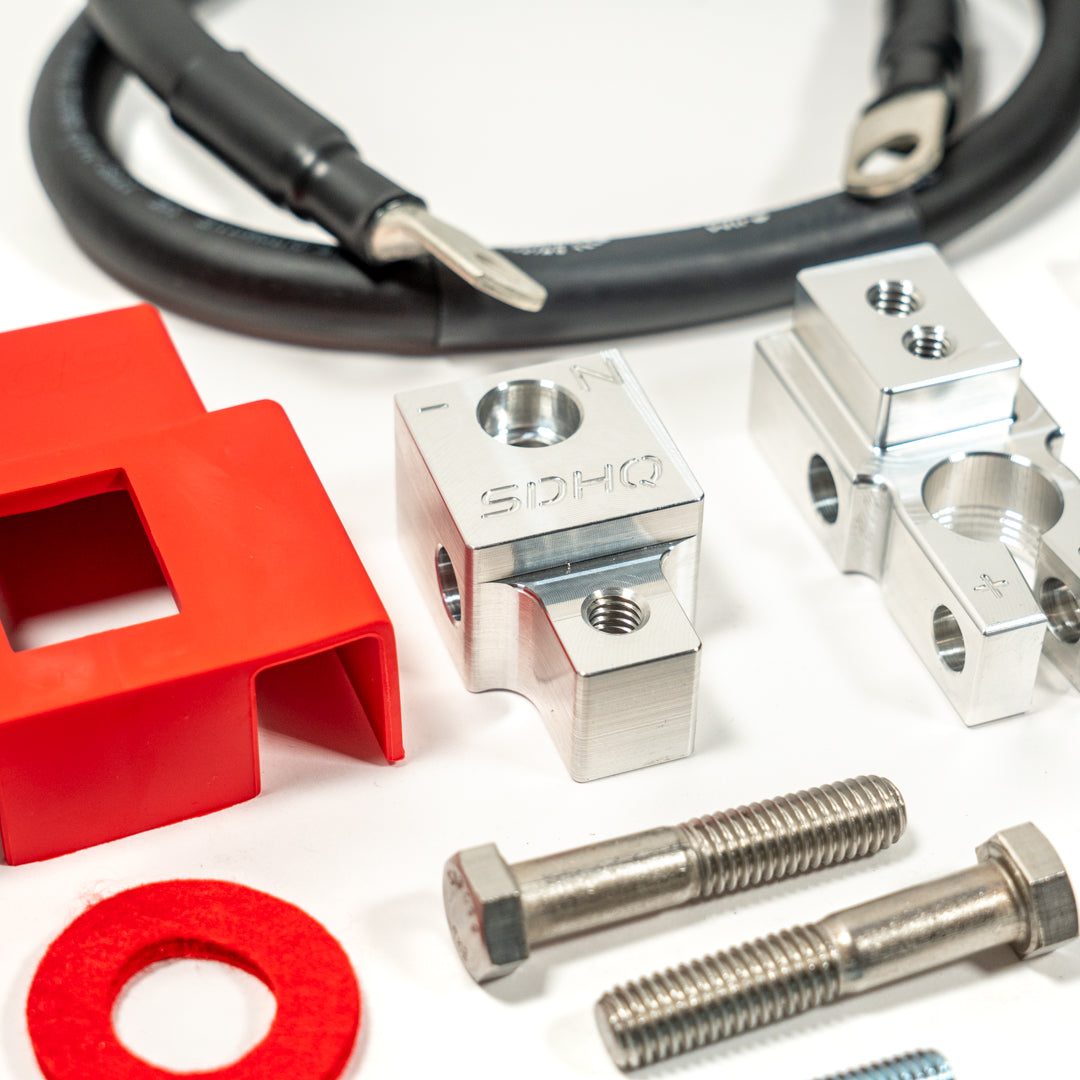

Ram TRX SDHQ Built Billet Battery Terminal Kit (Optional but strongly recommended)
This billet battery terminal kit is designed to work with your TRX's OE amperage sensors.
FITMENT DETAILS:
- VEHICLE FITMENT: 2021-2024 Ram TRX
- Use of our mount for the negative distribution block is required
- Recommended for use with sealed batteries
KEY FEATURES:
- 3D CAD designed, engineered & built in-house for our typical SDHQ Built quality, fit, and finish
- Positive 6061 Aluminum Terminals, Negative 6061 Aluminum Distribution Block, machined In-House
- Designed for use with amperage sensors built into the negative terminal
- Terminal Kit includes Positive Terminal Protective Boot and Post Washers
- (2) ⅜”, (1) 5/16” and (2) ¼” mounting options for accessories. The Positive Terminal has a third ¼” mounting option, with the additional ¼” option on top of the terminal. When the third ¼” mounting is in use, the 5/16” threads are inaccessible due the small footprint of the terminal
- Stainless Steel Hardware with included Anti-Seize Compound
- Recommended for use with sealed batteries
- Includes 32” 2GA wire to ground the distribution block to the battery

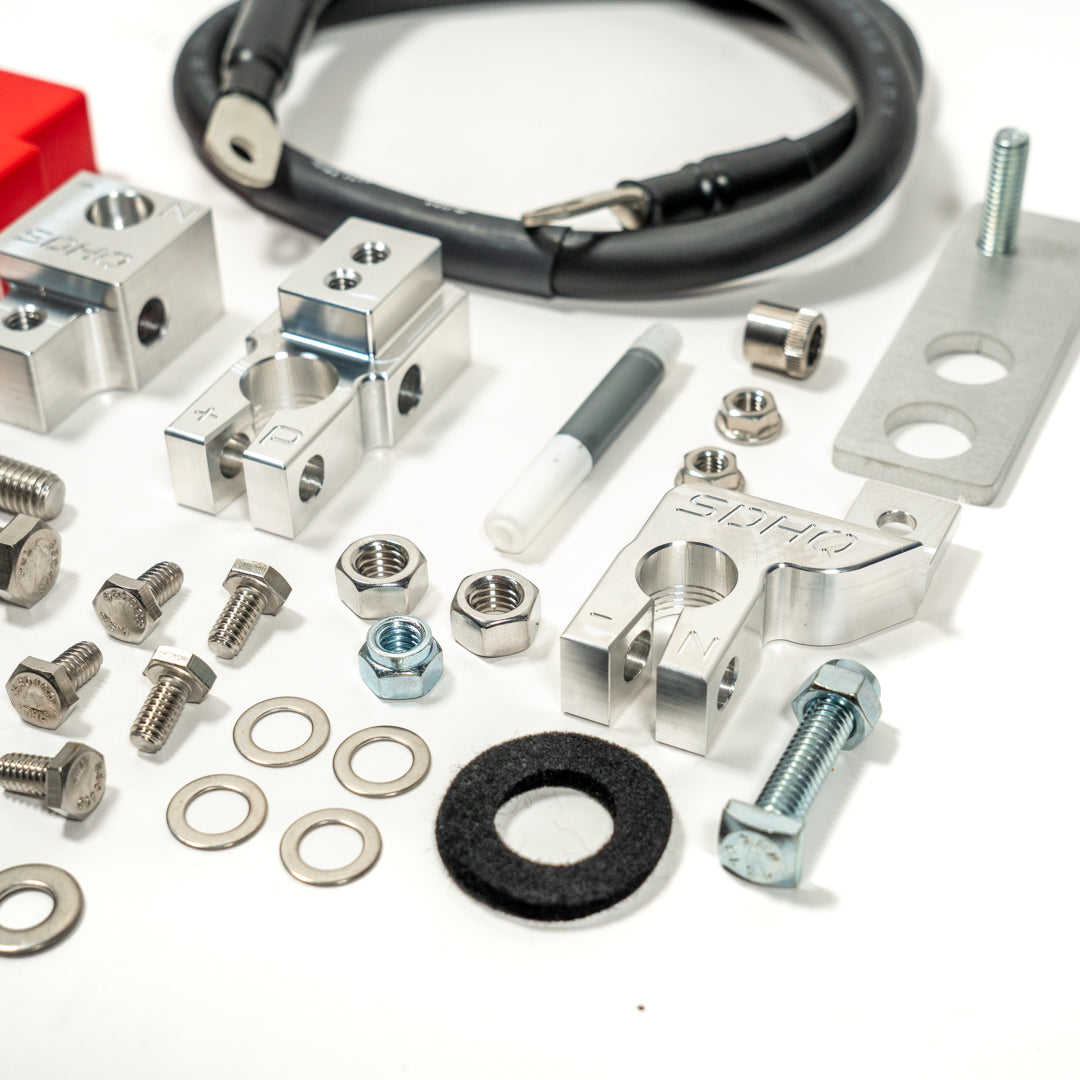

WHAT'S INCLUDED:
- Billet Positive Battery Terminal
- Billet Negative Distribution Block
- Negative Battery Sensor Terminal
- Hardware Package
- Distribution Block Mounting Plate
- 32” 2GA wire to ground the distribution block to the battery
🔧 INSTALL INSTRUCTIONS 🔧
