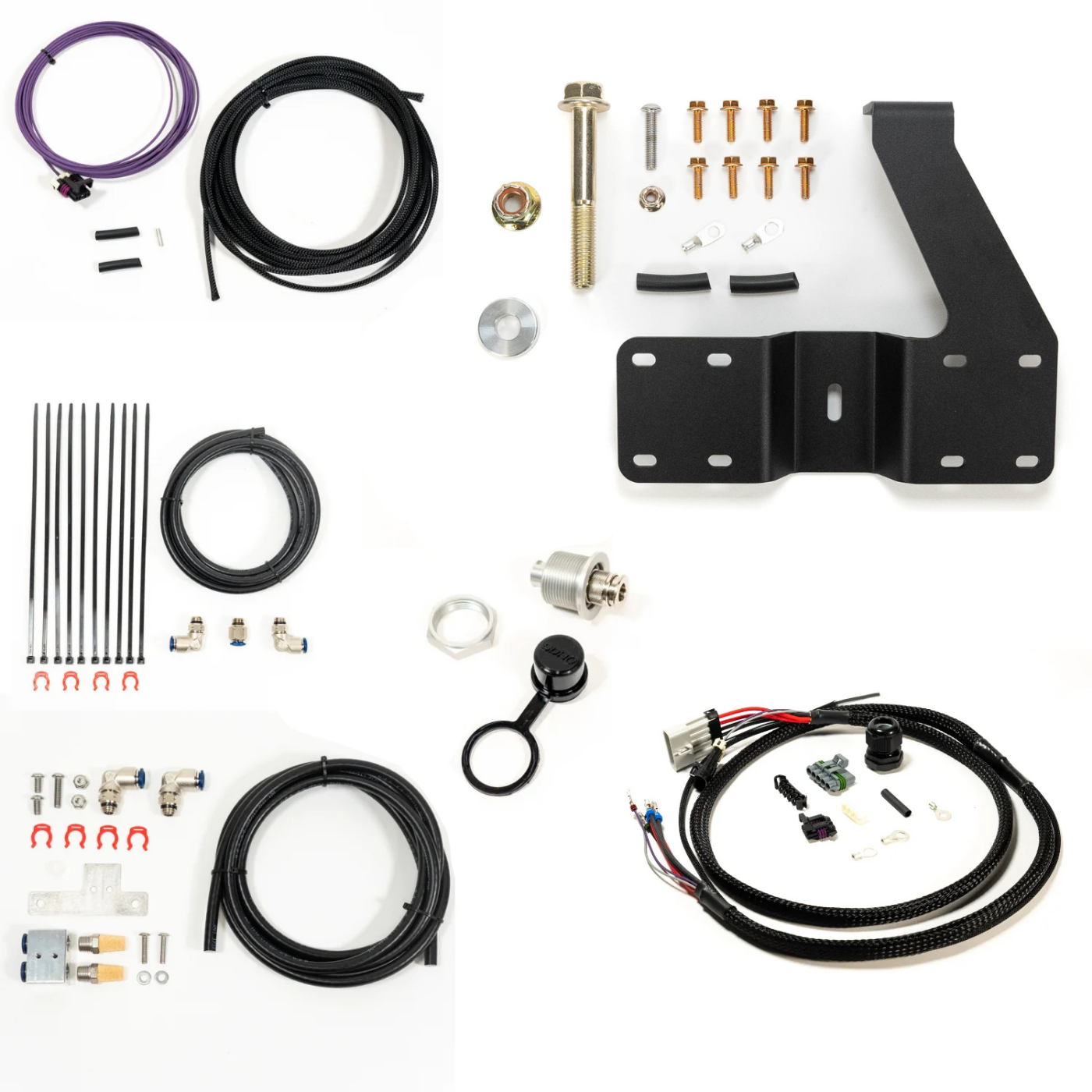

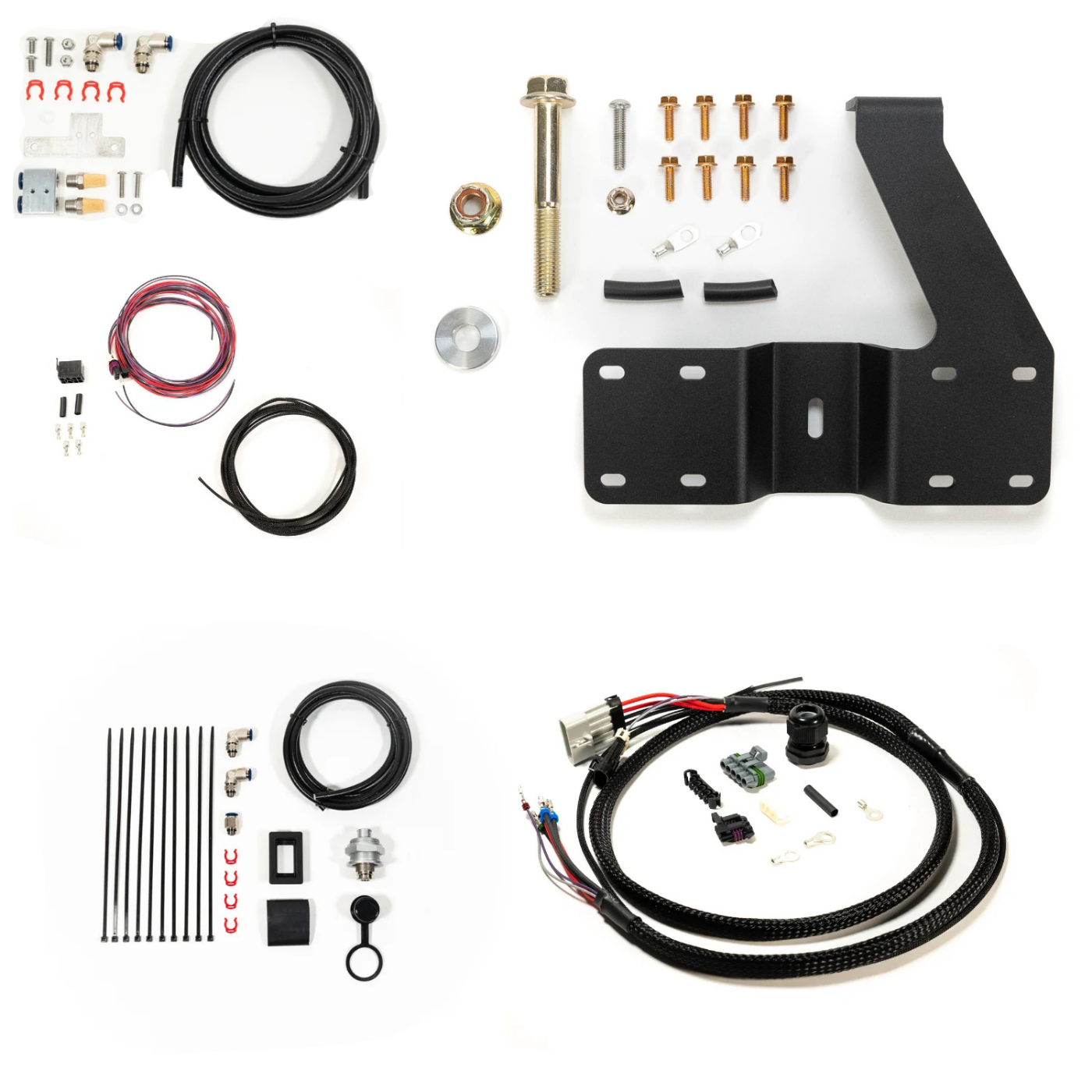

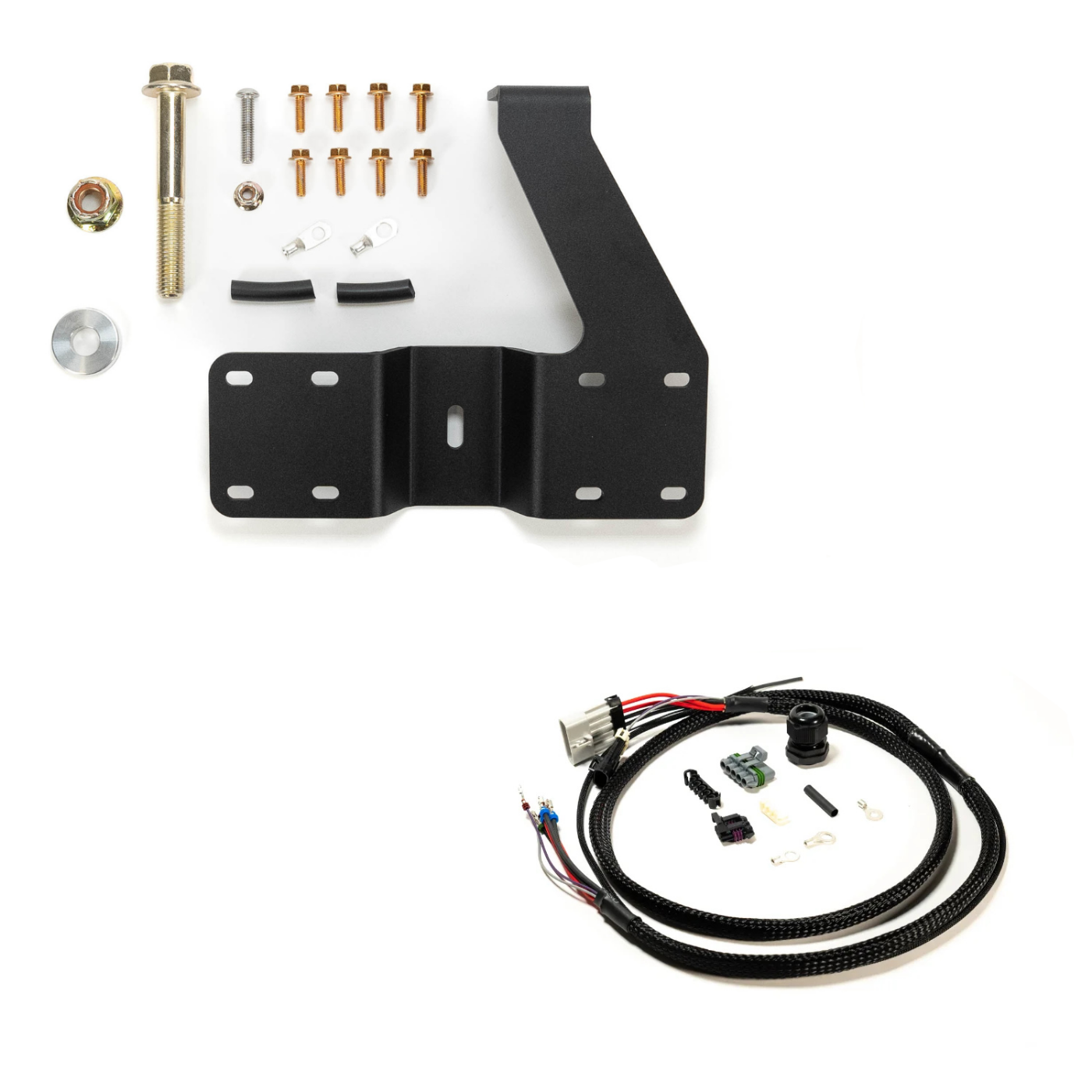

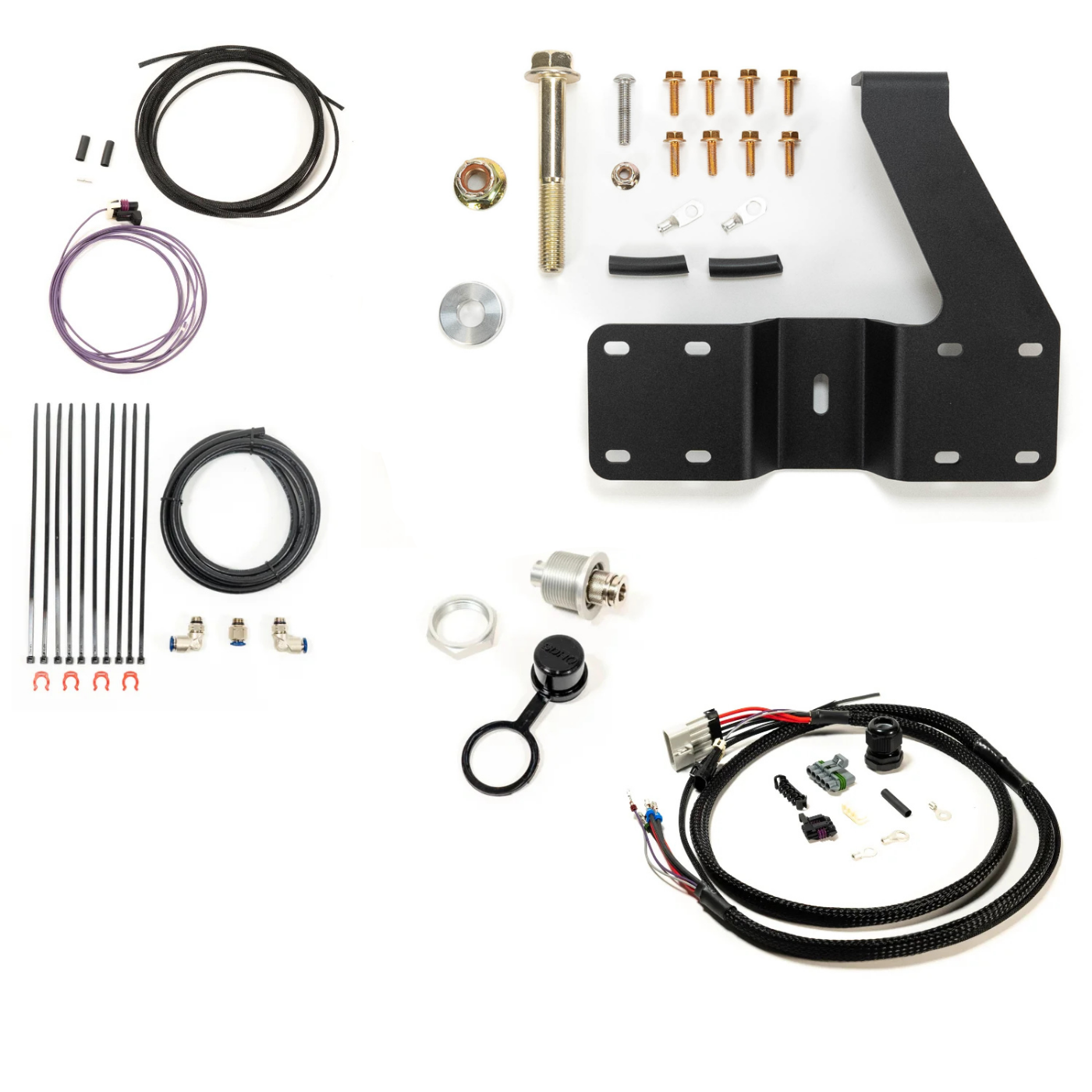

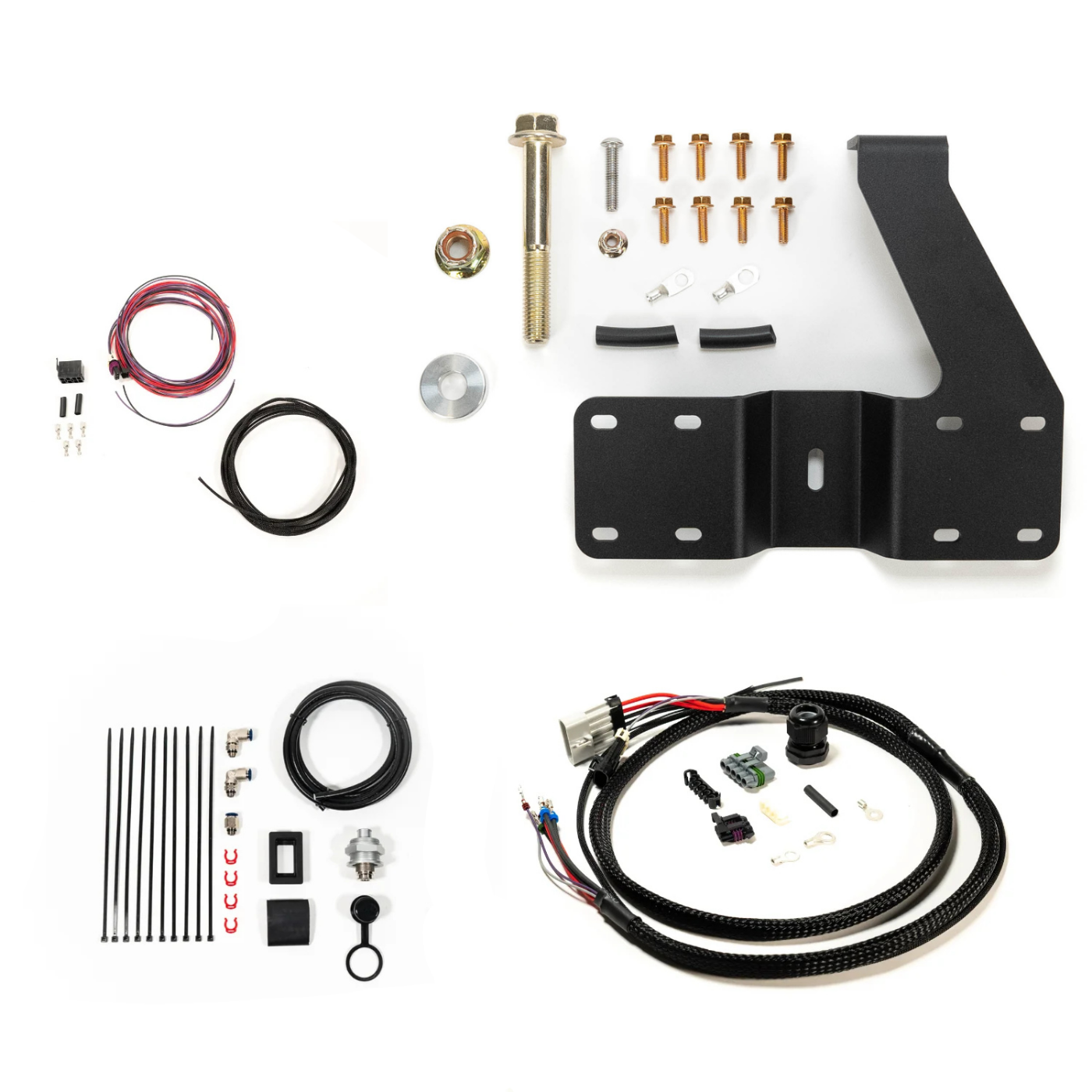

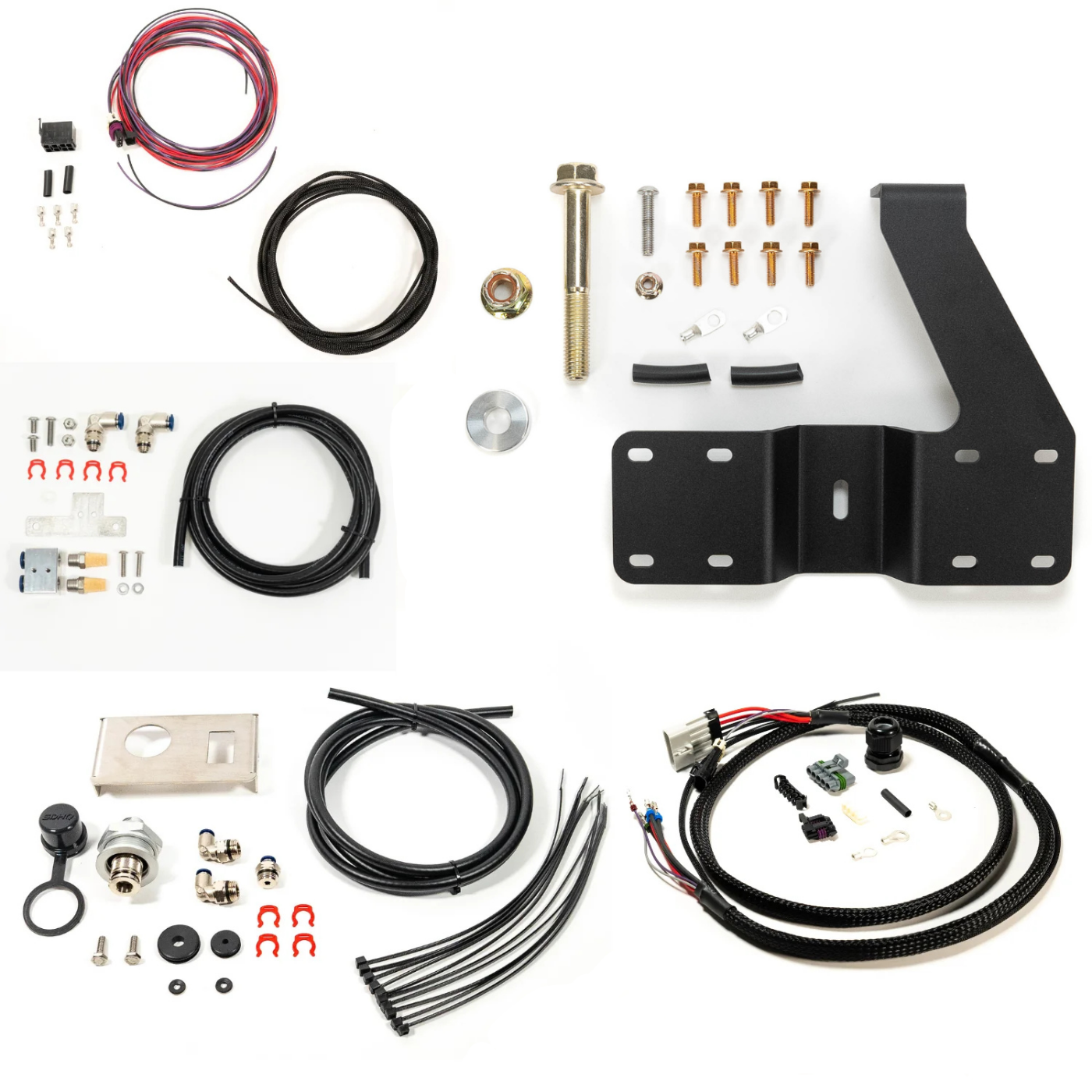

SDHQ Built '24 Tacoma Air Compressor Mount Kit

$384.90
SKU: SDHQ-55-1103-G4 + SDHQ-02-1103-ARB13
Non-Hybrid or Hybrid?:

Non-Hybrid or Hybrid?
Air Chuck/Switch Mounting + Wiring Option:

Air Chuck/Switch Mounting + Wiring Option
Include Air Filter Relocation Kit?:

Include Air Filter Relocation Kit?

SDHQ Built '24 Tacoma Air Compressor Mount Kit

Non-Hybrid / None / No

MCQUEEN

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING

 features:
  • 3D CAD designed for a precise fit and finish
  • Fits 2024 Toyota Tacoma
  • Drilling is not required to install the compressor mount
  • Fabricated 3/16” from sheet metal for durability.

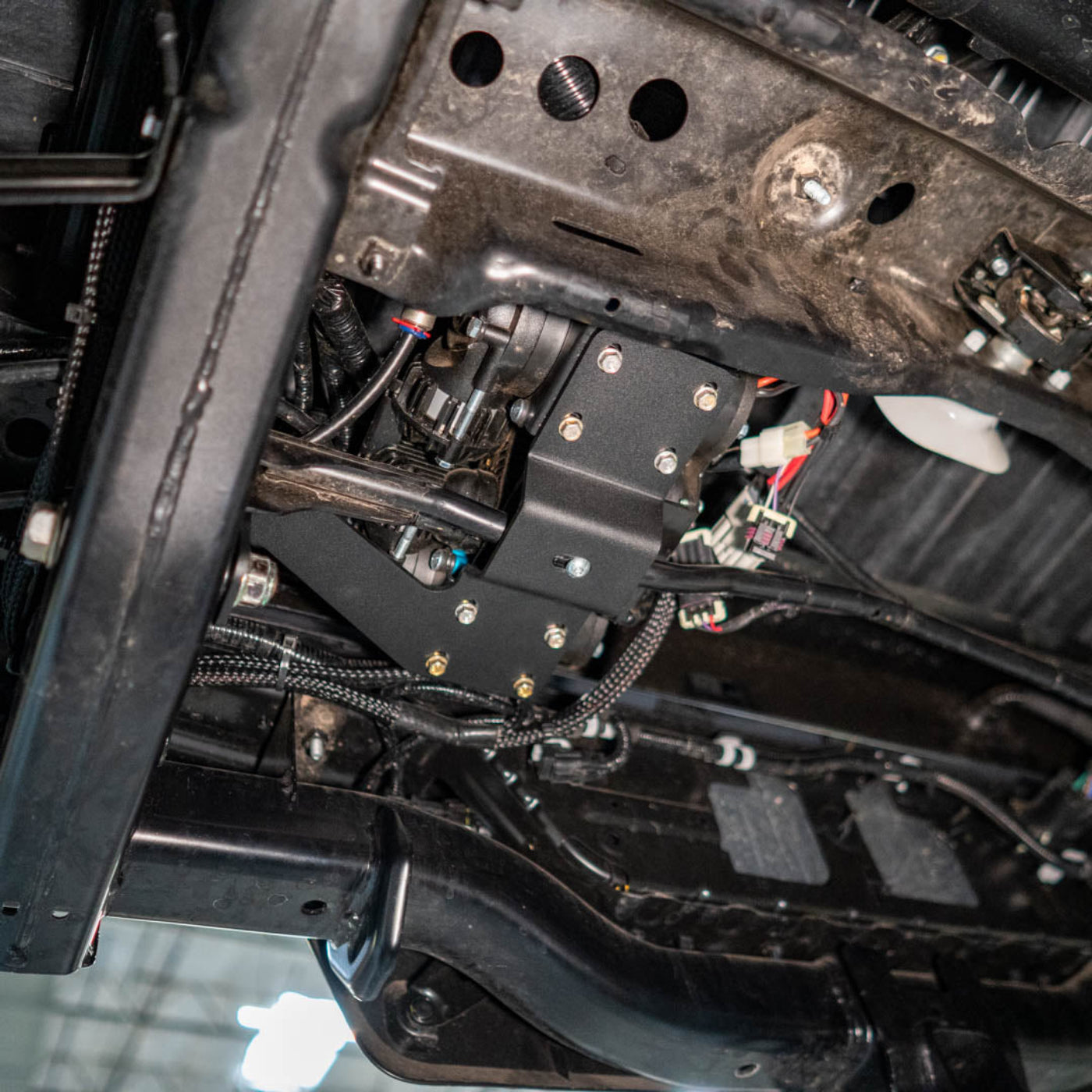

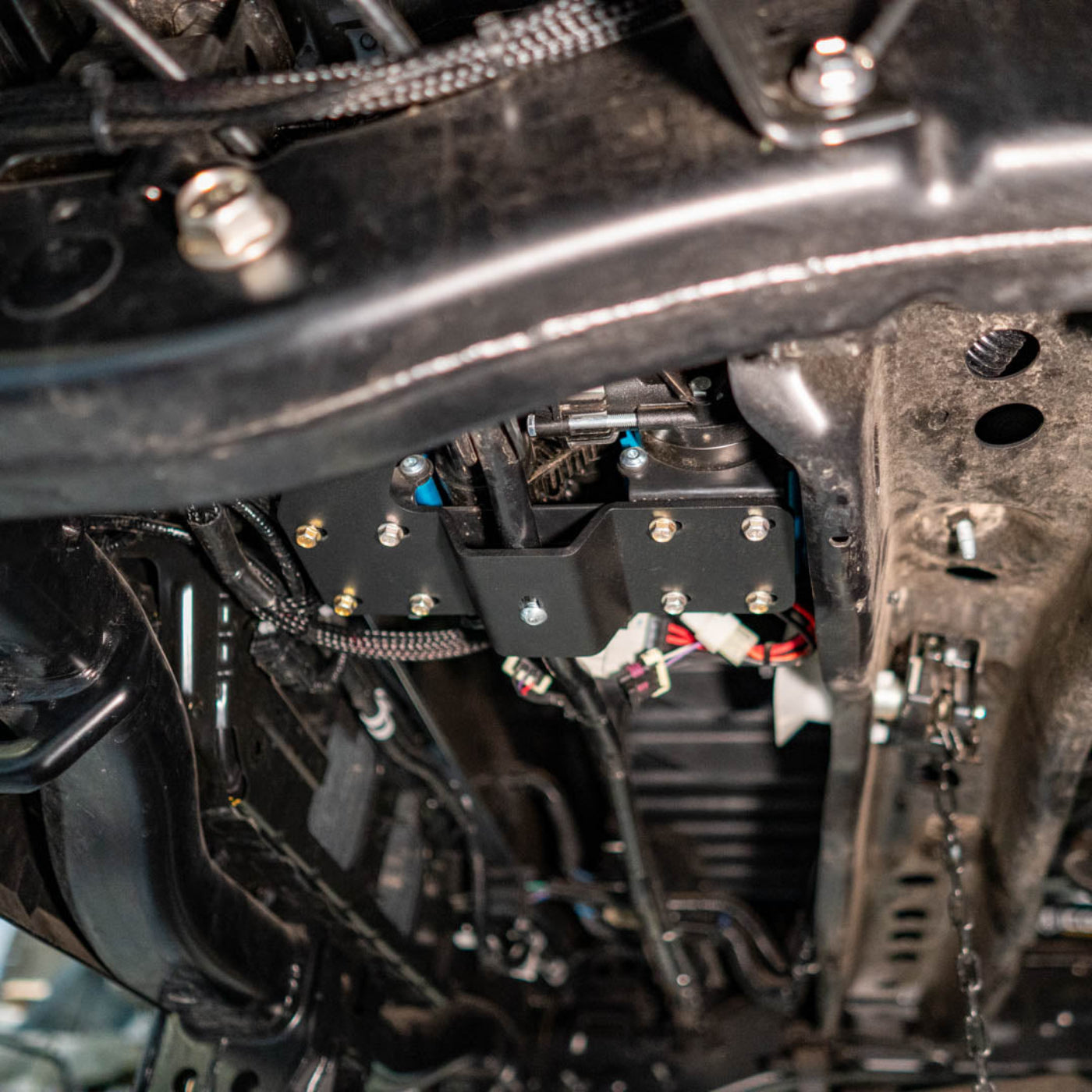

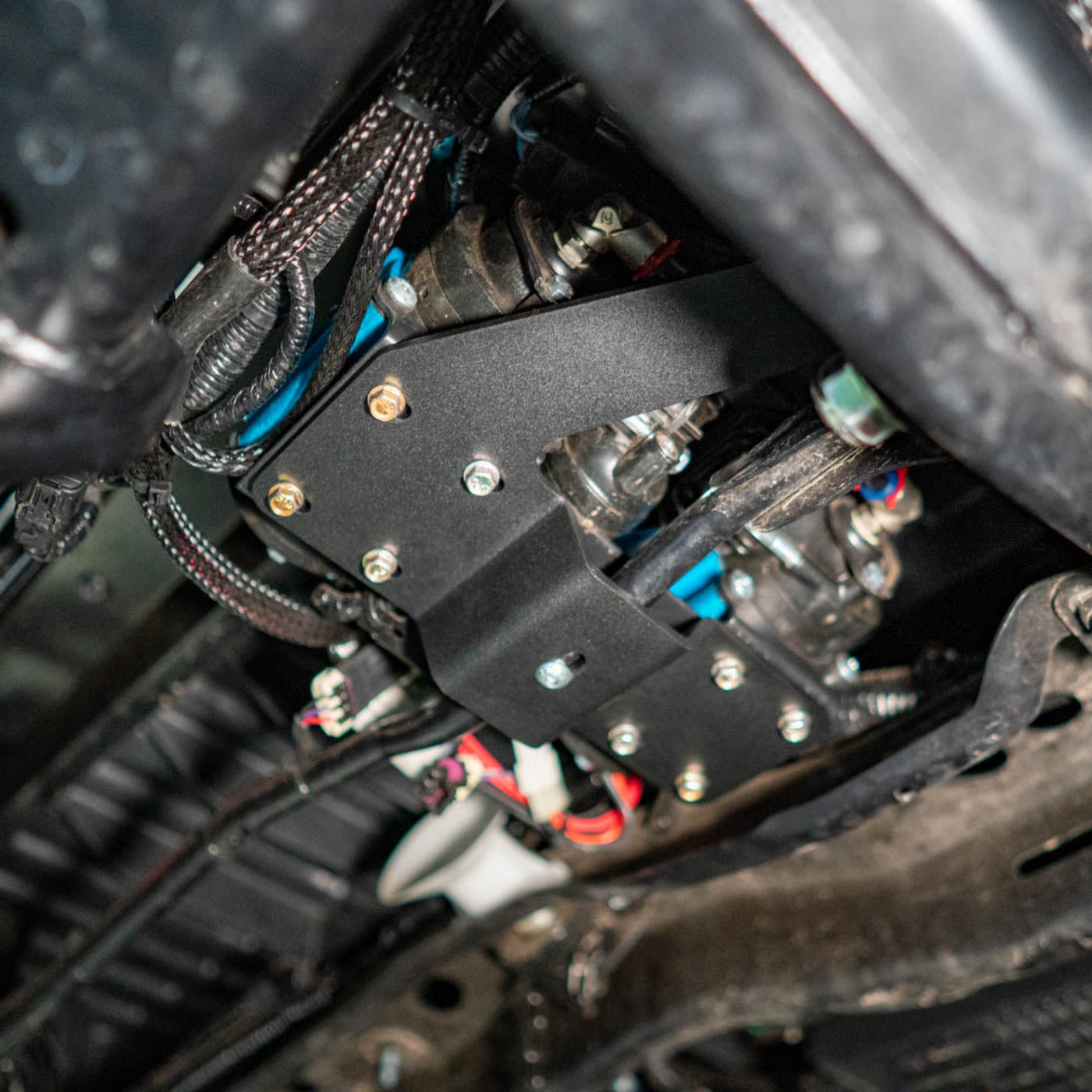

  • Bolts directly into the rear frame cross bar above the spare tire.
  • Designed for the Twin ARB onboard air compressor.
  • 55-1103-G4-S1: Air Chuck and Switch Mount for Tacomas Equipped with the 400W Inverter option.
  • 02-1103-ARB-13: Included in kit for Twin ARB compressor on Non-Hybrid Tacoma.
  • 02-1103-ARB-9: Included in kit for Twin ARB compressor on Hybrid Tacoma.
  • Ships powder-coated black.
  • Not compatible with 00-1103-ACSM, 00-1103-SMK, and 00-1103-ACM.
  • Will fit with OEM Pullout Step installed.
  • Difficulty of Installation: Easy
  • Install Time: Approx. 2 Hours (not including wiring)
PRODUCT options:
SDHQ Built 7.5' Air Chuck/Switch Mounting Kit (SDHQ-00-1104-BK1):
    • 3D CAD designed for a precise fit and finish
    • Designed to fit vehicles equipped with a rear mounted air compressor.
    • *Drilling is required for install.
    • Perfect for mounting an air chuck in the rear bumper or in the bed of a truck.
    • Utilizes a Recessed Air Chuck Bulkhead (00-1104-BH1)
    • Includes 7.5ft 3/8" Airline Kit (00-1004-38-075)
    • Includes Recessed Switch Mount (00-1103-RSM)
    • Some Molle Panels may interfere with mounting in the bedside
    • Difficulty of Installation: Easy
    • Install Time: Approx. 1 Hour (not including wiring)
SDHQ Built ARB Twin 10' Switch Wiring Kit (SDHQ-02-1103-ARB-S2):
    • Connects ARB Twin Compressor to ARB switch (comes w/ compressor)
    • Comes pinned for ARB Switch
    • Extra wires, terminals, and connector included for wiring to an ARB switch
    • Built with Premium Materials
      • TXL Cross-Linked Wire
      • Flexo braided Loom
      • DSG Dual Wall Heat Shrink Tubing
    • Not compatible with ARB air locker wiring harness

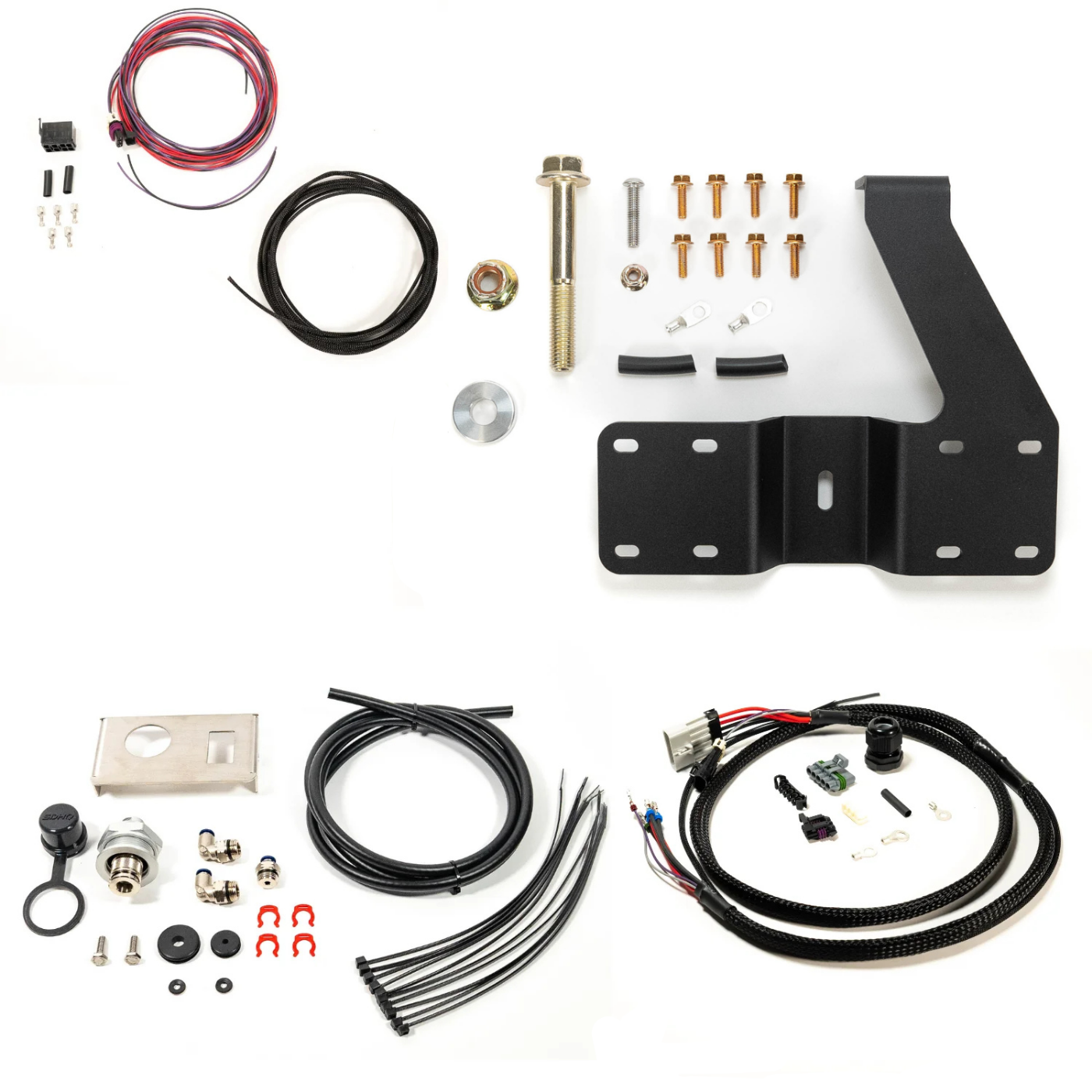

SDHQ Built 2024 Tacoma Bed Power Port Air Chuck and Switch Mount (SDHQ-55-1103-G4-S1)
    • 3D CAD designed for a precise fit and finish
    • Fits 2024 Toyota Tacoma with Inverter and Bed Power Port Option (PT949-35340)
    • Not compatible with Tacomas equipped with the Toyota Tire Inflator
    • Drilling is required for install
    • Fabricated from 14 Ga Stainless Steel for durability.
    • Fits into the rear power cubby and includes sealing washers and
    • grommets to maintain a waterproof seal
    • Utilizes BH1 Bulkhead Air Chuck and has a cutout for an ARB Switch (Contura)
    • We paired this option with the Switch Wiring Kit (SDHQ-02-1103-ARB-S2) to complete the switch wiring for the installation
    • Difficulty of Installation: Easy
    • Install Time: Approx. 2 Hours (not including wiring)
Non-Hybrid ONLY - ARB Twin 10' Switch-Pros Connect Wiring Kit (SDHQ-02-1103-ARB-SP):
    • Connects ARB Twin Compressor to Switch Pros style 12V trigger output
    • Comes pinned for Switch Pros style trigger
    • Built with Premium Materials
        • TXL Cross-Linked Wire
        • Flexo braided Loom
        • DSG Dual Wall Heat Shrink Tubing
    • Not compatible with ARB air locker wiring harness
Hybrid Model ONLY - ARB Twin 20' Switch-Pros Connect Wiring Kit (SDHQ-02-1103-ARB-SPX):
    • Connects ARB Twin Compressor to Switch Pros style 12V trigger output
    • Comes pinned for Switch Pros style trigger
    • Built with Premium Materials
      • TXL Cross-Linked Wire
      • Flexo braided Loom
      • DSG Dual Wall Heat Shrink Tubing
    • Not compatible with ARB air locker wiring harness
SDHQ Built ARB Filter Relocation Kit (SDHQ-50-1103-FR):
    • 3D CAD designed for a precise fit and finish
    • Designed to work specifically with ARB Twin Air Compressors
    • Not compatible with ARB Single Air Compressors or Viair Air Compressors
    • Requires no drilling for installation
    • Includes high-quality hardware made of Class 10.9 steel and 18-8 stainless steel
    • Uses industry-standard 3/8" push-to-connect cartridges
    • Incorporates bronze air filters for added protection
    • Utilizes a billet aluminum block to house the filters and cartridges
    • Features a corrosion-resistant and strong stainless steel bracket
    • Superior water, mud, and dirt protection (mounts above passenger rear wheel liner on Sequoia, bed support behind the taillight on Tundra and Tacoma)
    • Easy to install (approximately 1 hour)

If the drop-down options do not fit the way that you want to plumb and wire your system, each option above can be clicked on and added ala-carte to build your own kit.
