Baja Designs

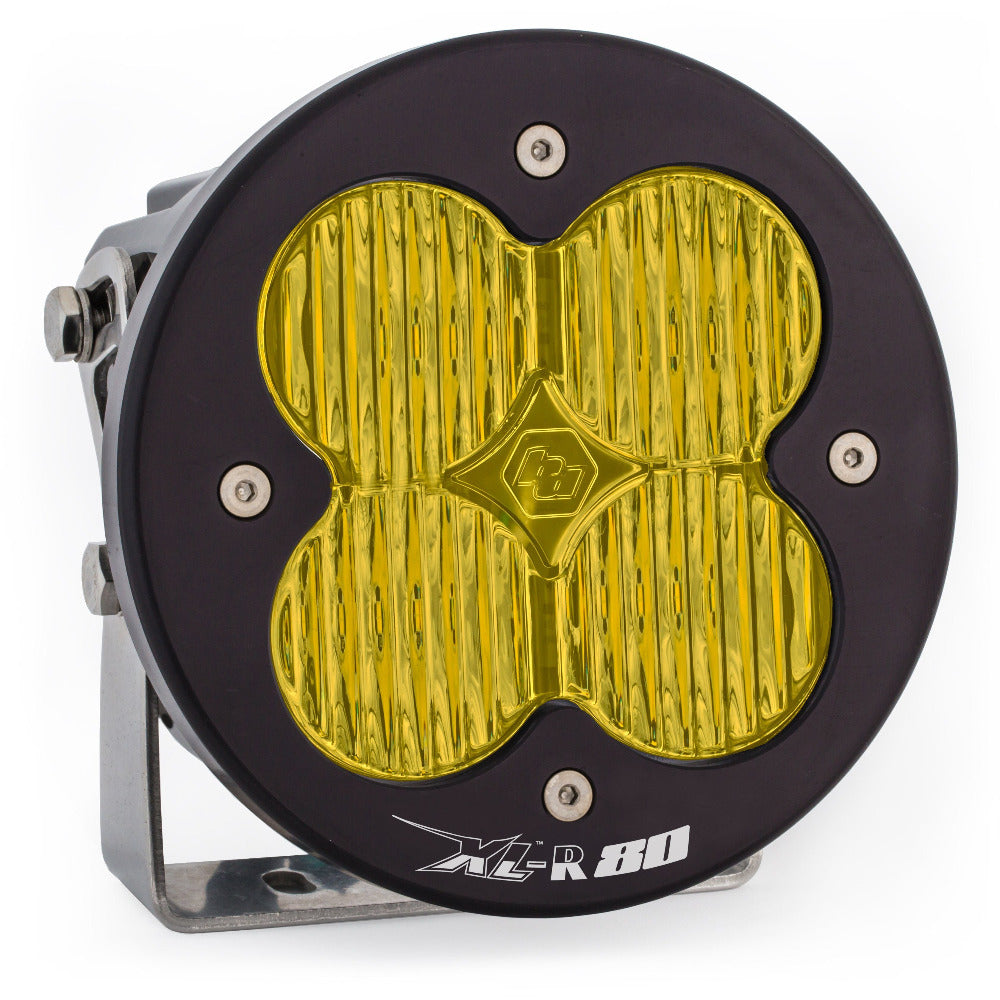

XL 80-R LED Light
Lense Color
Beam Pattern
XL 80-R LED Light
Clear / Driving/Combo
MCQUEEN
190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States
TAKE YOUR LIGHTING TO THE NEXT LEVEL:
Choose to take your off-road lighting to the next level with BD’s 9,500 lumen XL80. Similar to BD’s XL Pro model, the XL80 offers a 20% dimming feature, a powder coated housing and an anodized bezel. However, this is where the similarities end. The XL80 features a very powerful LED for greater visibility and increased brightness.
WHAT'S INCLUDED:
- XL-R 80 LED Light
- Mounting Bracket
SPECS:
- Lumens: 9,500 Utilizing 4 Cree LEDs
- Wattage/Amps: 80W / 5.50A
- Dimensions: 5.24" x 3.65" x 5.24"
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hardcoated Polycarbonate
- Housing: Hard Anodized & Powder Coated Cast Aluminum
- Bezel: Billet Machined Aluminum
- Hardware & Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft & Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)
BEAM PATTERNS:
- Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance
- Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting.
